12 Channel 315Mhz RF digital satellite receiver Learning Code remote control For Automatic Curtains CY412PC
- Brand Name:CY
- Model Number:CY412PC
- Certification:CE RoHS
- Color:White
- Place of Origin:Guangdong, China
- Material:ABS, Metal
- Code:Rolling Code, Fixed Code, Learning Code
- Function:LED indicator light, Automatic
- working volt:12V/ 24V
- static working current:7mA
- operating temperature:-40~+80C
- working frequency:315mhz/ 433.92mhz
- sensitivity:>=-105dBm
- output current:<=10A
- dimension:48mm*33.6mm*18mm
- Maximum storage:400 codes
- certificates:CE & Rohs
- warranty:2 years
12 Channel 315Mhz RF digital satellite receiver Learning Code remote control For Automatic Curtains CY412PC
CE,ROHS Approval
12-Channel 12V/ 24V AC intelligent Wireless Receiving controller
Introduction:
| Features: | |
| It is designed with small size, beautiful exterior , Sound wave resonator (SAW) is used for stabilizing frequency | |
| It is applied for wireless alarms, wireless controlling devices, etc. | |
Tech Specfications: | |
Operating voltage | DC12V/24V |
Operating frequency | 315,433.92 MHz |
Frequency deviation | ± 0.2MHz |
Operating temperature | -40 °C ~ +80 °C |
Receiving sensitivity | ≥-105dBm |
Modulation | AM |
Signal output method | M4:Momentary-signal non-locking , L4:Latch-signal interlocking, T4:Toggle-signal self-locking |
Encoding chip | program chip , It can use with transmitter which is fixed code(PT2262/PT2264/SC2262) and learning code (eV1527) |
Size and Weight: | 123*78*31.5mm / 147g |
Use range: | |
| Very easy and convenient used for home/store anit-theft alarm,electric cars,,motorcycles, | |
| automobile ,car alarms,all kind of doors/windows controllers and other industrial control | |

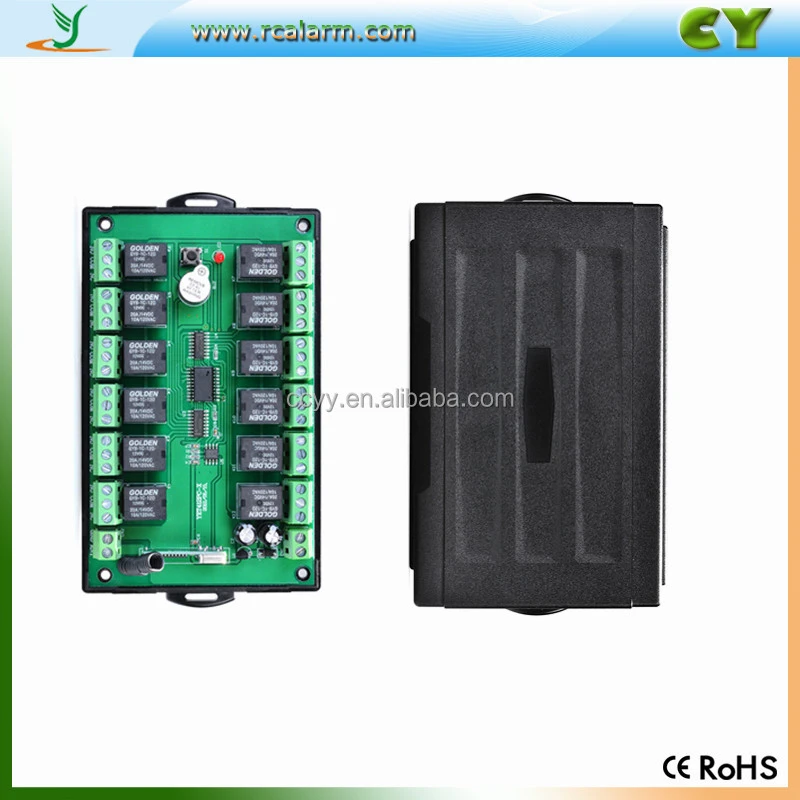

CY4112PC pictures: (12 relays 12V/ 24V universal remote Rf controller)

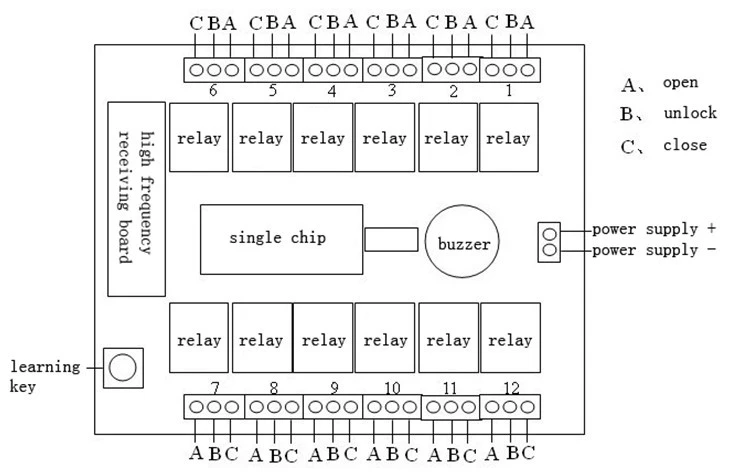

I.Output
A.singnal inter-locking ----connect CN2 and disconnect CN3
B.singnal non-locking---- disconnect CN2 and connect CN3
C.singnal self-locking---- disconnect CN2 and CN3
II.Iearning method and steps
1.press the learn key on receiver board - lights that enter the learning state,
2.at the same time, press any key on remote control-lights flash to off that have success in learning
III.Clear the deposit information
keep pressing learn key about 10s to the buzzer soundedthat deposited information has been successfully cleared
Packaging Details: Carton,500PCS per case ,carton size:48*38*26CM, GW=NW+1.8KG
Delivery Details: 7~15 days
1.your inquiry related to our products or prices will be replied in 12 hours
2.well-trained and experienced staffs to answer all your enquires in fluent English
3.OEM&ODM,any your customized products we can help you to design and put into production
4.Protection of your sales area, ideas of design and all your private information
5.Deliver by air mail or ship for your orders
1.30% deposit,70% balance before shipment :T/T & western union optional;
2.Minimum Order:100 pcs(accept trial order);
3.Delivery Details:within two weeks (Sample can be delivered within 3 days);
4.Discount are offered based on order quantity;

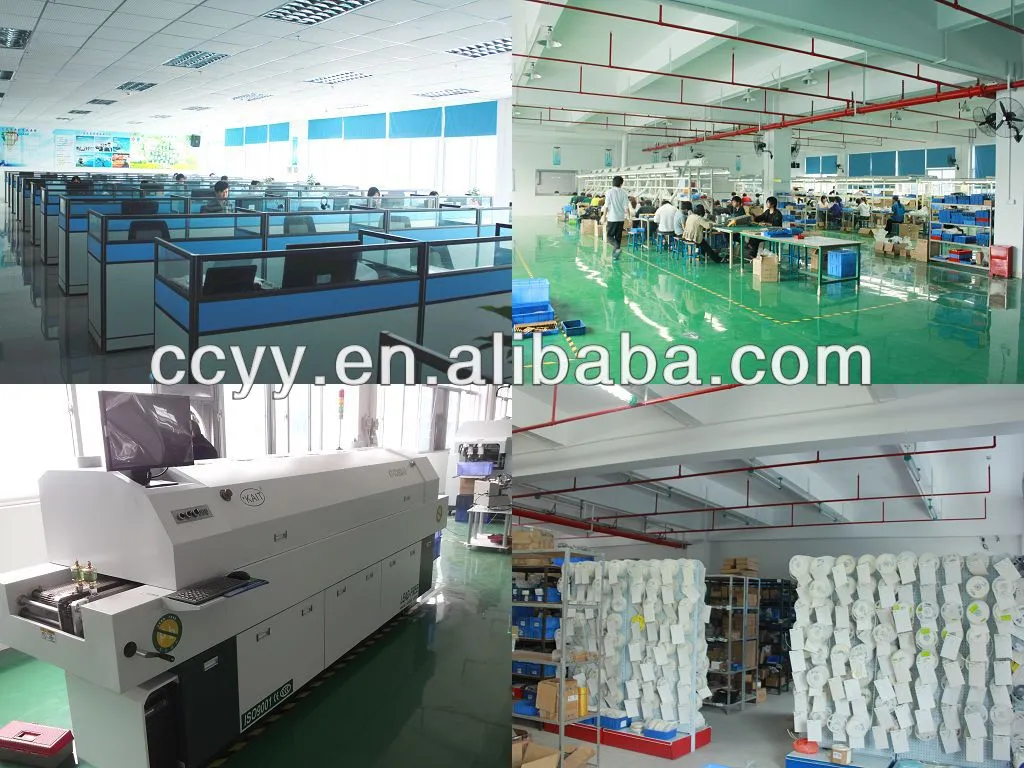

Our factory:

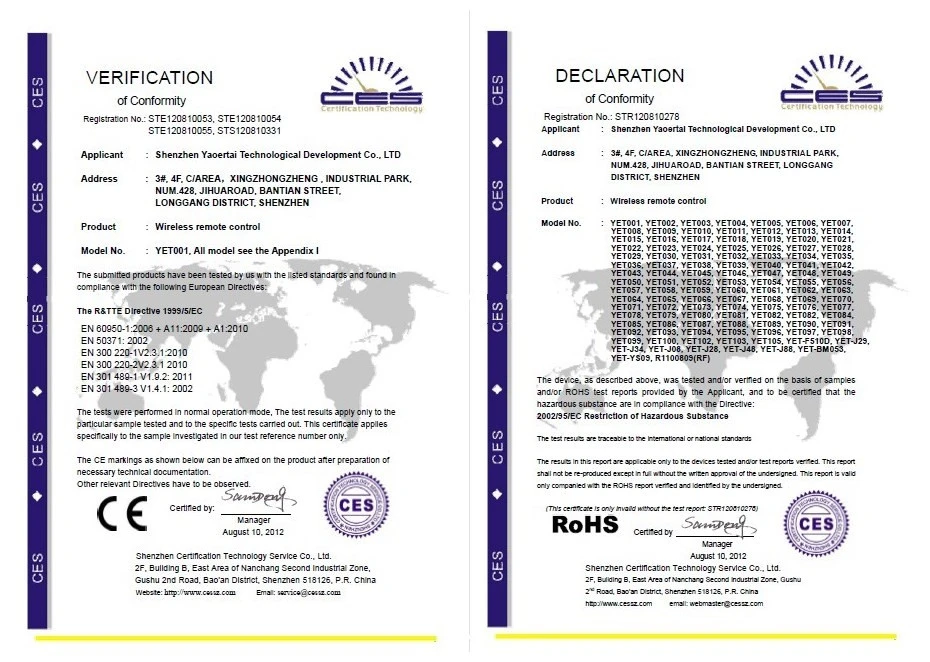

Our certicicates:
