2-Channel universal ON/OFF switch receiver controller DC12V/24V remote rf receiver for roller shutters rf switch
2-Channel universal ON/OFF switch receiver controller DC12V/24V remote rf receiver for roller shutters rf switch
- Warranty:1 Year
- After-sale Service:Free spare parts, Return and Replacement
- Project Solution Capability:total solution for projects, R&D service
- Application:garage doors
- Design Style:Modern
- Place of Origin:Guangdong, China
- Brand Name:YET

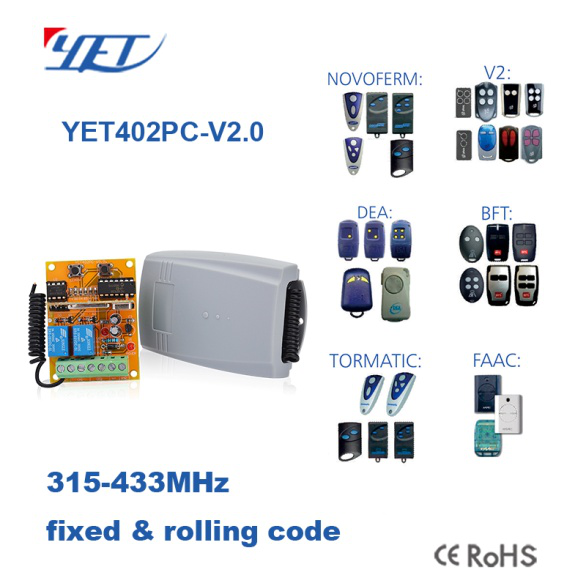

- Model Number:YET402PC-V2.0 rf receiver
- Type:rf receiver
- Use:universal
- Voltage:12v/24v
- Frequency:315MHz(optional between 260 and 440MHz
- Quiescent Current:12mA
- Sensitivity:-105dB
- Weight:60g/per
- Operating Temp:40C~+60c
- Modulation Mod:ASK
- Transfer:Wireless rf
- Product type:DC12V/24V 2-channel rf receiver garage door openers
Output
A.singnal inter-locking ----connect CN2 and disconnect CN3
B.singnal non-locking---- disconnect CN2 and connect CN3
C.singnal self-locking---- disconnect CN2 and CN3
Iearning method and steps
1.Press the learn key on receiver board - lights that enter the learning state,
2.At the same time, press any key on remote control-lights flash to off that have success in learning.
Clear the deposit information
Keep pressing learn key about 10s to the buzzer soundedthat deposited information has been successfully cleared.
Technical indicators
1. Operating voltage:12V~24V AC/DC
2. Static operating current:≤6mA
3. Working temperature :-40°C- +80°C
4. Receive sensitivity:≥-105dBm
5. The working frequency:315MHz,433MHz
6. Output current:≤10A
7. Size:74.5*4.5*7mm
8.Item :remote control rf receiver
2-Channel universal ON/OFF switch rf receiver controller DC12V/24V remote rf receiver for roller shutters rf switch

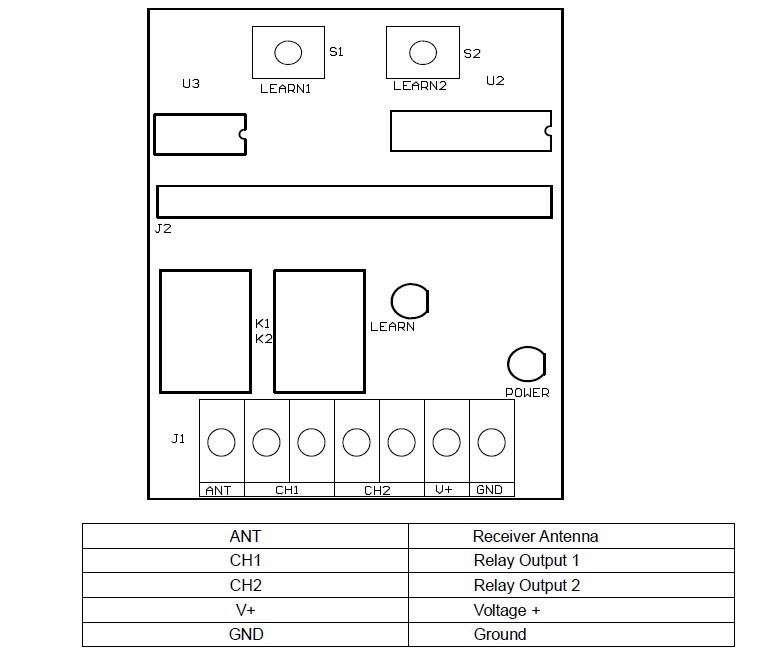

Wiring Diagram
Packing
1, PC bag with master carton,500PCS per case ,carton size:48*38*26CM, GW=NW+1.8KG
2, blister package with master carton
3, white box with master carton
4,color box with master carton
5.Item :Wireless Remote Control Switch
Our Service:
1. Professional technological support
2. 2 years product warranty
3. Well trained sales team to provide efficient service.
4. Your inquiry will be responsed in 12 hours.
2-Channel universal ON/OFF switch rf receiver controller DC12V/24V remote rf receiver for roller shutters rf switch
Our Advantages:
1. Stepped into RF field for over 10 years, now is the head company in RF remote industries.
2. Cooperated with first class raw material suppliers for years, stable provide and high qualified material.
3. Strict QC system through production.
4. Dust-free plant with imported machines,high efficiency and accuracy.
5. Stable vendor of some large companies due to high quality and good service.
Why Choose Us:
1. Qualifications up to 2013 | 2 invention patents,3 utility patents,5 design patents |
2. R&D strength: | publish new items per 2 months,10-year experience,alomost 100% success rate |
3. Sales strength: | 19 elite export sales,long term after-sale service promised. |
4. Complete&strict QC system | 4-10 years experienced officers,complete QN system including IQC,IPQC,FQC,QN AND QE |
5. Facilities | Advanced imported machine,like SMT. |
6. Product quality | Under 1% defected rate.12 months warranty |
7. Certification: | CE,ROHS,IP55,FCC,ISO,C-TICK etc |
8. OEM/ODM ability: | Over 19 years OEM/ODM experience |
Our Service
1. Your inquiry related to our products or prices will be replied in 12 hours;
2. Well-trained and experienced staffs to answer all your inquires in fluent English;
3. OEM&ODM,any your customized products we can help you to design and put into production;
4. Protection of your sales area, ideas of design and all your private information;
5. Deliver by air mail or ship for your orders.
For Order
1. Accept OEM/ODM;
2. Print logo on the case and package;
3. Payment Details :30%deposit,70%balance before shipment.Payment accept T/T and western union optional.
4. Minimum Order:100 pcs(accept trial order);
5. Delivery Details:within two weeks.
Yes, sample is available.
Q2.Do you accept OEM order?
Yes. We customized a lot of items for our clients.
Q3.What kind of payment do you accept?
We accept T/T(Wire transfer),Western Union and PayPal, Credit card.
TT can be 30% prepayment before production, 70% balance payment before shipping.
Q4. Does all of your goods come with remote function?
Yes, our remote cotrol receiver distance is about 50-100 meters.
Q5.Do your products carry warranty?
Yes,12 months or more and permanent service.
