DC 12V 2CH Channel Wireless RF Remote Control Switch Transmitter Receive

• Brand Name:YET
• Model Number:YET402PC-DM (V3.0)
• Certification:FCC
• Color:Black
• Private Mold:Yes
• Place of Origin:Guangdong, China
• Material:ABS, Metal
• Code:Rolling Code, Fixed Code, Learning Code, Copy Code Optional
• Button:4 Buttons
• Function:Automatic, Garage Door
• voltage:9-24V
• channles:2
• working mode:momentary, latched
• working frequency:433.92MHZ
• workking code:fixed code and rolling code
• working brands:most european brands in the market
• Product name:Rf Receiver
• Application:Home Appliances
• Key words:Wireless Remote Control Receiver

DC 12V 2CH Channel Wireless RF Remote Control Switch Transmitter Receiver

Model #: YET402PC-DM ( V3.0)

Specifications:

• Working voltage: DC9V-30V
• Working temperature: -20℃~60℃
• Working frequency: 433MHZ
• eceiving sensitivity: ≥-110dB
• Output mode: Momentary, latached
• Telecontrol distance: 100 meters
• Dimentions: 94mm x 60mm x 28.5mm
• Controller material: ABS

Features:

• The wide voltage design can be applied to 9-30volt power supply, and is widely used in various equipment control.
• The unique mode switch button is convenient for the controller to switch freely between the momentary and latched
• The simple and practical software programming realizes the two relay learning respectively, which can match any key control of the same frequency and any style. It is very convenient for the user to expand the application when using one or more control.

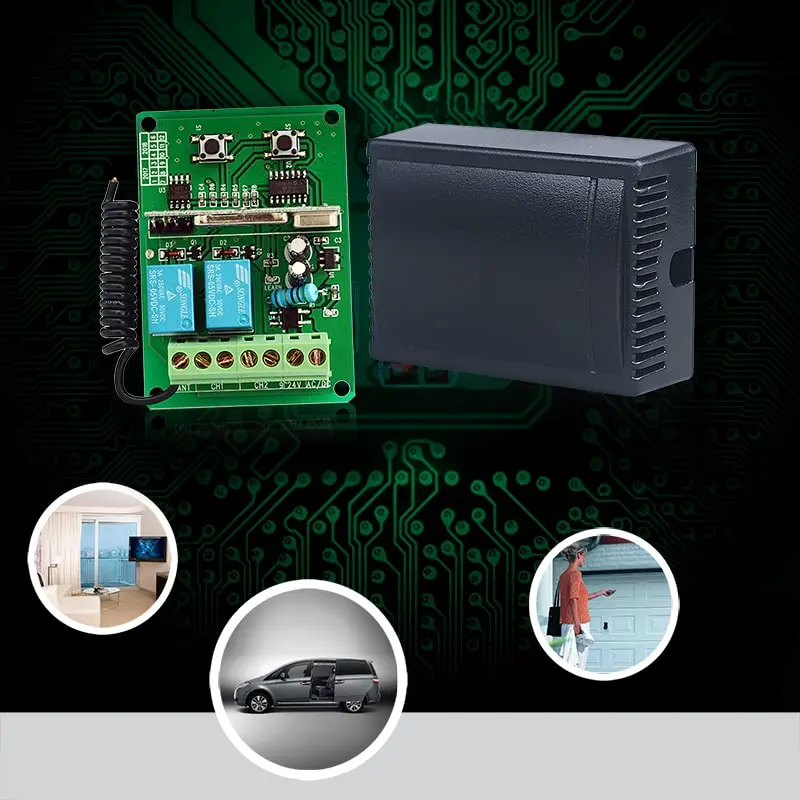

• Application scene: Automobile / motorcycle / electric vehicle modification; LED lamp / courtyard lamp control; electric door remote control modification; door control control; electric curtains and other motor positive and reverse control; and other intelligent control and security alarm field.

8 BENEFITS OF THIS UNIVERSAL RECEIVER:

1) Can learn Fixed and Rolling code 433,92Mhz remote controls separately and simultaneously !!!

2) Can learn and use most Original 433,92Mhz Fixed and Rolling code remote controls !!! ( included some famous popular brands)

3) 2 channel receiver provides you with an option to control and use 2 gate automations or alarm systems simultaneously

4) This receiver can be used in cases, when your original receiver's memory is full and can't accept any additional remote controls. By connecting this receiver to your system, you can increase the ammount of remotes up to 400. So 400 remote controls can be added to your existing system.

5) This receiver can be used in case, if you need to add more additional remote controls. The original remote controls cost is quite expensive. By connecting this receiver to your system you will save a lot of money, especially if you require 10-20 or more additional remotes.

6) If you have few different remote controls from different systems, you can replace them (substitute) with 1 4-channel remote!!! It's very handy to use 1 remote instead of 3 or 4.

7) It's very easy to connect it to your control board. All you need is to connect 4 wires between receiver and control panel. If you will need any technical support - i'm always at your service!!!

8) Very low price.

Learning, removing methods and steps:

1. Key function:

The two buttons on the controller are learning buttons (LEARNING)

2. Learning methods:

Press a learning button 1, indicating the light flicker (entering the learning state), press any key of the remote control, indicating the light flash three, indicating the No. 1 relay to learn successfully;

The same for the NO. 2 relay.

3.working mode:

Momentary:Press oncelearning Button programming Relay , The Learn LED will light up. Press and hold a button on the remote control until the Learn LED flashes five times.

Latched:Press twice learningButtonfor programming Relay, The Learn LED will light up. Press and hold a button on the remote control until the Learn LED flashes five times.

4. Clear code: long press learningbutton and light is always bright.

Notes:

1. Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!

2. Please allow 1-3mm measuring deviation due to manual measurement.

Package Content:

1 X DC9-24V Universal 2 Way Wireless Remote Control Switch

2 X Remote Control

Company Information

Our Company:

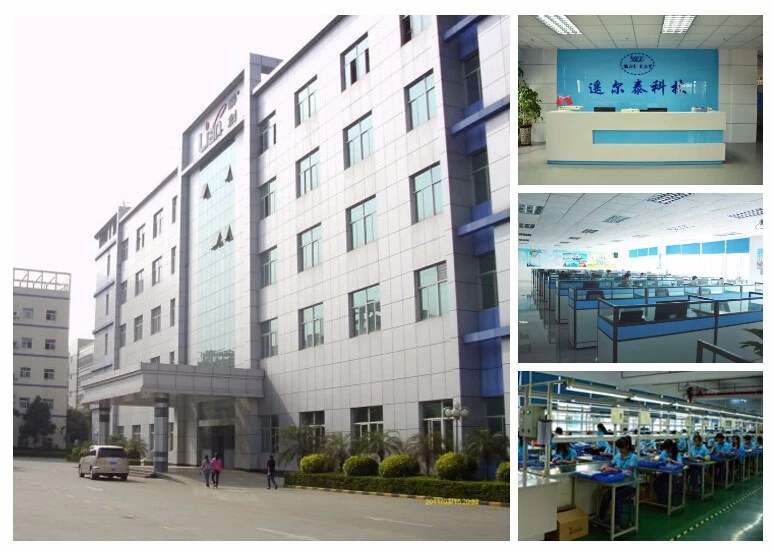

Established in 2005, shenzhen Yaoertai Technology Development Co.; Ltd is a high-tech company who specialized in the research, production, selling and service of security products. With more than 10 years experience if wireless remote system of automatic door, window and smart home control system.
YET's excellent R&D team brings the advanced and mature design project. we also accept OEM & ODM to meet customer's request

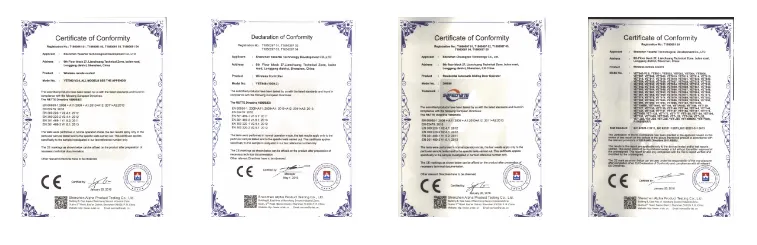

Certificate:
