Model No: YET404PC-WIFI
12V 4Ch 433MHz Receiver APP Remote Control For WIFI Switch
minimum order :
1 set
Quantity :
Subscribe to our Newsletter
- Brand Name:safemate
- Model Number:YET404PC-WIFI
- Certification:ce
- Color:Black
- Place of Origin:Guangdong, China
- Material:ABS
- Code:Rolling Code, Fixed Code, Learning Code
- Function:DC12-24V
- Frequency:433.92MHz/2.4G ~2.5G(2400M ~2483.5M)Hz
- Voltage:DC12V
- working mode:momentary
- working technology:RF+ wifi
- Wireless standard:IEEE802.11b/g
- Encryption ty:WEP/TKIP/A
- Security mechani:WPA/WPA2
- Static working current:<100mA
- Working current:<10A
- Dimension:128*79*31.5mm

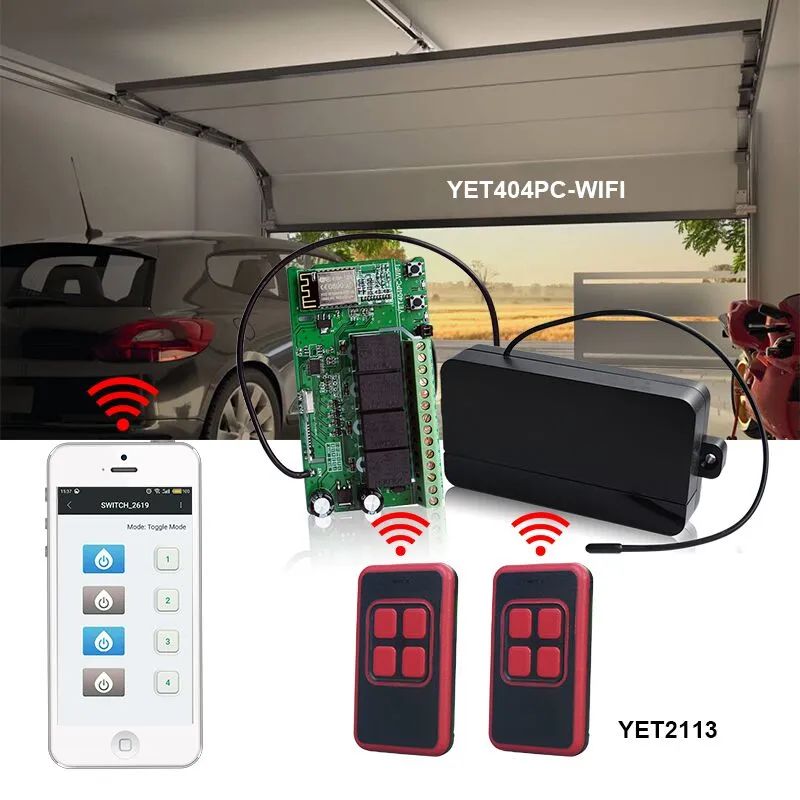

SAFEMATE 12V 4Ch 433MHz Receiver APP Remote Control For WIFI Switch
Features
- Supporting Wi-Fi intranet or extranet connection: It can be used as a single product or networking [Multi-product] to be controlled.
- upporting Smart Link network technology: Network configuration is simple and convenient. 315mhz/433mhz optional
- Only working with learning code (1527 and 2262)
- High confidentiality,stable characteristics,low power consume and easy to
Technical parameters
| Input Voltage | DC12V |
| Contact current | <10A |
| Working frequency | 2.4G ~2.5G(2400M ~2483.5M)Hz/433/315 |
| Wireless standard | IEEE802.11b/g/n |
| Encryption type | WEP/TKIP/AES |
| Security mechanism | WPA/WPA2 |
| Receiving sensitivity | 802.11 b: -91 dbm (11 Mbps) 802.11 g: -75 dbm (54 Mbps) 433/315 :-112 dbm |
| Static working current | <100mA |
| Working environment Temperature | Temperature:-40℃ ~ +80℃ Humidity:20% ~ 93% |
| Storage environment Temperature | Temperature:-20℃ ~ +70℃ Humidity:20% ~ 93% |
| Controller capacity | <10 |
| Dimension | 128*79*31.5mm |
Mode Declaration
- Momentary: The relay switches ON by pressing a button on the remote control and will remain ON until button is released.
- Latched: Press 1-circuit-channel for 1 time,other channels are OFF
- Toggle: Press transmitter button for 1 time,the receiver relay is ON,press button again,the receiver relay if OFF. 1/2 channels toggle and 3/4 channels momentary: Press 1/2 channels for 1 time to switch the status,press 3/4 channels will remain ON until the button is released
