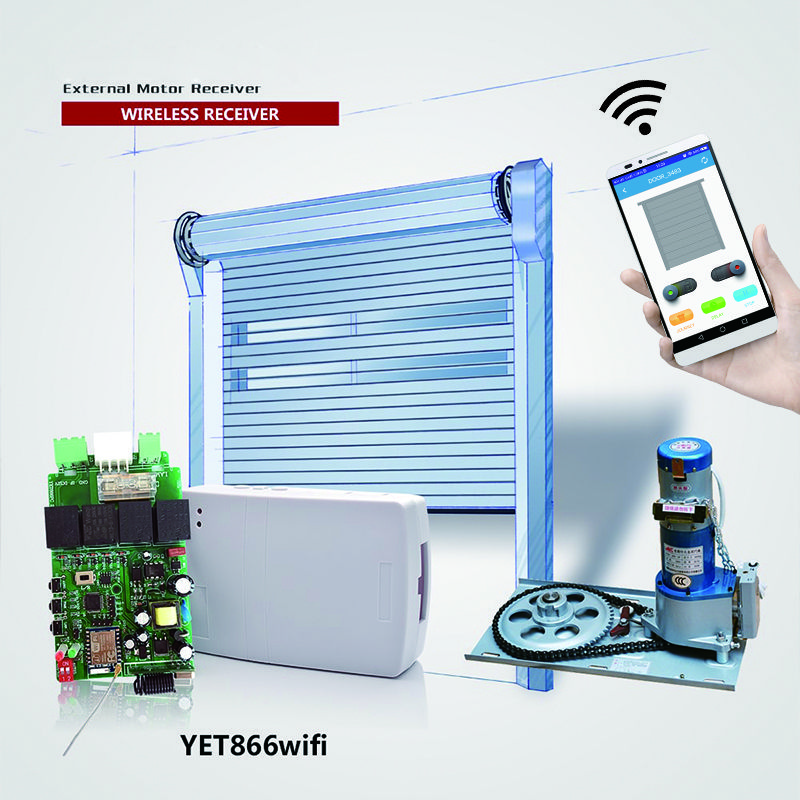

4 relay WIFI switch wireless remote control board for garage gate electric door opener

• Brand Name:YET
• Model Number:YET 866PC-wifi
• Certification:ce
• Color:White
• Place of Origin:Guangdong, China
• Material:ABS
• Code:Rolling Code, Learning Code
• Function:Automatic, side motor rolling shutter contorl board
• working volt:AC220V
• Static power consumption:<1W
• operating temperature:- 25~50 degree centigrade
• working frequency:2.4G ~2.5G(2400M ~2483.5M)Hz/433/315
• sensitivity:802.11 b: -91 dbm (11 Mbps)
• Encryption type:WEP/TKIP/AES
• Controller capacity:<10
• Size:120*80*35MM
• Wireless standard:EEE802.11b/g/n
• Item:wifi side motor rolling shutter contorl board

4 relay WIFI switch wireless remote control for garage gate electric door opener

Product specification:

Item : WIFI switch wireless remote control

Input voltage:DC24V

Contact current:<10A

Wireless standard:IEEE802.11b/g/n

Working frequency:2.4G ~2.5G(2400M ~2483.5M)Hz/433/315

Encryption type:WEP/TKIP/AES

Security mechanism:WPA/WPA2

Static current:<100mA

Working environment:Temperature: -40℃ ~ +80℃

Storage environment:Temperature: -20℃ ~+70℃

Capacity:<10

Size:128*79*31.5mm

Product features:

1.Dual systems for 433M and WIFI

2.Automatic close door function: delayed closing time can be adju sted.

3.Rebound blocked: automatic stop when blocked, and rotation 3S.

4.Automatically measure the stroke : the stroke time is 15 - 255 S.

5.Setting: You can use the remote control or APP to set the stroke , delay time, and progress the remote control .

6.With high security, large memory, stable performance, low power consumption

7.Install easily: Plug and play, use easily, safe and reliable.

8.Item : WIFI switch wireless remote control

Product show :

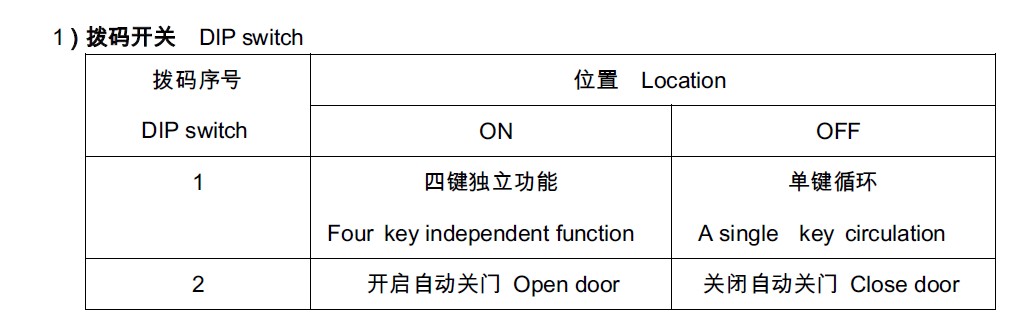

1.Four key independent function: The four keys (open, close, pause and lock) indicate the corresponding function on remote control and APP.

2.Single key circulation: only the open key is valid, press the key in turn, it represents the function for open - stop - off - stop cycle

3.Automatic close door: When this function is enabled and the door is opened completely, the controller will close automatically after setting delayed closing time. On the contrary, will not.

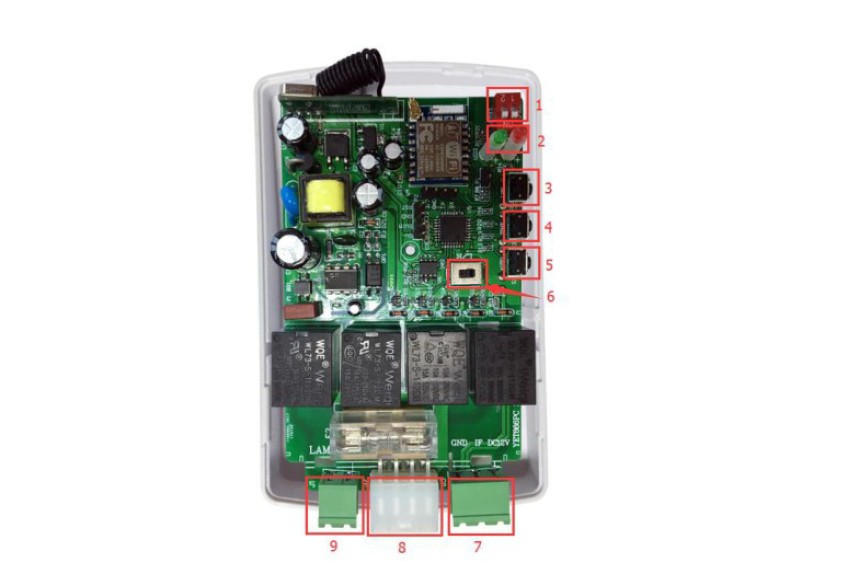

2)Signal indicator

3)Learn button

4)Set the button of automatic close doortime

5)Set the button of stroke

6)Switch the toggle switch of the motor rotation

7)Rebound blocked interface :In the process of closing the door, if the door is blocked, the motor will rotate 3S.

8)Lamp interface: The lighting will be opened when the equipment operation,and it will be closed one minute after the stroke.

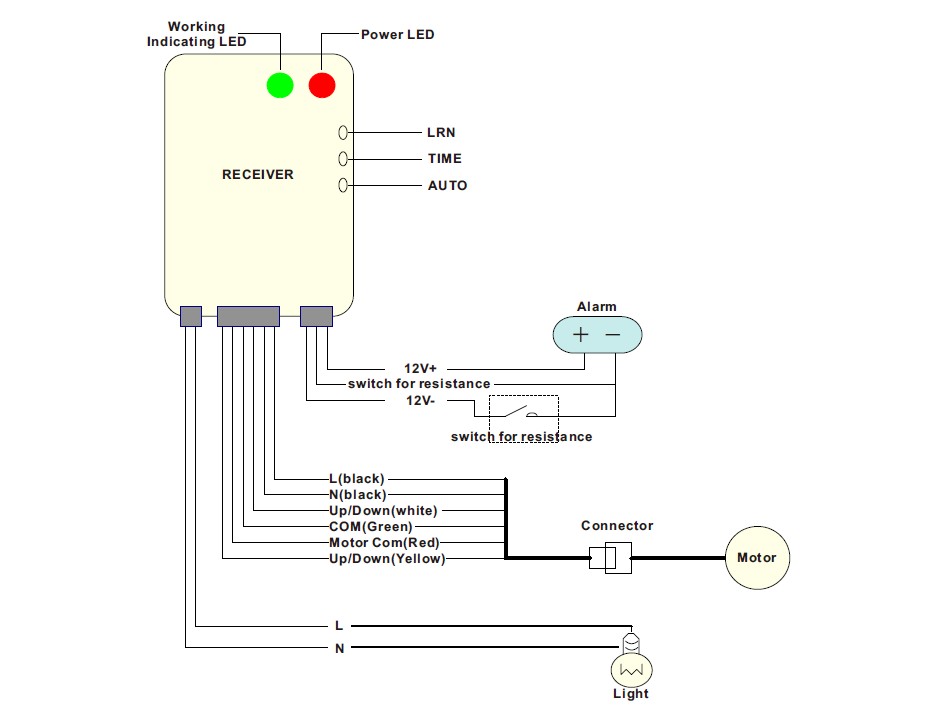

Mode of connection
