Factory Wifi wireless RF433mhz 4 Channel DC/AC12-24V Controller With Remote Control & Phone App
- Brand Name:yet 4 channel remote control
- Model Number:YET404WIFI
- Certification:CE
- Color:Black
- Place of Origin:Guangdong, China
- Material:ABS
- Code:Rolling Code, Fixed Code, Learning Code
- Function:LED indicator light
- working volt:DC9-30V
- static working current:≤7mA
- operating temperature:-40~+80C
- working frequency:315mhz/ 433.92mhz
- sensitivity:>=-105dBm
- output current:<=10A
- dimension:74.5* 54.5* 27mm
- Maximum storage:30 codes
- certificates:CE & Rohs
- Item:RF Remote 433 Mhz Transmitter
Factory Wifi wireless RF433mhz 4 Channel DC/AC12-24V Controller With Remote Control & Phone App
| Characteristics: |
| 1.Various crust for your choice |
| 2.Materail:Metal and PVC |
| 3.Encoding type:Fixed/learning/rolling code(optional) |
| 4.High stability:Adopting imported SMT component SAW and super high frequency audion(6.5G) |
| Main TechData for remote control: |
| 1.Operating Current:7mA |
| 2.Operation frequency:303MHZ/310MHZ/315MHZ/433MHZ optional |
| 3.Transmit Power>=10mW |
| 4.Transmission speed:50-60KHz |
| 5.Frequency windage: ±0.2MHz |
| 6.Transmission distance:100meters (open space) |
| 7.Oscillation resistance:Per customer's request |
| 8.Chip and operating mode:Hopping code(HC301,300,200 and so on) |
| Fixed code(2262,2260 and so on) |
| Learning code(1527,2240,HT6P20B,HT6P20D and so on) |
| Copy code |
| Main TechData for CY402PC 220V: |
| 1.Working voltage: 220V AC |
| 2.Current on contact: ≤10A |
| 3.Working temperature: -40°C - +80°C |
| 4.Receiving sensitivity: ≥-105dBm |
| 5.Working frequency: 315MHz,433MHz (optional) |
| 6.Receivethe type of encoding: Hopping code(HC301,300,200 and so on) |
| Fixed code(2262,2260 and so on) |
| Learning code(1527,2240,HT6P20B,HT6P20D and so on) |
| Copy code |
| 7.Maximum storage for transmitter: 30pcs of learning or fixed code; 6pcs of rolling code |
| 8. Dimension: 74.5* 54.5* 27mm |
| Use range: |
| Very easy and convenient used for home/store anit-theft alarm,electric cars,,motorcycles, |
| automobile ,car alarms,all kind of doors/windows controllers and other industrial control |

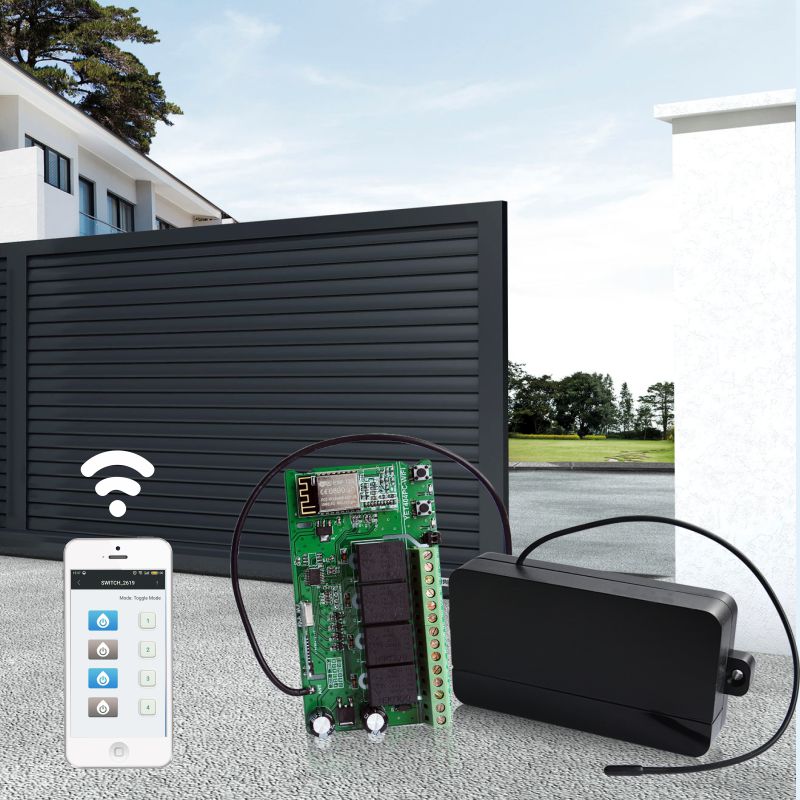

Picture Show
The way of output
A. Signal keeps 8 seconds-- “1” connect
B. Signal self-locking -- “2” connect
C. Signal interlock -- “3” connect
D. Signal point start--disconnect

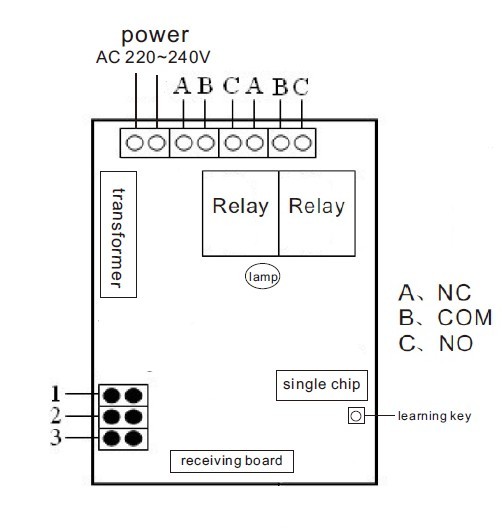

(check the Circuit diagram for details)
Learning way and steps
Learning fixed code & learning code:
1. Press learning key of receiver—the pilot lamp light—release learning key and pilot lamp extinguish , indicate enter into the status of learning.
2. Press any button of the remote control, indicate learning success as the pilot lamp flash 5 times and automaticallyexitlearningstate. Receiver automaticallyexitlearningstate if you do nothing in 32 seconds. (Can store up to 30pcs this type remote control)
Learning rolling code:
1. Press learning key of receiver—the pilot lamp light—release learning key and pilot lamp extinguish , indicate enter into the status of learning first time.
2. Press any button of the remote control, indicate first time learning success as the pilot lamp keep flashing slowly.
3. Repeat the operation of step “1”, enter into the status of learning second time.
4. Press the same button in step “2”, the pilot lamp flash 5 times, learning successful.(Can store up to 6pcs this type remote control)
Delete memory message:
Hold on pressing learning key over 3 seconds until the pilot lamp extinguish then glows, which indict success to delete the memory message.
