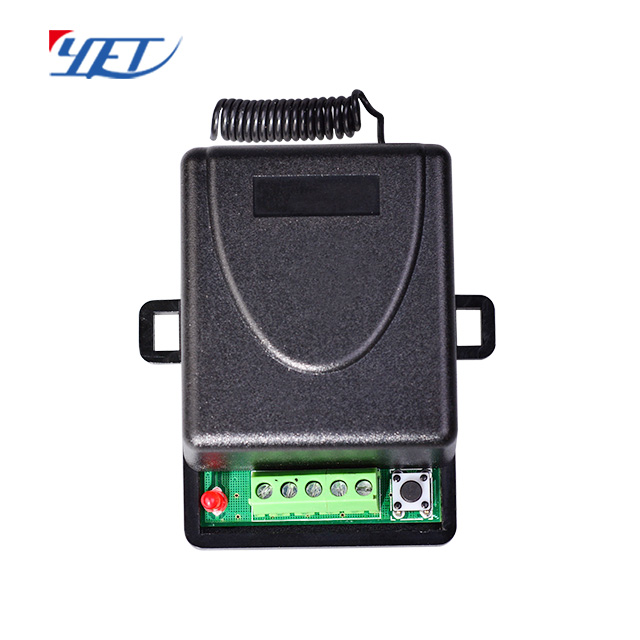

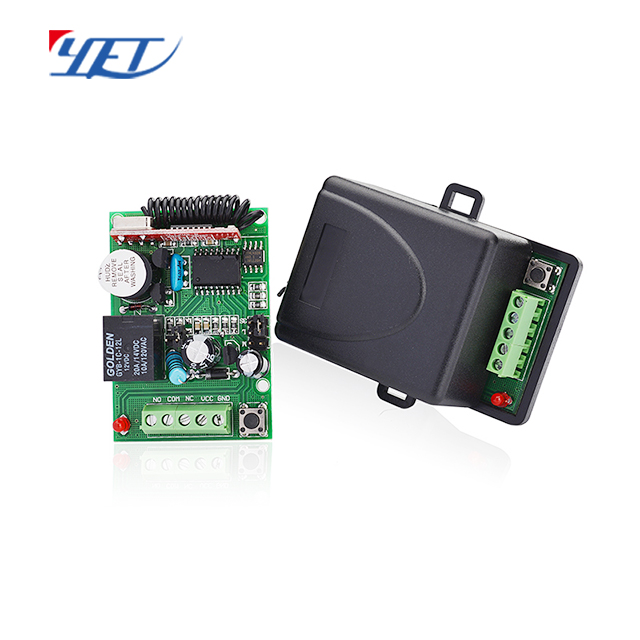

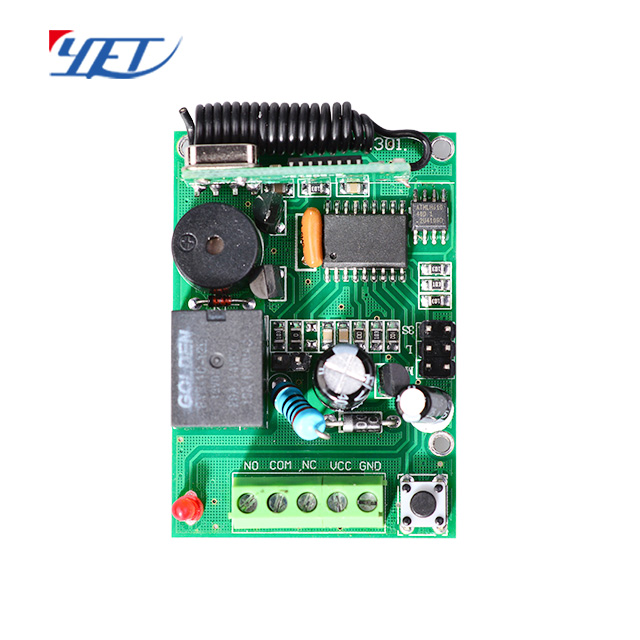

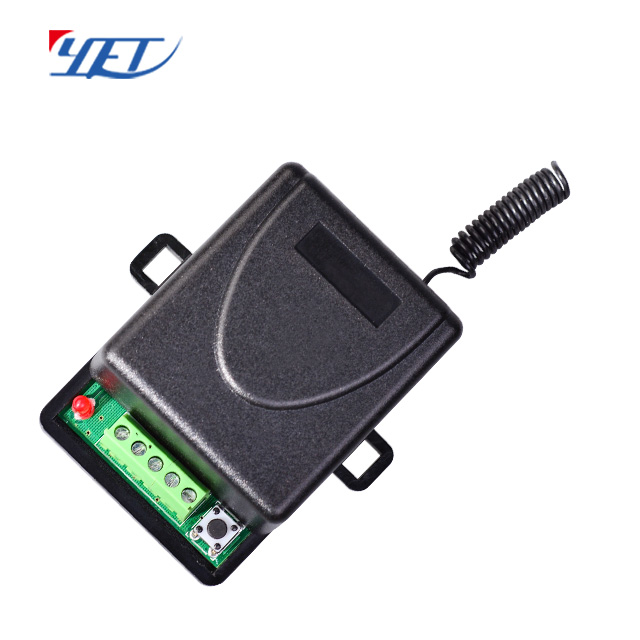

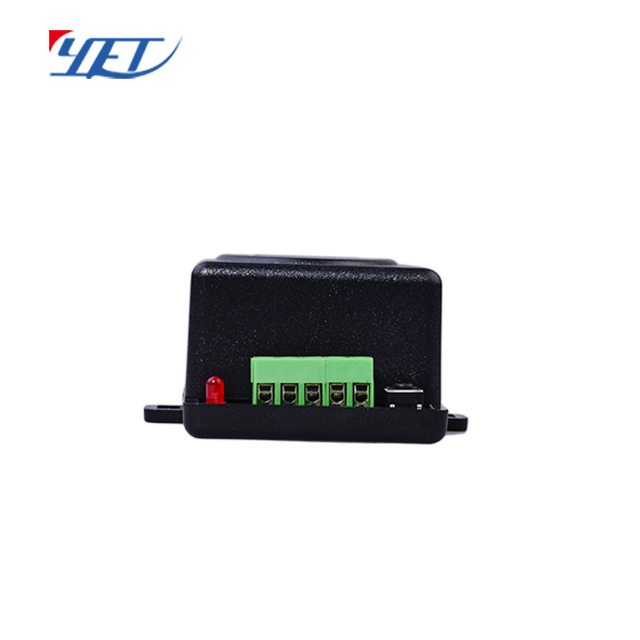

Garage Door Opener Remote Transmitter and Receiver Circuit and Remote Control YET401PC+YET001
Garage Door Opener Remote Transmitter and Receiver Circuit and Remote Control YET401PC+YET001
- Brand Name:CY
- Model Number:YET401PC+YET001
- Certification:ce
- Color:Black
- Place of Origin:Guangdong, China
- Material:ABS
- Code:Rolling Code, Fixed Code, Learning Code
- Function:Automatic
- Use:universal
- Wt:60g/per
- Sensitivity:-105dB
- Frequency:315MHz(optional between 260 and 440MHz
- Quiescent Current:12mA
- Voltage:12v/24v
- Operating Temp:40C~+60c
- Modulation Mod:ASK
- Transfer:Wireless
- function:customize
Garage Door Opener Remote Transmitter and Receiver Circuit and Remote Control YET401PC+YET001
CE,ROHS Approved
1. Applying LC oscillating circuit, built-in magnifying exchange, output signal is High Level and can directly drive a LED,there are Latch mode and Momentary mode selectable, can be decoded with decoder,easy to be used;
2. There are 8 signal outputs and 8 bit address pins with the module;
3. Module has wide receiving bandwidth +/-10MHz;
4. Frequency range of module is from 260MHz to 440MHz with general use of 315MHz;
5. Quiescent current of module is generally 5mA, then can be reduced to be min.1.5mA in case of special requirement, but the receiving sensitivity will be reduced.
Item:1 Channel Remtoe Controller |
Model: YET401PC |
Brand: ZD CE FCC ROHS Certificate |
Transfer: wireless Static current: 0uA Modulation: ASK |
Frequency:315MHZ/433.92MHZ; Frequency windage:±150KHz |
Working Voltage:DC12(V) Low power consumption |
Working current:<8mA Power:≤10mw |
Remote Distance:50-100m(receiver sensitivity-108dbm) |
Working temperature: -50°C~+80°C |
IC PT2262 EV1527 HCS301 HCS200 6p20b 2240 Fixed code/learning code, rolling code optional. |
Package: paper box(according to customers’ requirement) |
Performance Characteristics:Adopting high-quality chip control,stable & sensitive. |
Transmitter with SAW resonator,stable frequency,less interference,far remote control distance,low power consumption. |
Application: electric,motorcycle,automobile anti-theft alarm,home security products,short-distance wireless remote control products,industrial control products,remote control electric door,remote control |
Garage Door Opener Remote Transmitter and Receiver Circuit and Remote Control YET401PC+YET001
Items For Remote Control
| Characteristics: |
| 1.Various crust for your choice |
| 2.Materail:Metal and PVC |
| 3.Encoding type:Fixed/learning/rolling code(optional) |
| 4.High stability:Adopting imported SMT component SAW and super high frequency audion(6.5G) |
| Main techData: |
| 1.Operating voltage:DC12V |
| 2.Operating Current:<=12mA |
| 3.Operation frequency:303MHZ/310MHZ/315MHZ/433MHZ optional |
| 4.Transmit Power>=10mW |
| 5.Transmission speed:50-60KHz |
| 6.Frequency windage: ±0.2MHz |
| 7.Transmission distance:100meters (open space) |
| 8.Oscillation resistance:Per customer's request |
| 9.Chip and operating mode:Hopping code(HC301,300,200 and so on) |
| Fixed code(2262,2260 and so on) |
| Learning code(1527,2240,HT6P20B,HT6P20D and so on) |
| Copy code |
| Use range: |
| Very easy and convenient used for home/store anit-theft alarm,electric cars,motorcycles, |
| automobile,car alarms,all kind of doors/windows controllers and other industrial control. |
Garage Door Opener Remote Transmitter and Receiver Circuit and Remote Control YET401PC+YET001
For order:
1.Accept OEM
2.Print logo on the case and pakage
3.Payment Details :30%deposite,70%balance before shipment.Payment accept T/T and western union optional
4.Minimum Order:100 pcs(accept trial order)
5.Delivery Details:within two weeks
