YET846 Built In Tubular Motor AC220V Control Unit for Rolling Shutter Board
- Brand Name:YET
- Model Number:YET846
- Certification:ce
- Color:White
- Place of Origin:China
- Material:ABS
- Code:Rolling Code, Fixed Code, Learning Code
- Function:Switch
- Product Name:Built In Tubular Motor AC220V Control Unit for Rolling Shutter Board
- Memory capacity:20pcs
- Certificate:CE/ROHS/ISO9001
- Keyword:Built in receiver for 25mm tubular motor
- Usage:Rolling shutter door
- Size:100*27.5*23mm
- Working Voltage:AC 220V
- Frequency:315/433/330mhz optional
- Working current:≤12mA
- Transmission Distance:100-150M
YET846 Built In Tubular Motor AC220V Control Unit for Rolling Shutter Board
| Operating Temperature: -40℃-80℃ |
| Operating Current: <10mA |
Operating frequency: 315MHz/433.92MHZ/330MHz for your optional |
| Moderation mode: ASK |
| Transmission speed: 50-60KHz |
| Voltage: 220V AC |
| Transmission distance: 100-150 meters |
| Oscillation resistance: Under your request |
Chip:learning code(1527,2240,HT6P20B ,HT6P20D) fixed code(2262,2260) rolling code (HCS301,300,200) |

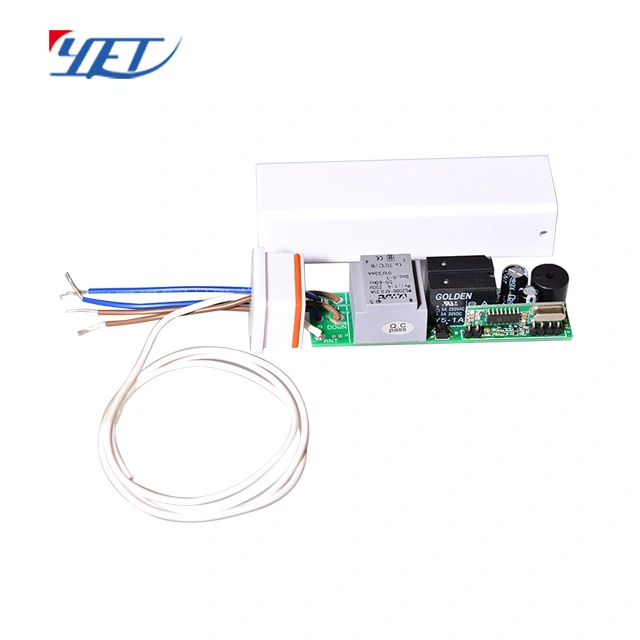

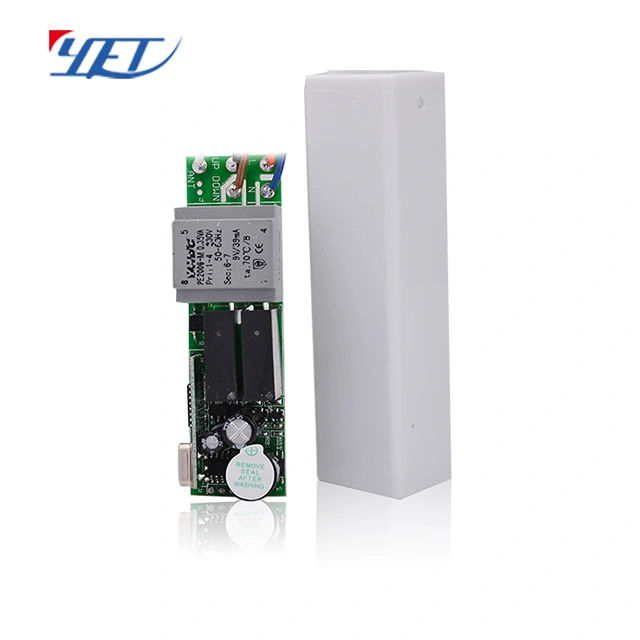

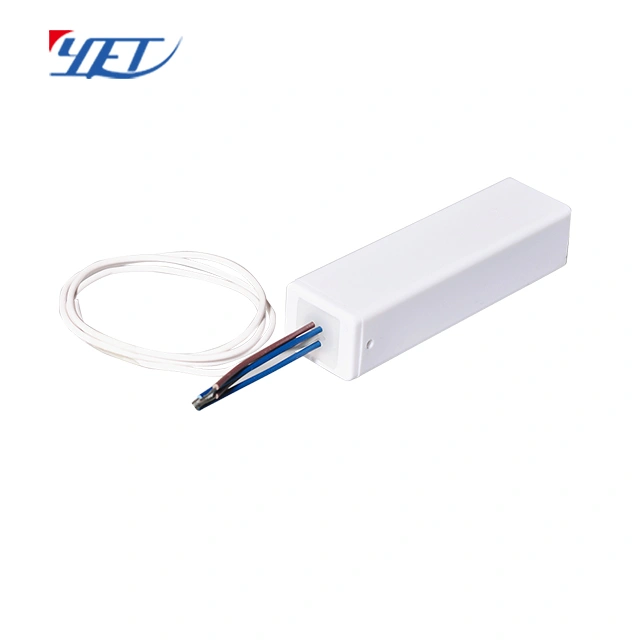

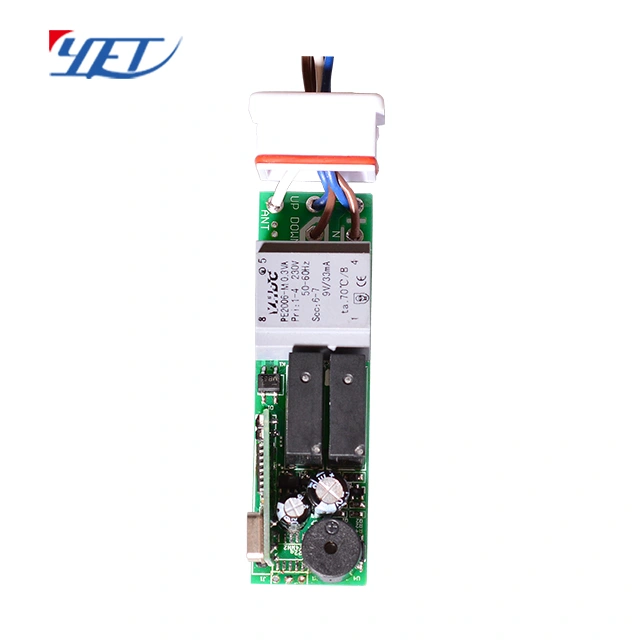

Product Show
Product feature:
1. Small size,can be built in sizes above 25mm tubular motor inside
2. Super-heterodyne receiver module,high sensitivity,strong ability with anti-interference
3. Up and down can be switched by remote control
4. Dedicated to the 220V tudular motor control
5. OEM and ODM will be available
Our Service
1. Professional technological support
2. 2 years product warranty
3. Well trained sales team to provide efficient service.
4. Your inquiry will be responsed in 12 hours.
Our Advantages
1. Stepped into RF field for over 10 years, now is the head company in RF remote industries.
2. Cooperated with first class raw material suppliers for years, stable provide and high qualified material.
3. Strict QC system through production.
4. Dust-free plant with imported machines,high efficiency and accuracy.
5. Stable vendor of some large companies due to high quality and good service.
etc......
Why Choose Us
1. Qualifications up to 2013 | 2 invention patents,3 utility patents,5 design patents |
2. R&D strength: | publish new items per 2 months,10-year experience,alomost 100% success rate |
3. Sales strength: | 19 elite export sales,long term after-sale service promised. |
4. Complete&strict QC system | 4-10 years experienced officers,complete QN system including IQC,IPQC,FQC,QN AND QE |
5. Facilities | Advanced imported machine,like SMT. |
6. Product quality | Under 1% defected rate.12 months warranty |
7. Certification: | CE,ROHS,IP55,FCC,ISO,C-TICK etc |
8. OEM/ODM ability: | Over 10 years OEM/ODM experience |

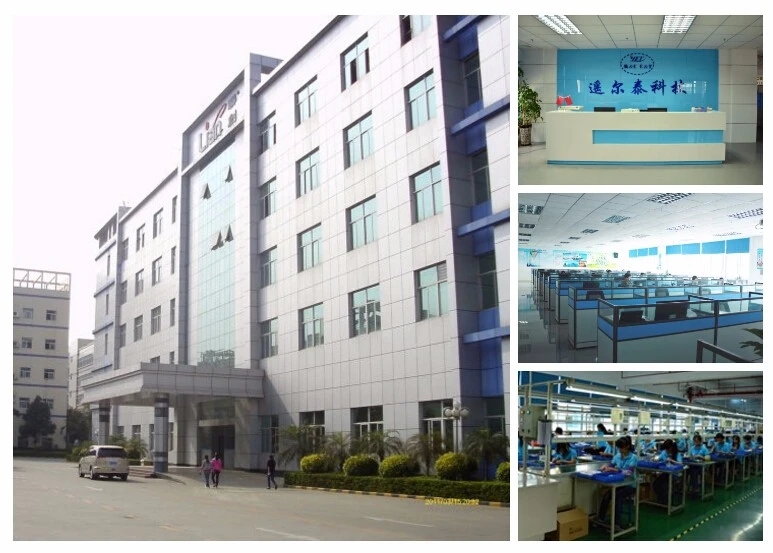

Established in 2005, Shenzhen yaoertai Technology Co., Ltd. specialized in wireless remote control,remote control receiver,receiver module,wireless sensor system and other smart home accessories for 12 years.
Located in Shenzhen, we enjoy convenient transportation. Our company occupies an area of 2600 M2,backed up with advanced facilities & strong R & D team. In recent years, our company has possessed five production flows including Reflow Soldering ,Parts Inserting, Post Soldering ,assembly and Packing. Our annual production capacity is 4,000,000 pcs .
Our products have won CE,ROHS Certification and Our products gain wide praises from domestic and abroad. Strict quality control is performed in every procedure from material sourcing, processing and testing to packing .
We welcome OEM and ODM orders. Professional engineer are available t assist you further. Please contact us for possible project.
Certification
Q1. Does all of our goods come with remote function?
Yes,the remote control receiver distance is 100-150m.
Q2. Do you provide OEM?
Sure,we are available OEM and ODM.
Q3. Why your products are more expensive than other suppliers' products?
Our cost is depended on our brilliant surface, high quality raw materials, high standard of safety and technology.
Q4. Are you a manufacturer? Where is your factory?
Yes, we are a manufacturer of remote control,receiver module,wireless sensor system for 12 years. Our factory is in Shenzhen City, Guangdong Pro.
Q5. What are your product usually used in?
Our product are used in garage door,roller shutter,retractable door,signo door,water pump switch,LED light switch,family security and so on.
Q6. How can you guarantee the quality in mass production?
Our original materials will be inspected strictly before mass production and our QC will follow up the quality accordingly in the process of production. Before out of factory, we totally have more than 6 times strictly checking
Q7. Can i have a sample before order.
Sure. Sample will be available.
8.What frequency do you need?
315mhz,433.92mhz for your optional.
9.What encode do you need?
Rolling code : HCS301, HCS300, HCS200 etc.
Learning code: PT2240, EV1527 ,HS1527etc.
Fixed code :SC2260 , SC2262, PT2260, PT2262 etc
Copy code/clone: face to face copy
