Cutomerized control board for automatic sliding gate control board

• Brand Name:YET
• Model Number:YET-402pc
• Certification:CE RoHS
• Color:White
• Place of Origin:Guangdong, China
• Material:ABS, Metal
• Code:Rolling Code, Fixed Code, Learning Code
• Function:Automatic
• static operating current::≤6mA
• Working temperature::-40°C- +80°C
• Receive sensitivity::≥-105dBm
• Output Voltage::AC and DC optional
• Frequency:433/315mhz/others
• Voltage:12V/ 24V (optional)
• Usage:Auto Gate Motor Etc
• Weight:0.062
• Encoding type:Fixed Codelearning Code
  olling Code
• Size:74*54*28mm

2 ch wireless remote control switch,wireless relay switch control for home appliance CY402PC

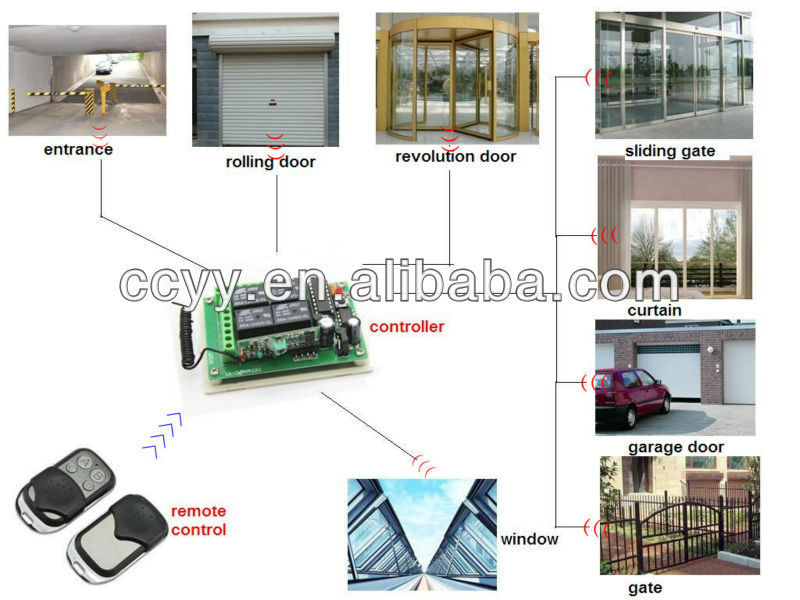

CY-402PC,thefour-way wireless smart receiver controller is desighed and manufactured by our company,which ouputs Switching Quantity Signal for 4 relay and control the equipment to realize turn , turn over , switch on/off/change or kinds of special control program requriments.It's mainly used in electric doors, windows, lifting equipment, gateways, lifting devices, industrial control and security industry and other fields.

The wireless receiving controller, with high security, storage capacity, stable performance, low power consumption,easy to use, do without using the traditional jumper or DIP switch code, simply receive and store wireless signal launched by remote controller to achieve matching.If you losed the learned remote control,simply clear/delete the deposited receive control information so that the lost remote control prohibited to control the receiver controller.It can be used only on the condition that the owener re-learning the controller.Its outputs inludes self-locking, non-lock, interlock .

Output

A.singnal self-locking ----connect NO.1 and disconnect NO.2

B.singnal inter-locking---- disconnect NO.1 and connect NO.2

C.singnal non-locking---- disconnect NO.1 and NO.2

Technical indicators

1.operating voltage:12V/ 24V (optional)

2.static operating current:≤6mA

3.Working temperature :-40C- +80C

4.Receive sensitivity:≥-105dBm

5.the working frequency:315MHz,433MHz

6.Output Voltage:AC and DC optional

7.output current:≤10A

8.size:74.5*54.5*27mm

For order:
Accept OEM.
Print logo on the case and pakage
Payment Details :30%deposite,70%balance before shipment.Payment accept T/T and western union optional.
Minimum Order:100 pcs(accept trial order)
Delivery Details:within two weeks.

For sample:

Please advise what code and frequency you need.
