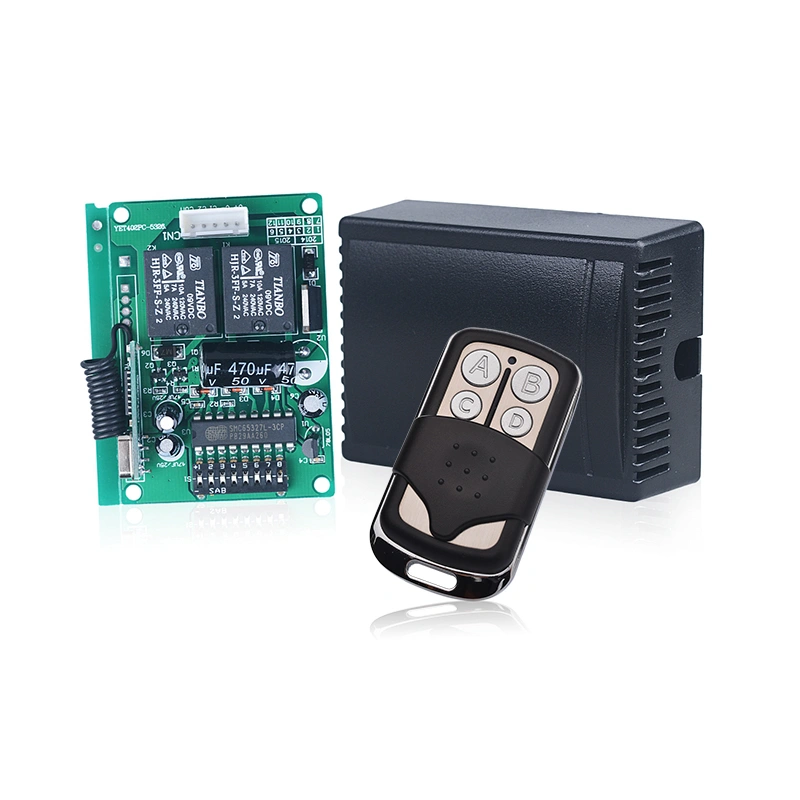

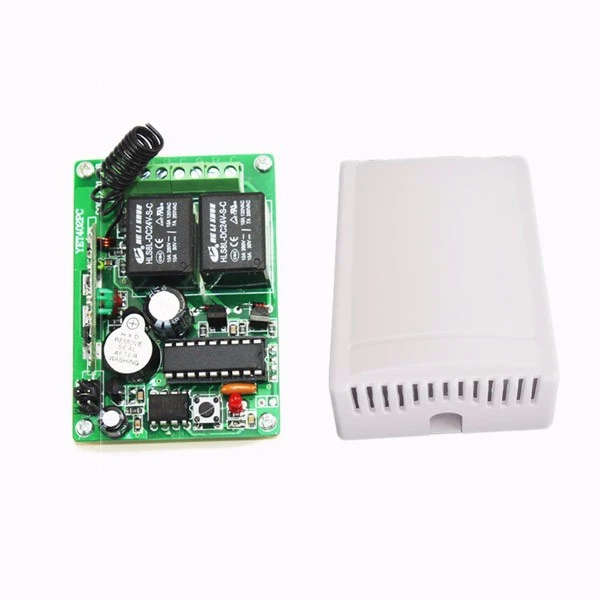

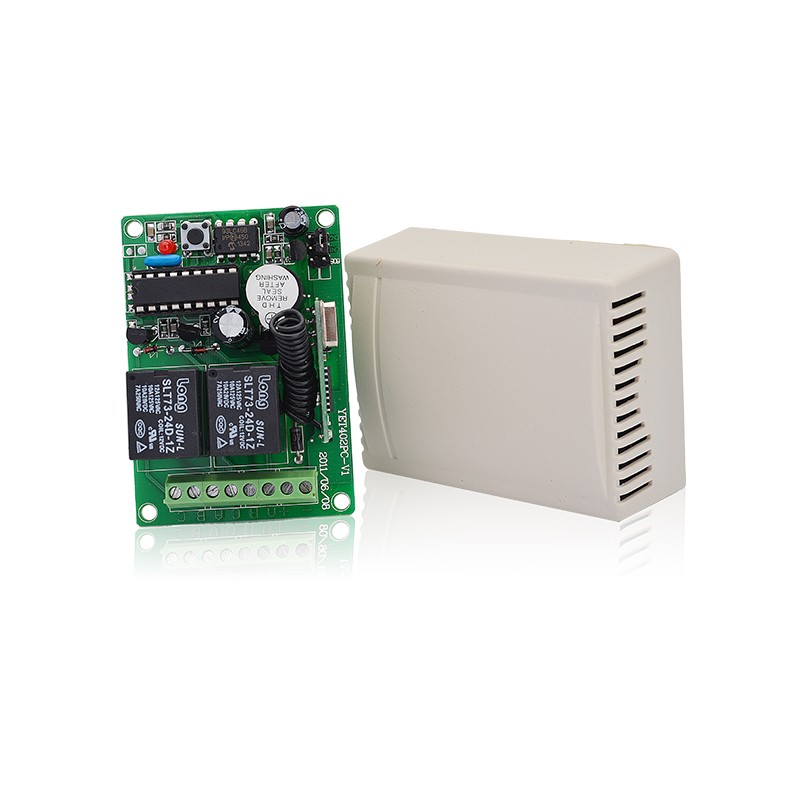

2CH Garage Door Receiver and Remote Transmitter 433MHz YET402PC+YET019

• Brand Name:YET
• Model Number:YET402
• Certification:CE
• Color:GRAY
• Place of Origin:China
• Material:ABS
• Code:Rolling Code, Learning Code
• Function:Automatic
• name:door lock with remote control
• Operating voltage:12/24V optional
• Static operating current:≤7mA
• Receive sensitivity:≥-105dBm
• transmitting frequency:315/433.92/others
• Working temperature:-40°C- +80°C
• Output current:≤10A
• Size:74mm*54mm*28mm
• Channel:2
• compatible remote control:fixed code/learning code 30,rolling code:6

2CH Garage Door Receiver and Remote Transmitter 433MHz YET402PC+YET019

Overview

YET402,the two-way wireless smart receiver controller is desighed and manufactured by our company,which ouputs Switching Quantity Signal for 2 relay and control the equipment to realize turn , turn over or switch on/off/change or kinds of special control program requriments.It's mainly used in electric doors, windows, lifting equipment, gateways, lifting devices, industrial control and security industry and other fields.

The wireless receiving controller, with high security, storage capacity, stable performance, low power consumption,easy to use, do without using the traditional jumper or DIP switch code, simply receive and store wireless signal launched by remote controller to achieve matching.If you losed the learned remote control,simply clear/delete the deposited receive control information so that the lost remote control prohibited to control the receiver controller.It can be used only on the condition that the owener re-learning the controller .

Output

A.singnal inter-locking ----connect CN2 and disconnect CN3

B.singnal non-locking---- disconnect CN2 and connect CN3

C.singnal self-locking---- disconnect CN2 and CN3

Iearning method and steps

1.press the learn key on receiver board - lights that enter the learning state,

2.at the same time, press any key on remote control-lights flash to off that have success in learning .

Clear the deposit information

keep pressing learn key about 10s to the buzzer soundedthat deposited information has been successfully cleared .

Technical indicators

1.operating voltage:12V/ 24V (optional)

2.static operating current:≤7mA

3.Working temperature :-40°C- +80°C

4.Receive sensitivity:≥-105dBm

5.the working frequency:315MHz,433MHz

6.Output Voltage:AC and DC optional

7.output current:≤10A

8. size:74mm*54mm*28mm

For Order

1.Accept OEM.

2.Can print logo on the case and package.

3.Terms of payment:TT/Western Union optional

4.MOQ:100 pcs

5.Delivery time:5-7 working days after received the payment.
