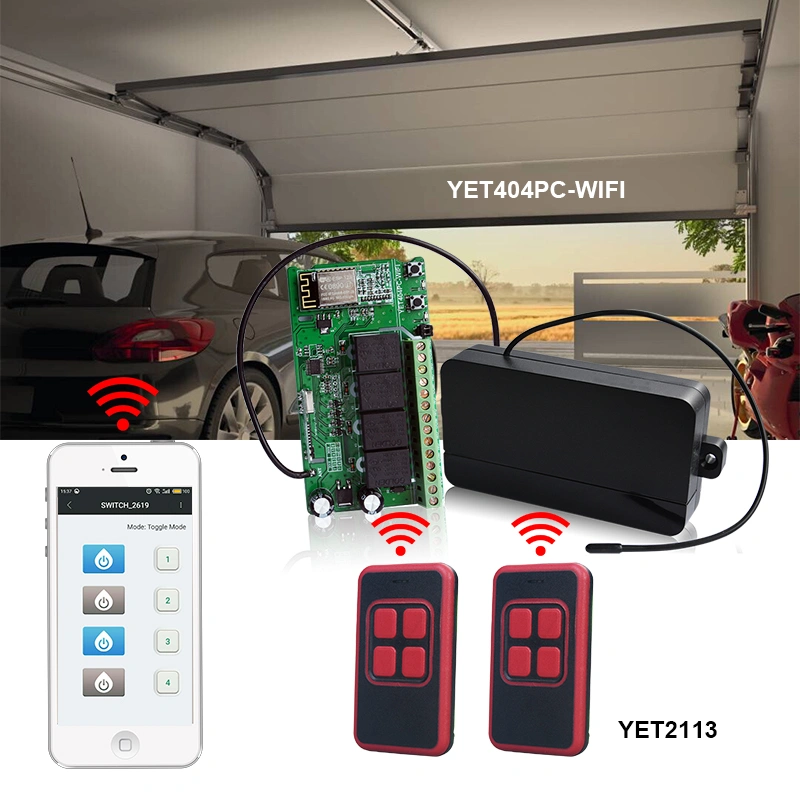

DC12V 4CH Wifi Remote Control Radio Relay Switch Transmitter Receiver
- Style:PORTABLE
- Certification:ce
- Private Mold:NO
- Type:AM / FM
- Place of Origin:Guangdong, China
- Brand Name:YET
- Model Number:YET404WFR
- Screen:NO
- Function:Automatic
- Power Supply:Battery
- Item:Wifi Remote Control Radio Relay Switch
- Input voltage:DC12V
- Contact current:<10A
- Wireless standard:IEEE802.11b/g/n
- Frequency:315mh/433.92mhz
- Encryption type:WEP/TKIP/AES
- Static working current:<100mA
- Control capaciry:<10
- Size:128*79*31.5mm
- Security sensitivity:WPA/WPA2

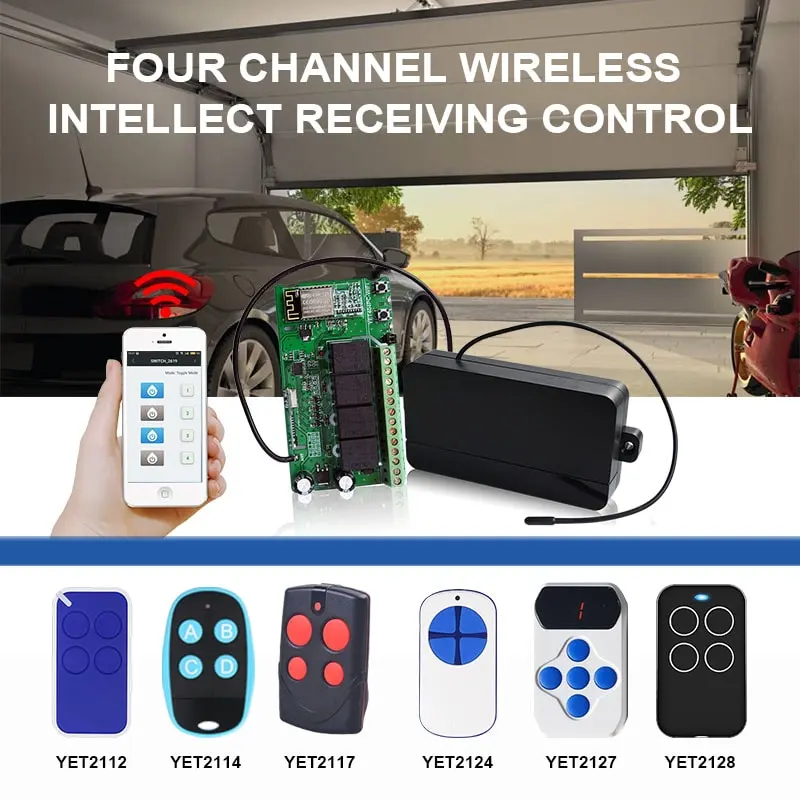

DC12V 4CH Channel Wifi Remote Control Radio Relay Switch Transceiver Receiver
1.Features:

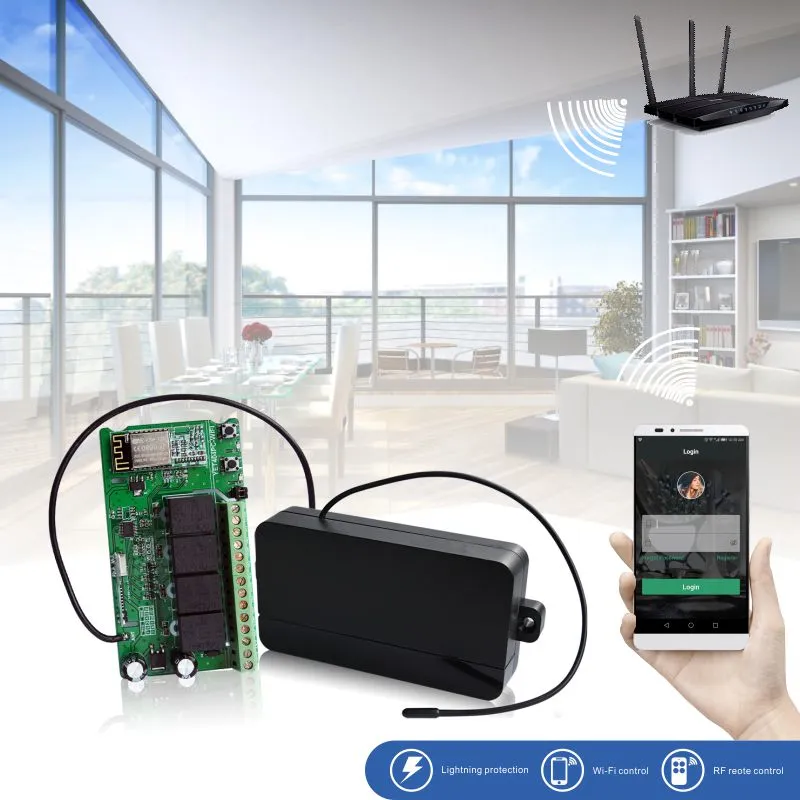

1)Suppoering Wi-Fi intranet or extranel connection.It can be used as a single product or networking multi-product to be controlled
2)Supporing Smart link network technology:network configuration is simple and convenient
3)315mhz/433mhz optional
4)Only working with learning code (1527&2262)
5)High confidentiality, stable characteristics, low power consume and easy to operate, plug and play
2. Tech data:
| input voltage | DC12V |
| Contact current | <10A |
| Wireless standard | IEEE802.11b/g/n |
| working frequency | 2.4G~2.5G(2400M~2483.5M)Hz/433/315 |
| Encryption type | WEP/TKIP/AES |
| Security mechanism | WPA/WPA2 |
| Receiving sensitivity | 802.11b:-91 dbm(11 Mbps) 802.11g:-75dbm (54 Mbps) 433/315:-112 dbm |
| Static working current | Temperature: -20°C - +7℃ Humidity : 20% - 93% |
| Controller capacity | <10 |
| Dimension | 128*79*31.5MM |

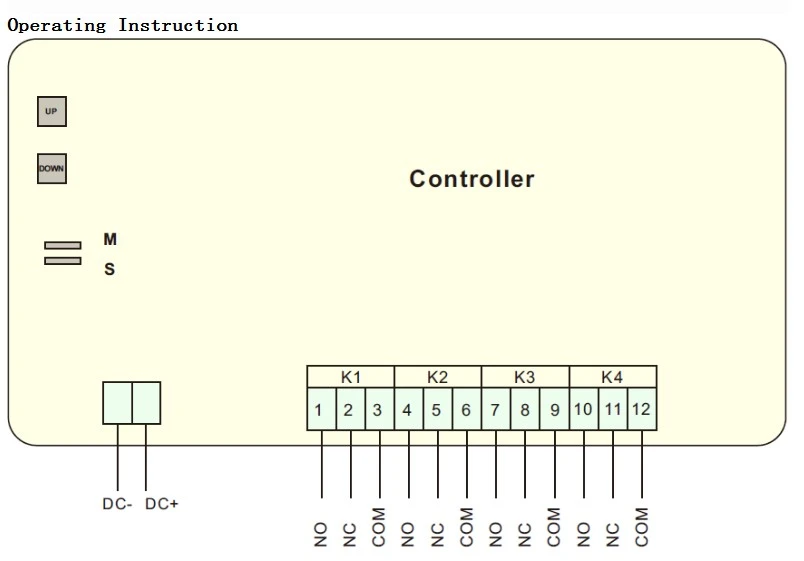

3. Operating instruction :
4.Picture show :
YET's excellent R&D team brings the advanced and mature design project. we also accept OEM & ODM to meet customer's request
For Order
1.Accept OEM and ODM.
2.Can print logo on the case and package.
3.Terms of payment:TT/Western Union optional
4.MOQ:100 pcs
5.Delivery time:5-7 working days after received the payment.
6.Item :Wifi Remote Control Radio Relay Switch
For Service
1.Your inquiry can be resposed in 12 hours.
2.All your question can be answered by our well-trained and experienced staff in English
3.All your customised products which we can help you to design and put into production
4.All your private information such as the sales area, ideas, design etc. can be protected.
5.Delivery by DHL,UPS,EMS or by sea as your requirments.
A1:Add device failed,and the LED indicator was slow flashing all the time
B1: The LED indicator slow flashing means that it is connecting the router ,the connection time over 60s,it is fail,for that case,maybe wrong with “password entered error” or “data error in transmission”. The user need check the status of the cell phone or router network ,and ensure router wife without any limit contact ,please try again for new reconfiguration .
A2:The device suddenly out control ?
B2:a. Check the router wifi,whether the password is changed or not ,and check the status of the red indicator on the device,it is slow flashing ,this is disconnected from the router and controller,yuou need reconfigure it ;
b. Router assignsto the IP address of device because of the network ,the IP address is changed,it causes the actual IP of device to be inconsistent with the APP saved equipment,at this moment exit the APP and restart,and retrieve the device information
