long range RF single channel DC12V/24V wireless remote controller with rf transmitter wireless remote control
- Brand Name:YET
- Model Number:YET401pc+YET027
- Certification:ce
- Color:Black
- Place of Origin:Guangdong, China
- Material:ABS
- Code:Rolling Code, Fixed Code, Learning Code
- Button:4 Buttons
- Function:Automatic
- distance:12V/ 24V (optional)
- Static operating current:≤6mA
- Working temperature ::-40°C- +80°C
- Receive sensitivity::≥-105dBm
- Working frequency::315MHz,433MHz
- Output Voltage::AC and DC optional
- Output current:≤10A
- Size::74.5*4.5*7mm
- Product name::433 92 Copy Code Receiver Strong Remote Controls
- Type:long range wireless transmitter receiver kit

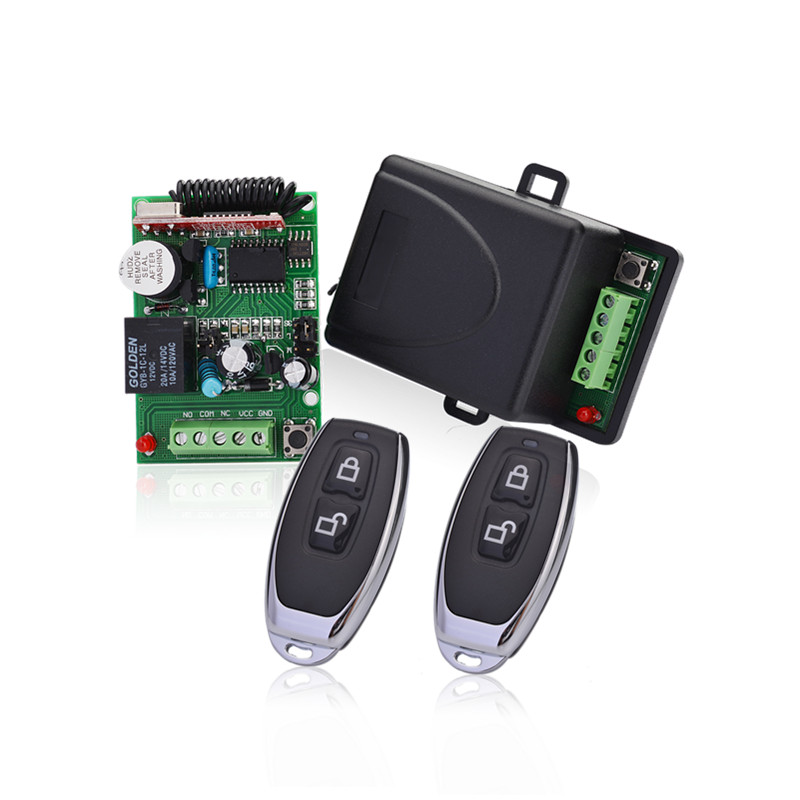

long range RF single channel DC12V/24V wireless remote controller with rf transmitter wireless remote control
It's learning type and can store 32 PCS of differents remote control. Its input voltage adopt 12V or 24V DC (can be choose on the board). It can match with our 1/2/3 buttons of remote control as a complete subassembly to implement the motor F/R (forward or reverse) rotation or switch on/off
shift of equipment controlled.
It is widely used in industrial control, garage door, dumpcart, lift, light control etc.
Transmitter Specifications
Model No. | YET027 Remote Control |
Code | Learning code or Fixed code or Rolling code or Copy code |
Working Current | <=12mA |
Frequency | 315Mhz - 433.92Mhz / others |
Oscillation Resistance | under your requests |
Voltage | 12V |
Frequency Modulation | AM |
Battery Type | 27A |
Modulation | ASK |
Transmit Distance | 50-100M |
Dimension | 61×29×12MM |
Gurantee | 1 year |
OEM and ODM Services | Yes |
Others | Battery and keychain included |

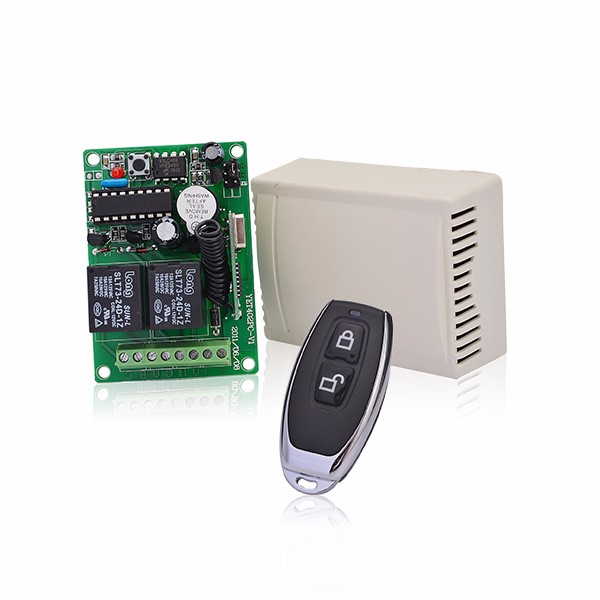

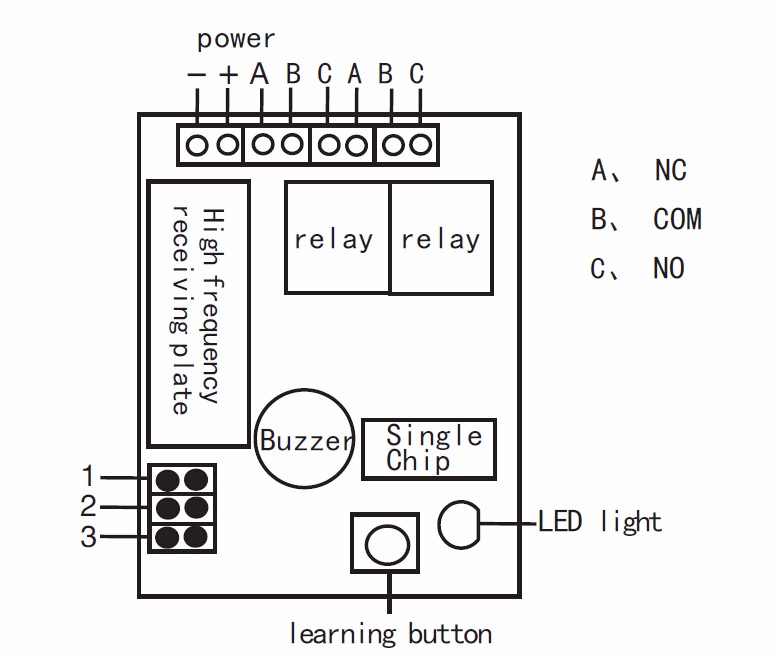

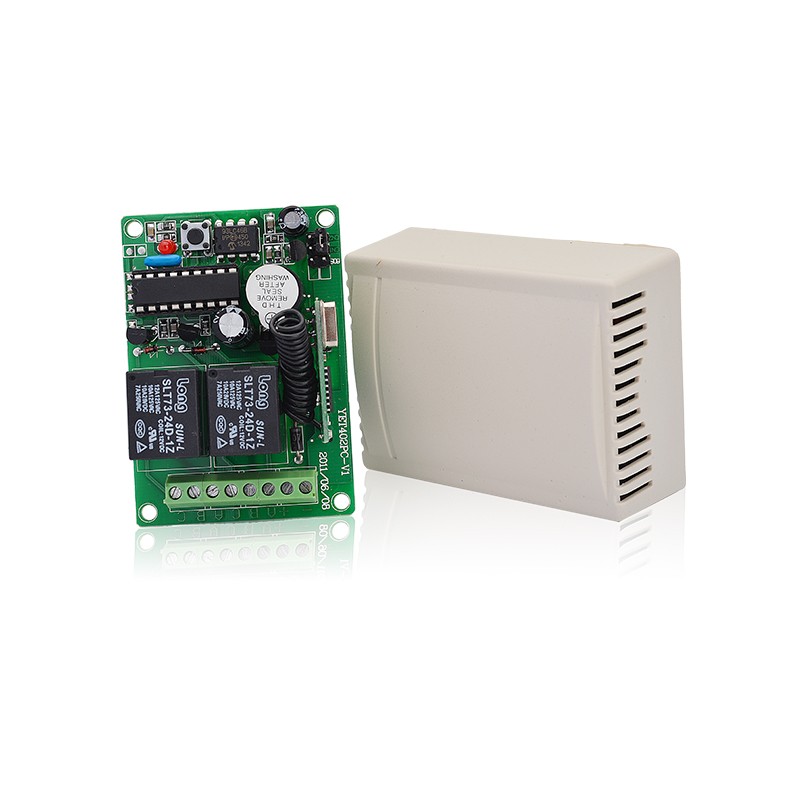

Receiver Specifications
1.with buzzer
2.12/24v optional
3.signal delay 3seconds, interlocking, latching, momentary optional.
4.with super heterodyne module, high sensitivity is 105dB.
Model No. | YET402PC wireless receiver |
Memory | 30( Learning code or Fixed code); 6 rolling code |
Working Current | <=10mA |
Working Frequency | 315Mhz - 433.92Mhz / others |
Working Volt | DC12v / 24v |
Static Working Current | <=7mA |
Sensitivity | ≥-105dBm |
Working temperature | -40°C- +80°C |
Dimension | 62×43.5×30MM |
Application
garage shutter doors, telescopic channel gates, LED lamps, LED flash all kinds of special alarm sound device switch signal remote areas such as wireless remote control...
Packing
Delivery
2) Sample for testing could be arranged
3) Sample could ship out by DHL,FEDEX or TNT or EMS in 3 days after confirmation.
Certificate

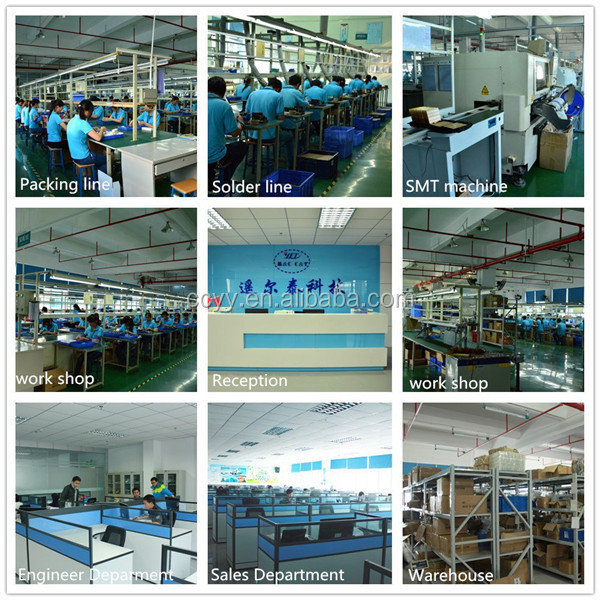

Established in 2005, shenzhen Yaoertai Technology Development Co.; Ltd is a high-tech company who specialized in the research, production, selling and service of security products. With more than 10 years experience if wireless remote system of automatic door, window and smart home control system.
YET's excellent R&D team brings the advanced and mature design project. we also accept OEM & ODM to meet customer's request.
1. what's your minimum order? can i buy samples for testing?
the Minimum order quantity is 100 pcs in our factory. samples are ok.
2. what time can you deliver my order?
samples in 3 days, bulk order 7 days, above 1000pcs in 15 days after payment.
3. do you have gurantee for my order?
battery gurantee for 6 months, remote control and receiver gurantee for 1 year ( except man-made sabotage)
4. what's your best price?
we make different models and different chip, please advise detailed parameters for goods that you need.
