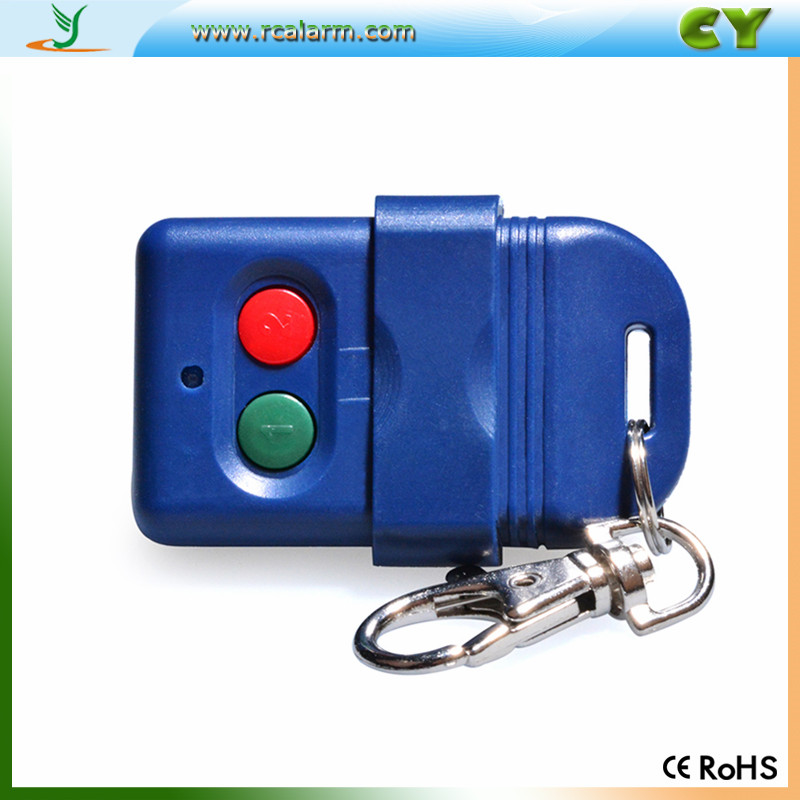

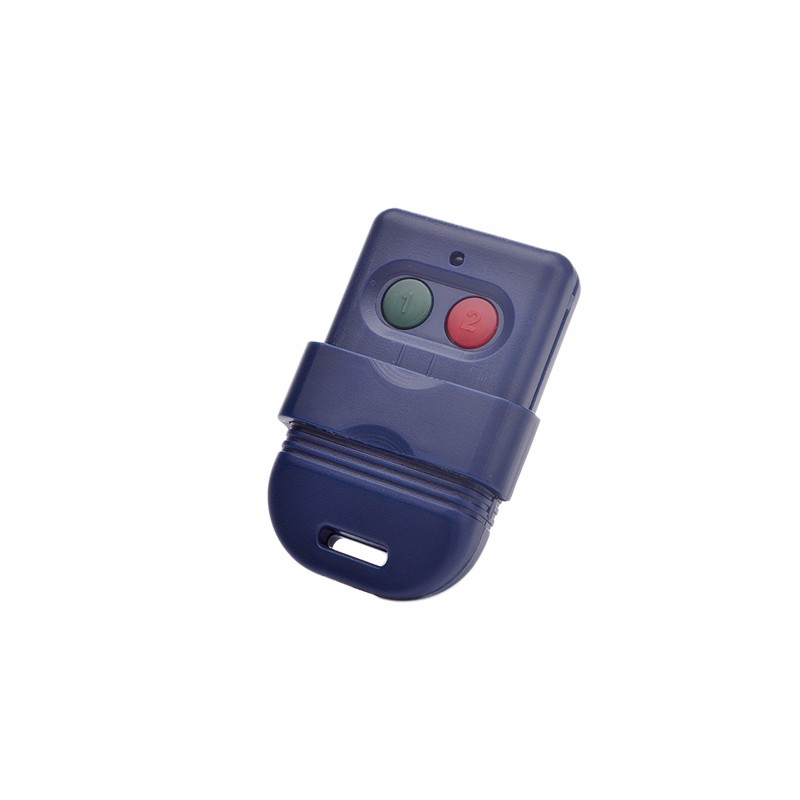

433mhz 330 mhz fixed code Malaysia face to face copy remote duplicator
- Brand Name:YET
- Model Number:YET 102
- Use:Universal
- Place of Origin:Guangdong, China
- frequency:315M/433.92M/330MHZ
- Encoding type:fixed/learning/rolling/copy code (optional)
- working voltage:12V
- launch distance:50~100meters
- Frequency windage:±0.2MHz
- Transmission speed:50-60KHz
- Product type:330mhz Universal Remote Control duplicator
- Application:Automation system
- Material:ABS and Metal
- Battery:12V
433mhz 330 mhz fixed code Malaysia face to face copy remote duplicator
1.Use range
the RF Wireless Remote Control Duplicator used for Cars, Garage Doors , Gates doors, Alarm systems etc. Fixed frequency (433.92mhz or 315mhz) for copying 99.99% common fixed and learning code remote controls.
Face to face copy the functions of your original remote by this universal RF remote control duplicator with code learning functions and you'll always have a back up.
face to face Duplicate Your Existing Remote Control easily
| Buttons | 2 / 4 channel |
| Operating voltage | DC12V / 6V / 3V |
| Operating current | 10MA |
| Operating frequency | 315Mhz, 433Mhz, 330mhz, 868.35Mhz, 869.85Mhz, 290Mhz - 480Mhz |
| Ambient temperature | -10 °C ---- +70 °C |
| Use | Cars, garage doors , gates doors, alarm systems etc. |
| Copy type | Fixed code and Learning code |

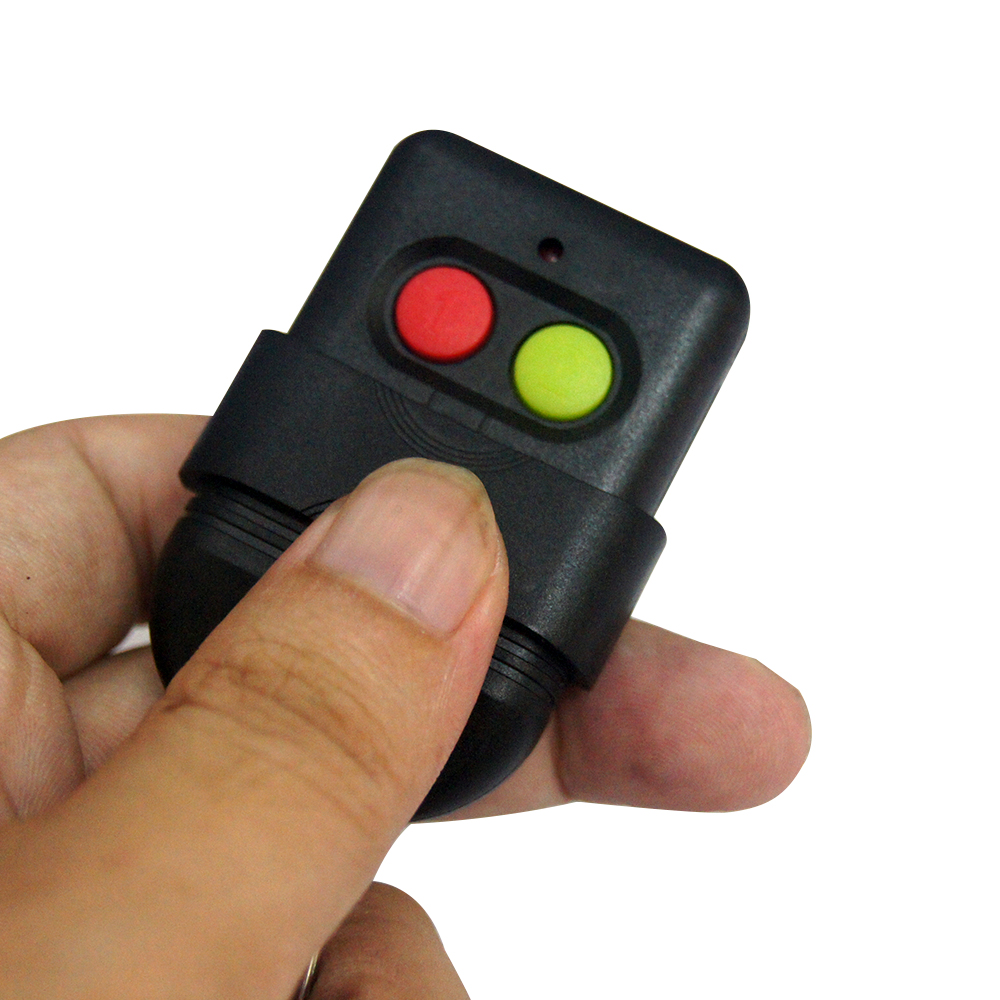

Hottest model YET 102B remote control duplicator for Malaysia market
3.key features
- Prevents loss and replaces your old remote controls
- Self learning remote control
- Used in car alarms, home alarms, panic buttons, garage doors, rolling curtains and more
- Copies most radio frequency fixed code remote controls
- Learning face to face in secon
4. compatible encoder IC list
- PT2240 / PT2242
- 2260 / 2262 / 2264
- EV1527 / FP527
- HT12D / HT12E
- HT600 / HT640 / HT680
- HT6010 / HT6012 / HT6013 / HT6014 / HT6207
- AX5026-1 / AX5026-2 / AX5026-3 / AX5026-4
- AX5326-3 / AX5326-4
- SMC918 / MC145026

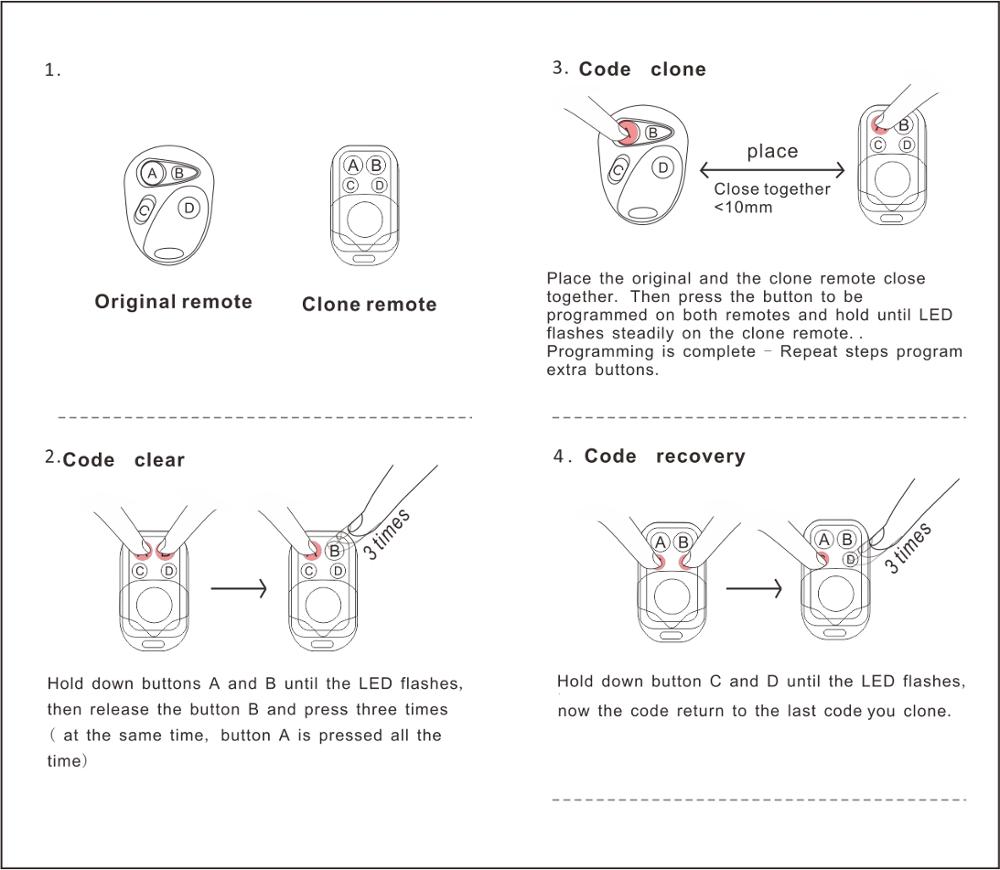

1. Press button A and B at the same time until LED flash.
2. Release button B and keep pressing button A, then press button B 3 times,
LED flash fast indicate succeed to clean code (can release button A now)
Step 2: Copy code from original transmitter
1.Put duplicator aside of original transmitter, as close as possible.
2.Press and hold button A of original transmitter and button A of duplicator at the same time, until duplicator’s LED flash and keep lighting.
3.Release both buttons, finish code copy, and copy other button in same way.
Return Function:
Press and hold button C and D for 3 seconds, the LED flash, ok all buttons return back to the latest copy codes.

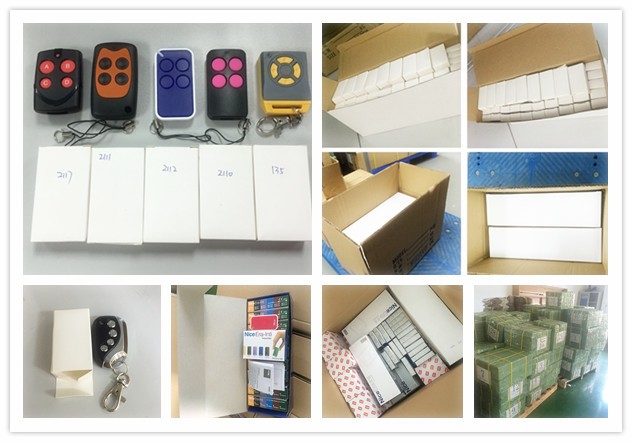

Neutra white box for each remote control, can customize colored box or blister package.
100 pcs in medium box
500 ppcs in master carton

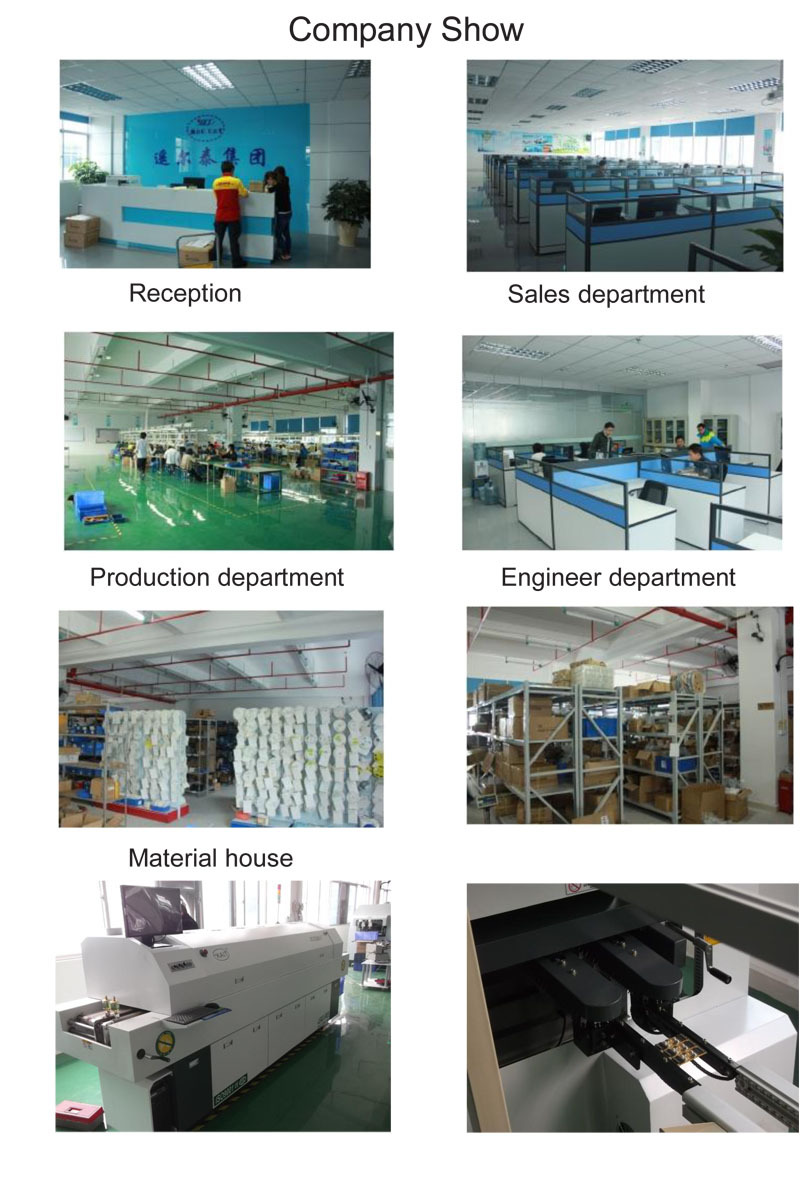

Shenzhen Yaoertai Technology Co., Ltd. is a highly specialized company, founded in 2005. Our company specializes in the design, development, manufacture and marketing of such RF products as wireless receivers and transmitter modules, wireless remote controls, car alarm systems, home alarm systems and related accessories. We provide both OEM & ODM services.
we make remote control, receiver, door operator, sensor with good quality! has been 13 years!

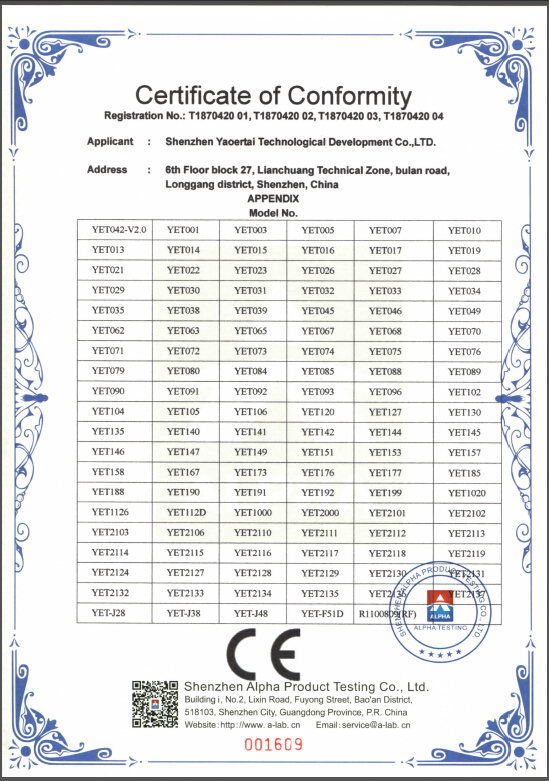

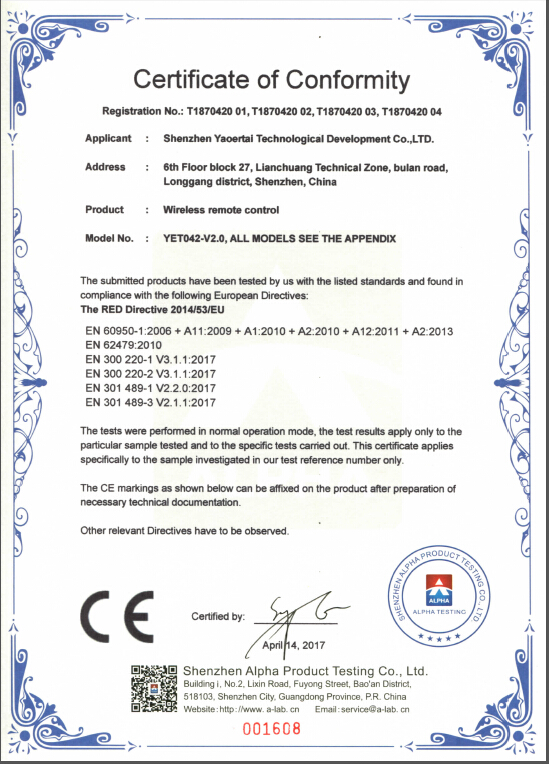

CE, ROHS Certificates
1. what's your minimum order? can i buy samples for testing?
the Minimum order quantity is 100 pcs in our factory. samples are ok.
2. what time can you deliver my order?
samples in 3 days, bulk order 7 days, above 1000pcs in 15 days after payment.
3. do you have gurantee for my order?
battery gurantee for 6 months, remote control and receiver gurantee for 1 year ( except man-made sabotage)
4. what's your best price?
we make different models and different chip, please advise detailed parameters for goods that you need.
