Model No: YET 019

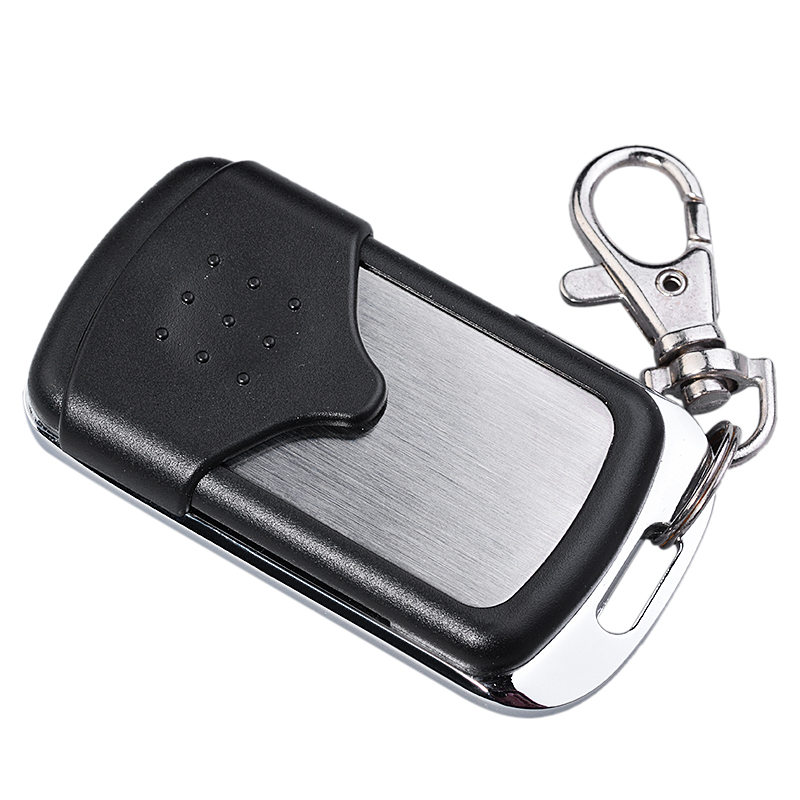

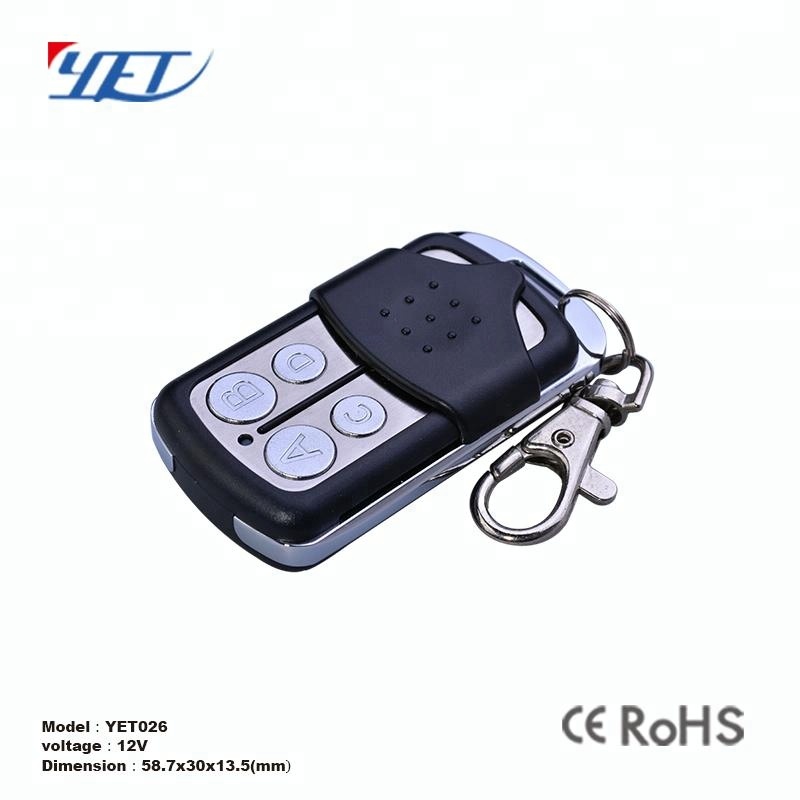

High quality 4 buttons metal case wireless remote control duplicator rf transmitter garage door opener keyfob

minimum order :

1 piece

Quantity :

Contact Now

Subscribe to our Newsletter

Brand Name:YET
Model Number:YET 019
Certification:ce
Color:Black
Place of Origin:Guangdong, China
Material:ABS, Metal
Code:Rolling Code
Button:4 Buttons
Function:Auto shut-off, Automatic, wireless controling, radio remote control
voltage:DC 12V
frequency:433 / 315 / 868 / 300 / 330 Mhz
working Chip:copy code
Working tempertature:-40℃~85℃
Working distance:50-100 meters
Certificate:CE ROHS
Key words:wireless remote control 433 or 315mhz
Usage:Automatic door opener, customized curtain
Product name:wireless rf remote control transmitter

Yaoertai factory wireless rf transmitter radio command remote control rolling code copy wireless switch

Alone duplicating remote control prevent against lost and replace your old remotes.self-learning remote control widely used for garage door, car alarm, rolling curtain, home alarm etc. Duplicate most RF remote controller in market, suitable for fixed code and learning code.

Product Description

Specifications & Features

Battery model	27A
Operation voltage	DC12V
Standby current	less 2uA
Operation frequency	315MHz, 433.92MHz,330MHz, 868mhz, 300mhz
Frequency offset	+/- 75KHz
Modulation	ASK (Crystal Oscillator )
Transmission current	less 10mA
Transmission power	10dBm
Button	1/2//4pcs
Encoder(Optional)	Fixed code:2262,2260 Learning code: EV1527,2240... Hopping code: HCS300,301 copy code: face to face clone
Antenna	Printed circuit board
Certification	CE(R&TTE),ROHs
Transmission distance	100m( open area)

Copy code duplicator instruction:

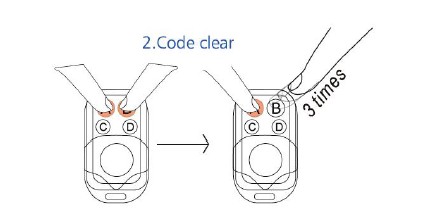

1. Resetting before copying:

Hold down buttons A and button B until the LED flashes, then release button B and press three times (at the same time, button A is pressed all the time)

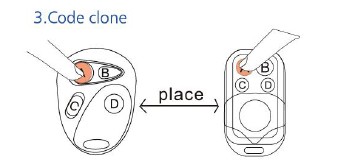

2. Copying:

place the original and clone remote close together.then press the button to be programmed on both remotes and hold until LED flashes steadily on the clone remote...programming is complete.

- repeat steps program extra buttons.

3. Code recovery

Hold down button C and button D until the LED flashes, now it returns to last codes you clone.

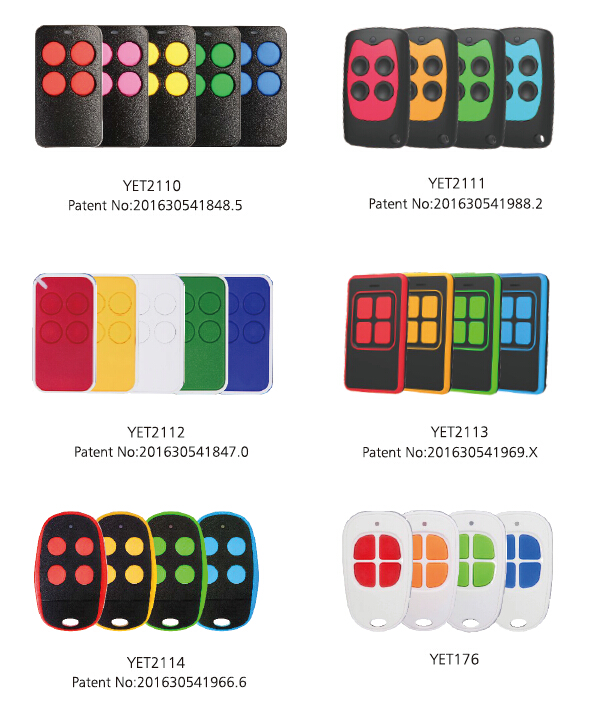

Colors models wireless rf remote control transmitter
