Model No: YET402PC-DM

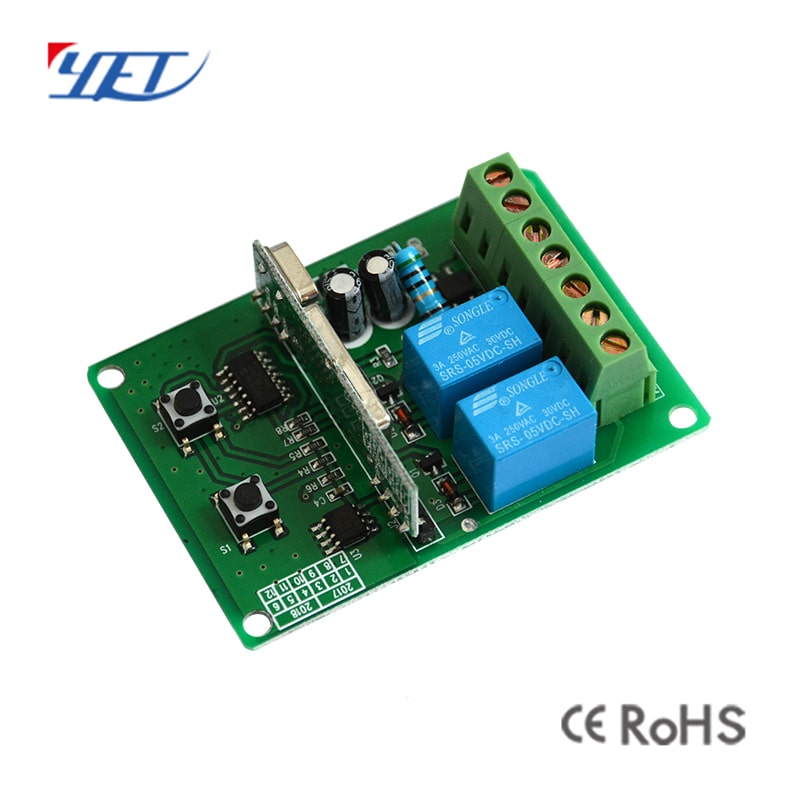

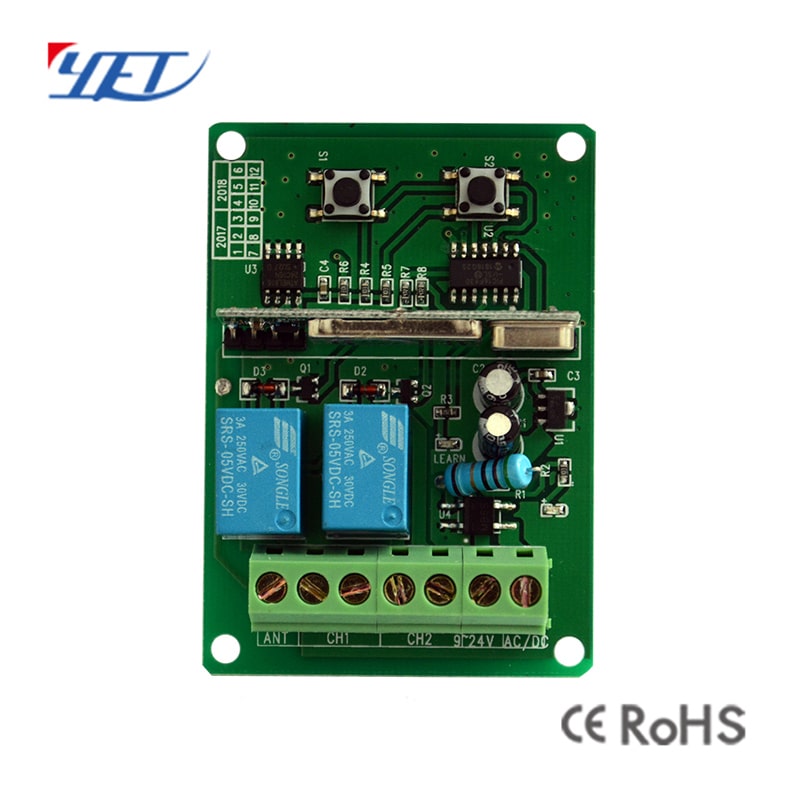

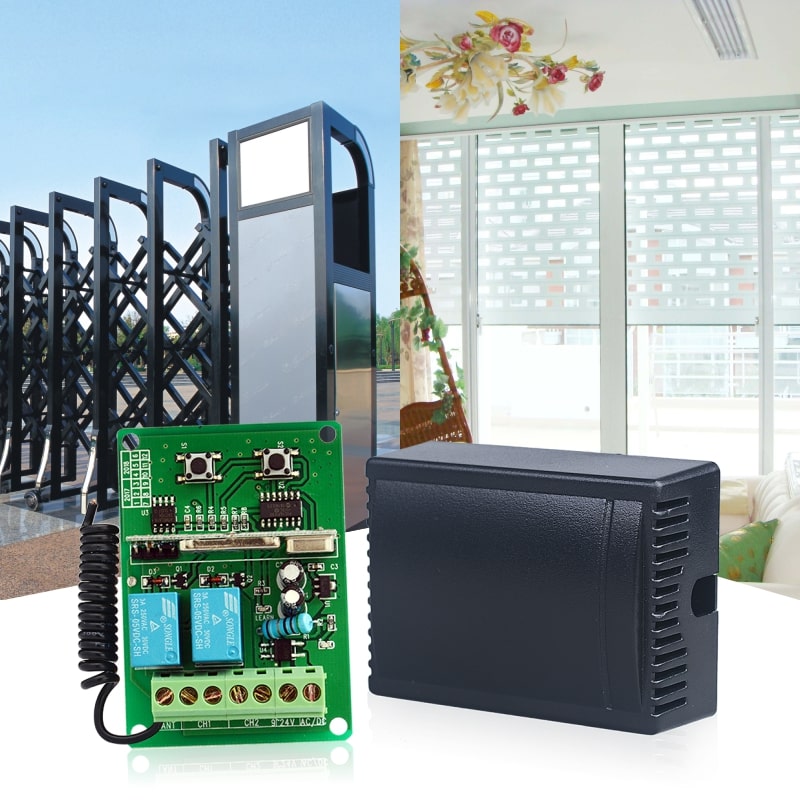

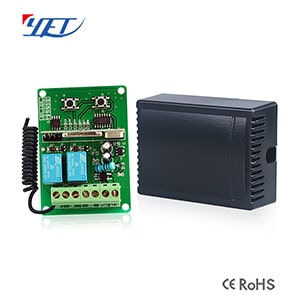

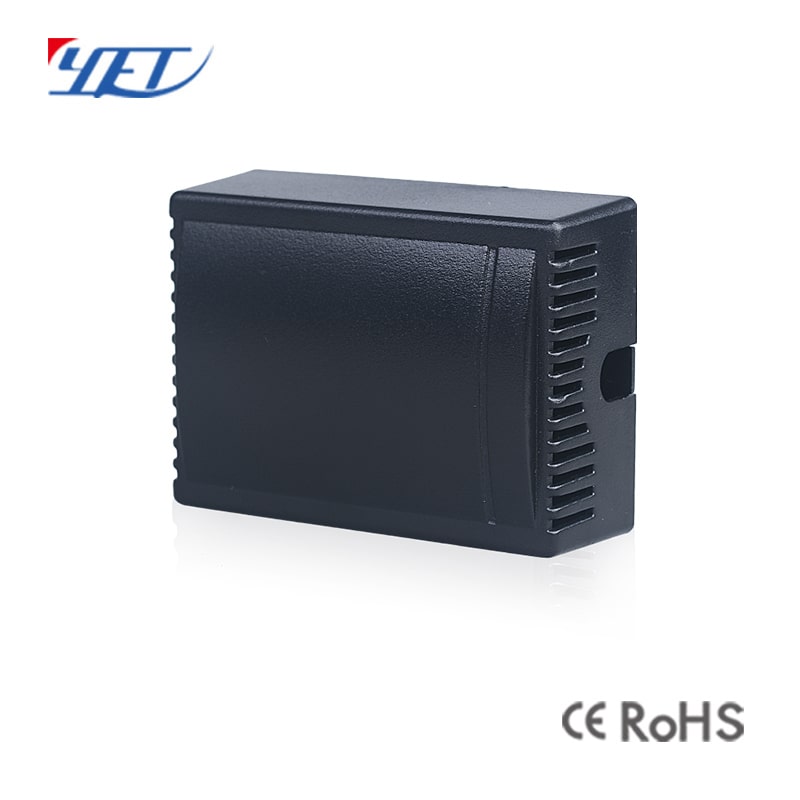

Universal 433.92Mhz 2-Channel Receiver Motor 12-24V Remote Control Switch
minimum order :
1 piece
Country of Origin :
Shenzhen
Quantity :
Subscribe to our Newsletter
- Brand Name:YET
- Model Number:YET402PC-DM
- Certification:ce
- Color:Black
- Place of Origin:Guangdong, China
- Material:Plastic
- Code:Rolling Code, Fixed Code, Learning Code
- Function:relay switch
- transmitter and receiver working volt:DC9V-DC24V
- static working current:<7mA
- operating temperature:-40°C - +80°C
- transmitter receiver working frequency:315mhz/ 433.92mhz(optional)
- transmitter receiver sensitivity:>=-112dBm
- transmitter receiver output current:<=3A
- MOQ:50pcs
- transmitter receiver Dimension:94 *60 *28.5mm
- transmitter receiverStorage:400pcs remote control
- Product name:remote control switch receiver，universal remote control switch，2-Channel universal remote controlSpecification
item | value |
Brand Name | YET |
Model Number | YET402PC-DM |
Certification | ce |
Color | Black |
Place of Origin | China |
Guangdong | |
Material | plastic |
Code | Rolling Code, Fixed Code, Learning Code |
Function | LED indicator light |
transmitter and receiver working volt | DC9V-DC24V |
static working current | <7mA |
operating temperature | -40°C - +80°C |
transmitter receiver working frequency | 315mhz/ 433.92mhz(optional) |
transmitter receiver sensitivity | >=-112dBm |
transmitter receiver output current | <=3A |
frequency modulation | AM |
transmitter receiver Dimension | 94 *60 *28.5mm |
transmitter receiverStorage | 400pcs codes |
Product name | 433.92Mhz 2-Channel Receiver Motor 12-24VRemote Control Switch |
Features：
1. high confidentiality,
2. large storage capacity,
3. stable performance,
4. low power consumption,
5. and is convenient to use,
.
*This product is a general-purpose
intelligent controller, which can be used with most wireless remote controllers on the market, including fixed code (2262, 2260,
2264, 5326, M1E, M5E, etc.) and learning code (1527, 2240, 6P20B, 6P20D, etc.), rolling code (HCS301, HCS300, HCS200, HCS201,
HCS100, HCS101, etc.) and some custom remote controls
2264, 5326, M1E, M5E, etc.) and learning code (1527, 2240, 6P20B, 6P20D, etc.), rolling code (HCS301, HCS300, HCS200, HCS201,
HCS100, HCS101, etc.) and some custom remote controls
*Very easy to program
How to work?

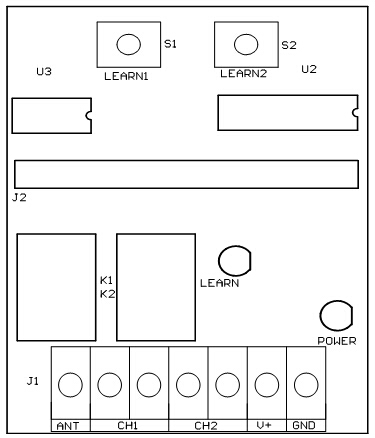

1. Press the learning button on the controller, release the learning button when the LED light is on, the controller will enter
the learning state (at this time, the LED will be off), then press the remote control button to control the controller, when you
see the LED light of the controller flash for 5 times, it means that the learning has been completed. The learning button 1 on the
controller corresponds to the relay 1, the learning button 2 corresponds to the relay 2. The control mode is jog. 2. If the remote
control is lost, in order to make the remote control all invalid, long press the learning key 1 or learning key 2 (more than 5s).
When the LED light is off, the controller will automatically clear the contents in the memory. To reuse, just learn again.
the learning state (at this time, the LED will be off), then press the remote control button to control the controller, when you
see the LED light of the controller flash for 5 times, it means that the learning has been completed. The learning button 1 on the
controller corresponds to the relay 1, the learning button 2 corresponds to the relay 2. The control mode is jog. 2. If the remote
control is lost, in order to make the remote control all invalid, long press the learning key 1 or learning key 2 (more than 5s).
When the LED light is off, the controller will automatically clear the contents in the memory. To reuse, just learn again.
Product Description
Packing & Delivery
Carton,500PCS per case ,carton size:48*38*26CM, GW=NW+1.8KG

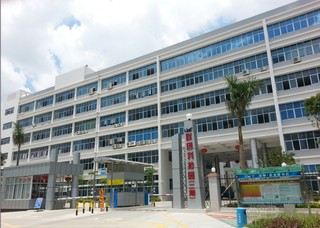

Company Profile
Shenzhen Chuangyao Science & Technology Co.; Ltd is a highly specialized company, founded in 2005. Our company specializes in the design, development, manufacture and marketing of such RF products as wireless receivers and transmitter modules, wireless remote controls, car alarm systems, home alarm systems and related accessories. We provide both OEM & ODM services. Our product quality can meet FCC, CE, and RoHS standards. With strong technology, we have produced more than 1,00 types of quality products, which are available to different sectors and can meet a variety of special needs of customers throughout the world. Our products are exported to Australia, Latin America, Southeast Asia, North America, the Middle East and Europe.
FAQ
1. who are we?
We are based in Guangdong, China, start from 2008,sell to South Asia(9.00%),Southern Europe(9.00%),Northern Europe(9.00%),Eastern Asia(9.00%),Mid East(9.00%),Oceania(9.00%),Africa(9.00%),Southeast Asia(9.00%),Eastern Europe(9.00%),South America(9.00%),North America(9.00%). There are total about 101-200 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Remote Control,control board,RF remote control,Garage remote control,remote control duplicator
4. why should you buy from us not from other suppliers?
with more than 15 years' experience of the RF remote control & receiver , and with more than 10 experienced for the goods designing and development. we accept OEM & ODM.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,French,Russian,Italian
We are based in Guangdong, China, start from 2008,sell to South Asia(9.00%),Southern Europe(9.00%),Northern Europe(9.00%),Eastern Asia(9.00%),Mid East(9.00%),Oceania(9.00%),Africa(9.00%),Southeast Asia(9.00%),Eastern Europe(9.00%),South America(9.00%),North America(9.00%). There are total about 101-200 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Remote Control,control board,RF remote control,Garage remote control,remote control duplicator
4. why should you buy from us not from other suppliers?
with more than 15 years' experience of the RF remote control & receiver , and with more than 10 experienced for the goods designing and development. we accept OEM & ODM.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,French,Russian,Italian
