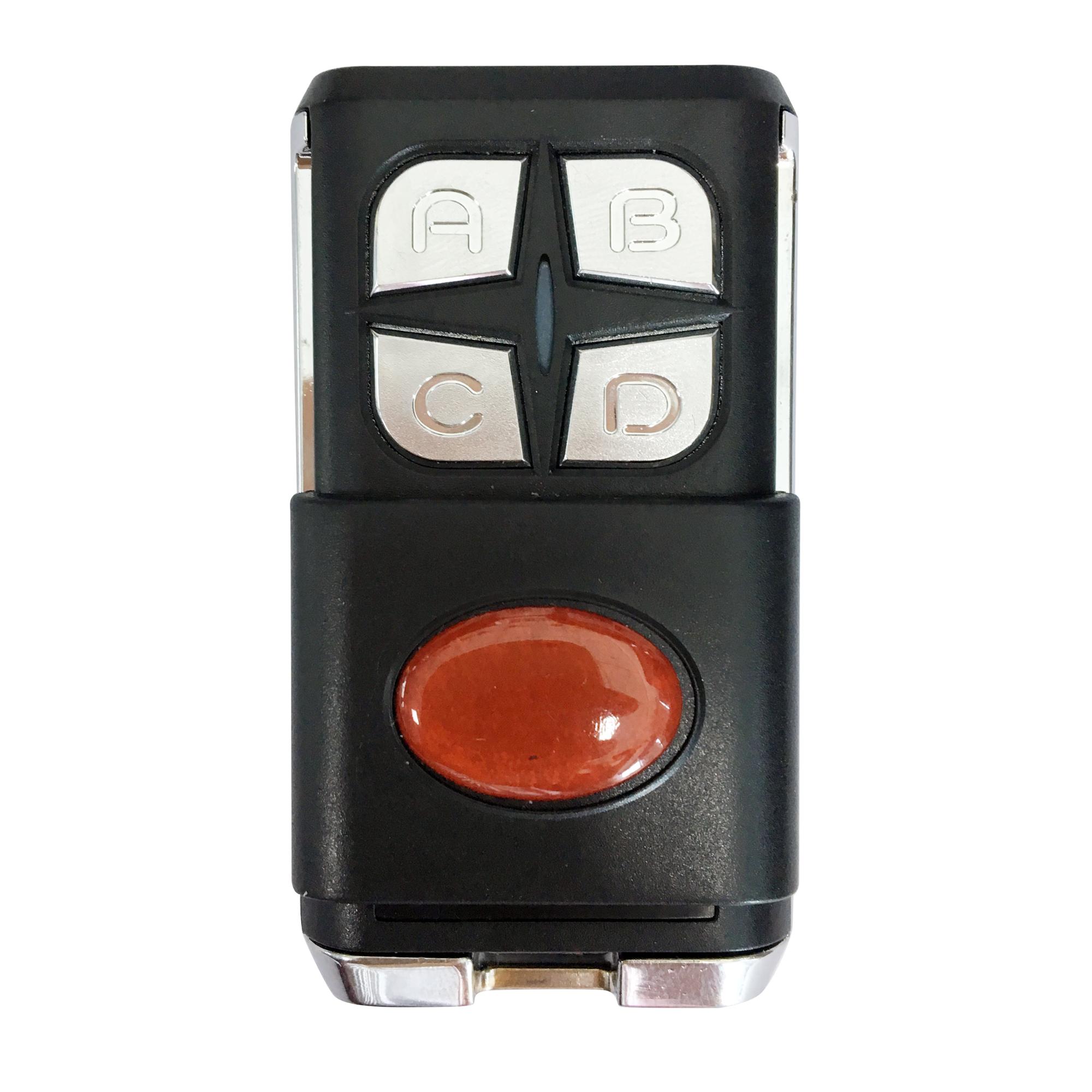

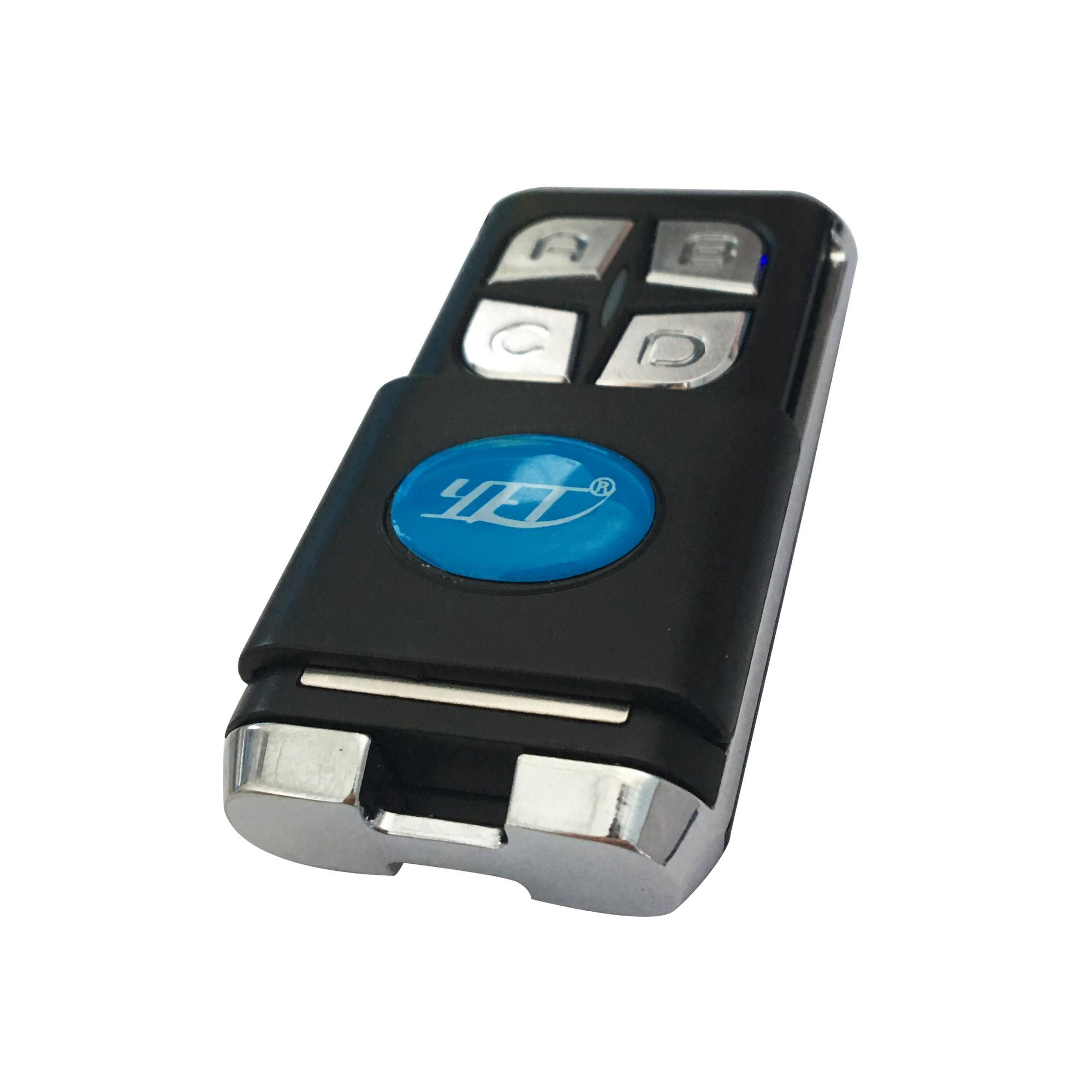

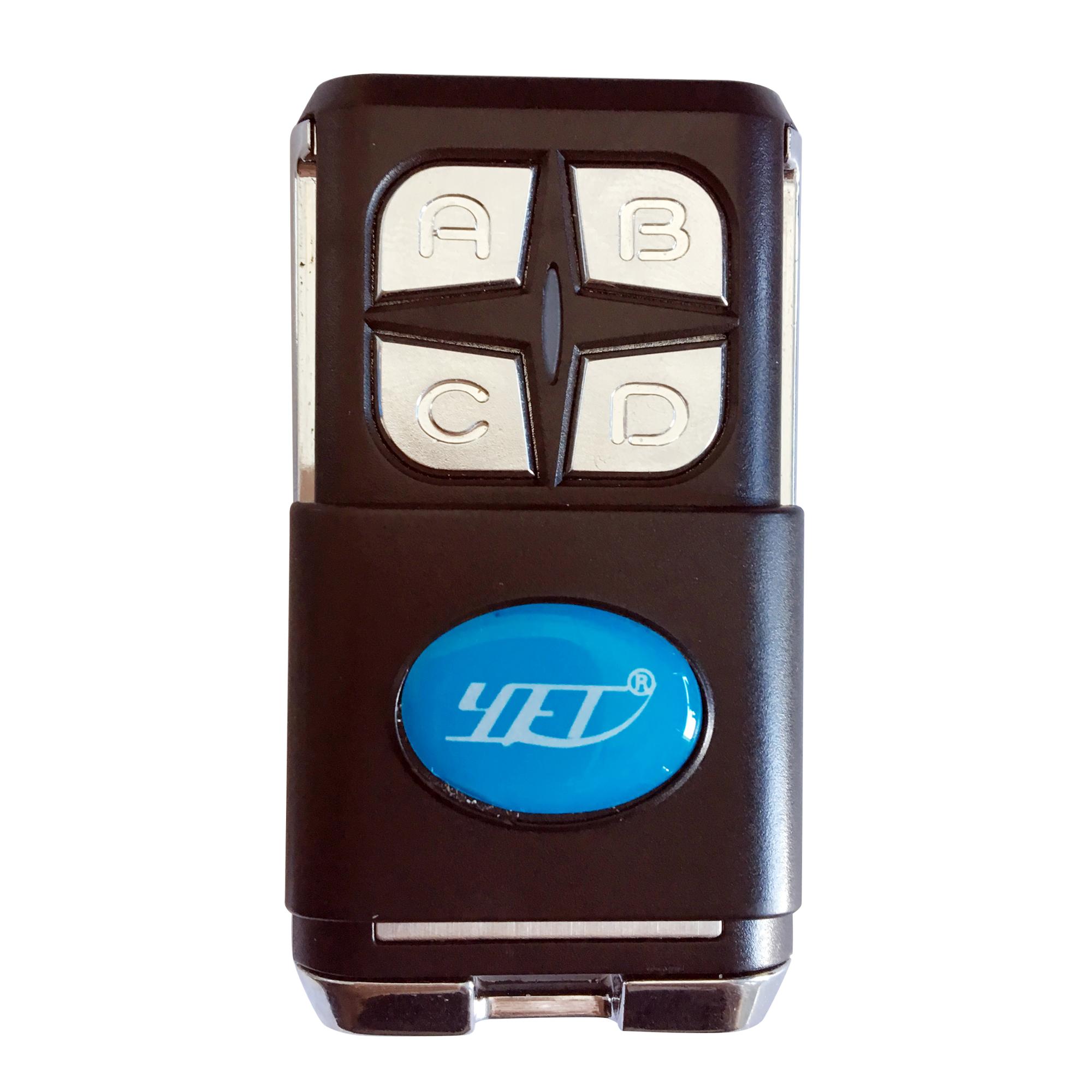

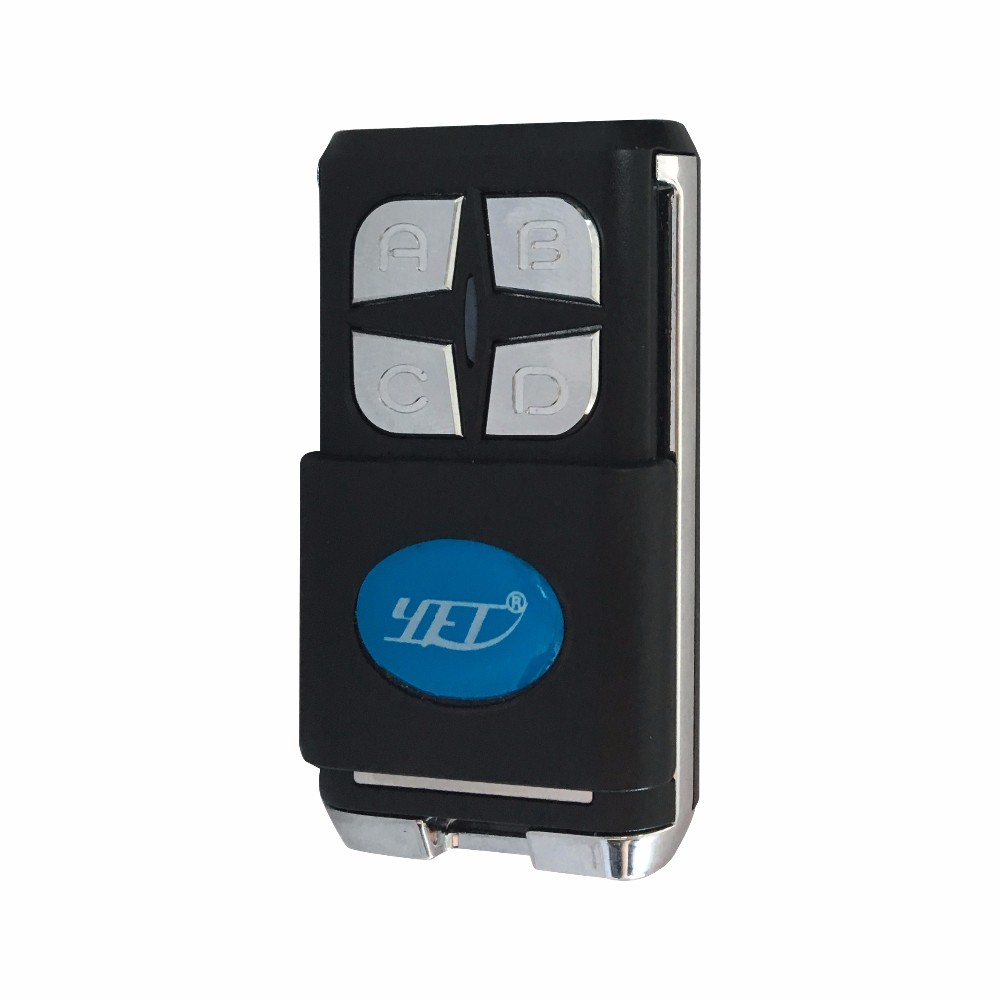

New model waterproof remotes for garage doors universal 433mhz remote control copier
- Brand Name:YET
- Model Number:YET 2133
- Certification:ce
- Color:Black
- Place of Origin:Guangdong, China
- Material:ABS, Metal
- Code:Rolling Code, Fixed Code, Learning Code, Copy Code Optional
- Button:4 Buttons
- Function:universal
- Frequency:315 433 330 868 mhz 300 - 868mhz
- Launch distance:50-100meters
- Working voltage:DC 12V
- Transmission speed:50-60KHz
- Frequency windage:±0.2MHz
- functions:rolling code copier universal copy code
- Certificate:CE FCC ROHS
- copy:fixed learning rolling codes
- button:4
- feature:waterproof
New model waterproof remotes for garage doors universal 433mhz remote control copier
1.Use range
the 4-Channel RF Wireless Remote Control Duplicator used for Cars, Garage Doors , Gates doors, Alarm systems etc. Fixed frequency (433.92mhz or 315mhz) for copying 99.99% common fixed and learning code remote controls.
Face to face copy the functions of your original remote by this 4-channel RF remote control duplicator with code learning functions and you'll always have a back up.
Duplicate Your Existing Remote Controllers
| Buttons | 4 channel |
| Operating voltage | DC12V / 6V / 3V |
| Operating current | 10MA |
| Operating frequency | 315Mhz, 433Mhz, 868.35Mhz, 869.85Mhz, 290Mhz - 480Mhz |
| Ambient temperature | -10 °C ---- +70 °C |
| Use | Cars, garage doors , gates doors, alarm systems etc. |
| Copy type | Fixed code and Learning code |
3.key features
- Prevents loss and replaces your old remote controls
- Self learning remote control
- Used in car alarms, home alarms, panic buttons, garage doors, rolling curtains and more
- Copies most radio frequency fixed code remote controls
- Learning face to face in secon
4. compatible encoder IC list
- PT2240 / PT2242
- 2260 / 2262 / 2264
- EV1527 / FP527
- HT12D / HT12E
- HT600 / HT640 / HT680
- HT6010 / HT6012 / HT6013 / HT6014 / HT6207
- AX5026-1 / AX5026-2 / AX5026-3 / AX5026-4
- AX5326-3 / AX5326-4
- SMC918 / MC145026

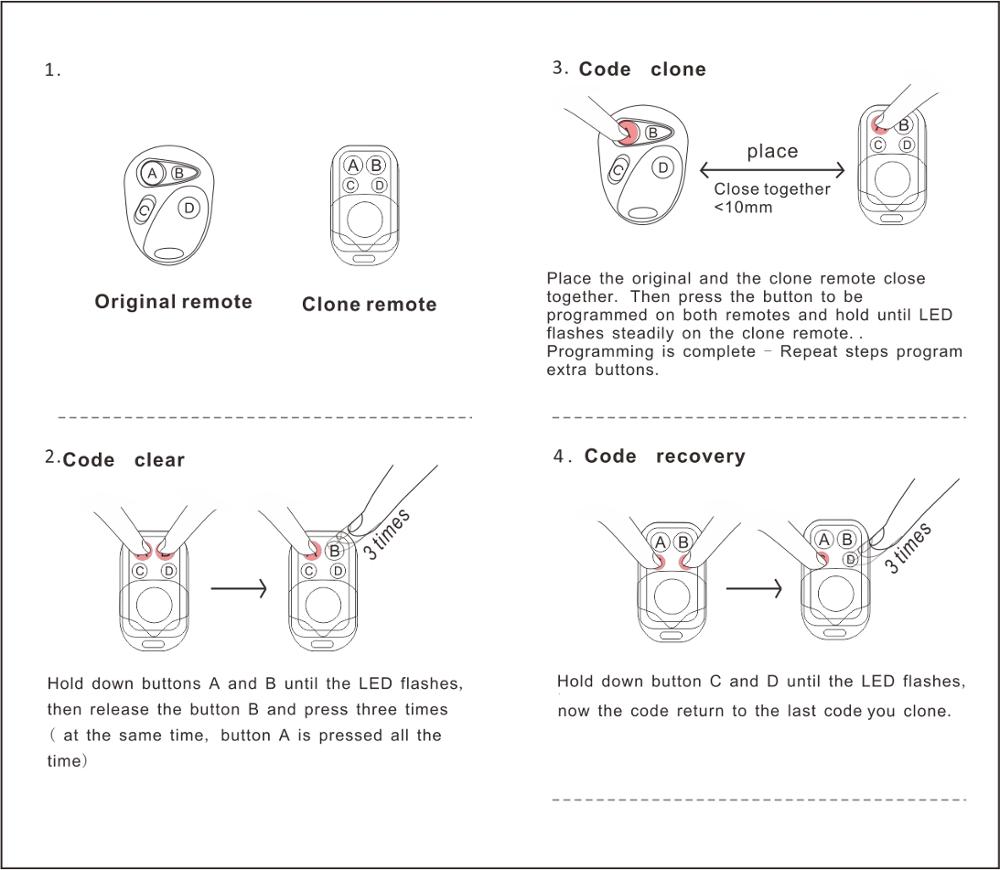

1. Press button A and B at the same time until LED flash.
2. Release button B and keep pressing button A, then press button B 3 times,
LED flash fast indicate succeed to clean code (can release button A now)
Step 2: Copy code from original transmitter
1.Put duplicator aside of original transmitter, as close as possible.
2.Press and hold button A of original transmitter and button A of duplicator at the same time, until duplicator’s LED flash and keep lighting.
3.Release both buttons, finish code copy, and copy other button in same way.
Return Function:
Press and hold button C and D for 3 seconds, the LED flash, ok all buttons return back to the latest copy codes.

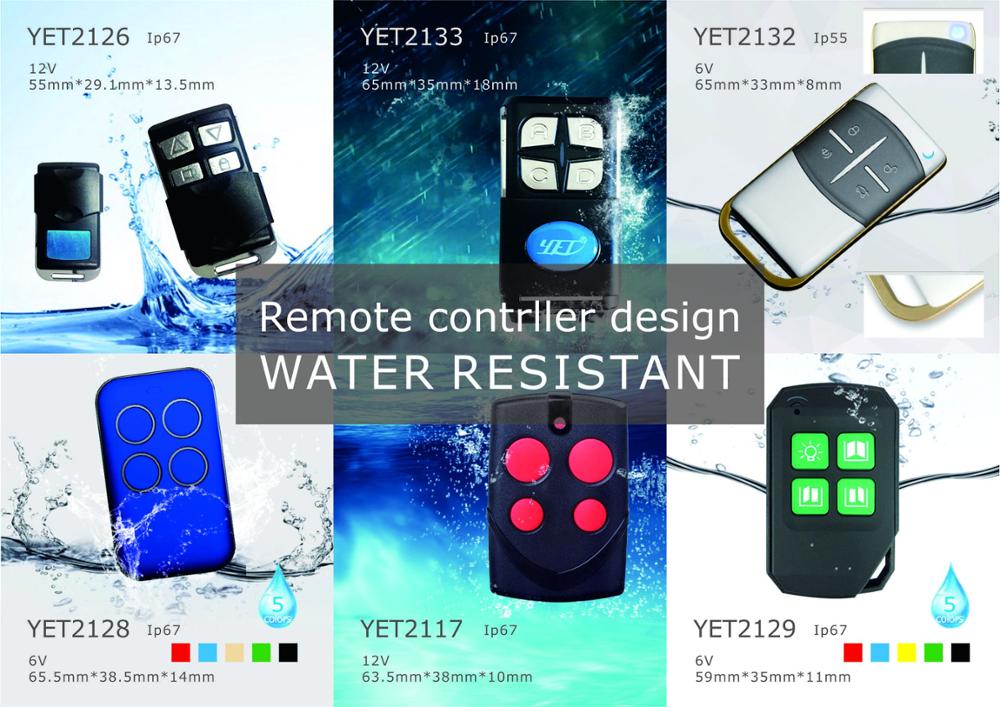

waterproof remote control duplicator

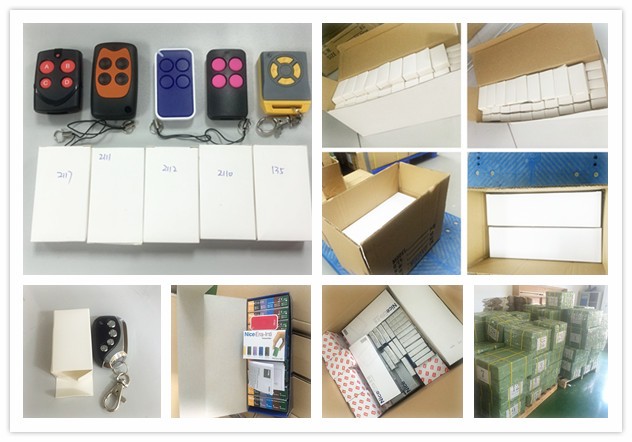

Neutra white box for each
100 pcs in medium box
500 ppcs in master carton

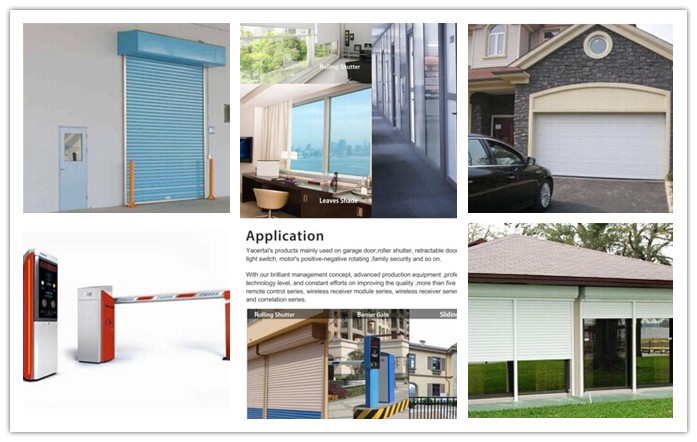

Application
1.Wireless home security system
2.Car sunroof remote control
3.Vehicle central locking system
4.Wireless call system
5.Home appliance / industrial automation
6.Electronic garage door / gate opener
7.Remote toy control
8.Remote fan / lighting control
9.Wireless motor-driven curtain
10.Heating systems
11.Wire elimination project

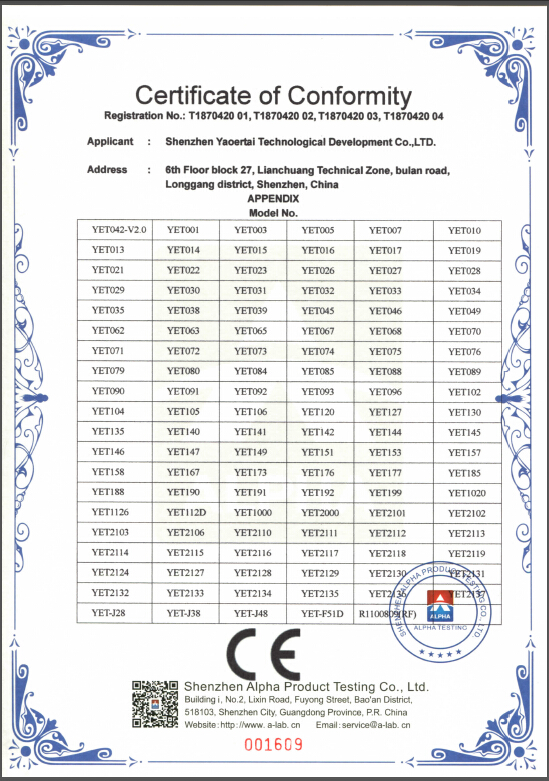

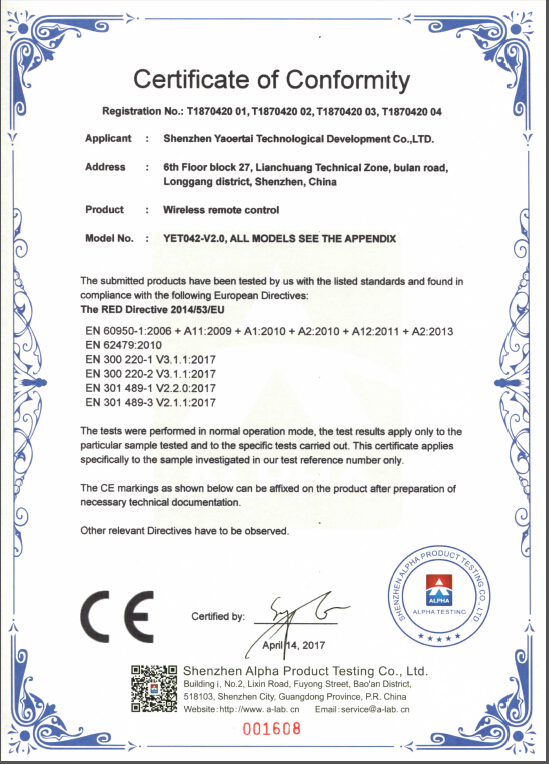

CE, ROHS Certificates
