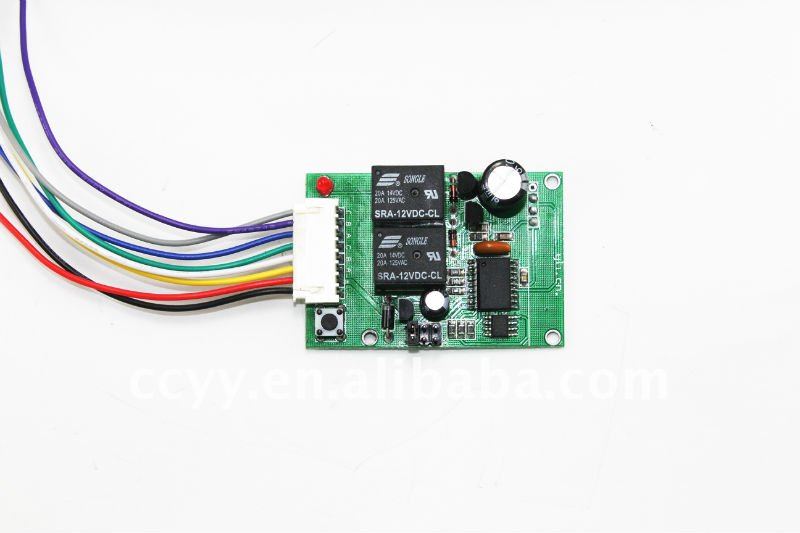

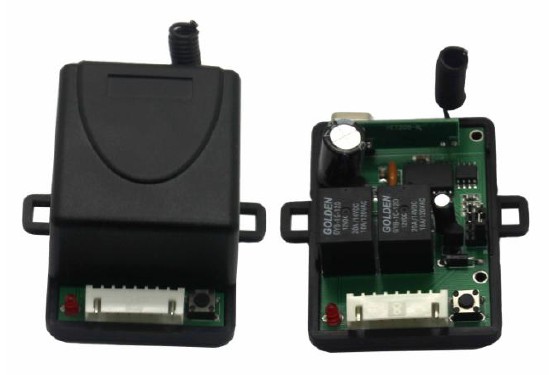

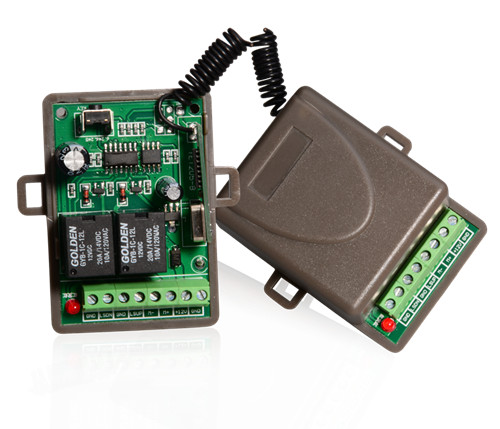

Universal 4 channels 433 Mhz remote control Rf Receiver and Transmitter for Garage Door
- Brand Name:CY
- Model Number:CY405PC
- Use:Universal
- Place of Origin:Guangdong, China
- Working volt:12V/24V
- Working frequency:315MHz/433MHz
- Sensitivity:>= -105dBm
- Working current:7mA
- Operating temperature:-40℃-+80℃
- Output current:≤10A
- Control voltage:AC/DC
- Size:74.5*54.5*27mm
- Output form::self-locking, inching, interlock
- Product name:4Channels Long Range RF Transmitter
wireless garage door rf receiver receptor 433.92mhz 4 channels remote control receiver YET405PC
Related products:
Usage
Controller using microprocessor intelligent control ,can be used in Garage door control, Lighting Control,Remote curtain etc .with Easy installation and simple to use , Safe and reliable features.
Tech data
| Voltage | DC12V/24V (optional) |
| working frequency | 433.92Mhz/315M optional (others can be customized) |
| Sensitivity | <=-105dBm |
| Satic Current | <=9mA |
| Contact Current | <=10A |
| Capacity | 30pcs (learning /fixed code), 6 pcs( rolling code) |
| Working Tep. | -40 ℃ -+80 ℃ |
| Size | 74.5*54.5*27mm |
Output information:
A. Signal toggle—jumper inserted on 1
B. Signal latch—jumper inserted on 2
C. Signal momentary—not insert jumper
D. 2-circuit toggle, 2-circuit momentary—
jumper inserted on 1 and 2(301 not equipped with this function)

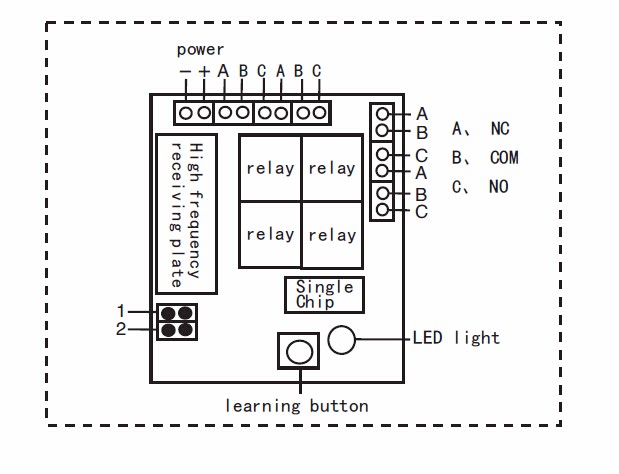

Wiring Diagram
Shenzhen Chuangyao Technology Co., Ltd.is approved by the Shenzhen Municipal Bureau of Trade and Industry set up a set of product development, production and sales of emerging high-tech enterprise. Since its inception, has continued to blaze new trails, a set of security sector development, design, manufacturing and sales of professional manufacturers.

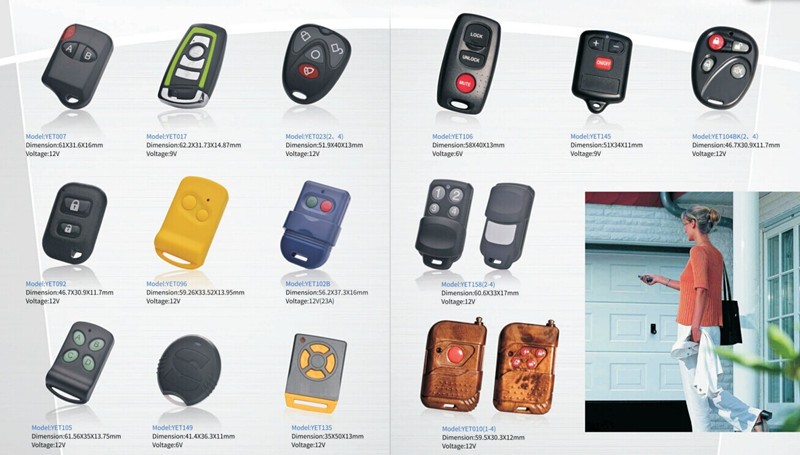

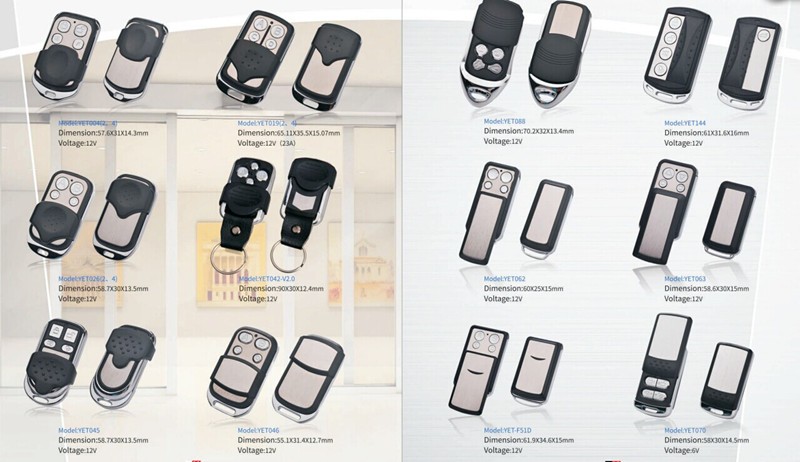

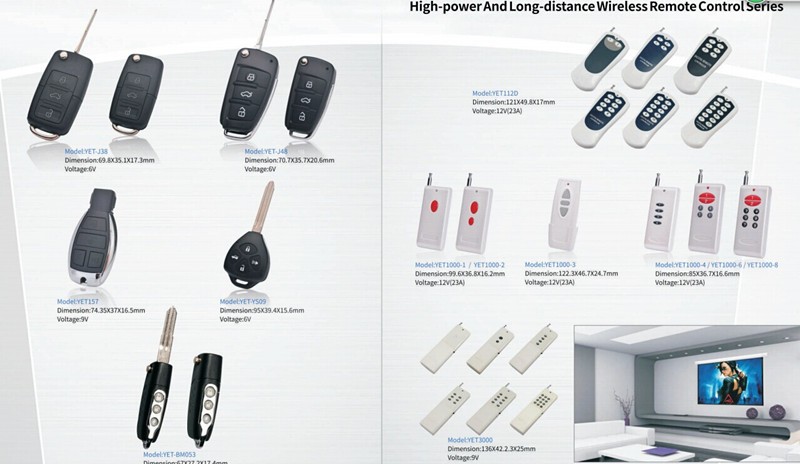

Yaoertai Technology's main products include: household / commercial wireless intelligent burglar alarm, wireless remote control, wireless receive / transmit modules, wireless infrared fire detectors, wireless door sensor, wireless smoke detection, infrared gas alarm gas, fiber optic transceivers and so on; also based on customer needs, develop a dedicated wireless remote control transmitting and receiving control system. Are widely used in automobiles, motorcycles, shopping malls, it is important, and domestic anti-theft alarm. Among them, wireless transceiver modules, wireless receiver controller, widely used in garage doors, rolling shutter and electric gates. Remote control. Soil industry control and exported to Europe, America and Southeast Asia.

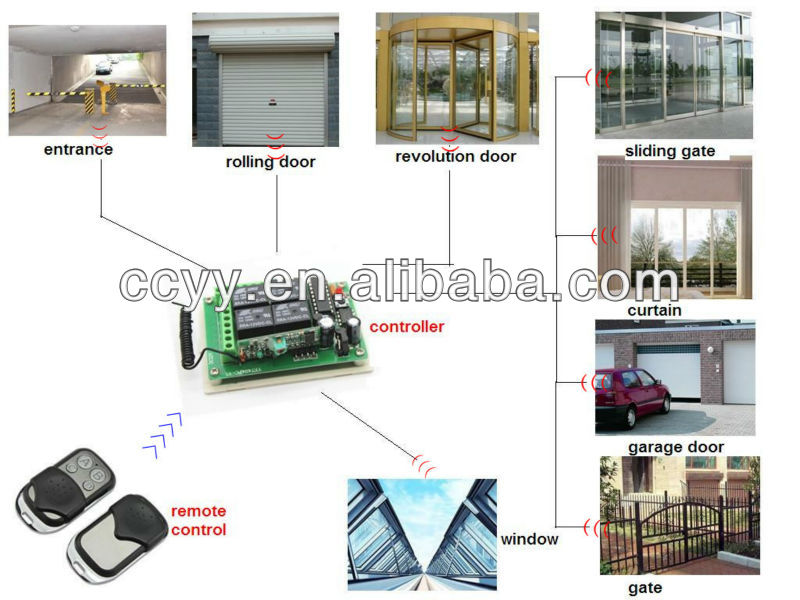

2. Usage:
3. Certificate
CE&ROHS
Our Service:
1. Professional technological support
2. 2 years product warranty
3. Well trained sales team to provide efficient service.
4. Your inquiry will be responsed in 12 hours.
Our Advantages:
1. Stepped into RF field for over 10 years, now is the head company in RF remote industries.
2. Cooperated with first class raw material suppliers for years, stable provide and high qualified material.
3. Strict QC system through production.

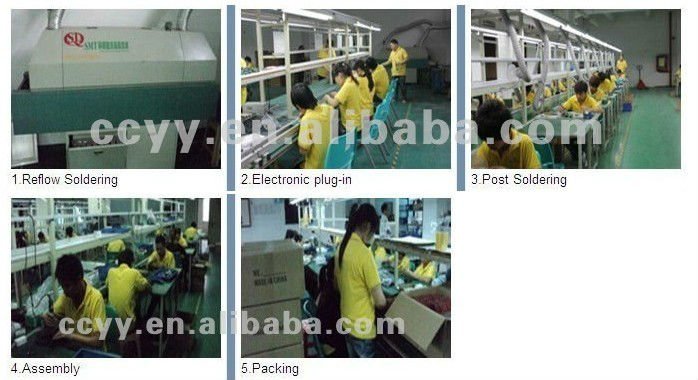

4. Dust-free plant with imported machines,high efficiency and accuracy.
5. Stable vendor of some large companies due to high quality and good service.
etc......
Why Choose Us:
1. Qualifications up to 2013 | 2 invention patents,3 utility patents,5 design patents |
2. R&D strength: | publish new items per 2 months,10-year experience,alomost 100% success rate |
3. Sales strength: | 19 elite export sales,long term after-sale service promised. |
4. Complete&strict QC system | 4-10 years experienced officers,complete QN system including IQC,IPQC,FQC,QN AND QE |
5. Facilities | Advanced imported machine,like SMT. |
6. Product quality | Under 1% defected rate.12 months warranty |
7. Certification: | CE,ROHS,IP55,FCC,ISO,C-TICK etc |
8. OEM/ODM ability: | Over 10 years OEM/ODM experience |
