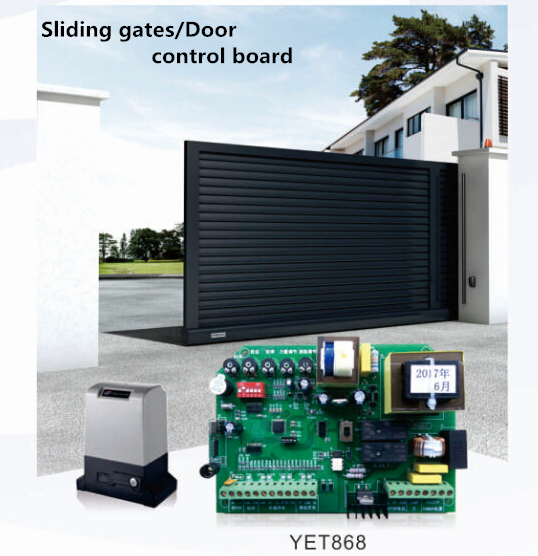

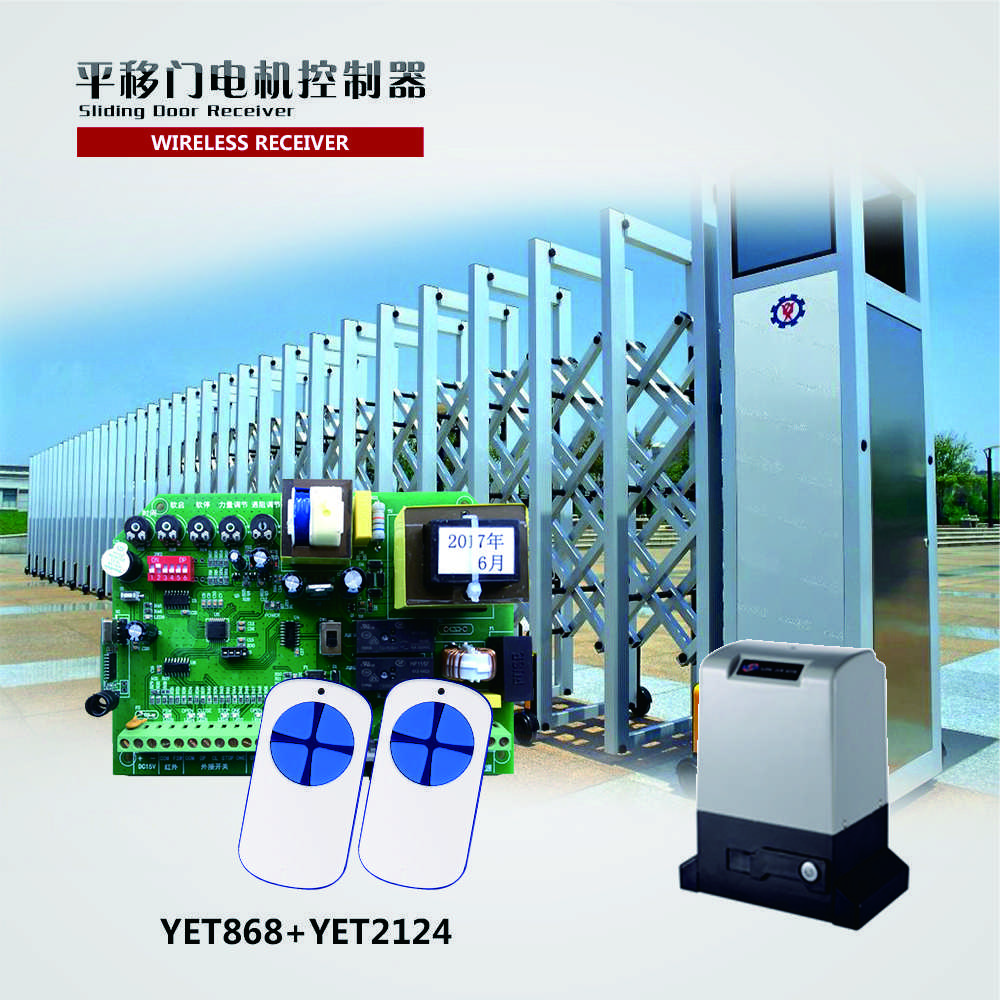

AC motor 220V sliding door receiver board panel with soft start soft stop
- Brand Name:YET
- Model Number:YET 868PC
- Use:Universal
- Place of Origin:Guangdong, China
- Item:220V sliding door receiver board panel
- Operating Temp:- 40C~+80c
- Frequency:433/315mhz/customized
- Modulation Mode:ASK
- Power:220V
- Sensitivity:-105dB
- Working Mode:1 key / 4 keys
- Certificate:CE ROHS
- decoder:fixed code, learning code, rolling code
AC motor 220V sliding door receiver board panel with soft start soft stop
1. Usage: Wireless receiver controller for sliding door
2. Dimension : L x W x H = 163*114*42mm
3. Receiver specifications:
| Working voltage | AC220V |
| static working current | ≤12 mA |
| working temperature | -40℃-+80℃ |
| sensitivity | ≥105dBm |
| working frequency | 315 433 868mhz optional |
| contact current | ≤16A |
| memory | 36 pcs |
wireless remote control transmitter datasheet:
| 1 / 2 / 3 / 4 |
| DC12V |
| 10MA |
| 315Mhz, 433Mhz, 868.35Mhz, 869.85Mhz, 290Mhz - 480Mhz |
| -10 °C ---- +70 °C |
| Cars, garage doors , gates doors, alarm systems etc. |
| fixed code, learning code, rolling code |
| 50 - 100 meters in open space |
4. Functions / features
1) Automatic closing: adjustable delay time
2) Soft start: running speed adjustable, reduce the impact of start, extend life of equipment
3) Soft stop: stop speed adjustable, to ease the impact when closing
4) Adjust the running speed, to adapt to different loads
5) Door return when meet obstacle: obstacle power adjustable, automatically open when door meet obstacle
6) Can be connected with sensor
7) Automatically memory when manually open close door after powering on, running time from 5s - 120s
5. remote control Programming method
Press learning button ( 1s ), OPEN, CLOSE, STOP lights go on, then press any button on remote, you will see lights flash 3s and buzzer ring out, that means programming successfully.
6. Clearing transmitter
Pressing learning button, in 5s OPEN, CLOSE, STOP lights go on then off, buzzer rings out, then release learning
button.
Shenzhen Yaoertai Technology Co., Ltd. is a highly specialized company, founded in 2005. Our company specializes in the design, development, manufacture and marketing of such RF products as wireless receivers and transmitter modules, wireless remote controls, car alarm systems, home alarm systems and related accessories. We provide both OEM & ODM services.
Certificates:

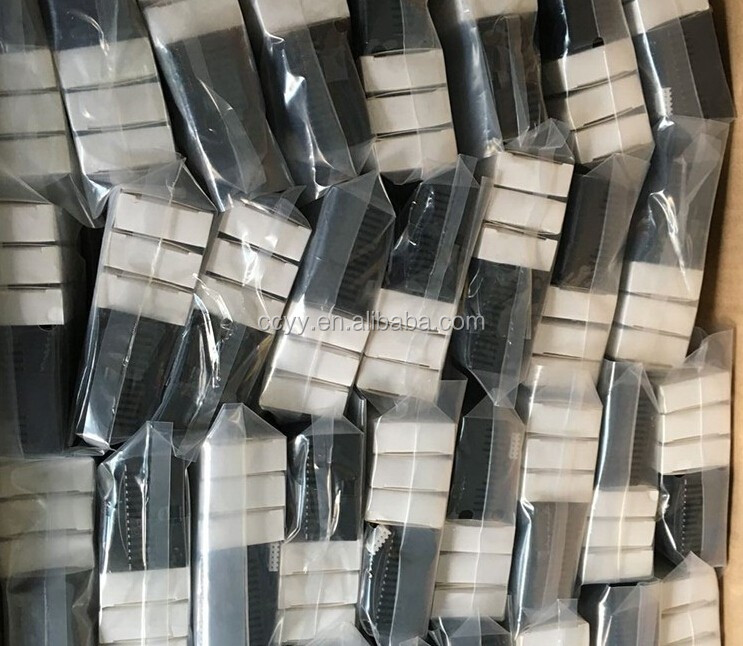

wireless remote control receiver package
- each wireless remote control transmitter packed in single white box
- remote control and receiver kit packed in plastic bag or white gift box
Our Services:
- OEM,ODM service
- customize package
- printing logo
1. what's your minimum order? can i buy samples for testing?
the Minimum order quantity is 100 pcs in our factory. samples are ok.
2. what time can you deliver my order?
samples in 3 days, bulk order 7 days, above 1000pcs in 15 days after payment.
3. do you have gurantee for my order?
battery gurantee for 6 months, remote control and receiver gurantee for 1 year ( except man-made sabotage)
4. what's your best price?
we make different models and different chip, please advise detailed parameters for goods that you need.
