Model No: YET 402PC+YET026

2 channel two relays 433mhz DC12V 24V wireless rf receiver remote control wireless rf switch for lights motors alarms locks

minimum order :

1 pair

Country of Origin :

FOB Shenzhen

Quantity :

Contact Now

All Products

Subscribe to our Newsletter

Product Description

Product Name	2 channel relay 433mhz DC12V 24V wireless rf remote control and wireless receiver 2 relays output for garage door opener，wireless rf 433mhz receiver，lights motors alarms wireless control switch
Material	ABS
Function	long range wireless rf transmitter and receiver
Package	poly bag or white box

number of receiver relay	2 relays
working frequency	433mhz
encoding type	learning code
Operating Voltage	DC12V /24V
Contact Current	≤10mA
RF Sensitivity	>105dBm

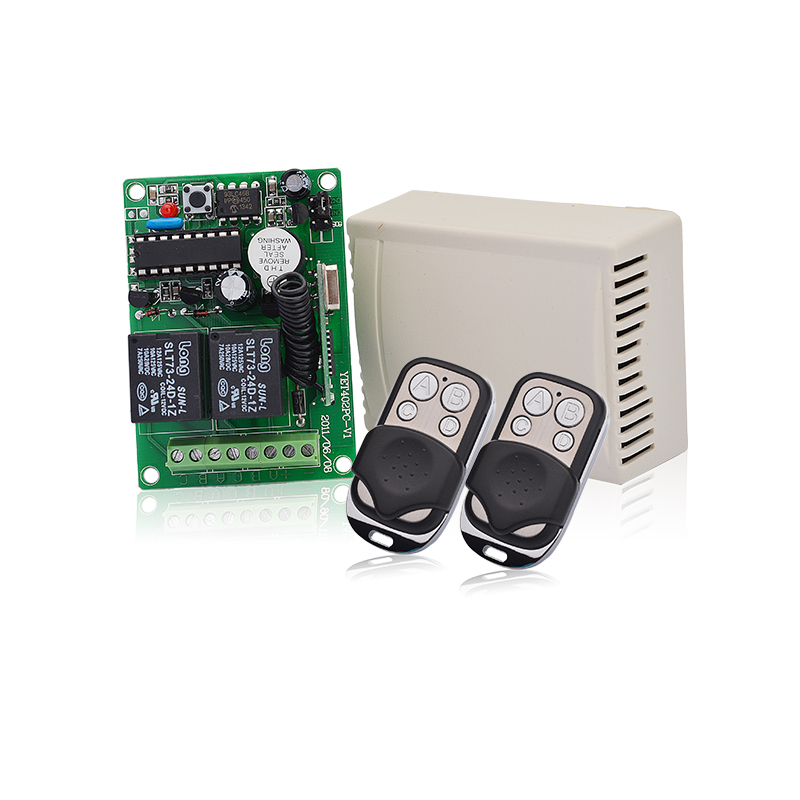

package including	1x receiver + 2 x remote control
battery	included

wireless remote control and rf receiver usage:

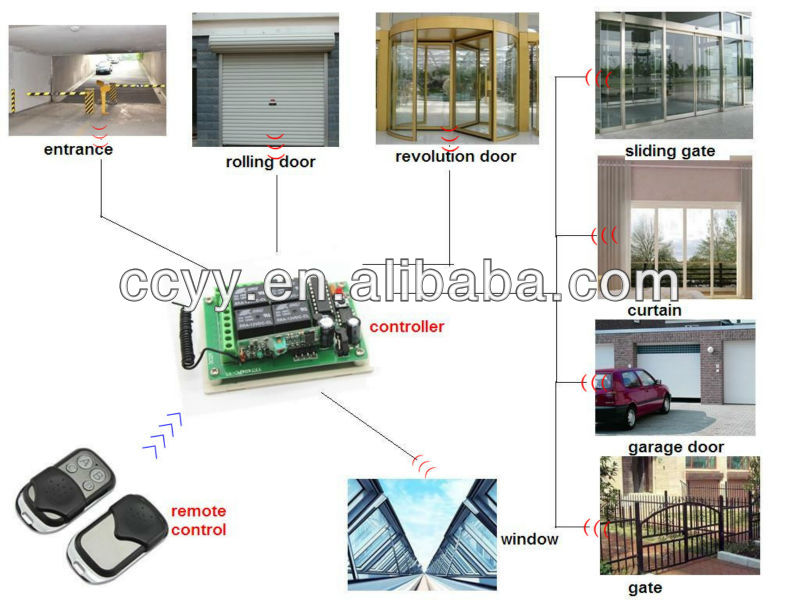

the 2 channels wireless intelligent receiving controller can provide switch signal to the relay, so it can meet many requirements such as the connection and lock of the switch and other special control programs. This kind of wireless intelligent receiving control main apply to auto door, curtain, lifting appliance, gate way, lifter, industrial control and security field.

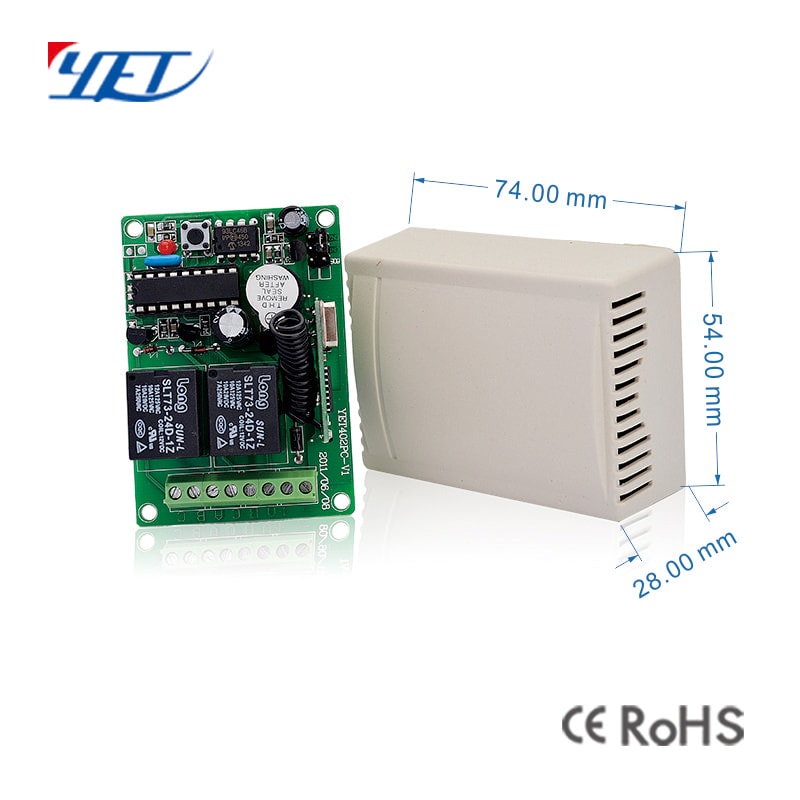

Details Images

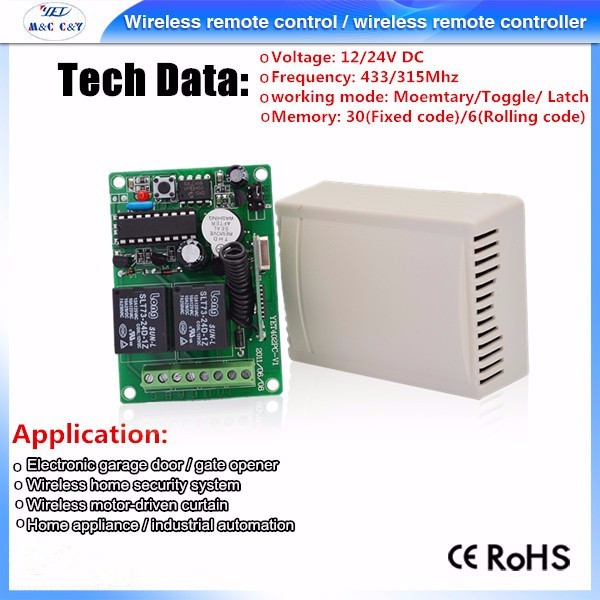

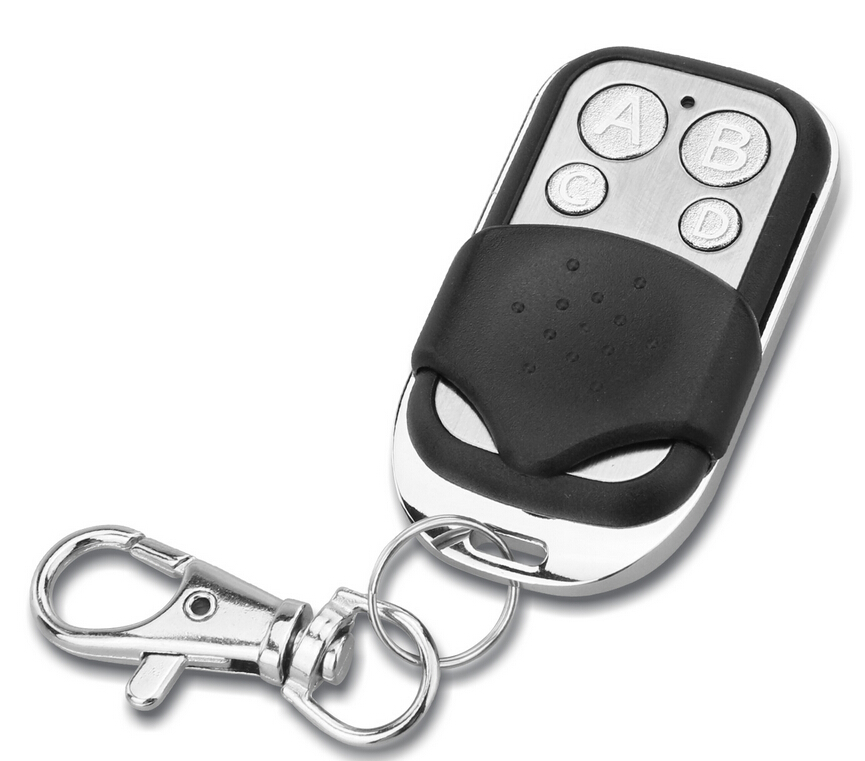

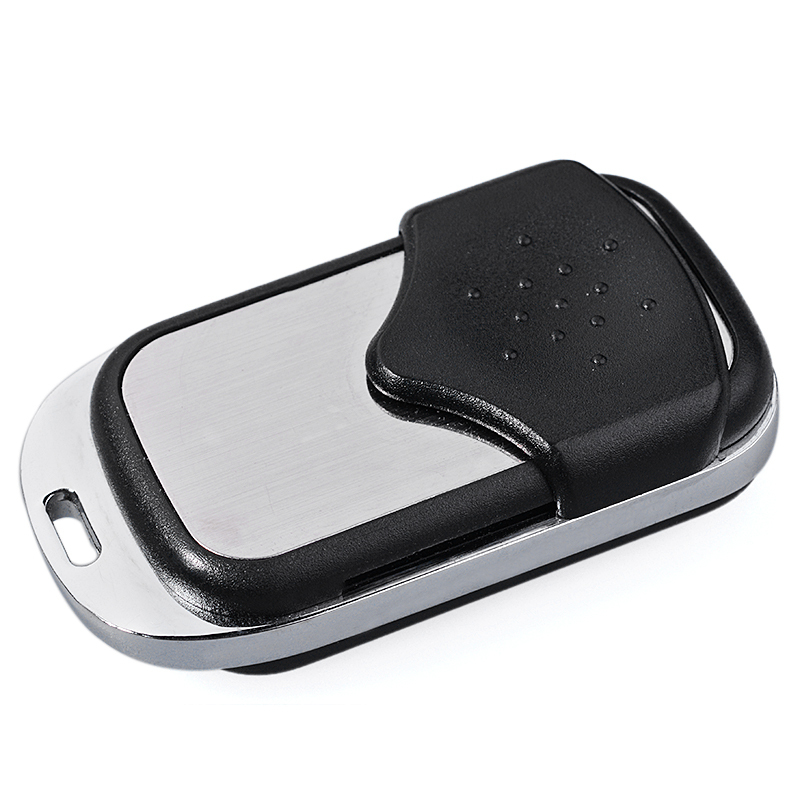

2 channels wireless remote controller and 4 buttons wireless remote control details description

superheterodyne receiving module make it long working distance,up to 100 meters in open space.

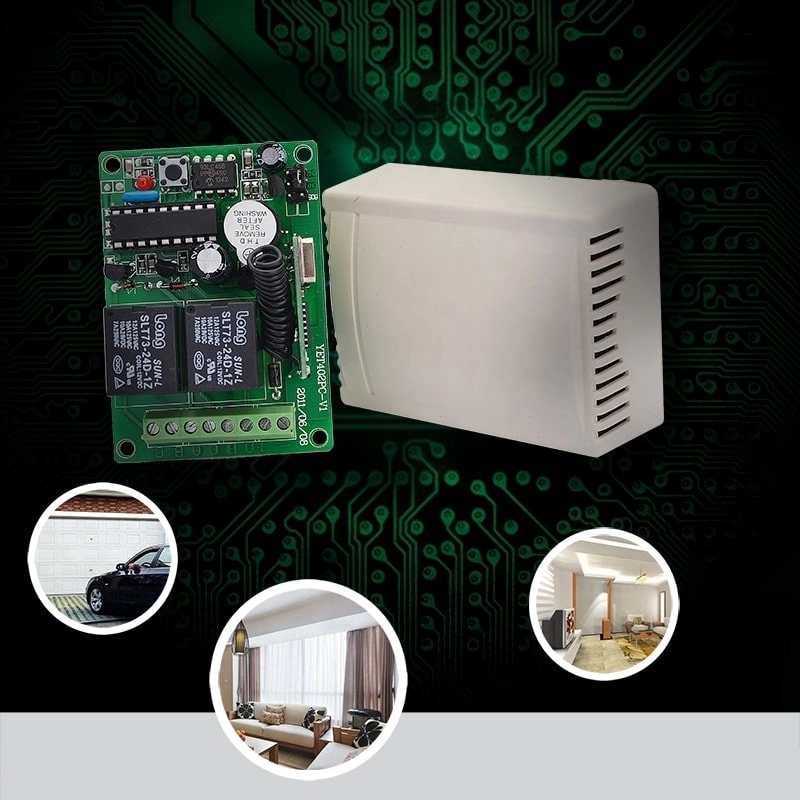

water-resistance case,clean circuit board,high quality electronic components

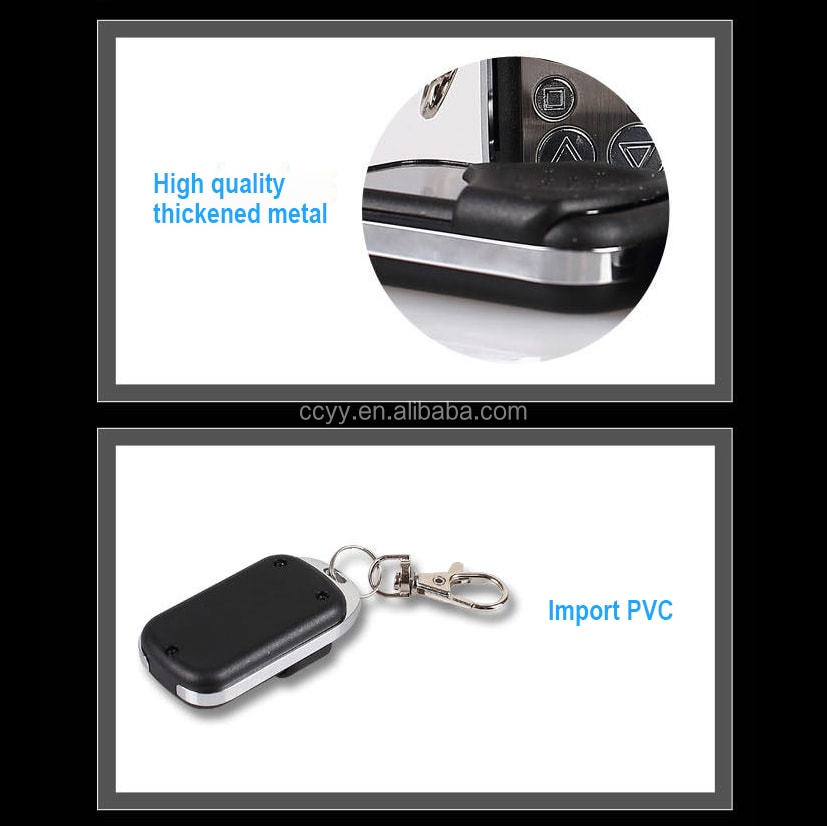

plastic case and metal middle frame

Product Usage

- Product usage introduction

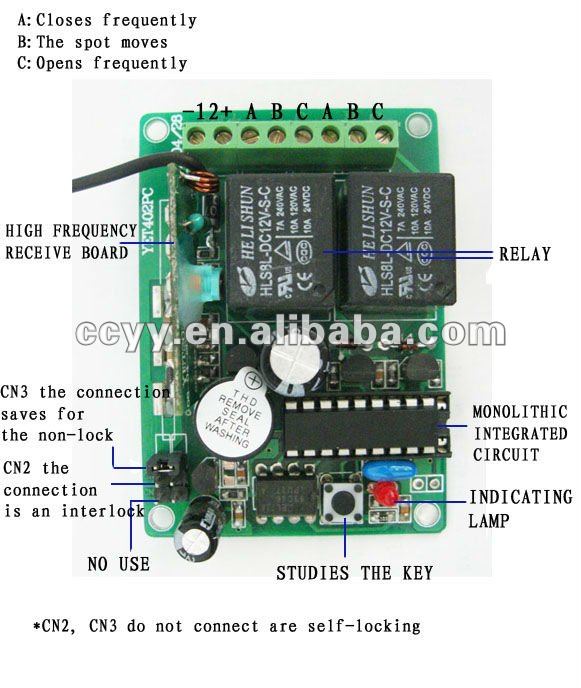

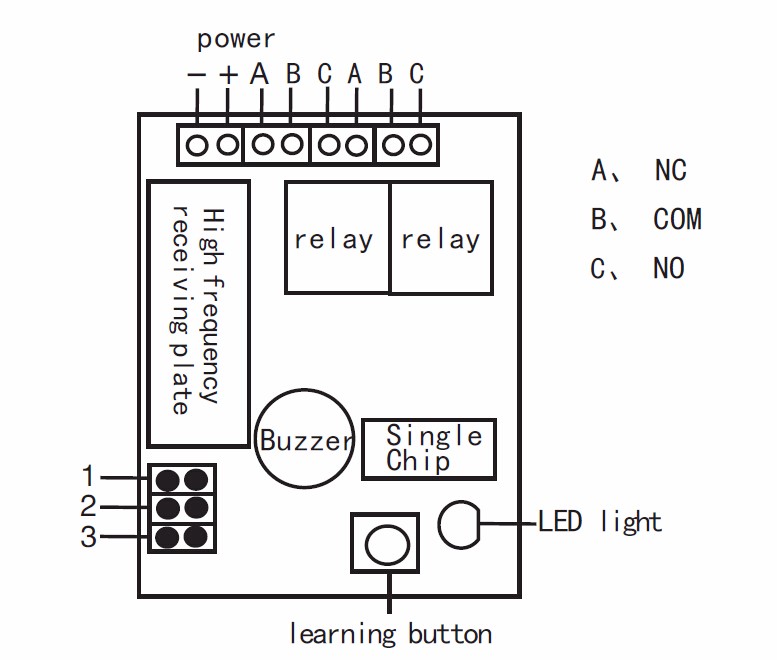

The way of relay signal output,selected by jumper,4 models outputs
1. Signal latching
2. Signal interlocking
3. Signal Momentary

4. signal 3 seconds delay

input voltage DC12V/24V optional

36 pcs of remote control capacity

Product user manual

Learning fixed code & learning code:
1. Press learning key, pilot lamp extinguish. Then release learning key, pilot lamp lighting, indicate enter into the status of learning
2. Press any button of the remote control, indicate learning success as the pilot lamp
flash 1 time. Receiver automatically exit learning state if you do nothing in 32 seconds.(can store up to 30pcs this type remote control)
Learning rolling code:
1. Press learning key, pilot lamp extinguish. Then release learning key, pilot lamp lighting, indicate enter into the status of learning first time.
2. Hold on pressing one button of the remote control, indicate first time learning success as the pilot lamp keep flashing slowly.
3. Repeat the operation of step “1”, enter into the status of learning second time.

4. Press the same button in step “2”, the pilot lamp flash 5 times quickly, learning successful.(can store up to 6pcs this type remote controls)
4. Delete memory message
Press the learning key of the receiver—pilot lamp light—hold on pressing over 8
seconds until the pilot lamp extinguish, which indict success to delete the memory
message.

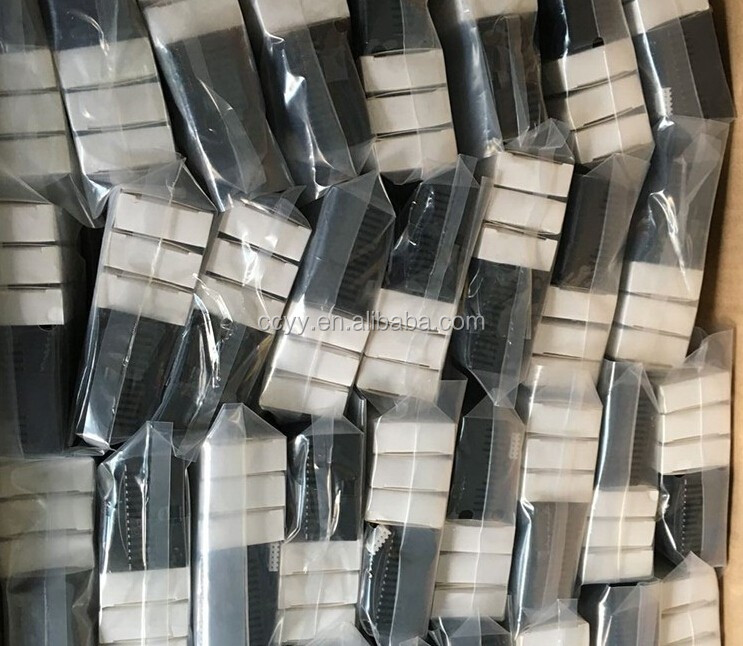

white box package each remote control

per remote control package of white box by default

2 x remote control with 1x receiver packaged in poly bag

or customized box package

Fast Express shipping or economical post shipping for options depends on quantity

we check shipping price for reference,under buyer's requirements.
-fast shipping by DHL,Fedex,UPS,TNT,Aramex methods for samples & bulk order,estimated delivery time 5 - 7 days.-economical but slow shipping by post,sea,air,estimated delivery time 25 - 40 days;post for samples only.

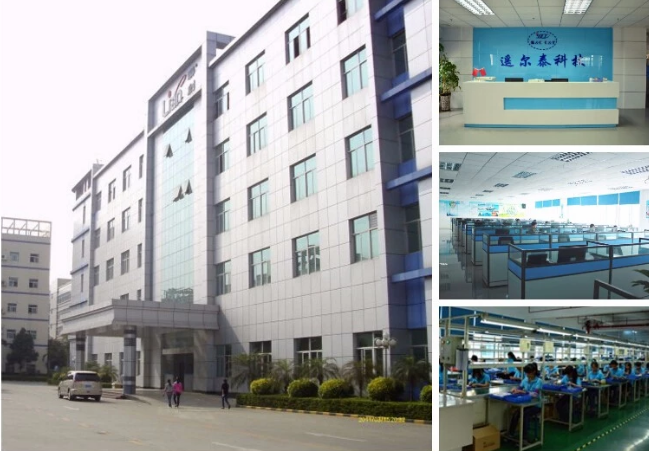

Company Introduction
