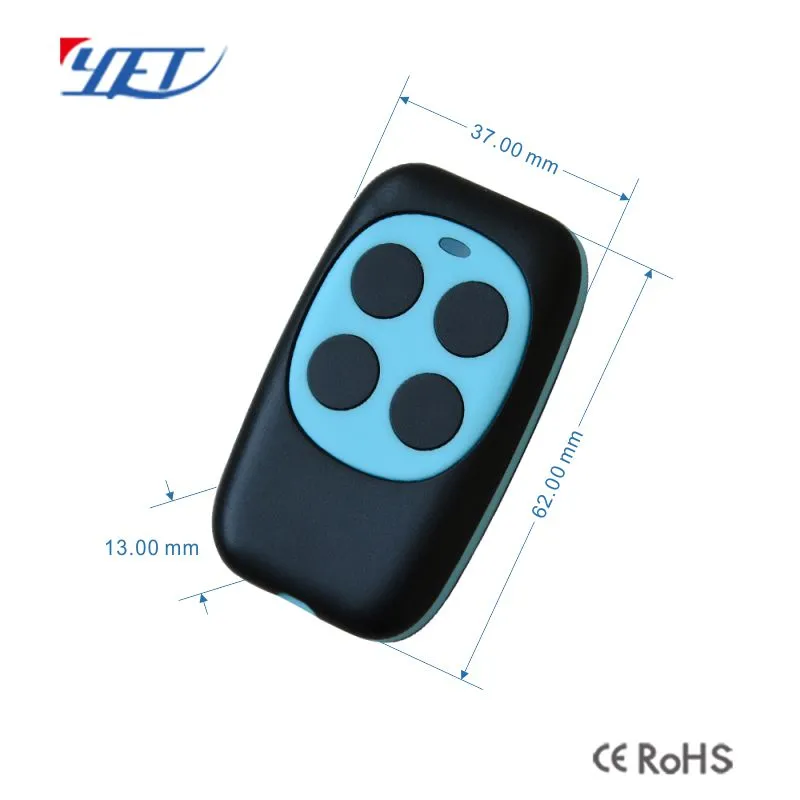

Model No: YET2144
Universal copy code 433mhz remote control duplicator for fixed code and rolling code remote control
minimum order :
1 piece
Quantity :
Subscribe to our Newsletter
Universal copy code 433mhz remote control duplicator for fixed code and rolling code remote control
- Brand Name:YET
- Model Number:2144 433mhz remote control duplicator
- Certification:ce

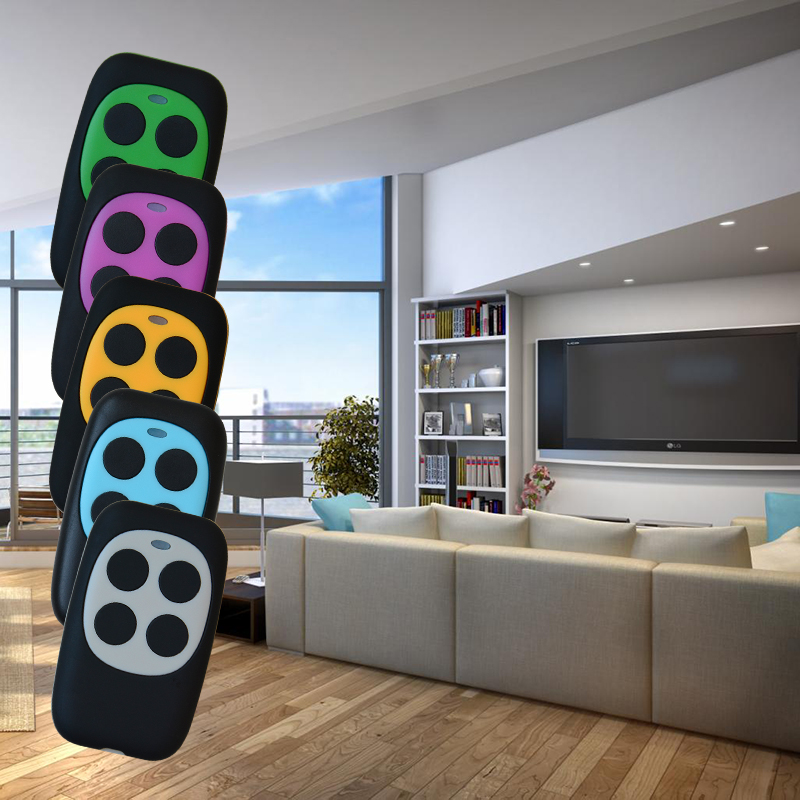

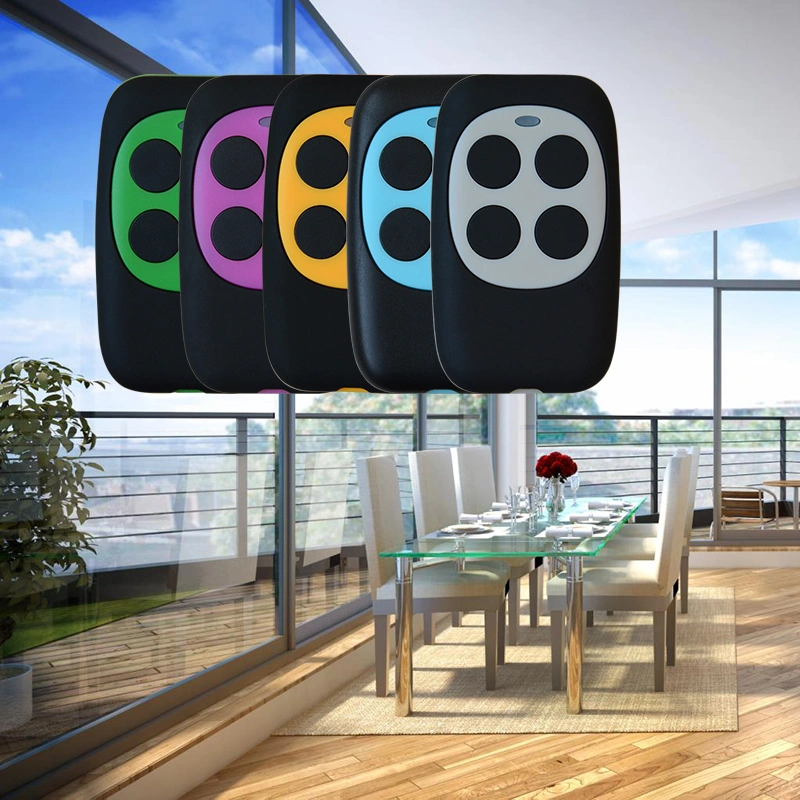

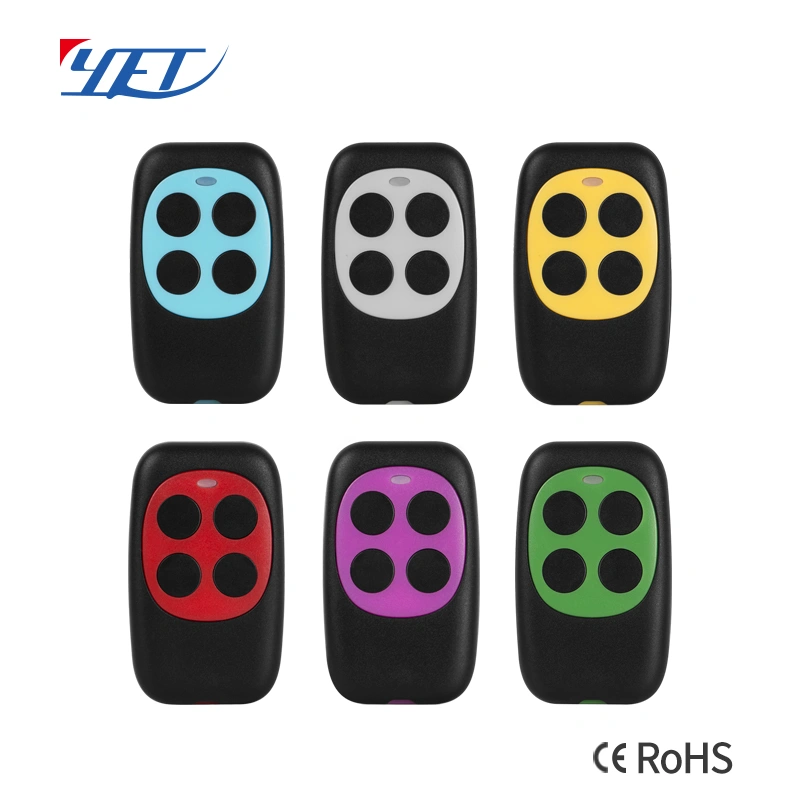

- Color:GRAY, Green, Yellow, Red, Blue
- Private Mold:Yes
- Place of Origin:Guangdong, China
- Material:ABS
- Code:Copy Code Optional
- Button:4 Buttons
- Function:Anti shock, Automatic
- Frequency:433(433.92mhz)

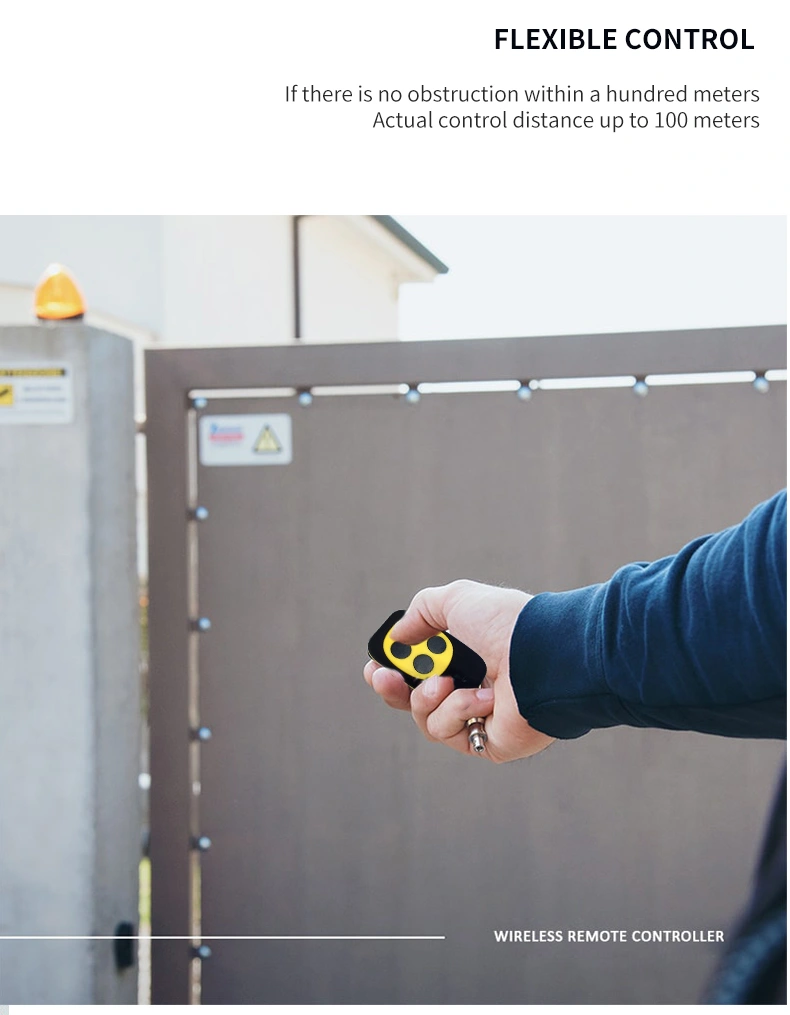

- Launch distance:50-100meters
- Working voltage:DC 12V
- Transmission speed:50-60KHz
- Frequency windage:±0.2MHz
- functions:face to face copy code 433mhz remote control duplicator
- Certificate:CE FCC ROHS
- working chip:copy code
- channel:4 channel
- Product name:universal 433mhz remote control duplicator
Product Description
Product Name | for fixed code rolling code universal copy code 433mhz remote control duplicator |
Material | ABS |
Function | face to face copy encoding fixed code and rolling code as a replacement |

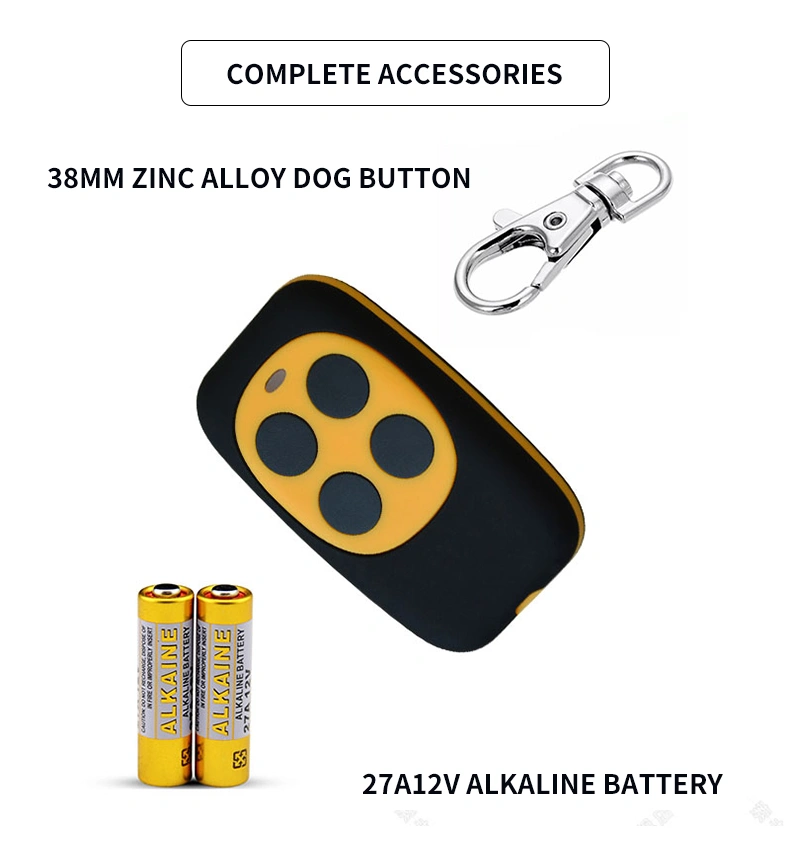

Package | gift box,CR2016 DC3V battery included |
Radio Frequency | 433.92mhz |
varialble color | red,blue,black,green,golden |
Certificate | CE,ROHS |
Product performance description
the 4-Channel RF wireless 433mhz remote control duplicator used for garage doors , automatic roller shutters,commercial gates,home GSM alarms,car Alarm systems etc.
Fixed frequency (433.92mhz) for copying 99.99% common fixed and learning code remote controls.
Face to face copy the functions of your original remote by this 4-channel RF remote control duplicator with copy code duplicator functions and you'll always have a back up.
Face to face copy the functions of your original remote by this 4-channel RF remote control duplicator with copy code duplicator functions and you'll always have a back up.
Product Usage

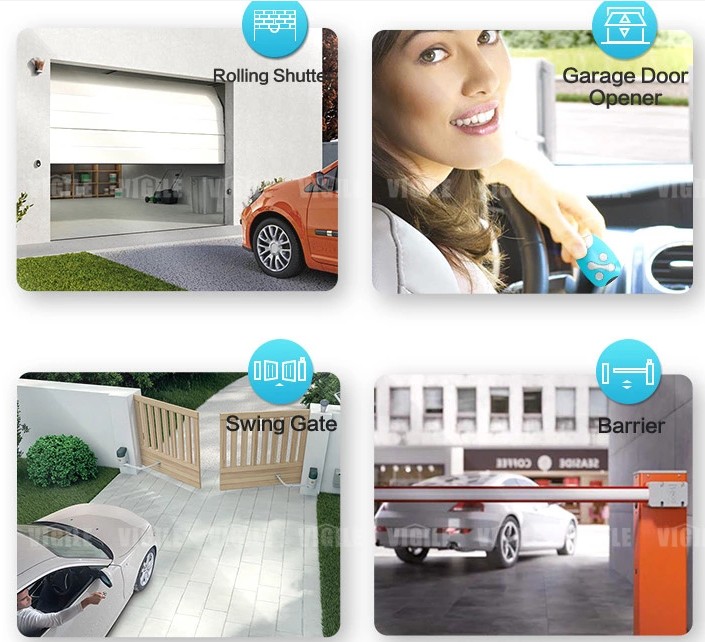

Product Wide usage
wireless 433mhz remote control is widely used in our life,not only seperate garage doors,courtyard swing gates also GSM alarm,lighting in home,as well as parking system outside.
Description of product use effect
the same remote control RF transmitter could control multiple devices in your daily life,for office leave shade,home garage door,bedroom lighting etc. as you requirements.

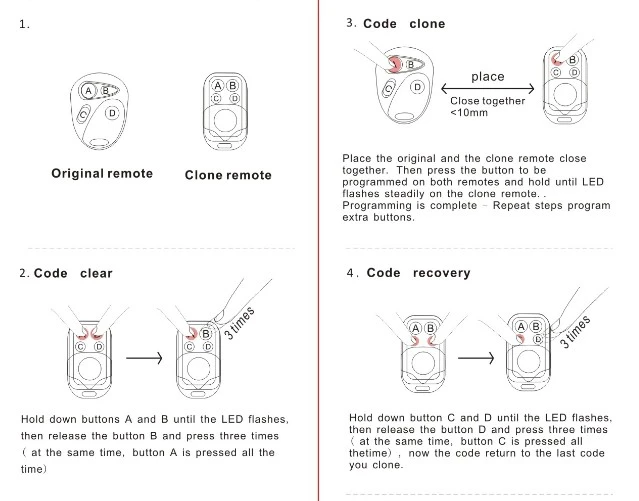

how to copy an old remote control?
Step 1: Clear the history code from duplicator
1. Press button A and B at the same time until LED flash.
2. Release button B and keep pressing button A, then press button B 3 times,
LED flash fast indicate succeed to clean code (can release button A now)
1. Press button A and B at the same time until LED flash.
2. Release button B and keep pressing button A, then press button B 3 times,
LED flash fast indicate succeed to clean code (can release button A now)
Step 2: Copy code from original transmitter
1. Put duplicator aside of original transmitter, as close as possible.
2. Press and hold button A of original transmitter and button A of duplicator at the same time, until duplicator’s LED flash and
keep lighting.
3. Release both buttons, finish code copy, and copy other button in same way.
1. Put duplicator aside of original transmitter, as close as possible.
2. Press and hold button A of original transmitter and button A of duplicator at the same time, until duplicator’s LED flash and
keep lighting.
3. Release both buttons, finish code copy, and copy other button in same way.
Related Products

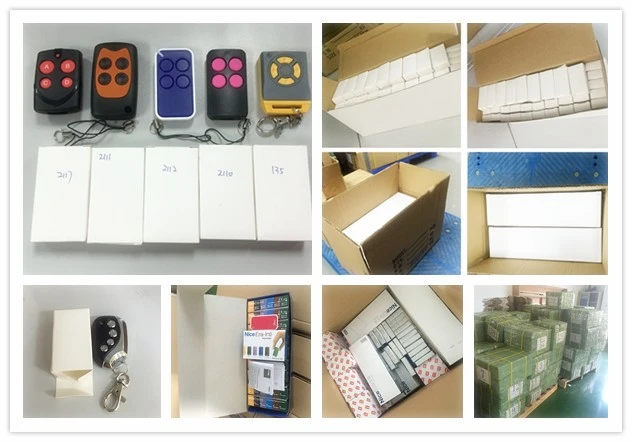

Packing&Shipping
Each wireless remote control duplicator packed in single white box by default,per 100 pcs packed in medium white box,500 pcs packed in a master box.
blister or gift box package could be customized,welcome ODM packing!
Company Introduction
Shenzhen Yaoertai Technology Co., Ltd. is a highly specialized company, founded in 2005. Our company specializes in the design,development, manufacture and marketing of such RF products as wireless receivers and transmitter modules, wireless remote controls, car alarm systems, home alarm systems and related accessories. We provide both OEM & ODM services.
Certification
Exhibiton Show
Our Services & Strength
1. professional experience on RF technology since 2005,providing you the best quality and price.
2. high-tech R&D technology- supporting team,easily to communicate and capable to provide ODM/OEM projects.
3.Professional and responsible sales team provide you high-efficiency reply and communication.
FAQ
1. what functions has this remote control?
-this remote control is an universal remote control replacement for fixed code control,as a back up,at frequency 433.92.
2. what controls can it duplicate?
-for all manufacturers' fixed code remote control.
3. how to duplicate my remote control?
-face to face copy,press buttons and copy buttons one by one.
