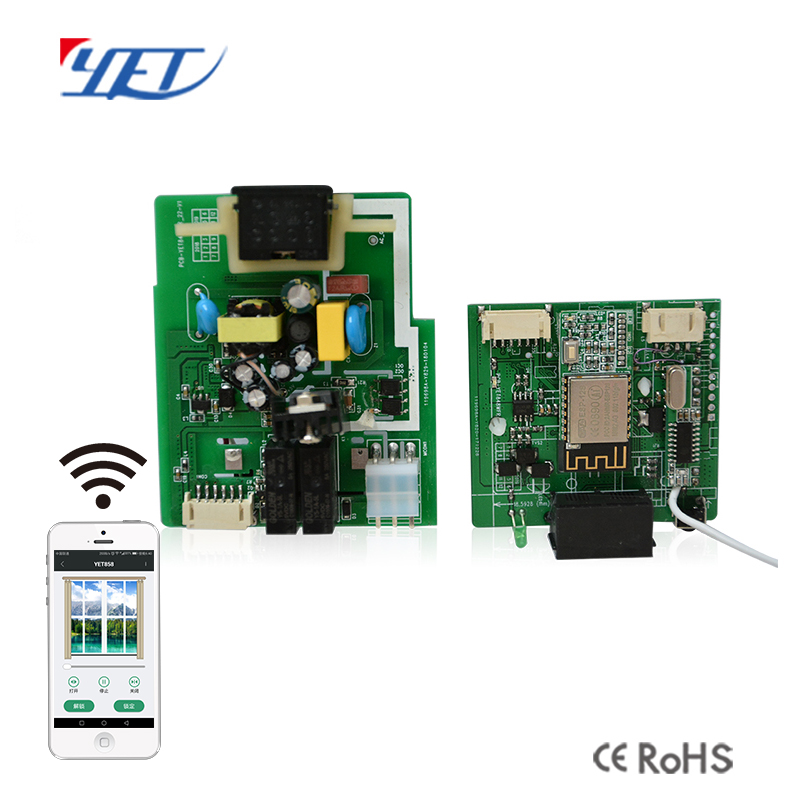

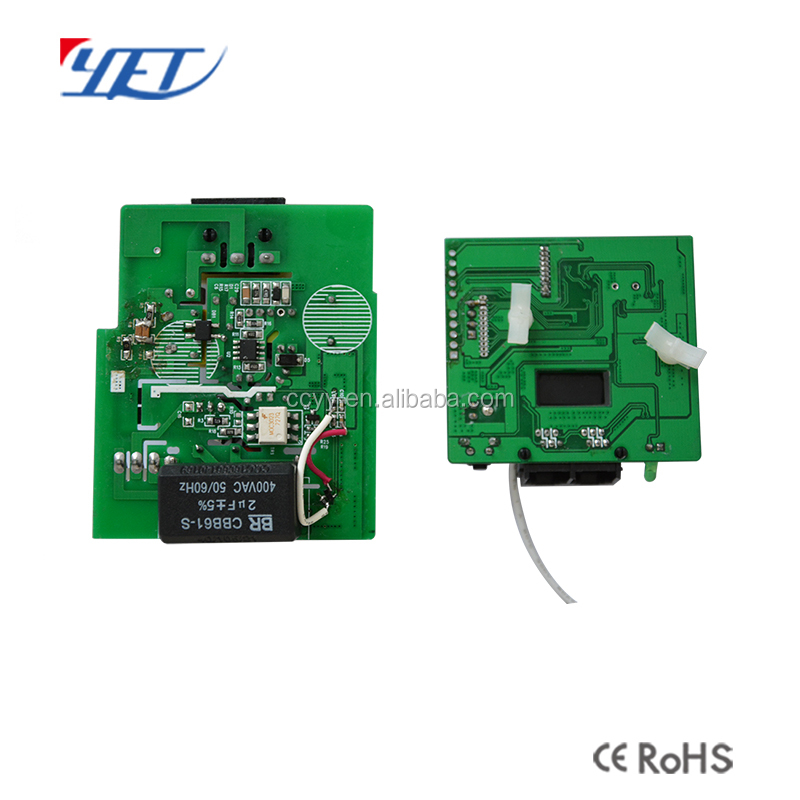

Wifi Rolling door tubular motor controller board YET848PC-WIFI
- Place of Origin:Guangdong, China
- Brand Name:YET
- Model Number:YET848PC-WIFI
- Product name:Wifi Rolling door tubular motor controller board
- Material:ABS
- Usage:Smart curtain controller
- Working volt:AC 220V
- Functions:Close,open and stop,wifi fucntions
- Standard accessories:Track 3 meter and remote control
YET848-WIFI(smart curtain controller) is a Multi-Control intelligent controller based on Wi-Fi technology and RF 433M. It can control the opening, stopping, and closing of curtains through remote wireless remote control. At the same time, you can control the opening, stopping, and closing of the curtains through the wire-controlled touch switch or the RS485 bus. The product has automatic trip memory function, manual push and pull start function, arbitrary trip setting and intermediate stop function; This product is mainly used in home, hotel or business applications.
Technology parameter:
| Input Voltage | AC100V-AC240V | ||||
| Motor working voltage | AC220V | ||||
| Wireless Standard | IEEE802.11b/g/n | ||||
| Frequency of operation | 2.4G ~2.5G(2400M ~2483.5M)Hz/433.92MHZ | ||||
| Encryption Type | WEP/TKIP/AES | ||||
| Security mechanisms | WPA/WPA2 | ||||
| Receipt sensitivity | 802.11 b: -91 dbm (11 Mbps) 802.11 g: -75 dbm (54 Mbps) 802.11 n: -72 dbm (MCS7) | ||||
| Static current | <0.02A | ||||
| Working current | Imax =300Ma (@220VAC) | ||||
| Motor parameters | Power | Torque | Run Speed | Rated speed | Working time |
| 65W | 1.8N.m | 0.2m/S | 120Rpm | 4Min | |
| Work environment | Temperature: -40 °C ~ +80 °C Humidity: 20 % ~ 93 % | ||||
| Storage environment | Temperature: -20 °C ~ +70 °C Humidity: 20 % ~ 93 % | ||||
| Remote control can be Added | 80(maximum number) | ||||
| Size | 282*70*55mm | ||||
