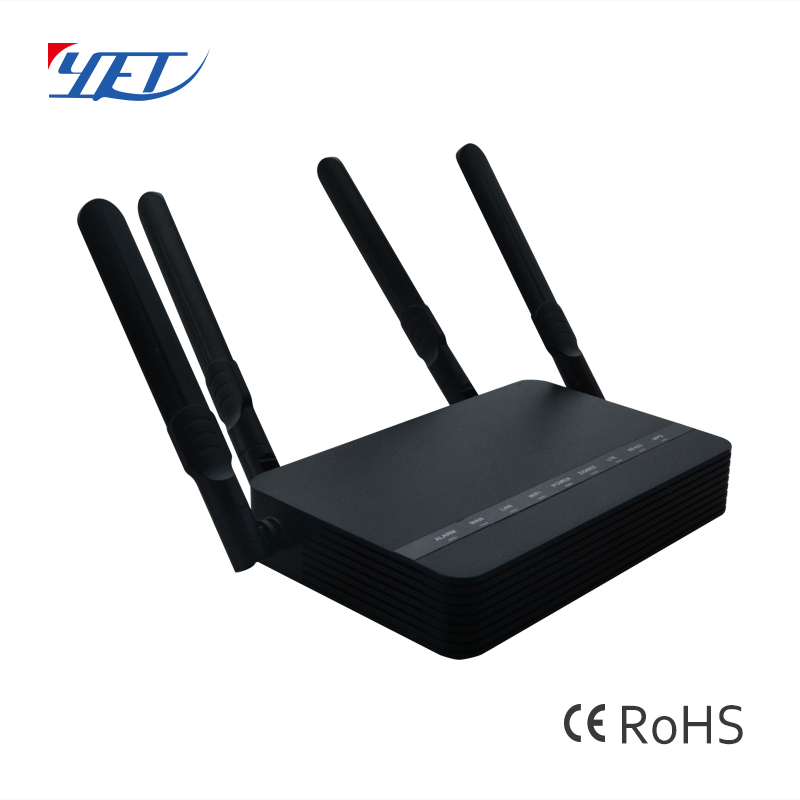

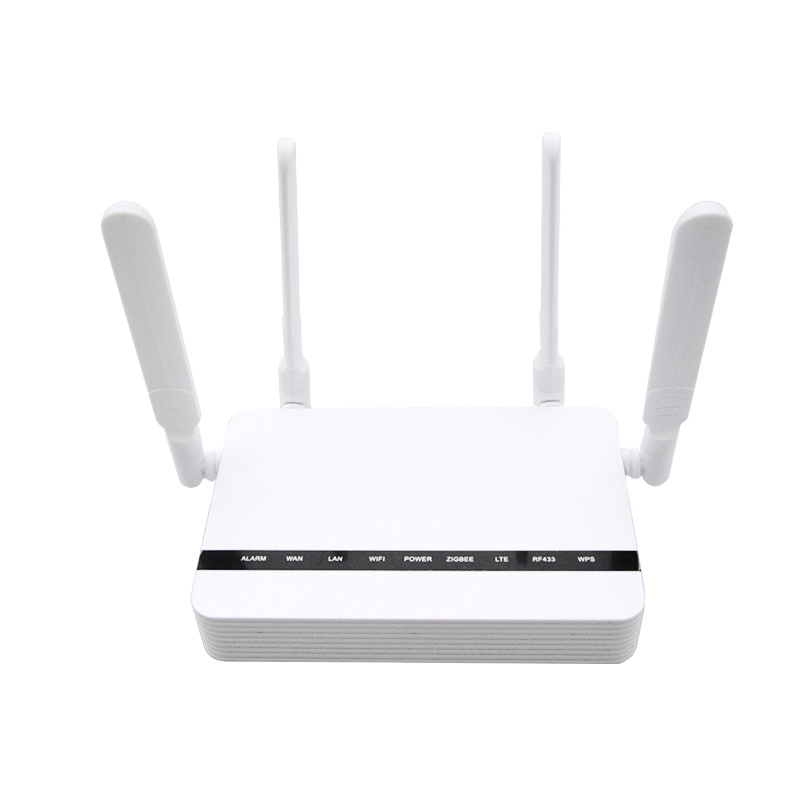

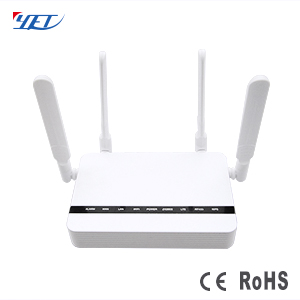

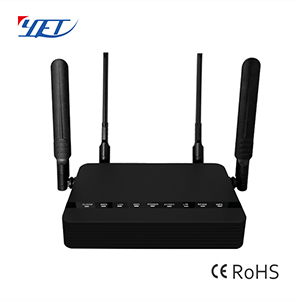

Model No: YET 6950

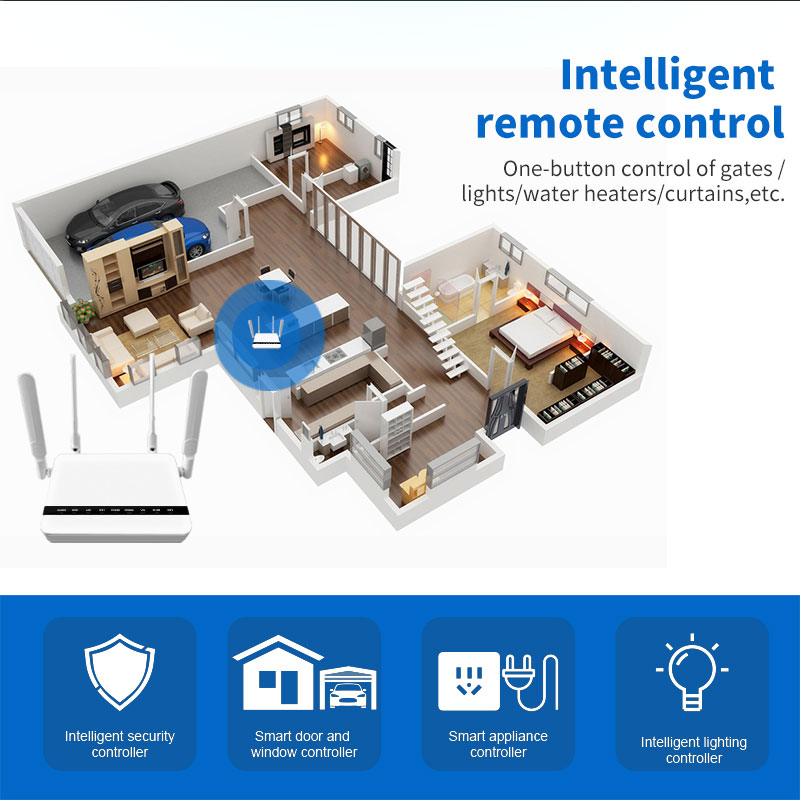

IOT system product zigbee device connections central wifi smart home system control unit
minimum order :
1 set
Country of Origin :
Shenzhen
Quantity :
Subscribe to our Newsletter
- Model Number:YET 6950
- Place of Origin:China
- Brand Name:YET
- Application:IOS&Andriod

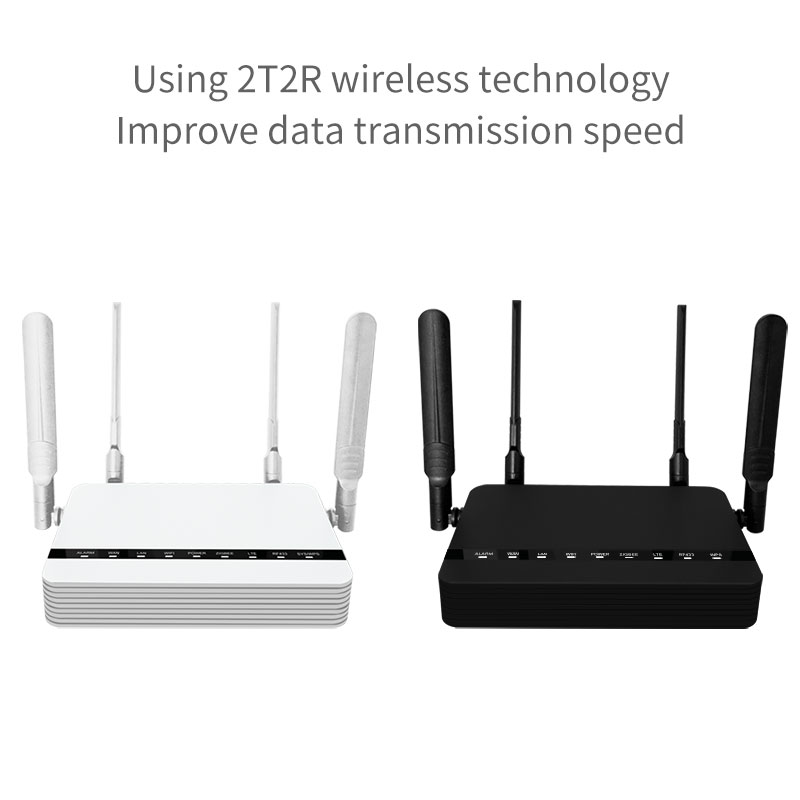

- System kernel:CPU: 32-bit 580MHz MIPS 24KEc / Antenna: 2T2R WIFI(IEEE 802.11n)
- FLASH:SPI Flash 32M Bytes
- DRAM:16bit DDR2 / 128M Bytes
- Wireless standards:IEEE 802.11b/g/n , IEEE 802.15.4
- Working frequency:2.4GHz ~2.5GHz(2412MHz ~2467.5MHz) / 433.92MHZ
- Encryption Type:WEP64 /128, TKIP, AES, WAPI
- Security mechanism:WPA / WPA2
- Wireless receive sensitivity:802.11b: -91 dbm (11 Mbps);802.11g: -75 dbm (54 Mbps);433MHZ : -94 dbm
Product Description
Specification
item | value |
Model Number | YET 6950 |
Application | IOS&Andriod |
Brand Name | YET |
Place of Origin | China |
System kernel | CPU: 32-bit 580MHz MIPS® 24KEc™ / Antenna: 2T2R WIFI(IEEE 802.11n) |
FLASH | SPI Flash 32M Bytes |
DRAM | 16bit DDR2 / 128M Bytes |
Wireless standards | IEEE 802.11b/g/n , IEEE 802.15.4 |
Working frequency | 2.4GHz ~2.5GHz(2412MHz ~2467.5MHz) / 433.92MHZ |
Encryption Type | WEP64 /128, TKIP, AES, WAPI |
Security mechanism | WPA / WPA2 |
Wireless receive sensitivity | 802.11b: -91 dbm (11 Mbps);802.11g: -75 dbm (54 Mbps);433MHZ : -94 dbm |
Company Profile
Shenzhen Chuangyao Science & Technology Co.; Ltd is a highly specialized company, founded in 2005. Our company specializes in the design, development, manufacture and marketing of such RF products as wireless receivers and transmitter modules, wireless remote controls, car alarm systems, home alarm systems and related accessories. We provide both OEM & ODM services. Our product quality can meet FCC, CE, and RoHS standards. With strong technology, we have produced more than 1,00 types of quality products, which are available to different sectors and can meet a variety of special needs of customers throughout the world. Our products are exported to Australia, Latin America, Southeast Asia, North America, the Middle East and Europe.
