Model No: YET401PC+YET027-2

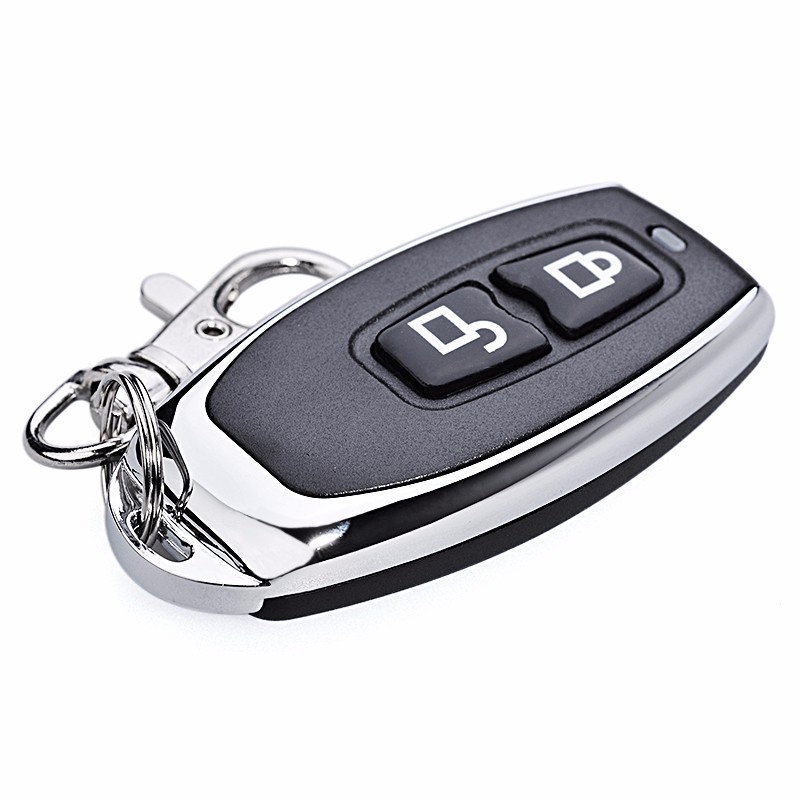

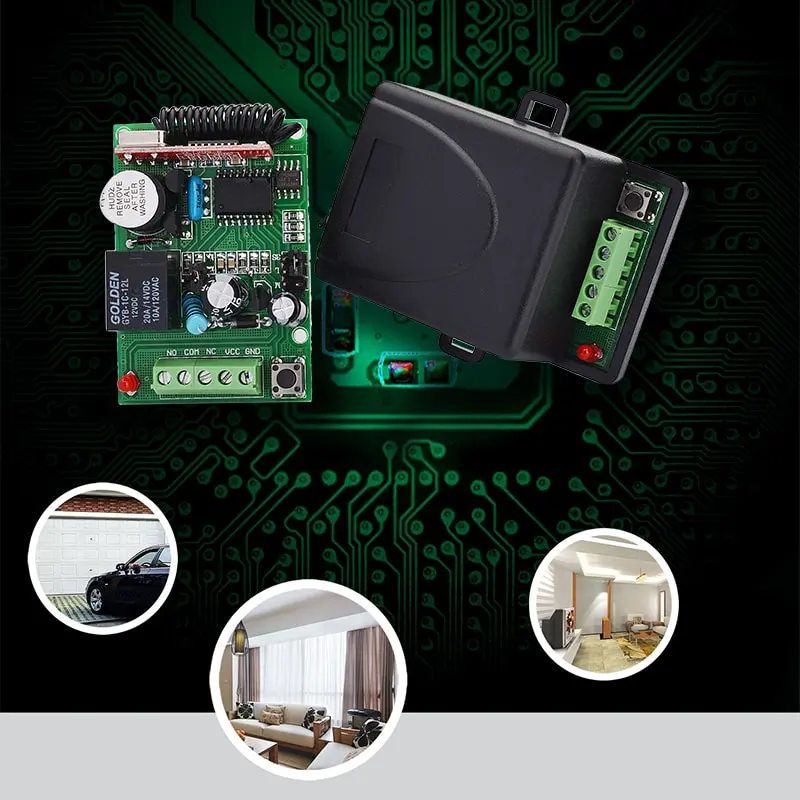

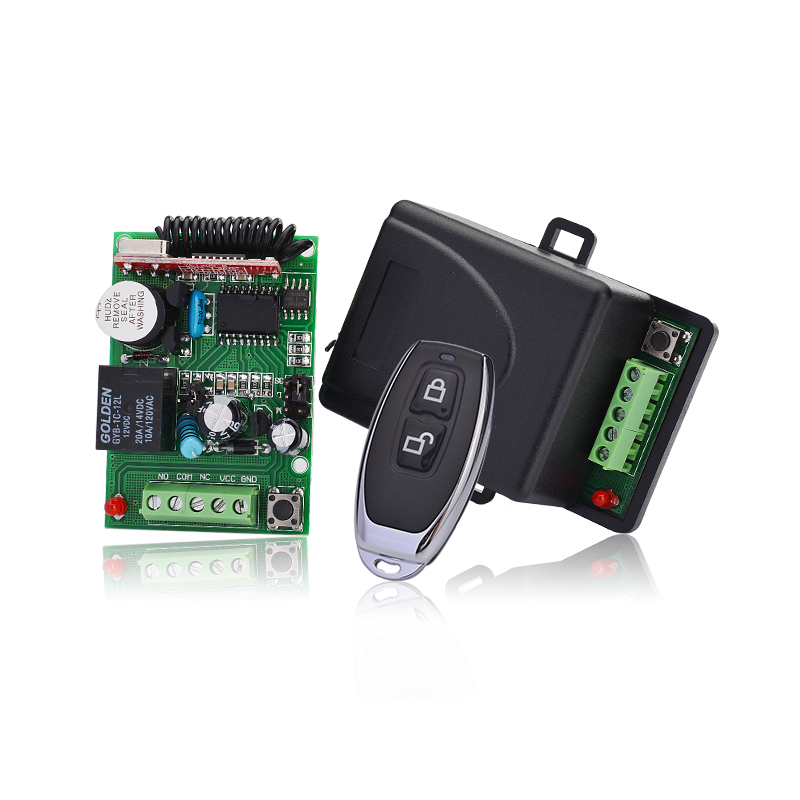

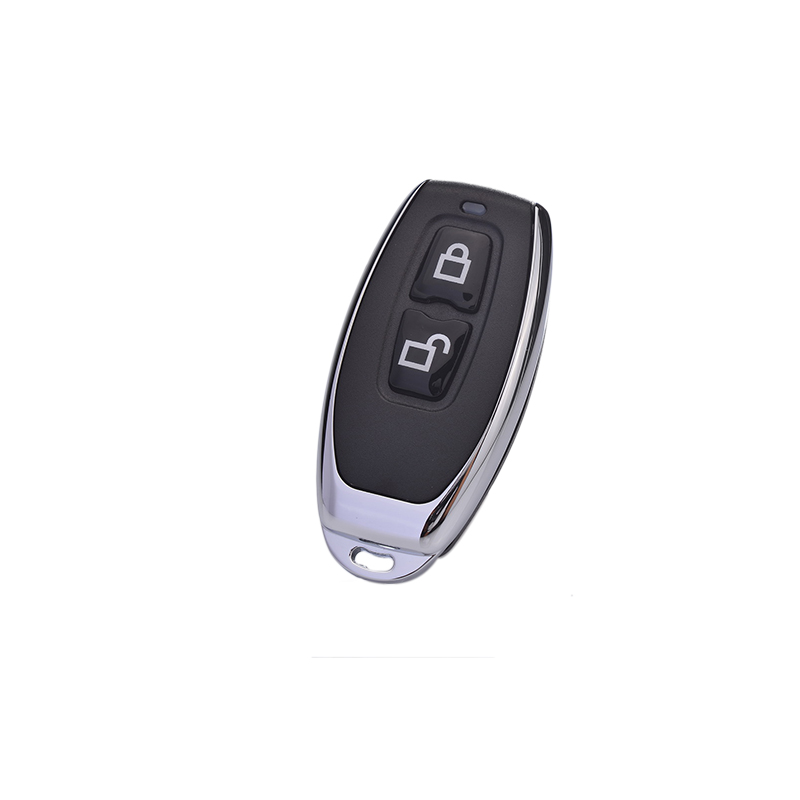

single channel DC12V 24V 433.92mhz wireless rf remote and rf receiver one relay On OFF light motor alarms control device
minimum order :
1 pair
Quantity :
Subscribe to our Newsletter
- Brand Name:YET
- Model Number:YET401PC+YET027-2
- Certification:ce
- Color:Black, customized service
- Place of Origin:Guangdong, China
- Material:ABS
- Code:Learning Code
- Button:4 Buttons
- Function:Wireless ON&OFF RF switch
- Keywords:wireless rf remote control and rf receiver
- encoder type:learning code
- Operating Frequency:433mhz
- Working environment: Temperature:-10℃~70℃
- Working volt:DC12V or 24V
- remote control voltage:12V
- working distance:50 - 100 meters
- Certificate:CE Certificate
- Warranty:1 YEAR
- MOQ:100 Pcs
- keyword：rf remote control receiver，on off light motor alarms control
Product Description

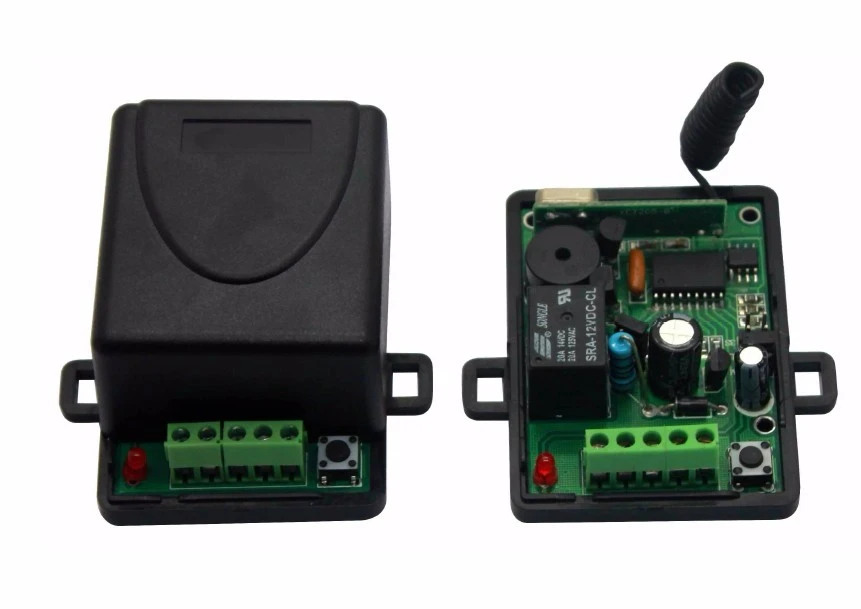

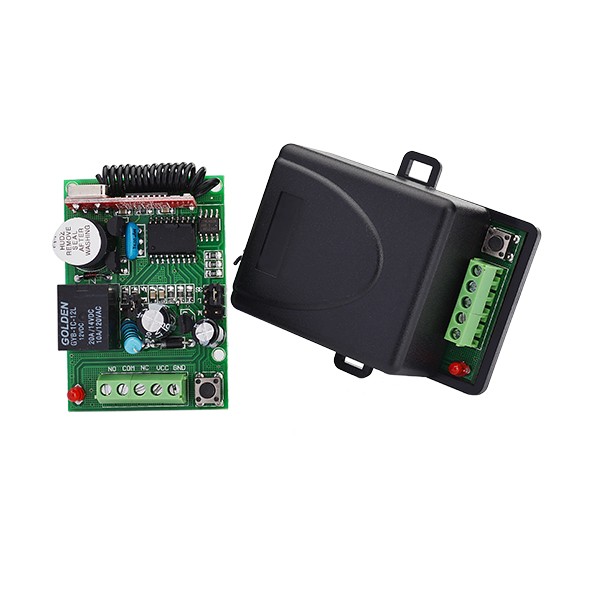

Product Name | DC12V 24V one channel wireless receiver and rf transmitter |
Material | ABS |
Function | long range wireless rf transmitter and receiver |
Package | poly bag or white box |
working frequency | 433mhz |
encoding type | learning code |
Operating Voltage | DC12V /24V |
Contact Current | ≤10mA |
RF Sensitivity | >105dBm |

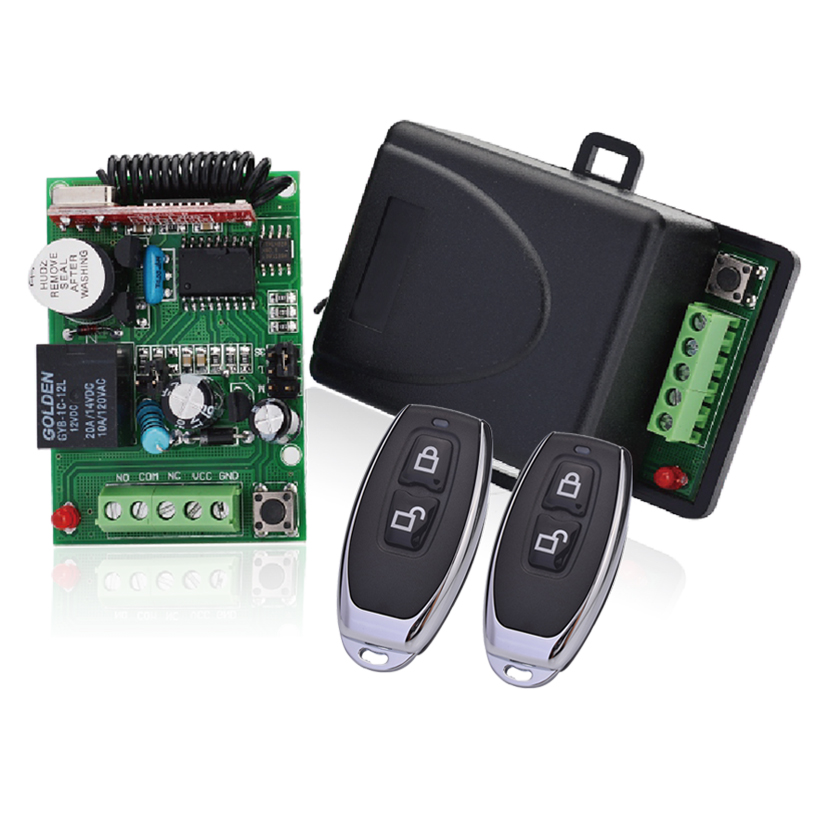

package including | 1x receiver + 2 x remote control |
battery | included |
wireless remote control and rf receiver usage:

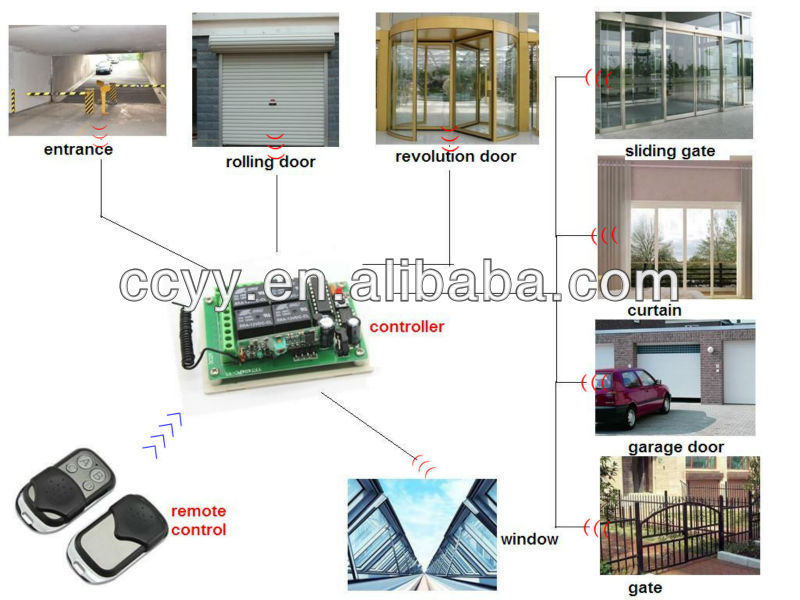

the one channel wireless intellect receiving control what can provide switch signal to the relay, so it can meet many requirements such as: the connection and lock of the switch and other special control programs. This kind of wireless intellect receiving control main apply to auto door, curtain, lifting appliance, gate way, lifter, industrial control and security field.
Product Usage
Product usage introduction
The way of relay signal output,selected by jumper
1. Signal delay by 3 seconds
2. Signal latching
3. Signal interlocking
4. Signal Momentary
1. Signal delay by 3 seconds
2. Signal latching
3. Signal interlocking
4. Signal Momentary
input voltage DC12V/24V optional by jumper
Product user manual
Learning fixed code & learning code:
1. Press learning key, pilot lamp extinguish. Then release learning key, pilot lamp lighting, indicate enter into the status of learning
2. Press any button of the remote control, indicate learning success as the pilot lamp
flash 1 time. Receiver automatically exit learning state if you do nothing in 32
seconds.(can store up to 30pcs this type remote control)
Learning rolling code:
1. Press learning key, pilot lamp extinguish. Then release learning key, pilot lamp lighting, indicate enter into the status of learning first time.
2. Hold on pressing one button of the remote control, indicate first time learning success as the pilot lamp keep flashing slowly.
3. Repeat the operation of step “1”, enter into the status of learning second time.
1. Press learning key, pilot lamp extinguish. Then release learning key, pilot lamp lighting, indicate enter into the status of learning
2. Press any button of the remote control, indicate learning success as the pilot lamp
flash 1 time. Receiver automatically exit learning state if you do nothing in 32
seconds.(can store up to 30pcs this type remote control)
Learning rolling code:
1. Press learning key, pilot lamp extinguish. Then release learning key, pilot lamp lighting, indicate enter into the status of learning first time.
2. Hold on pressing one button of the remote control, indicate first time learning success as the pilot lamp keep flashing slowly.
3. Repeat the operation of step “1”, enter into the status of learning second time.
4. Press the same button in step “2”, the pilot lamp flash 5 times quickly, learning successful.(can store up to 6pcs this type remote controls)
4. Delete memory message
Press the learning key of the receiver—pilot lamp light—hold on pressing over 8
seconds until the pilot lamp extinguish, which indict success to delete the memory
message.
4. Delete memory message
Press the learning key of the receiver—pilot lamp light—hold on pressing over 8
seconds until the pilot lamp extinguish, which indict success to delete the memory
message.
Packing&Shipping
white box package each remote control
per remote control package of white box by default

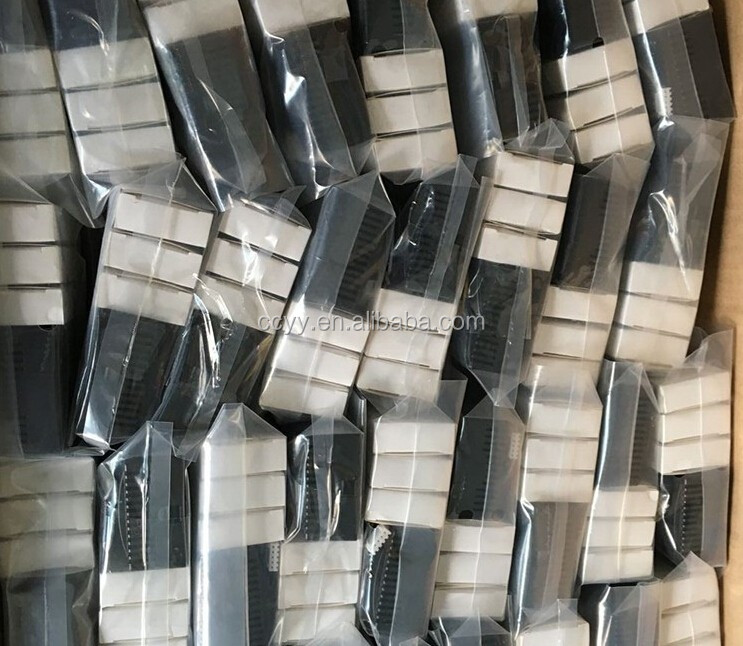

2 x remote control with 1x receiver packaged in poly bag
or customized box package
Fast Express shipping or economical post shipping for options depends on quantity
we check shipping price for reference,under buyer's requirements.
-fast shipping by DHL,Fedex,UPS,TNT,Aramex methods for samples & bulk order,estimated delivery time 5 - 7 days.-economical but slow shipping by post,sea,air,estimated delivery time 25 - 40 days;post for samples only.
-fast shipping by DHL,Fedex,UPS,TNT,Aramex methods for samples & bulk order,estimated delivery time 5 - 7 days.-economical but slow shipping by post,sea,air,estimated delivery time 25 - 40 days;post for samples only.
Company Introduction

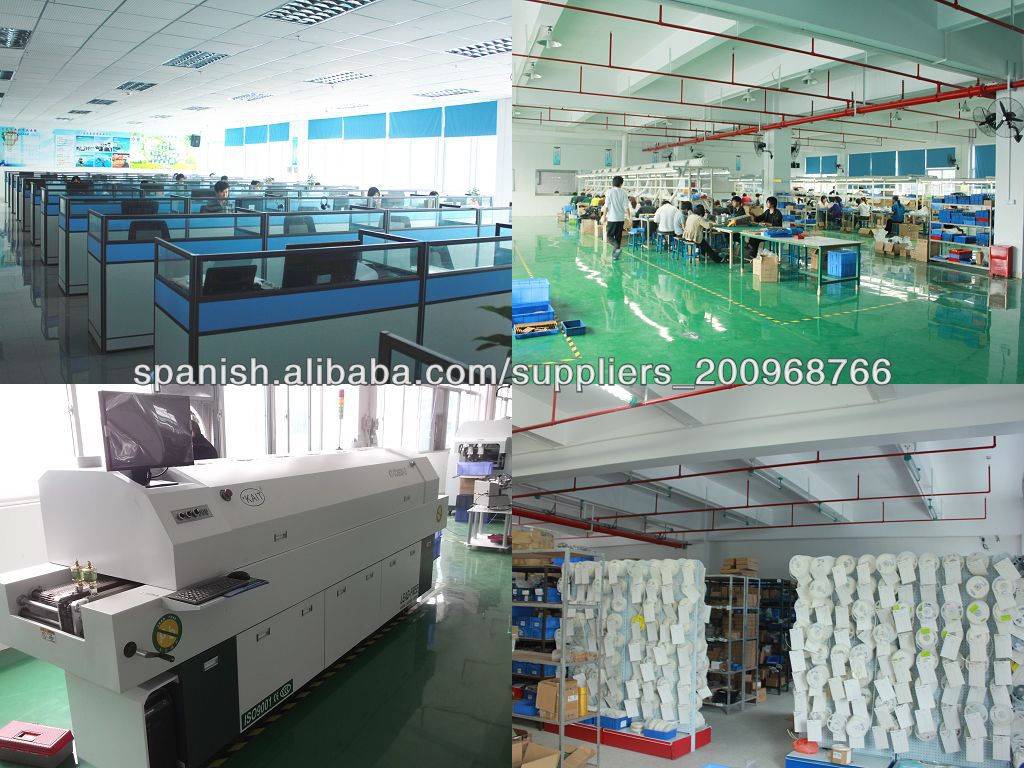

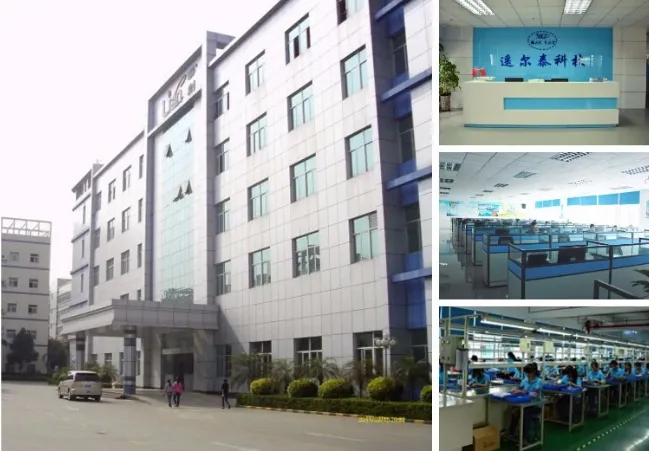

factory building
very convenient location and comfortable environment in Shenzhen,near to metro station,welcome your visit!
very convenient location and comfortable environment in Shenzhen,near to metro station,welcome your visit!
company receiption
was established in 2005,specialized in wireless rf remote control,receiver,automatic autotion system accessories for 15 years.
a corner of work shop
big space and clear environment,meet 4S standards.
meeting room and samples exhibition room

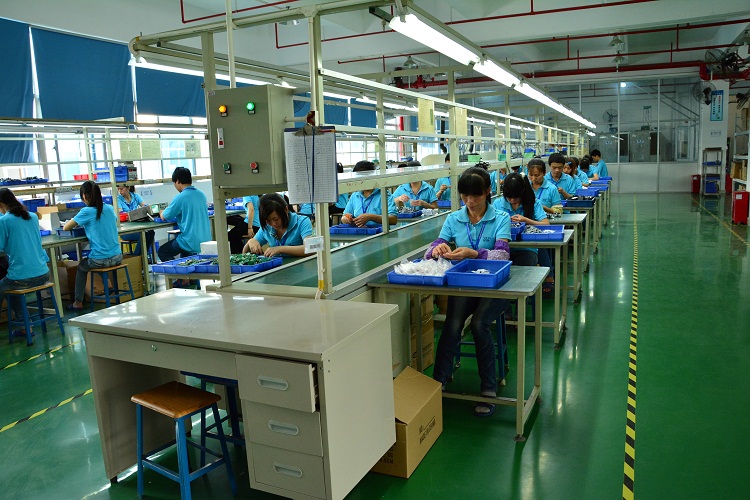

production procesures
our professional & well-trained workers are doing their best to make your order with highest quality control.
Our Advantages
*Trademarks, appearance, software patents
*elder R&D technical team
*professional sales&service team
*professional sales&service team
Certifications
CE certifications passed for European market
