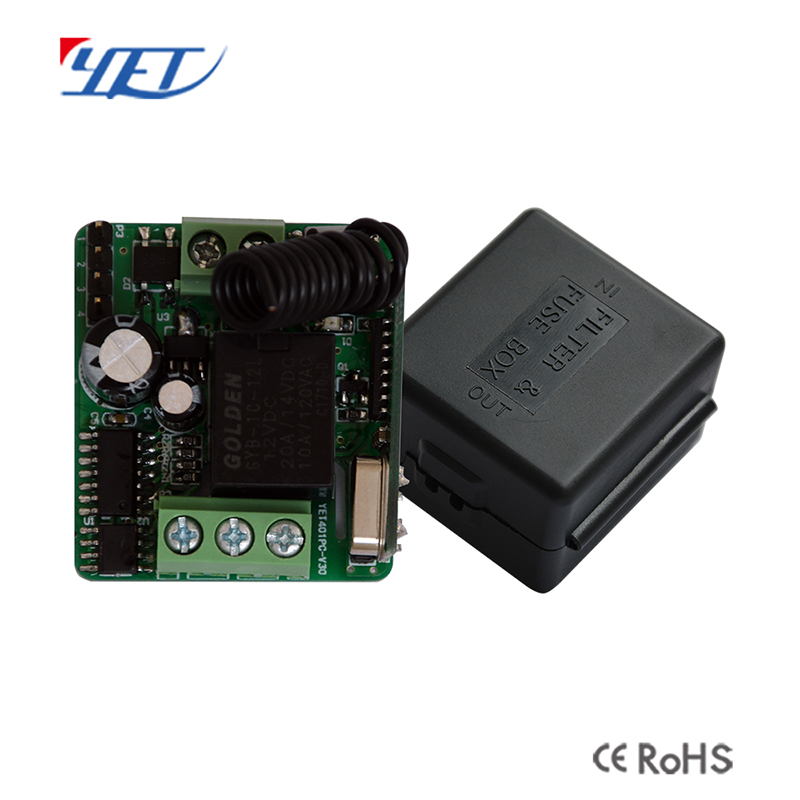

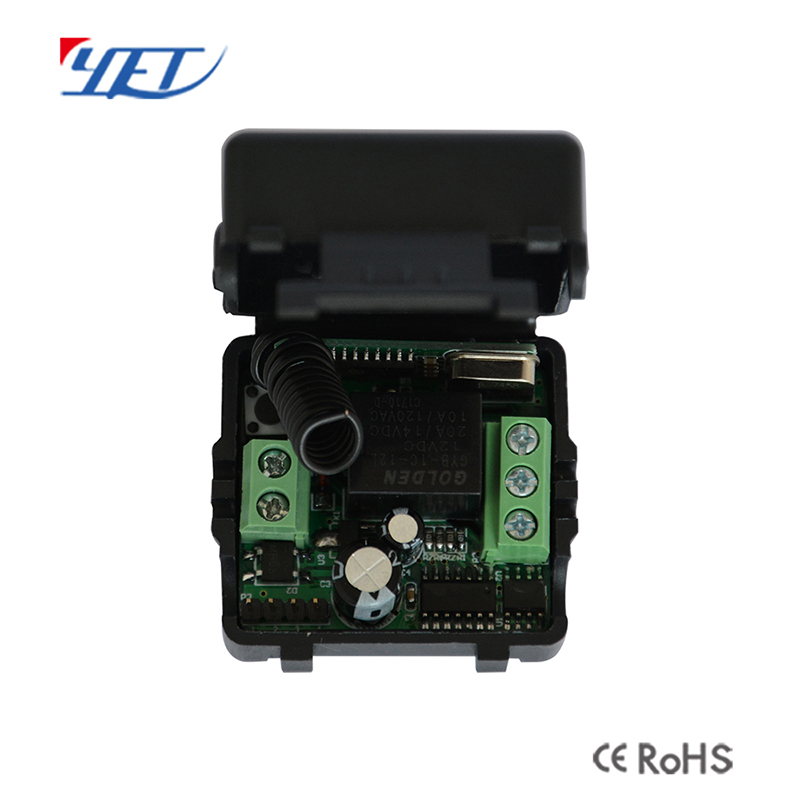

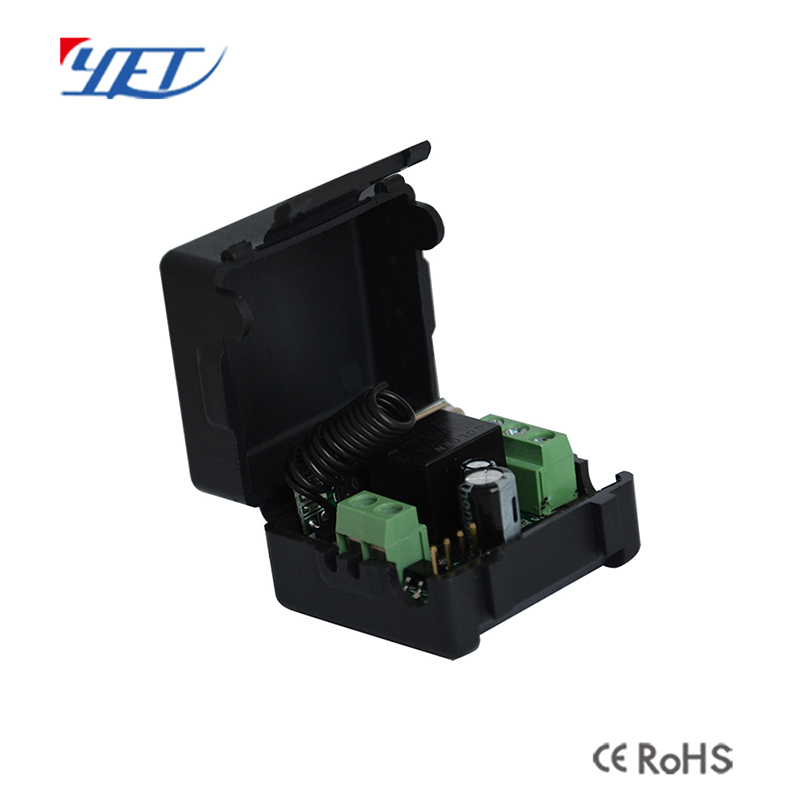

Model No: 401PC-V3.0

433M DC 12V Secure Wireless Relay Switch Remote Control System

minimum order :

1 piece

Country of Origin :

shenzhen

Quantity :

Contact Now

All Products

Subscribe to our Newsletter

Certification:CE
Whether the smart:Yes
Place of Origin:Guangdong, China
Brand Name:YET
Model Number:401PC-V3.0
Operating Temperature:-40 - +80
Max. Current:7mA
Max. Voltage:12/24V
Product Name:wireless remote dc 12v remote control switch relay
Function:Remote Switch
Color:White
Certificate:CE
Frequency:315mhz/433mhz
Material:ABS
Keyword:wireless receiver,wireless remote control
Working Voltage:12/24v
Warranty:1 Year
Transmission Distance:100m

Product Description

Specification

Frequency	433M （ 315M also available)
Voltage	12V/24V DC
current	10A
receiver sensitivity	-108dbm
Working mode	Momentary/ toggle/Latched
Memory	30pcs (learning code and fixed code) 6pcs (rolling code)
size	receiver: 84mm41mm22.5mm remote control: 61mm29mm12mm

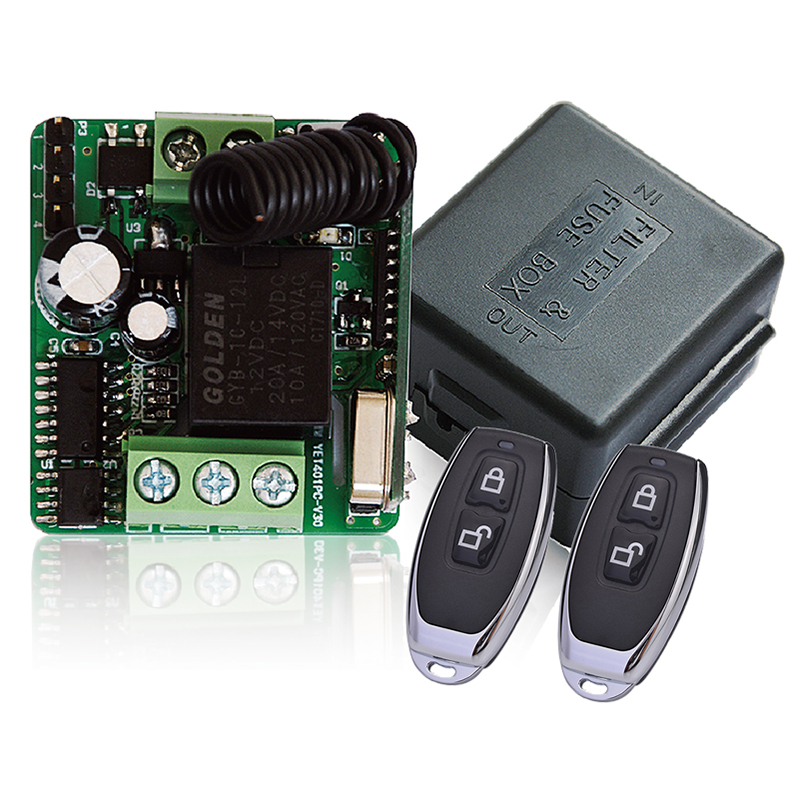

package	1 receiver+2 remote contol, white box or poly bag

Application：

* Vehicle central locking systems
* Garage doors
* Electronic gates
* Electrical appliances
* Car sunroofs
* Heating systems

How to work?

Learning & fixed code: Press"Learning"button on the receiver, release it until LED light flickers, Receiver in learning status (LED goes out this moment), then press related button on Remote control to monitor this Receiver. When LED on Receiver flickers 5 times and then goes out, it indicates Learning has been done. It can response to up to 30 Remote control of this mode. Rolling code: Press"Learning"button on the Receiver, release it until LED light flickers, Receiver in First Learning status (LED goes out this moment), then press related button on Remote control to monitor this Receiver. If LED light is flickering, this indicates First Learning has been done; Release it and Receiver in Second Learning status (LED goes out), press the same button on Remote control, LED will flickers 5 times quickly, then goes out, this indicates Learning has been accomplished. It can response to up to 6 buttons on Remote control of this mode.

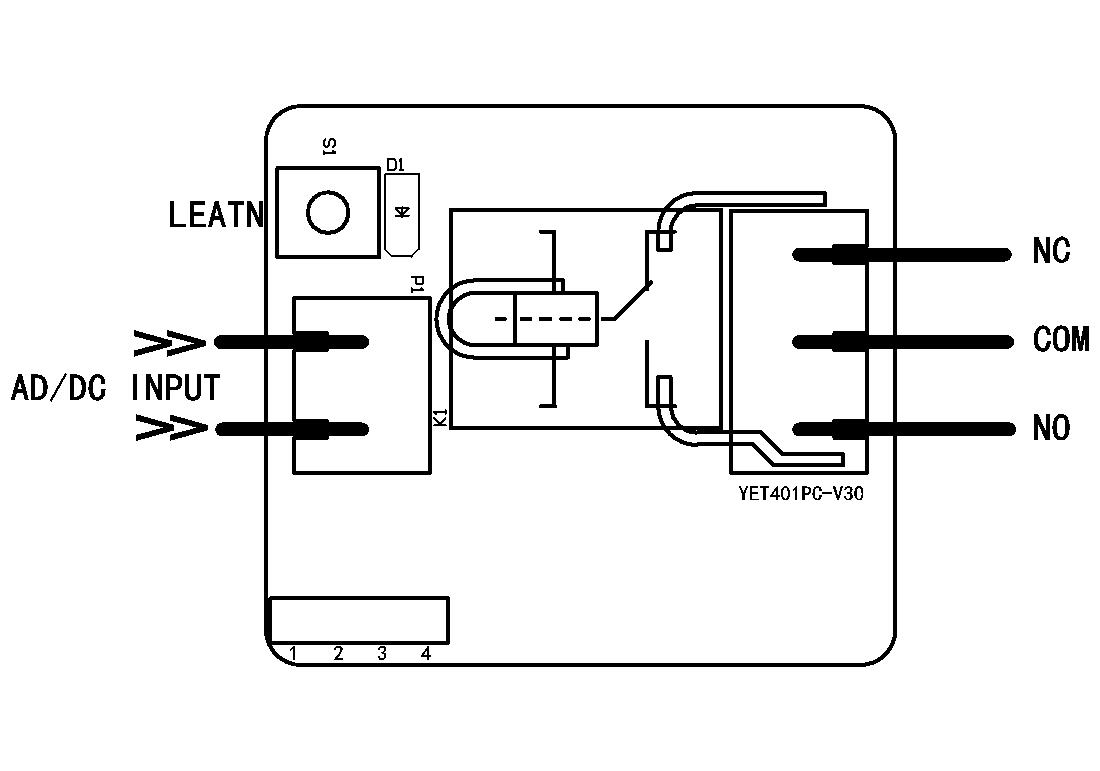

Diagram

working mode	How ?
Momentary	Jumper is inserted on 2 and 3
Toggle	Jumper is inserted on 1 and 2
Latched	Jumper is inserted on 3 and 4 (but rolling code is momentary)

Features:

1. Various crust for your choice
2. Material : Metal and PVC
3.Encoding type:Fixed code/learning code /rolling code(optional)
4. High stability: Adopting imported SMT component SAW and super high-frequency audio(6.5G)

Shipment and Delivery:

Delivery way:
We ship goods By DHL, FedEx, UPS, and TNT as usual. If you prefer another shipment way, we also can ship them to you as your requirement.

Delivery time:
Sample: 3-5 working days.
Bulk order: 7-20 working days.

Our certificates:

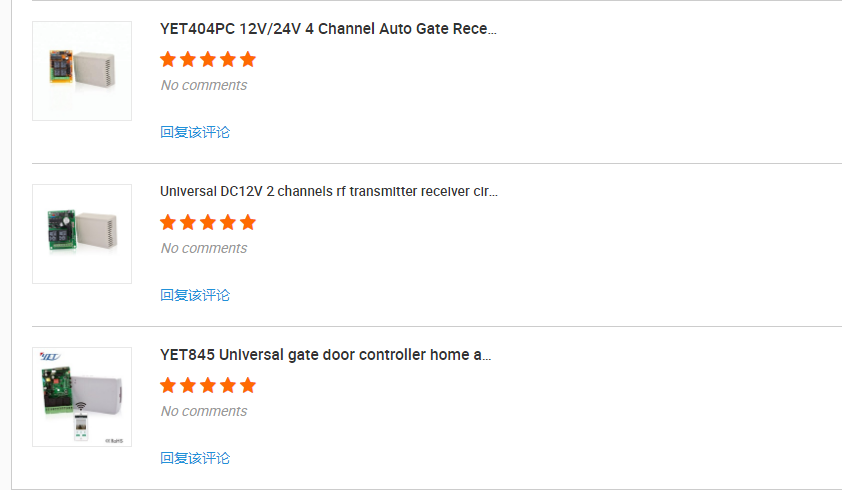

Customer Reviews:

Our Advantages:

Our services:

Company instruction:

FQA:

1. Could I order one piece for the sample to test the quality?
Yes, the sample is available

2. What should I know before ordering?
Please let me know the frequency (433.92 is the most common frequency), and code (fixed code EV1527, rolling code HCS301, or duplicator). And please also let me know the quantity, our MOQ is 100pcs.

3. Are you a manufacturer?
Yes, we have our own factory, production line, SMT&Plug-in, automatically screwdriver machine, etc, and an R&D department.

4. Can I visit your factory?
Yes, welcome.Our address: 5th and 6th-floor block 27,lianchuang Technical zone, Bu Lan Road, Long gang District, Shenzhen, R.P. China

5. What about your delivery time?
For samples, 3~5 working days, for bulk orders, 7~20 working days.

6. Do you accept OEM orders?
Yes. We customized a lot of items for our clients.

7. What kind of payment do you accept?
We accept T/T(Wire transfer), Western Union and PayPal, and Credit cards.
TT can be 30% prepayment before production, and 70% balance payment before shipping.
