Hot sell ON/OFF wireless remote control switch and remote control transmitter receiver DC12V
- Brand Name:CY
- Model Number:YET 405PC-1
- Use:Universal
- Place of Origin:Guangdong, China
- Item:Wireless remote control and receiver Kit
- Operating Temp:- 40C~+80c
- Frequency:433/315mhz/customized
- Modulation Mode:ASK
- Channel:1 CH
- Power:DC 12V / 24V or AC 220V / 110V
- Sensitivity:-105dB
- Working Mode:Momentary / latching / Interlocking
- Application:ON/OFF signal outputs
- Certificate:CE ROHS
Hot sell ON/OFF wireless remote control switch and remote control transmitter receiver DC12V

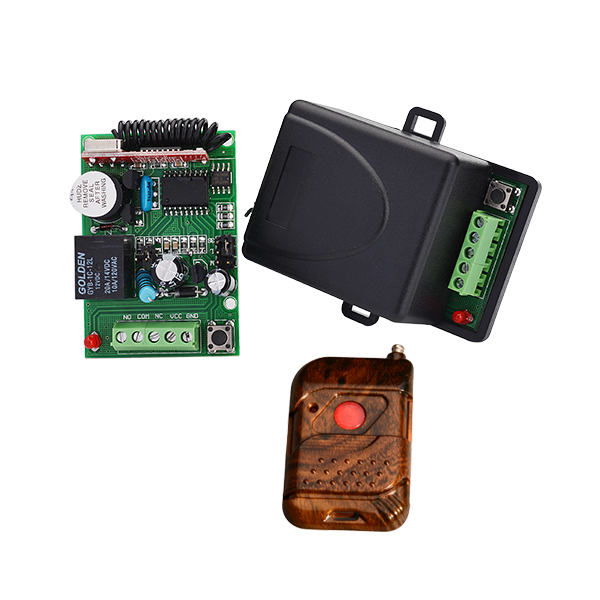

This is single channel wireless receiver with wireless transmitter, relay output onoff switch signals, it can make one equipment achieve onoff switch.
wireless remote control receiver :
1. Popular appearance in the world
2. work wih learning code, fixed code, and rolling code transmitters
3. With super-heter type receiver module, high sensitivity -112db
4. very long working distance, 50 - 120 meters
5. working voltage DC12V 24V or AC220V optional
wireless receiver controller technology parameters:
| working voltage | DC12V or 24V or AC220V |
| static working current | ≤7ma |
| working temperature | -40℃-+80℃ |
| sensitivity | ≥105dBm |
| working frequency | 315 433 868mhz optional |
| contact current | 10A |
| memory | 36 pcs |
wireless remote control transmitter datasheet:
| Buttons | 1 / 2 / 3 / 4 |
| Operating voltage | DC12V |
| Operating current | 10MA |
| Operating frequency | 315Mhz, 433Mhz, 868.35Mhz, 869.85Mhz, 290Mhz - 480Mhz |
| Ambient temperature | -10 °C ---- +70 °C |
| Use | Cars, garage doors , gates doors, alarm systems etc. |
| encoding type | fixed code, learning code, rolling code |
| radio distance | 50 - 100 meters in open space |
Programming way:
Press"Learning"button on the receiver, release it until LED light flickers, Receiver
in learning status (LED goes out this moment), then press related button on Remote
control to monitor this Receiver. When LED on Receiver flickers 5 times and then
goes out, it indicates Learning has been done. It can response to up to 30 Remote
control of this mode.
If Remote control is lost and wanting to make it invalid totally, press"Learning"button
(more than 8s) until LED goes out, then Receiver will eliminate all contents automatically.
If want to reuse it, just learning one more time again.

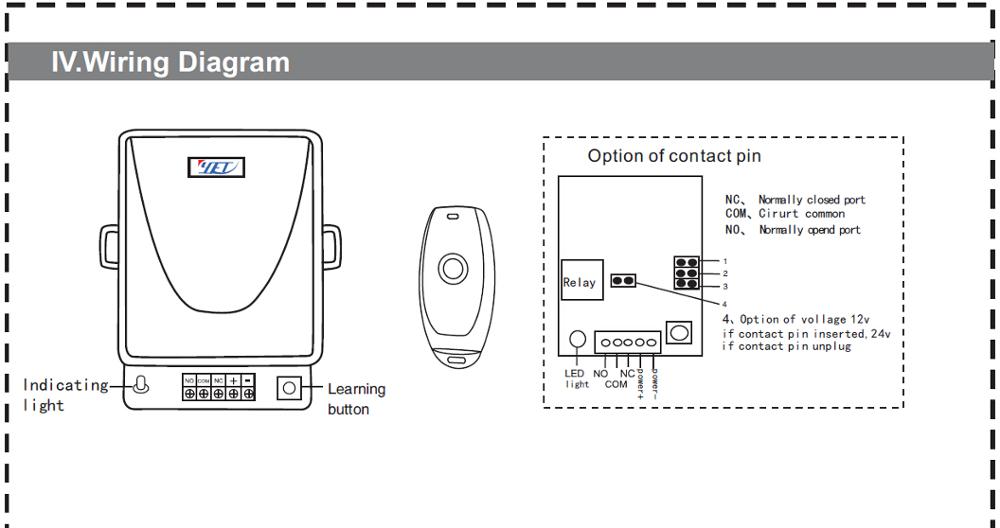

Wiring instruction:

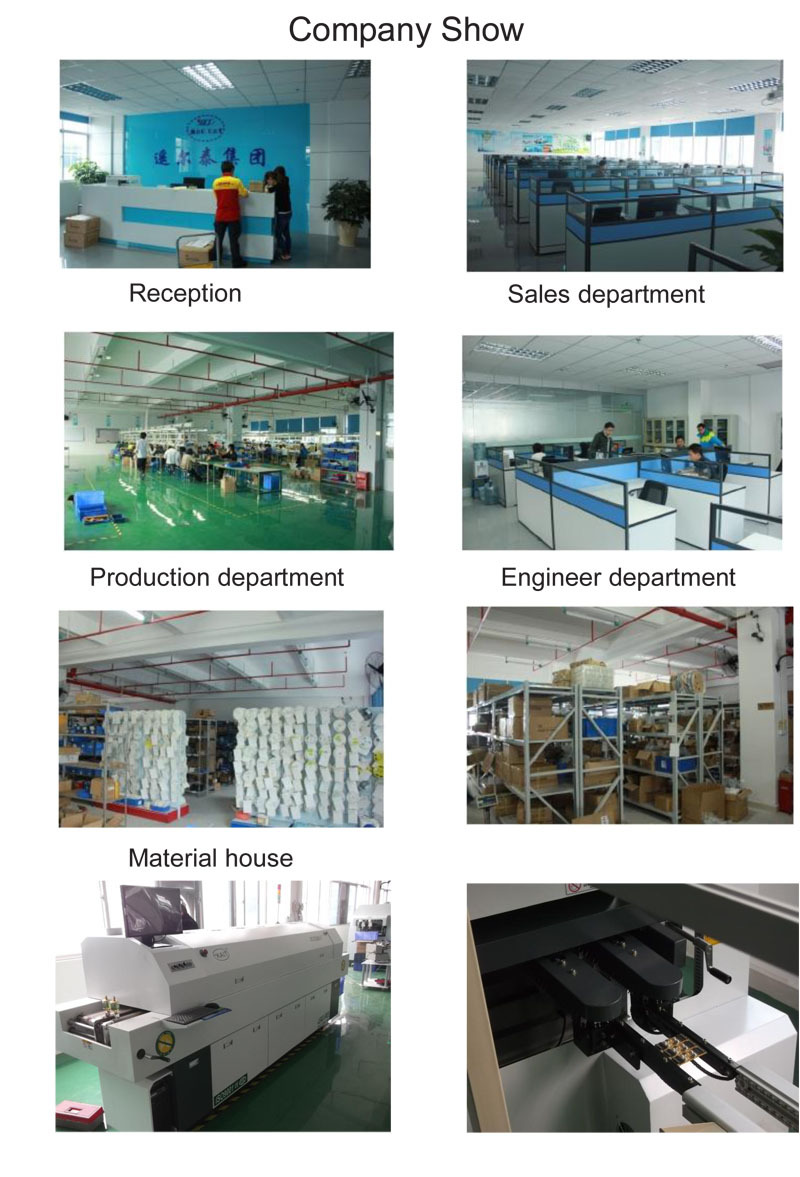

Shenzhen Yaoertai Technology Co., Ltd. is a highly specialized company, founded in 2005. Our company specializes in the design, development, manufacture and marketing of such RF products as wireless receivers and transmitter modules, wireless remote controls, car alarm systems, home alarm systems and related accessories. We provide both OEM & ODM services.

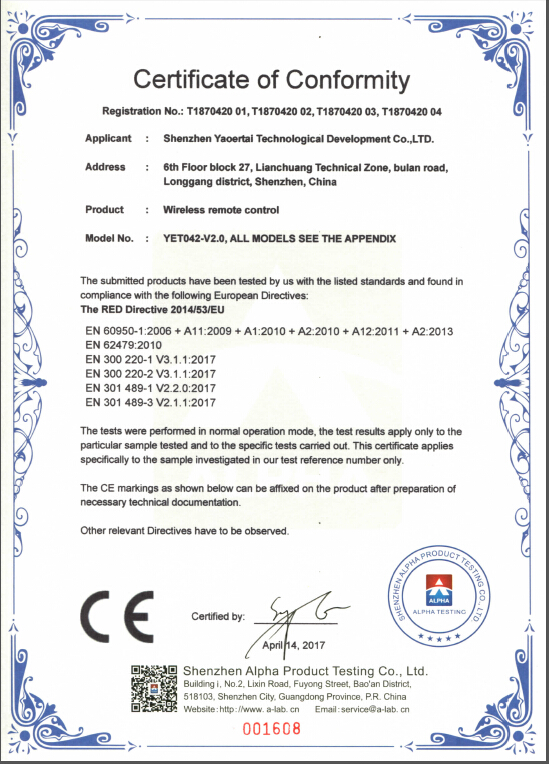

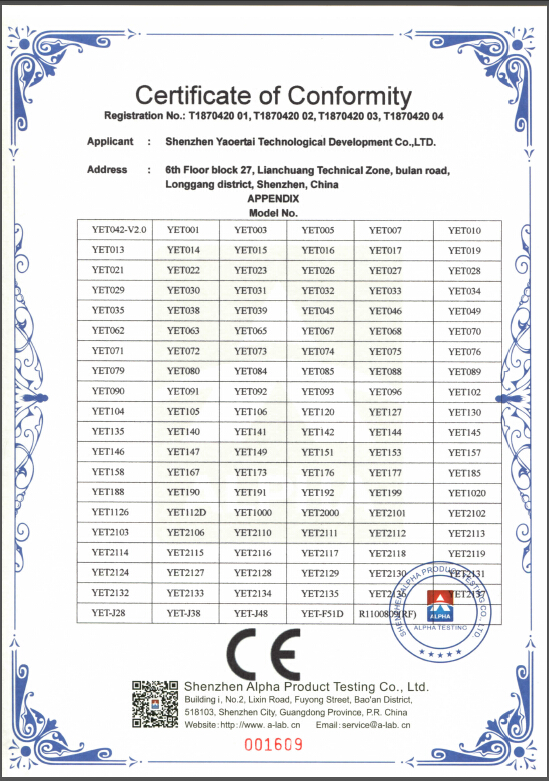

Certificates:

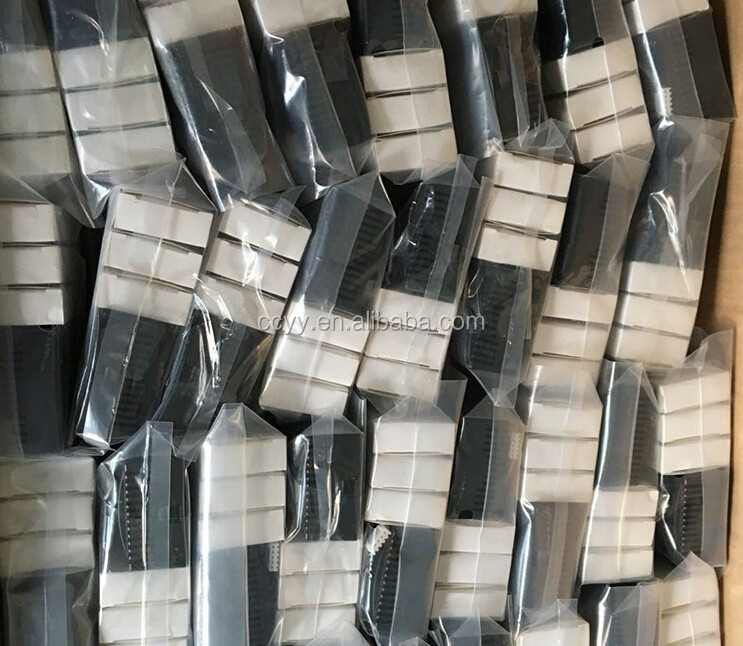

wireless remote control receiver package
Our Services:
- OEM,ODM service
- customize package
- printing logo
1. what's your minimum order? can i buy samples for testing?
the Minimum order quantity is 100 pcs in our factory. samples are ok.
2. what time can you deliver my order?
samples in 3 days, bulk order 7 days, above 1000pcs in 15 days after payment.
3. do you have gurantee for my order?
battery gurantee for 6 months, remote control and receiver gurantee for 1 year ( except man-made sabotage)
4. what's your best price?
we make different models and different chip, please advise detailed parameters for goods that you need.
