4 relay AC 220V 315/ 433 mhz wireless remote controller for projection screen CY845PC
- Brand Name:CY
- Model Number:CY845PC
- Use:Universal
- Place of Origin:China
- working volt:220V
- static working current:7mA
- operating temperature:-40~+80C
- working frequency:315mhz/ 433.92mhz
- sensitivity:>=-105dBm
- output current:<=10A
- dimension:48mm*33.6mm*18mm
- Maximum storage:400 codes
- certificates:CE & Rohs
- warranty:2 years
4 relay AC 220V 315/ 433 mhz wireless remote controller for projection screenCY845CE & ROHS Approval
Specification:
- Wireless remote controller
- 4 relay RF wireless Remote Controller
- 220 Volts Wireless Remote Controller
- 433.92 mhz/ 315 mhz Wireless remote controller
- 4 relay AC 220V 315/ 433 mhz wireless remote controller for projection screen
| Features |
| 1. Uplink and Downlink can be exchanged via jumper. |
| 2. Every channel can bear 250VAC/10A |
| 3. with 1 key/4 key modes |
4. Time of Up and Down can be set, to ensure accurate door switch and save energy. |
| 5. when the door is closing or in self-closing delay waiting, if there is an obstacle, the door will not be closed, to prevent hurting the object; |
| 6. Set the maximum running time, prevent the door overtime run, avoid burn out the motor; |
| 7. Advanced power-saving technology, mA operating current level; |
| System Specifications: | ||
| Receiver | Transmitter | |
| Working Voltage | 220V/ AC | 12V |
| Working current | <100mA | |
| Frequency | 433.92Mhz | 433.92Mhz |
| Maximum capacity for remote | 80pcs | |
| Maximum running time | 4min | |
| Maximum self-closing delay time | 10 minutes | |
| Operating mode | 1key/4key | |

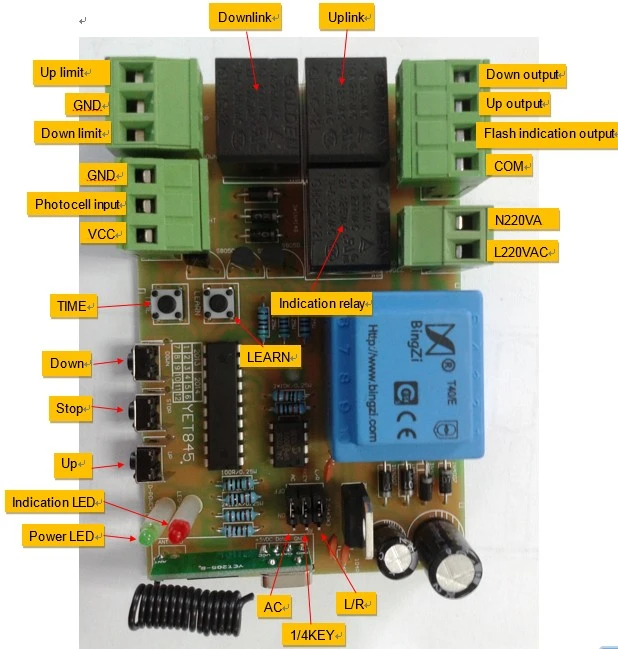

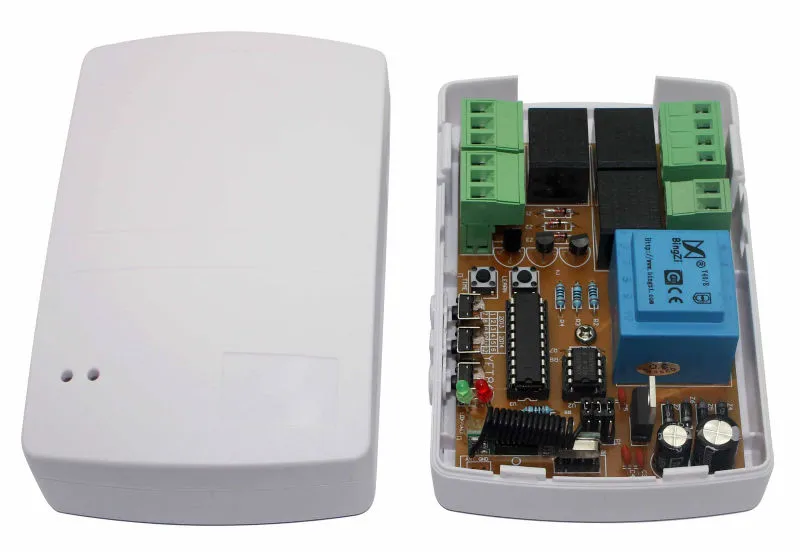

CY845PC pictures: (4 relay AC 220V 315/ 433 mhz wireless remote controller for projection screen)
User Manual:
( PS: For instruction book, pls feel free to contact me, :-) skype ID: alarm.system2 )

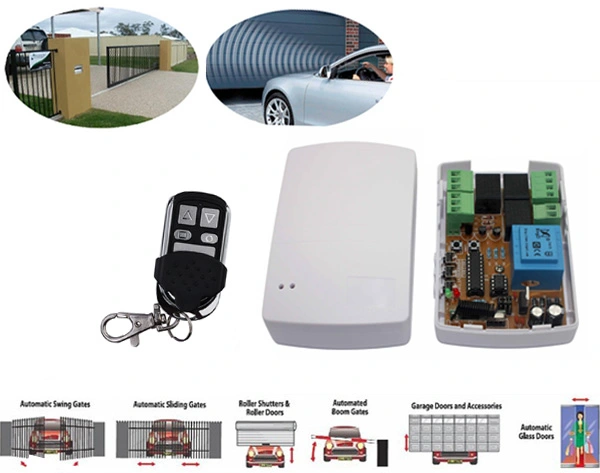

Usage:
Packaging Details: | Carton,500PCS per case ,carton size:48*38*26CM, GW=NW+1.8KG |
|---|---|
| Delivery Detail: | 7~15 days |
