Model No: YET404PC+YET003

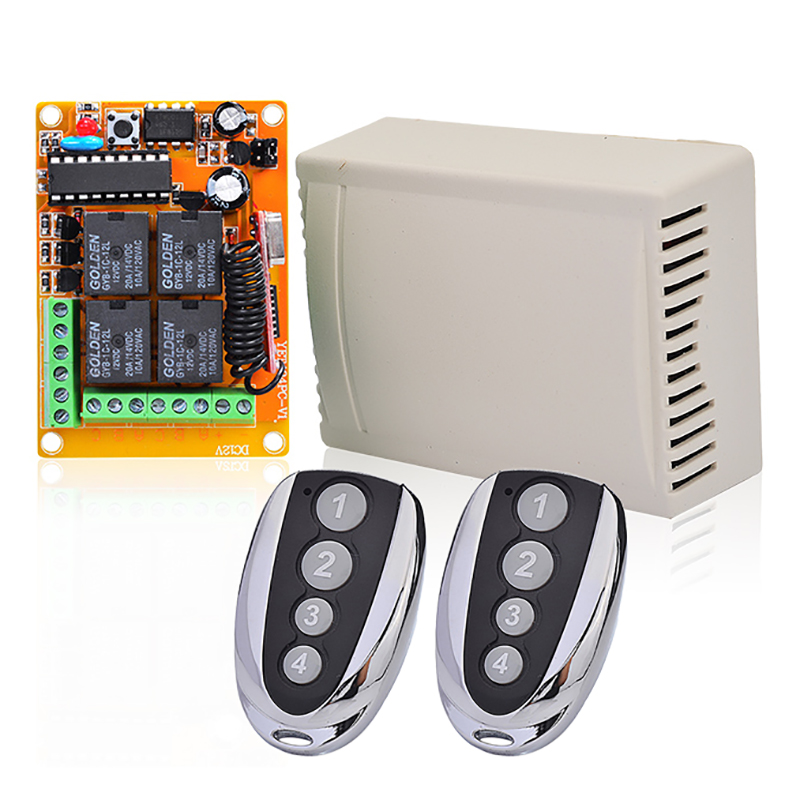

YET404PC+YET003 4 Channel Relay 12V Wireless Switch Control Board with Transmitter Keyfob
4 channel wireless receiver, working volts is DC12V or DC24V. ON&OFF switch singal. Working range is about 50-80m. 1*4channel receiver with 2* 4button remote.
minimum order :
1 set
Quantity :
Subscribe to our Newsletter
- Brand Name:YET
- Model Number:YET404PC+YET003
- Certification:ce
- Color:Black, White
- Place of Origin:Guangdong, China
- Material:ABS
- Code:Learning Code
- Button:4 Buttons
- Function:Switch on&off, on & off switch signal
- Product name:4 Channel Relay 12V Wireless Switch Control Board with Transmitter Fob
- Working voltage:DC12V/24V
- Code type:Learning code
- Frequency:433mhz
- Application:Boom barrier/rolling door/light/lift/shutter door,etc
- Package:PP bag or white box
- Weight:0.15KG
- Battery:Included
- Working range:80-100m
- keyword：wireless relay switch control，12v relay channel board，4 channel wireless remote controll board
Product Description
Product Name | 4 Channel Relay 12V Wireless Switch Control Board with Transmitter Keyfob |
Material | ABS |
Function | Switch ON&OFF switch signal |
Package | PP bag or white box |
Product performance description
4 channel wireless receiver, working volts is DC12V or DC24V. ON&OFF switch singal. Working range is about 50-80m. 1*4channel receiver with 2* 4button remote.
Details Images

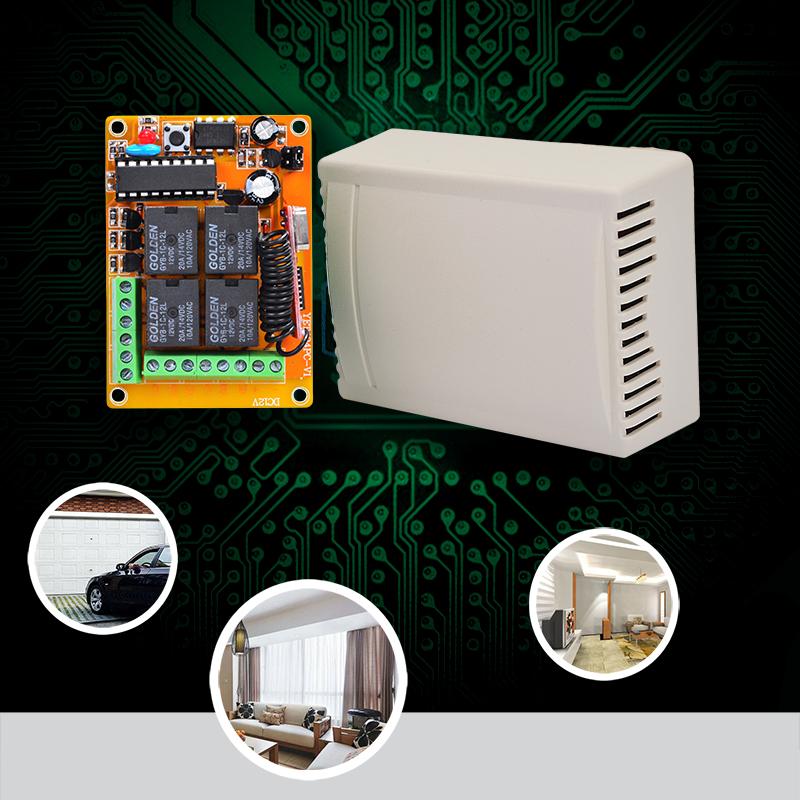

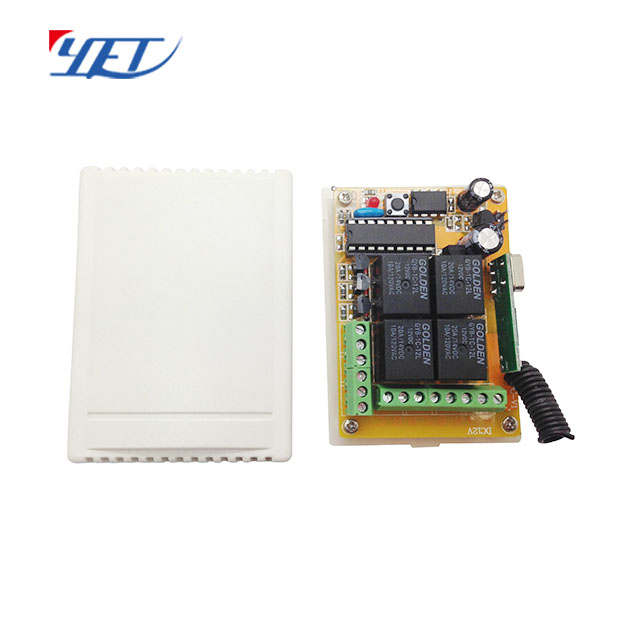

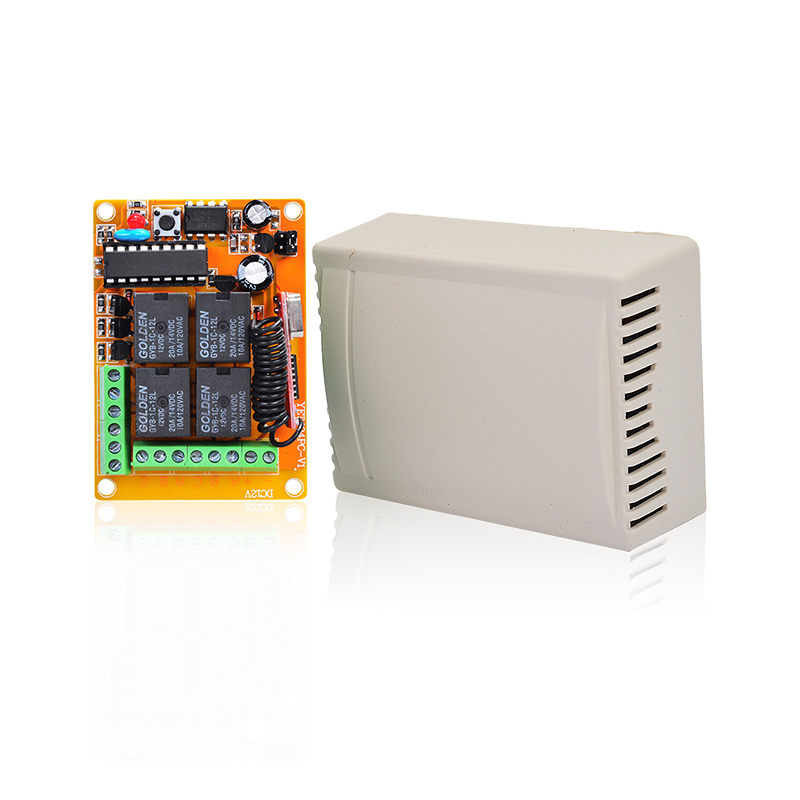

4 relay wireless receiver with super-heterodyne receiver module

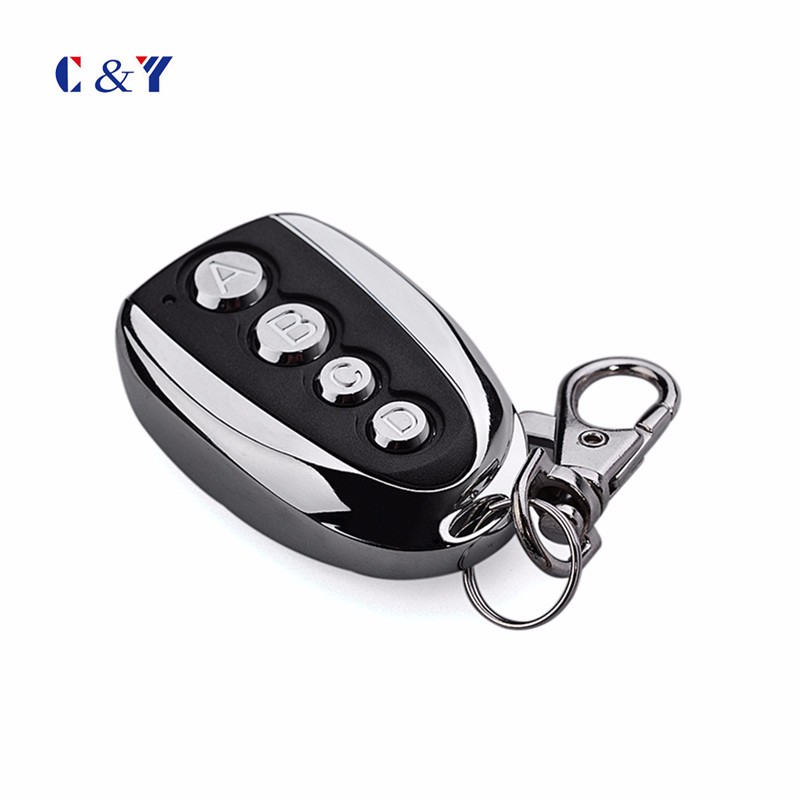

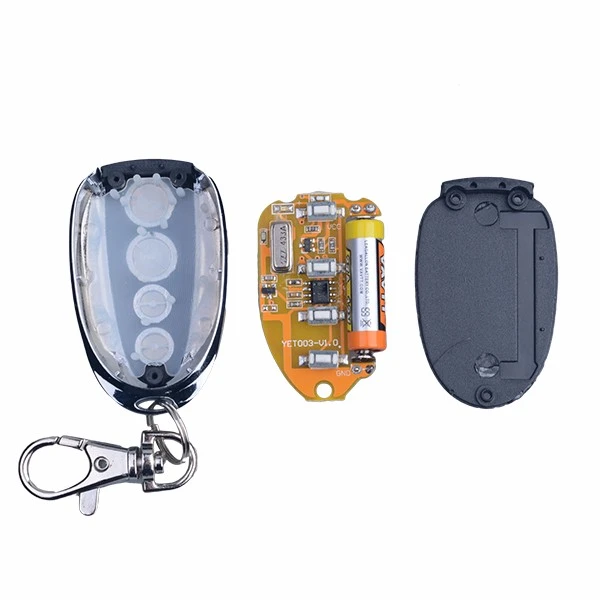

4 button 433mhz frequency with HS1527 learning code,12V/27A battery included

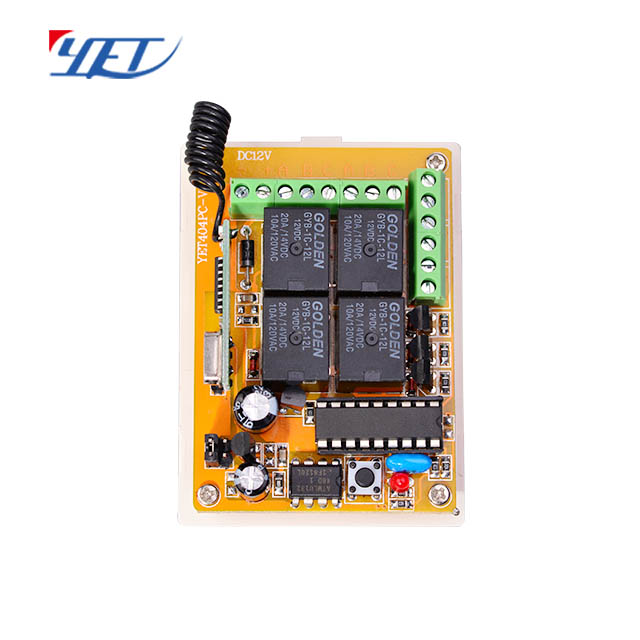

clean circuit board,high quality electronic components

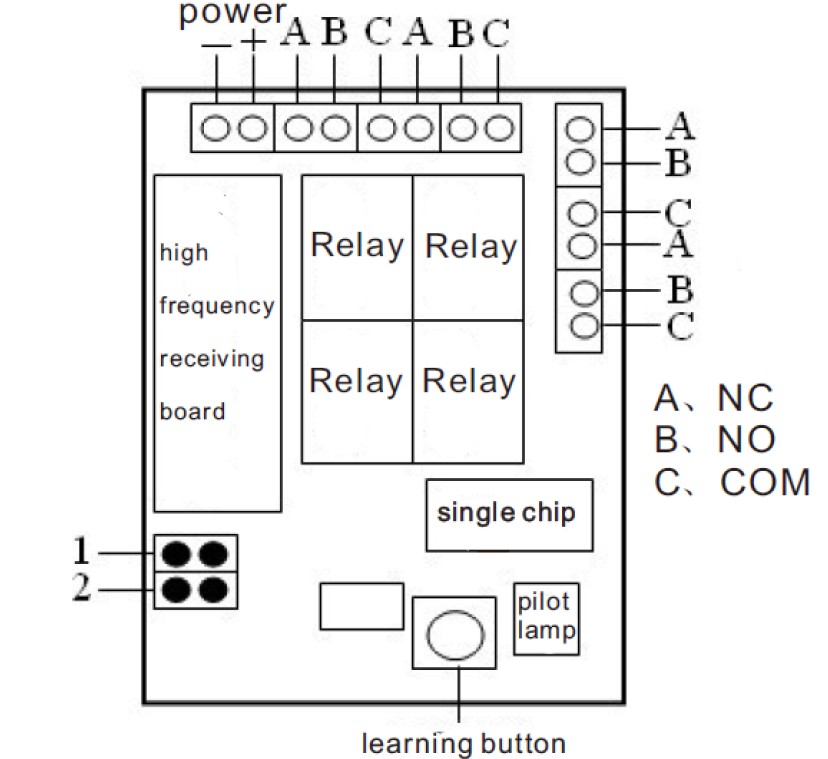

Product Usage
A. Signal toggle—jumper inserted on 1
B. Signal latch—jumper inserted on 2
C. Signal momentary—not insert jumper
D. 2-circuit toggle, 2-circuit momentary— jumper inserted on 1 and 2（301 not equipped with this function)
Learning & fixed code: Press"Learning"button on the Receiver, release it until LED light flickers, Receiver in learning status (LED goes out this moment), then press related button on Remote control to monitor this Receiver. When LED on Receiver flickers 5 times and then goes out, it indicates Learning has been done. It can response to up to 30 Remote control of this mode. If Remote control is lost and wanting to make it invalid totally, press"Learning"butt- on (more than 8s) until LED goes out, then Receiver will eliminate all contents auto- matically. If want to reuse it, just learning one more time again. Rolling code: Press"Learning"button on the Receiver, release it until LED light flickers, Receiver in learning status (LED goes out this moment), then press related button on Remote control to monitor this Receiver. If LED light is flickering slowly all the time, this ind- icates First Learning has been done; press"Learning"button again and release it until LED flickers, this indicates in Second Learning status(LED goes out), press the same button on Remote control, LED will flickers 5 times quickly, this indicates Lea- rning has been accomplished. It can response to up to 6 Remote control of this mode. If Remote control is lost and wanting to make it invalid totally, press"Learning"butt- on (more than 8s) until LED goes out, then Receiver will eliminate all contents auto- matically. If want to reuse it, just learning one more time again.
Related Products
Packing&Shipping
1 receiver with 2 transmitter keyfob. One set in a box/pp bag,100sets in one carton

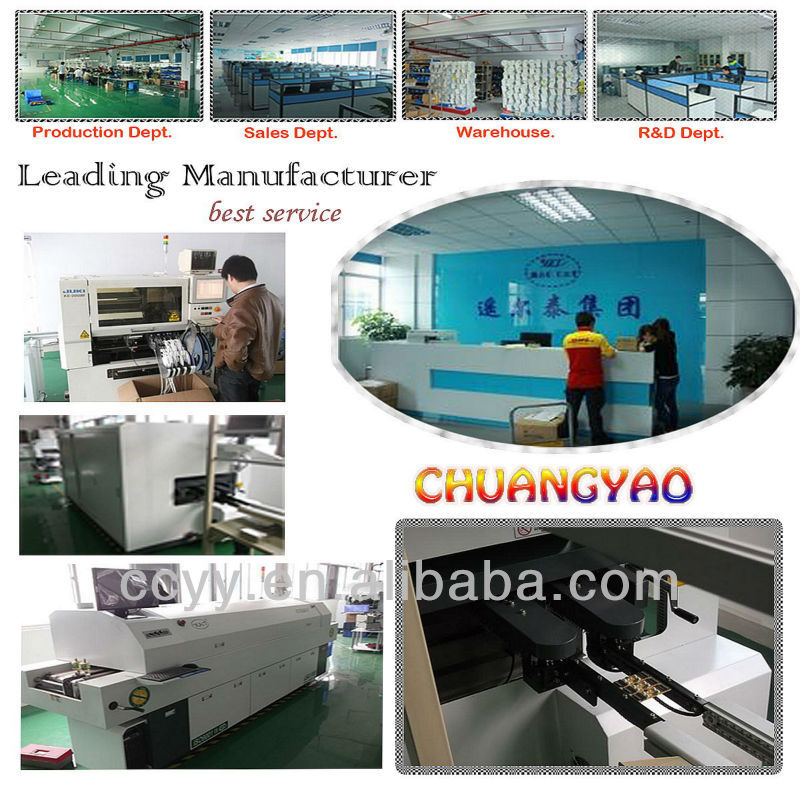

Company Introduction
