Wireless 2 channel replay output on/off switch signal 433mhz receiving controller YET428PC
- Place of Origin:Guangdong, China
- Brand Name:YET
- Model Number:YET428PC
- Operating Temperature:-40°C- +80°C
- Max. Current:6mA
- Max. Voltage:12V
- frequency:315M/433MHZ/Other
- encoding type:fixed code,learning code
- voltage:DC12V/24V
- distance:<80m
- weight:95g/set
- Style:Wireless
- Static operating current:≤7mA
- Receive sensitivity:≥-105dBm
- size:77*55.5*32.5mm
- Product:Rf Remote Control Transmitter Receiver

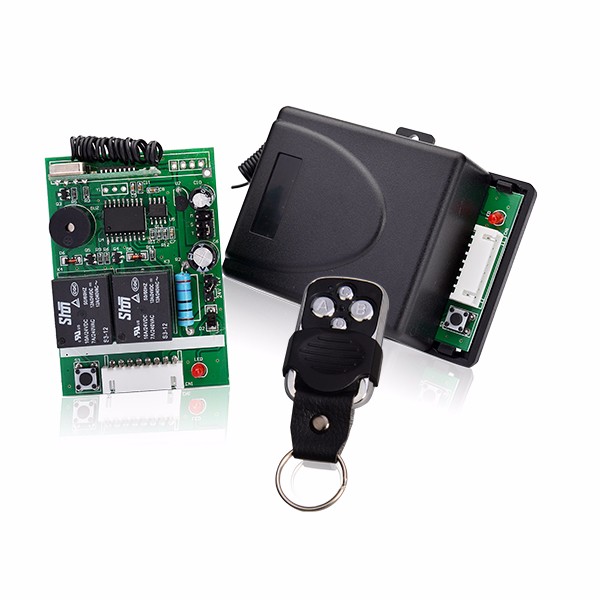

smart home 2 Channel motor controller for garage receiver YET428PC

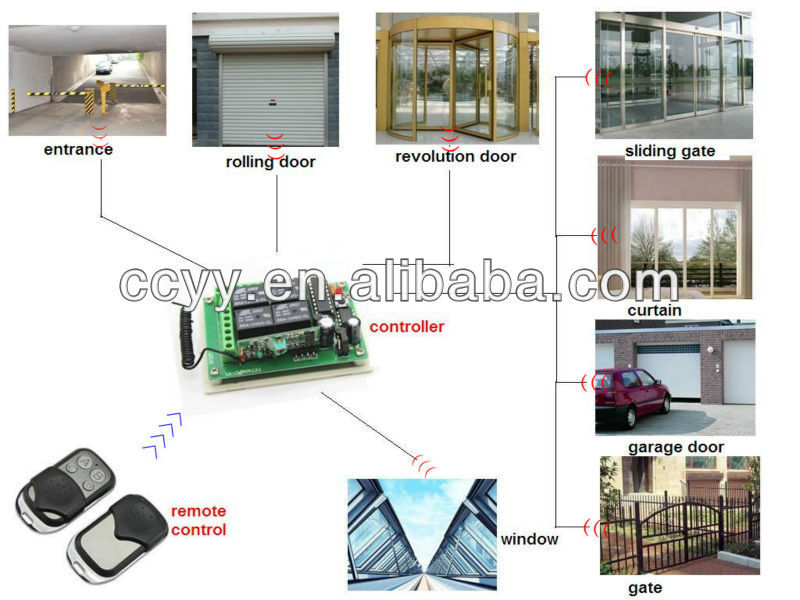

YET 428PC,the 2-way wireless smart receiver controller is desighed and manufactured by our company,which ouputs Switching Quantity Signal for 2 relay and control the equipment to realize turn , turn over , switch on/off/change or kinds of special control program requriments.It's mainly used in electric doors, windows, lifting equipment, gateways, lifting devices, industrial control and security industry and other fields.
The wireless receiving controller, with high security, storage capacity, stable performance, low power consumption,easy to use, do without using the traditional jumper or DIP switch code, simply receive and store wireless signal launched by remote controller to achieve matching.If you losed the learned remote control,simply clear/delete the deposited receive control information so that the lost remote control prohibited to control the receiver controller.It can be used only on the condition that the owener re-learning the controller.Its outputs inludes self-locking, non-lock, interlock .
FEATURE:
1.popular appearance in the world
2.working with learning code,fixed code
3.LED light,learning button outside,it's easy to use

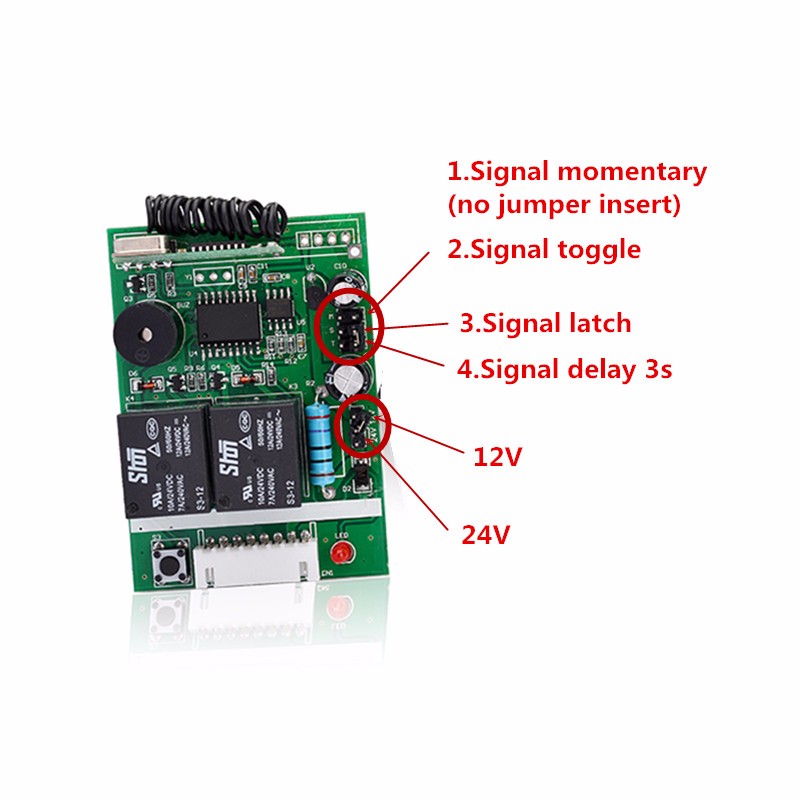

4.Signal delay 3seconds,interlocking,latching,momentary optional
5.with buzzer
6.12/24v DC optional

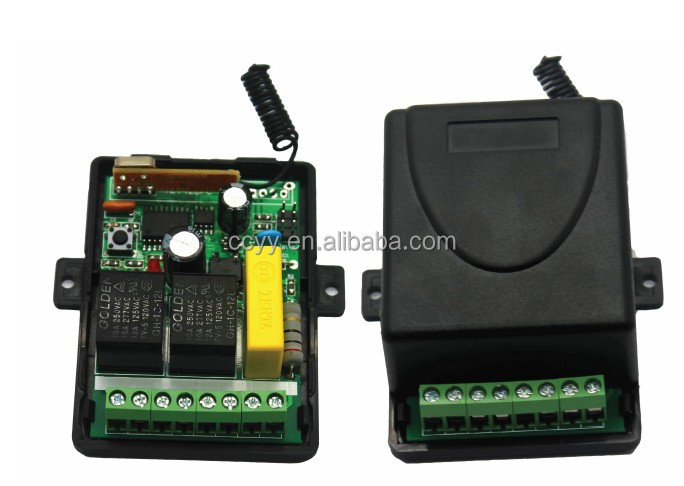

7.Terminal and connector optional
Technical indicators
1.working voltage:12V/ 24VDC (optional) optional with a jumper
2.static operating current:≤7mA
3.Working temperature :-40C- +80C
4.Receive sensitivity:≥-105dBm
5.working frequency:315MHz,433MHz
6.Output Voltage: DC
7.output current:≤10A
8.size:77*55.5*32.5mm
For order:
Accept OEM.
Print logo on the case and pakage
Payment Details :30%deposite,70%balance before shipment.Payment accept T/T and western union optional.
Minimum Order:100 pcs(accept trial order)
Delivery Details:within two weeks.
For sample:
Please advise what code and frequency you need.

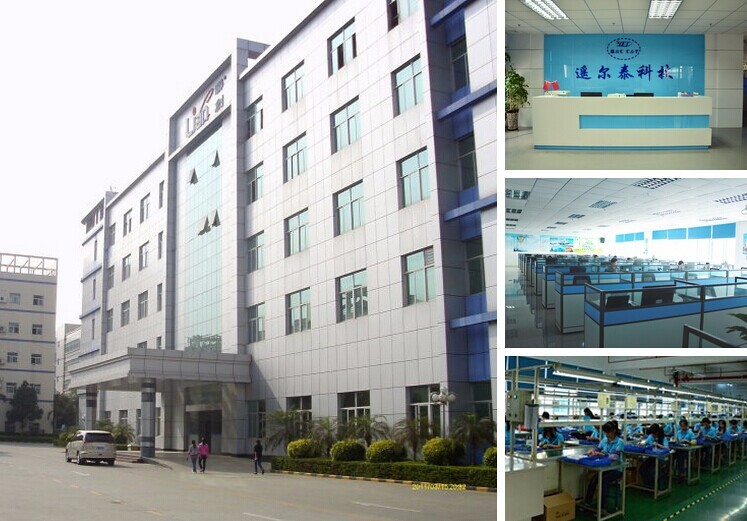

Company Information:
Shenzhen Yaoertai Technology Co., Ltd. is a highly specialized company, founded in 2005. Our company specializes in the design, development, manufacture and marketing of such RF products as wireless receivers and transmitter modules, wireless remote controls, car alarm systems, home alarm systems and related accessories. We provide both OEM & ODM services.
Our product quality can meet FCC, CE, and RoHS standards. With strong technology, we have produced more than 1,00 types of quality products, which are available to different sectors and can meet a variety of special needs of customers throughout the world. Our products are exported to Australia, Latin America, Southeast Asia, North America, the Middle East and Europe.

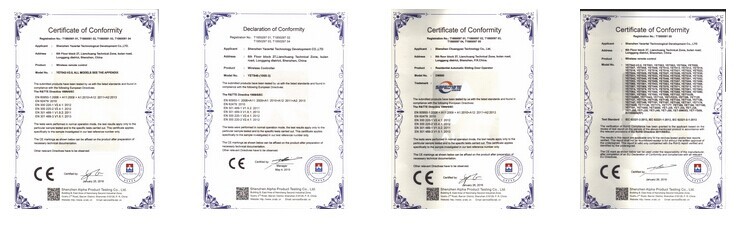

Certification
For order:
1.Accept OEM.
2.Print logo on the case and pakage
3.Payment Details :30%deposite,70%balance before shipment.Payment accept T/T and western union optional.
4.Minimum Order:100 pcs(accept trial order)
5.Delivery Details:within two weeks.
Our service:
1.Your inquiry related to our products or prices will be replied in 12 hours
2.Well-trained and experienced staffs to answer all your enquires in fluent English
3.OEM&ODM,any your customized products we can help you to design and put into production
4.Protection of your sales area, ideas of design and all your private information
5.Deliver by air mail or ship for your orders
