Model No: YET 2114

New YET 2114 ABCD Button Mark Wireless Remote Control Rf Transmitter For Rolling Shutter

minimum order :
1 piece
Country of Origin :
Shenzhen
Quantity :
Contact Now
  • Brand Name:YET
  • Model Number:YET 2114
  • Use:Universal
  • Place of Origin:Guangdong, China
  • Frequency:315MHz/433.92MHz/303MHz/310MHz
  • Dimension:63.5x38x10mm
  • Voltage:DC6V
  • Key words:universal colorful wireless remote control switch
  • Working current:<=12mA
  • Transmission distance:50-100 meters(Open space)
  • Chip and Operating mode:Learning code ,Fixed code , Rolling code ,Copy code
  • Transmission Speed:50-60KHZ
  • Transmit Power:>=10mW
  • Certification:CE,ROHS
New YET 2114 ABCD Button Mark Wireless Remote Control Rf Transmitter For Rolling Shutter

Technology parameter

Operating voltage:6V
Operating Current:<=12mA

Operating frequency:315MHz/433.92MHz/303MHz/310MHz

Frequency windage: ±0.2MHz
Transmission speed:50-60KHz
Transmit Power>=10mW
Transmission distance:50-100meters
Oscillation resistance:under your request

Chip:learning code(1527,2240,HT6P20B ,HT6P20D)

fixed code(2262,2260)

rolling code (HCS301,300,200)

copy code

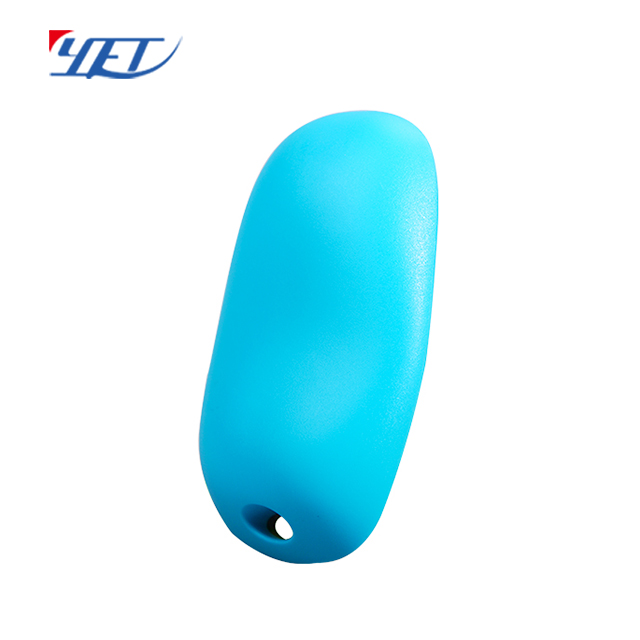

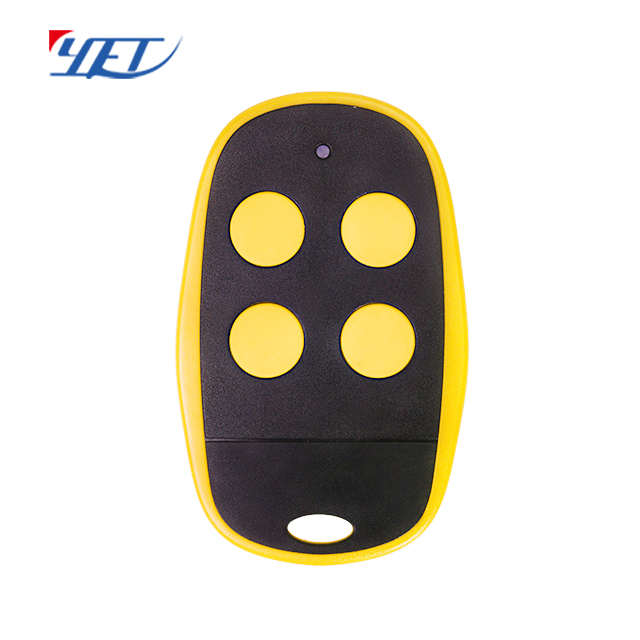

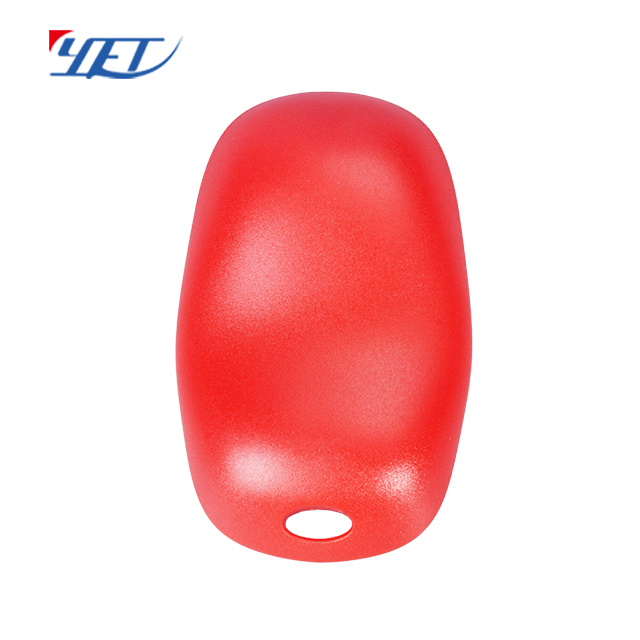

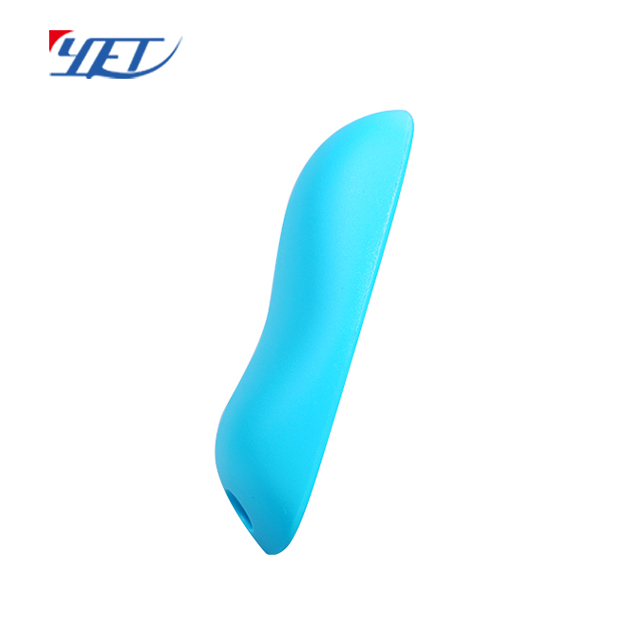

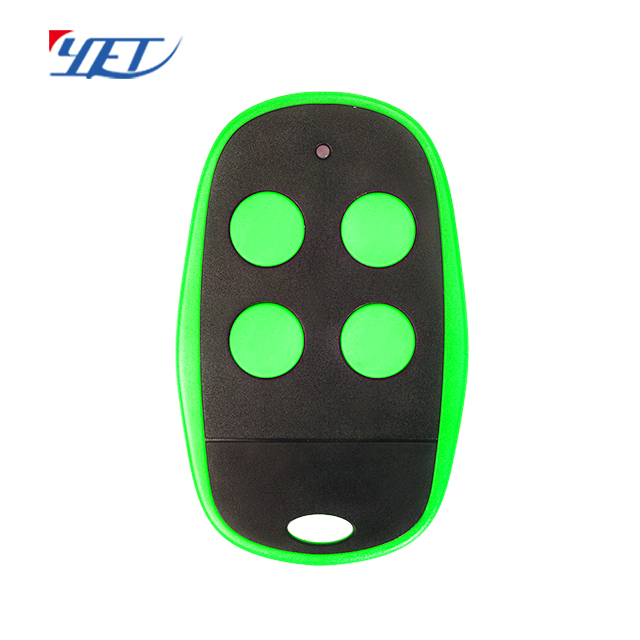

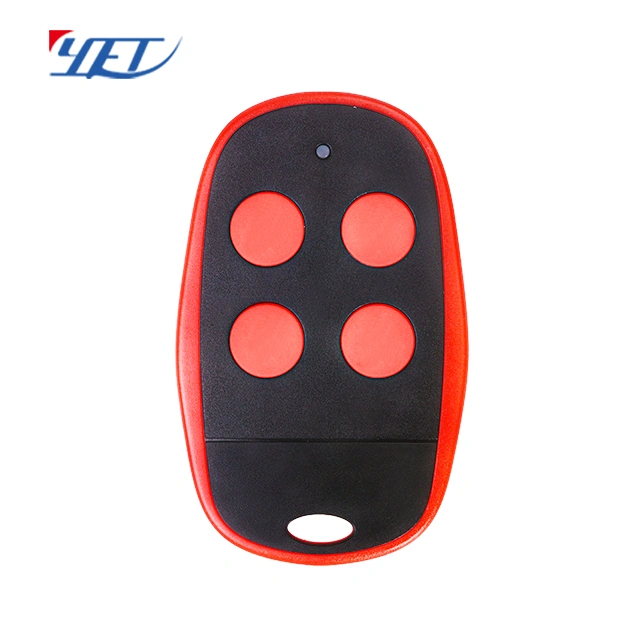

Product picture

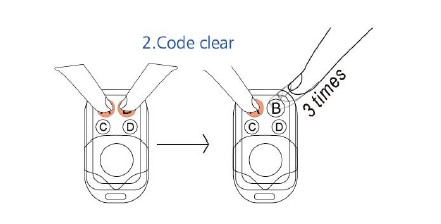

1. Resetting before copying:
Hold down buttons A and button B until the LED flashes, then release button B and press three times (at the same time, button A is pressed all the time)
2. Copying:
place the original and clone remote close together.then press the button to be programmed on both remotes and hold until LED flashes steadily on the clone remote...programming is complete.
- repeat steps program extra buttons.
3. Code recovery
Hold down button C and button D until the LED flashes, now it returns to last codes you clone.

Use range

This kind of wireless rf remote control widely used in garage door,electric window,automaitc gate, led lamp,home appliance control and some other wireless control etc.
