Model No: YET205B-630

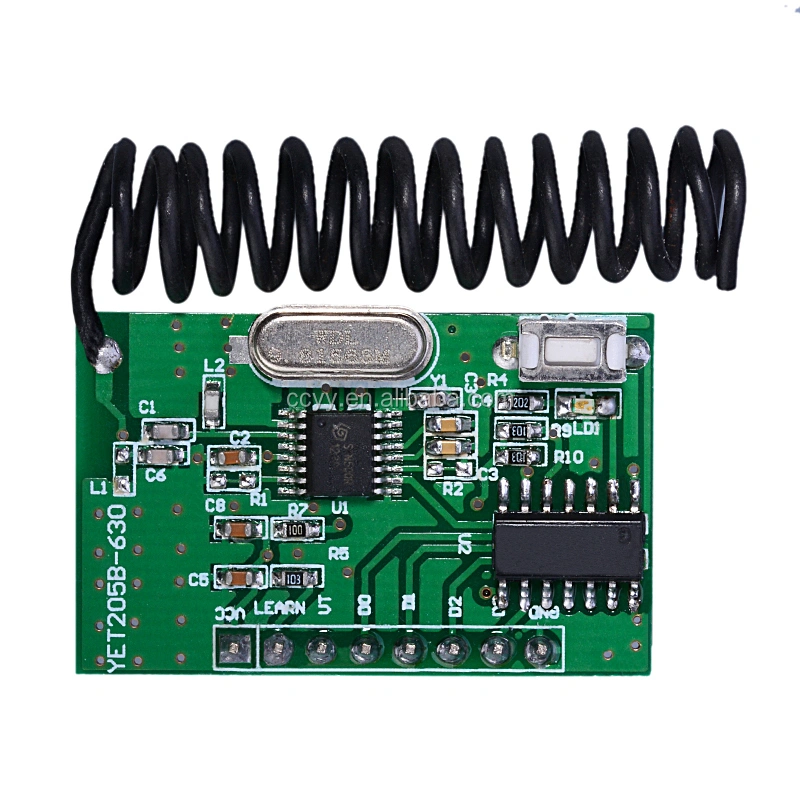

Smart home factory 433MHZ superheterodyne decode receiver module YET205B-630
minimum order :
1 piece
Country of Origin :
FOB shenzhen
Quantity :
Subscribe to our Newsletter
- Brand Name:YET
- Model Number:YET205B-630 433mhz receiver module
- Certification:ce
- Color:Green
- Place of Origin:Guangdong, China
- Material:Plastic And Silicone
- Code:Rolling Code, Fixed Code, Learning Code
- Function:Automatic, Receive signal and convert
- Product name:wireless receiver module,superheterodyne receiver module,decode receiver module
- Frequency:315/433.92 MHz
- Certificate:CE ROHS
- Chip:2260.2262.2240.1527.HCS301.HCS300
- Model:YET205B-630
- modulation:ASK
- sensitivity:-110dBm
- model number:yet205b-630
Specification

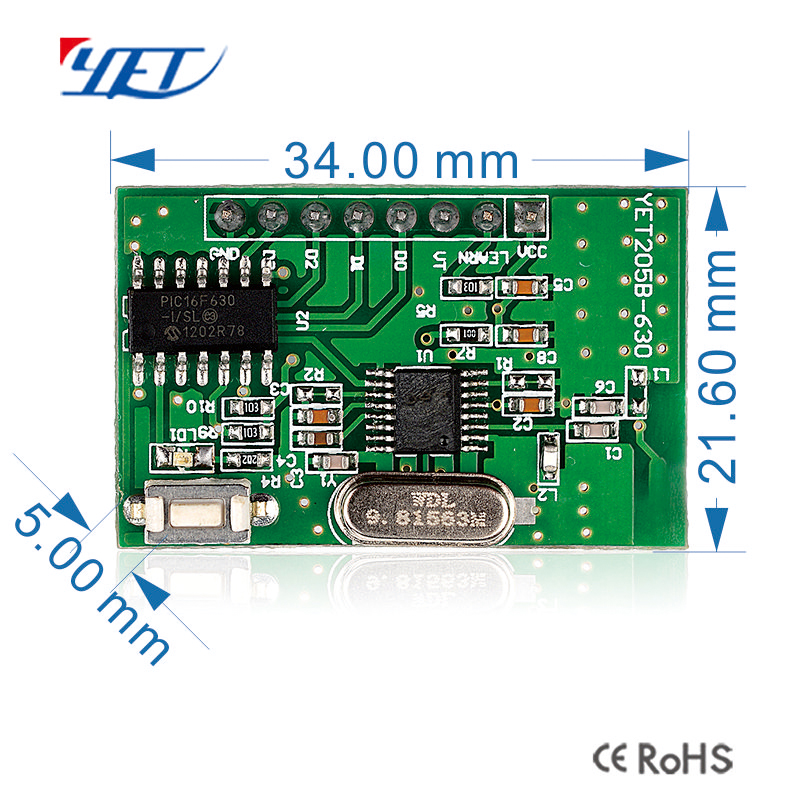

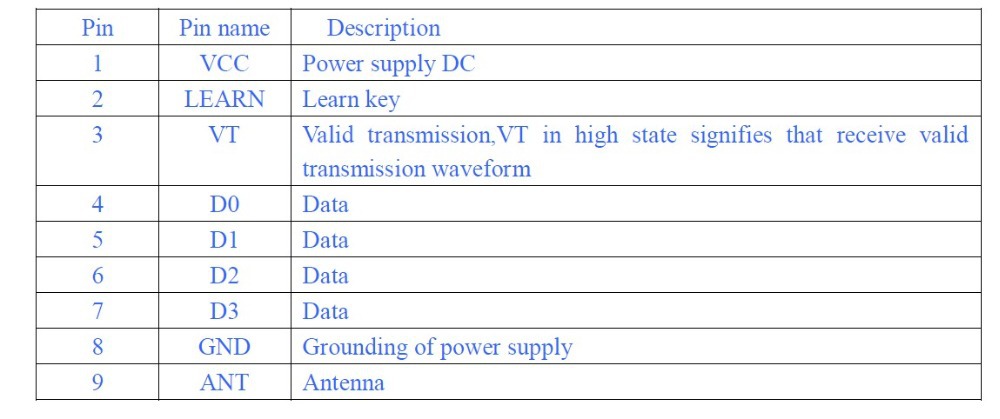

Power supply voltage: DC 3.3-5V Quiescent current: 7~8mA Receive sensitivity: -112dBm Dimensions: 34 × 21.6 × 5mm Working temperature: -30°C~+85°C Operating frequency: 315 MHz; 433 MHz (special frequency can be customized according to customer requirements) Output mode: jog, self-lock, interlock optional Output signal: four channels of data, one channel of signal indication Signal type: Level output (high level when active)
The YET205B-630 receiving module must be paired with the remote control before it can be used.

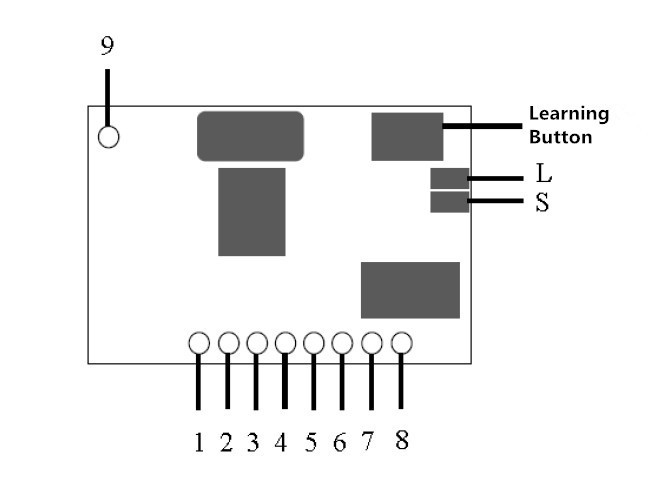

The method of learning and clearing the fixed code and learning code type products: Press the learning button (LEARN) on YET205B-630.
When the LED light is on, release the learning button, YET205B-630 enters the learning state (the LED is off), then press any button on the remote control to see the LED flashing quickly. It is extinguished after 3 times, indicating that it has been successfully learned. You can learn up to 20 remote controls of this type. If the remote control is lost, if you want to disable the remote control, you should press and hold the learning button (more than 8S). When the LED is off, the receiving module will automatically clear the contents of the memory. To re-use, just learn again.
Learning method for rolling code type products: Press the learning button (LEARN) on the YET205B-630. When the LED light is on, release the learning button, YET205B-630 enters the learning state (the LED is off), then press any button on the remote control. The LED light is on and off. Press the remote control button, the LED light goes out, then press the same button on the remote control again, the LED light flashes 3 times and then goes out, indicating that the learning has been successful. You can learn up to 6 remote controls of this type. If the remote control is lost, if you want to disable the remote control, you should press and hold the learning button (more than 6S). When the LED is off, the receiving module will automatically clear the contents of the memory. To re-use, just learn again.
Product Description
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
Shenzhen Yaoertai Technological Development Co.,Ltd (YET) established in 2005,we are a high-tech company who specialized in researching, producing, selling and offering service of security products. Our products including wireless remote control and receiver system, wireless motor controlling system, smart home system，WIFI Plug & WIFI Receivers，smart home gateway, multi function sensors and so on. All our products certified with CE & ROHS. OEM and ODM are welcome. Our main market are European, middle east, Southeast Asia, South America & Oceania. We aim to provide competitive products to different market & clients.
