wireless superheterodyne decode receiver Module YET241
- Brand Name:YET
- Model Number:YET241
- Use:Universal
- Place of Origin:Guangdong, China
- frequency modulation:Ask
- working frequency:315MHz/433.92MHz
- operating voltage:DC5v
- standby current:7~8mA
- operating temperature:-30°C~+85°C
- RF sensitivity:-112dBm
- dimension:34*21.6*5mm
- key words:receiver module
- certificate:CE and ROHS
- decode chip:2262 1527 301
wireless superheterodyne decode receiver Module YET241
YET241 superheterodyne decoding wireless receiver module is a super-heterodyne band decoding module with high cost performance in ISM band. It has perfect anti-static protection and high reliability. It is widely used in access control, vehicle system, security, industrial control. In areas such as communications, this system is ideal for complex environments and high system requirements.
1,Technology parameter:
| working frequency:315MHz/433.92MHz |
| decode chip: 1527,2262,301, |
| frequency modulation:ASK |
| operating voltage: 5v |
| standby current: 7~8mA |
| operating temperature: -30°C~+85°C |
| RF sensitivity: -112dBm |

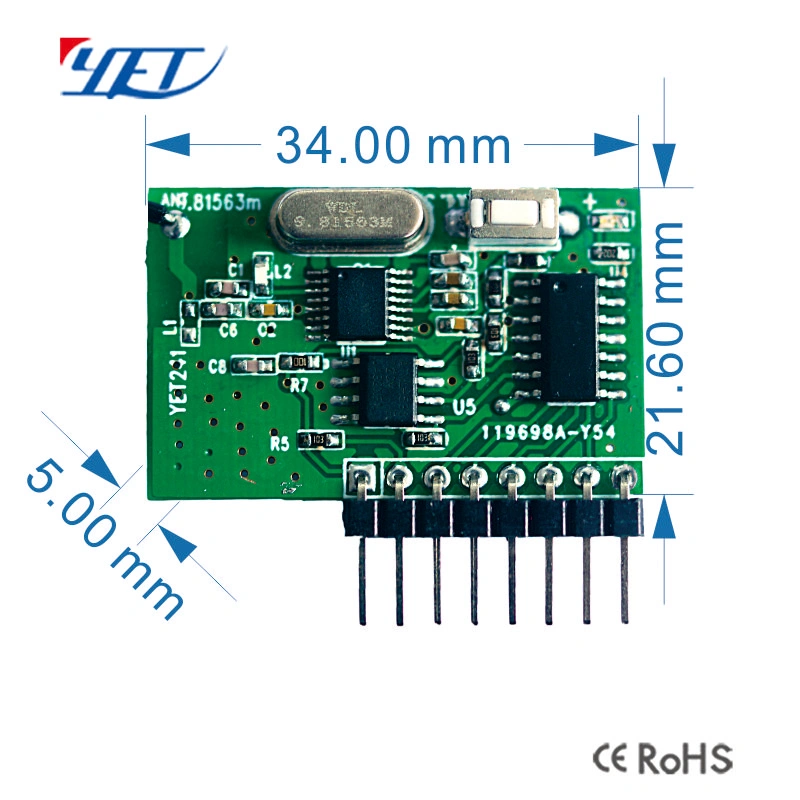

| dimension:34*21.6*5mm |
Learning and clearing methods:
Press the learning button (LEARN) on YET241, release the learning button after the LED light is on, YET2413 enters the learning state (the LED is off), then press any button on the remote control to see the LED flashes 3 times and then goes out. , indicating that it has been successful.
You can learn up to 80 1527 remote controls or 10 HCS301 remote controls.
If the remote control is lost, if you want to disable the remote control, you should press and hold the learning button (more than 8S). When the LED is off, the receiving module will automatically clear the contents of the memory. To re-use, just learn again.
packing: Carton, carton size 46*37*25cm
delivery: 5-7 days after received payment
For order:
1.Accept OEM.
2.Print logo on the case and pakage
3.Payment Details :30%deposite,70%balance before shipment.Payment accept T/T and western union optional.
4.Minimum Order:100 pcs(accept trial order)
5.Delivery Details:within two weeks.
Our service:
1.Your inquiry related to our products or prices will be replied in 12 hours
2.Well-trained and experienced staffs to answer all your enquires in fluent English
3.OEM&ODM,any your customized products we can help you to design and put into production
4.Protection of your sales area, ideas of design and all your private information
5.Deliver by air mail or ship for your orders

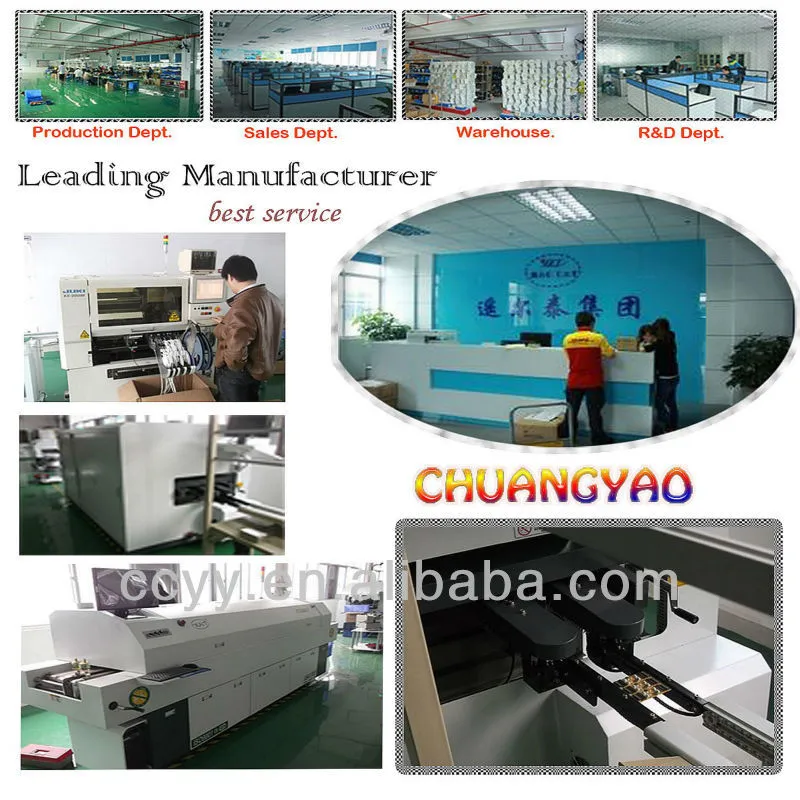

1,Company overview
Shenzhen Chuangyao Technology Co., Ltd.is approved by the Shenzhen Municipal Bureau of Trade and Industry set up a set of product development, production and sales of emerging high-tech enterprise. Since its inception, has continued to blaze new trails, a set of security sector development, design, manufacturing and sales of professional manufacturers.
Yaoertai Technology's main products include: household / commercial wireless intelligent burglar alarm, wireless remote control, wireless receive / transmit modules, wireless infrared fire detectors, wireless door sensor, wireless smoke detection, infrared gas alarm gas, fiber optic transceivers and so on; also based on customer needs, develop a dedicated wireless remote control transmitting and receiving control system. Are widely used in automobiles, motorcycles, shopping malls, it is important, and domestic anti-theft alarm. Among them, wireless transceiver modules, wireless receiver controller, widely used in garage doors, rolling shutter and electric gates. Remote control. Soil industry control and exported to Europe, America and Southeast Asia.

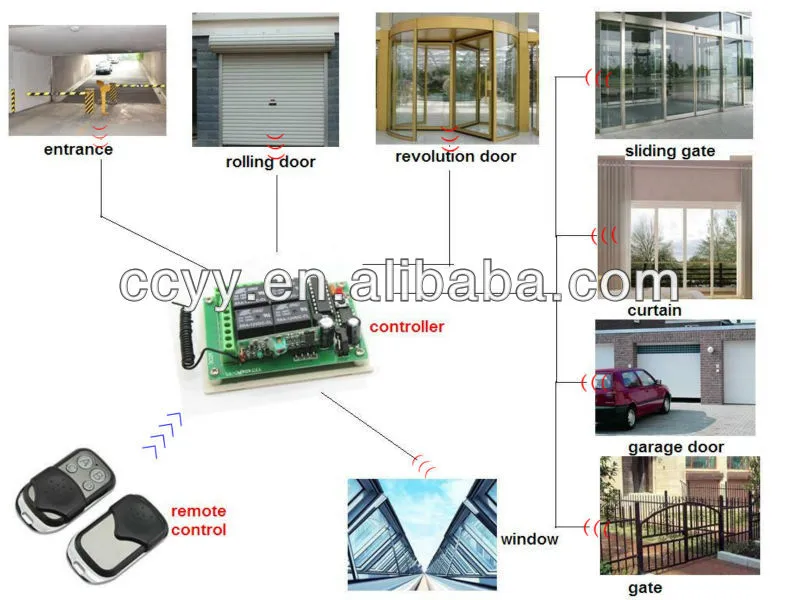

2,Usage:

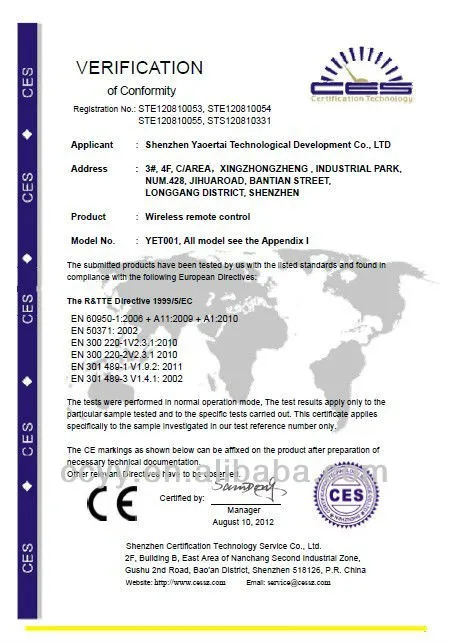

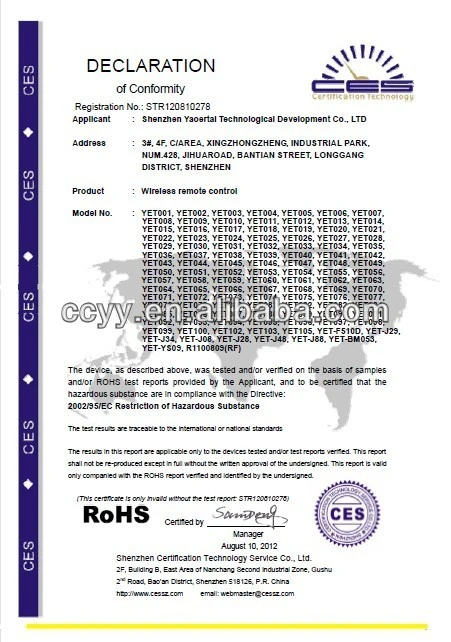

3,Certificate
CE
ROHS
Q:Why choose Chuangyao ?Any adventages?
A:The answer is Yes ,there are 5 advantages.
(1)MUTUAL BENEFIT:We are a factory,our price will be cheaper in the same quality .
(2) CUSTOMIZE: We have strong R&D team, which can make the customized product as your request.
(3) OEM SERVICE:((a) Silk-printing your Logo. (b) Design your color box.
(4) MIX ORDER:We accept mix order, different model and small quantity order.
(5) AFTER SERVICE: 1 Years Guarantee.
Q:could I order one piece for sample to test the quality?
A: Yes, We recommend to check the sample before order. You could order the sample before your order.
Q: May I have your catalogue and price list for trial order in MOQ quantity?
A: All our products were shown on alibaba, please have a detailed looking and choose the interested models in our site.
Q: If I want cheaper quality, can you produce?
A: Yes, just send us your quality details, such as the material, what cheaper parts instead etc, we will do that as your request and calculate the price.
Q: If I order big quantity, what's the good price?
A: Please send the details enquiry to us, such as the Item Number, Quantity for each item, Quality request, Logo, Payment Terms, Transport method, Discharge place etc. We will make the accurate quotation to you as soon as possible.
Thanks for your time of viewing. Please contact me freely to get more information. I am Mike ,skype:alarm.system2.
