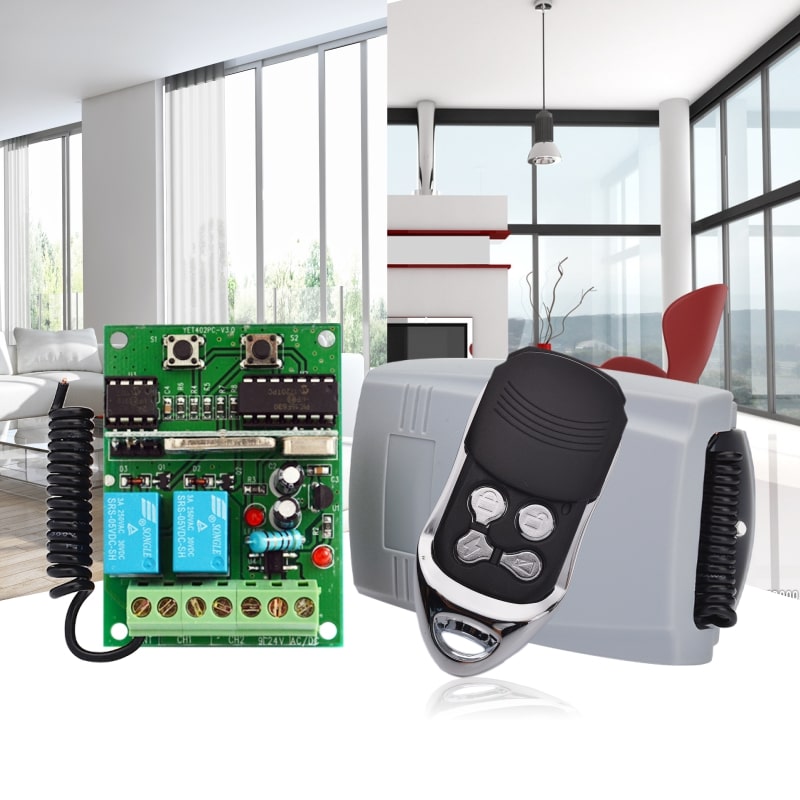

YET402PC-V3.0 Two Channels Wireless Relay Remote Control Switch 315mhz 433mhz Universal Rf Receiver and Transmitter
- Brand Name:YET
- Model Number:YET402PC-V3.0
- Certification:RoHS
- Color:GRAY
- Place of Origin:Guangdong, China
- Material:ABS
- Code:Rolling Code, Learning Code
- Function:Automatic
- transmitter and receiver working volt:DC9V-DC30V
- static working current:<7mA
- operating temperature:-40°C - +80°C
- transmitter receiver working frequency:315mhz/ 433.92mhz(optional)
- transmitter receiver sensitivity:>=-112dBm
- transmitter receiver output current:<=3A
- frequency modulation:AM

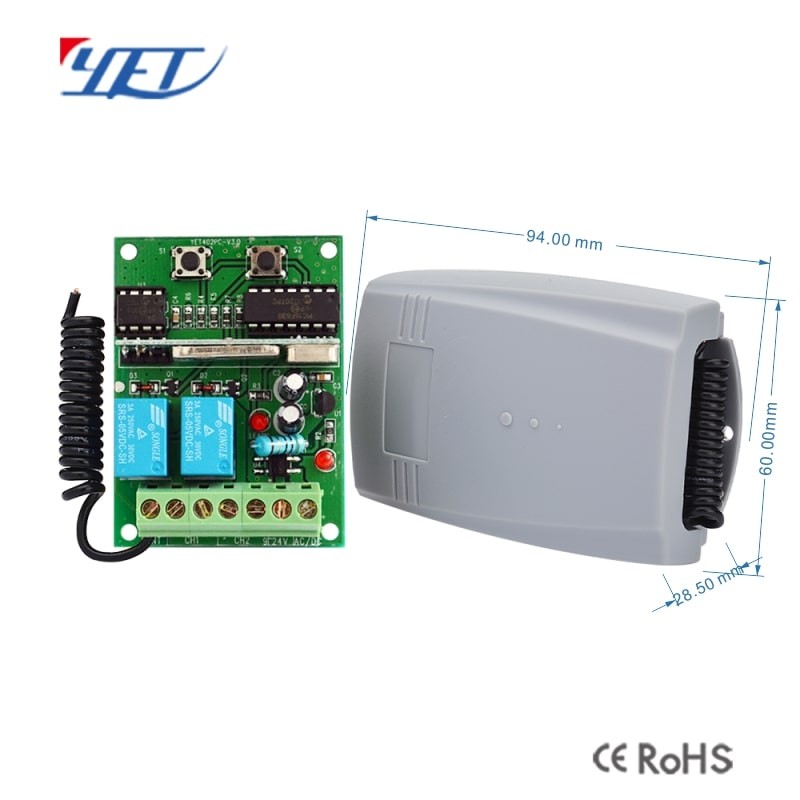

- transmitter receiver Dimension:94 *60 *28.5mm
- transmitter receiverStorage:400pcs remote control
- transmitter receiver certificate:CE& Rohs
smart home universal receiver with 2 channel 433mhz compatible with rolling code remote control YET402PC-V3.0
Tech Data | ||
Operating voltage | DC9-24V | |
Operating frequency | 315,433.92 MHz optional | |
Frequency deviation | ± 0.2MHz | |
Operating temperature | -40 °C ~ +80 °C | |
Receiving sensitivity | ≥-105dBm | |
Modulation | AM | |
Signal output method | Momentary & Latched | |
Encoding chip | program chip , It can use with transmitter which is fixed code(PT2262/PT2264/SC2262) and learning code (eV1527, HS1527, HT6P20B,HT6P20D...) part of Rolling Code | |
PS: if you want one channel momentary and one channel latch, please choose YET402PC-V3.0 | ||

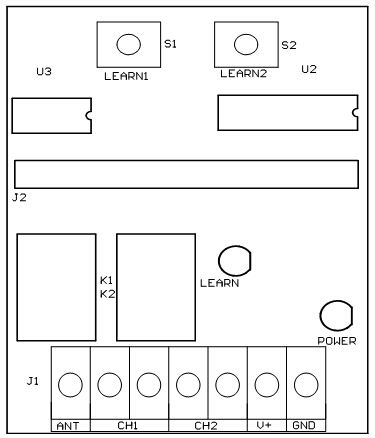

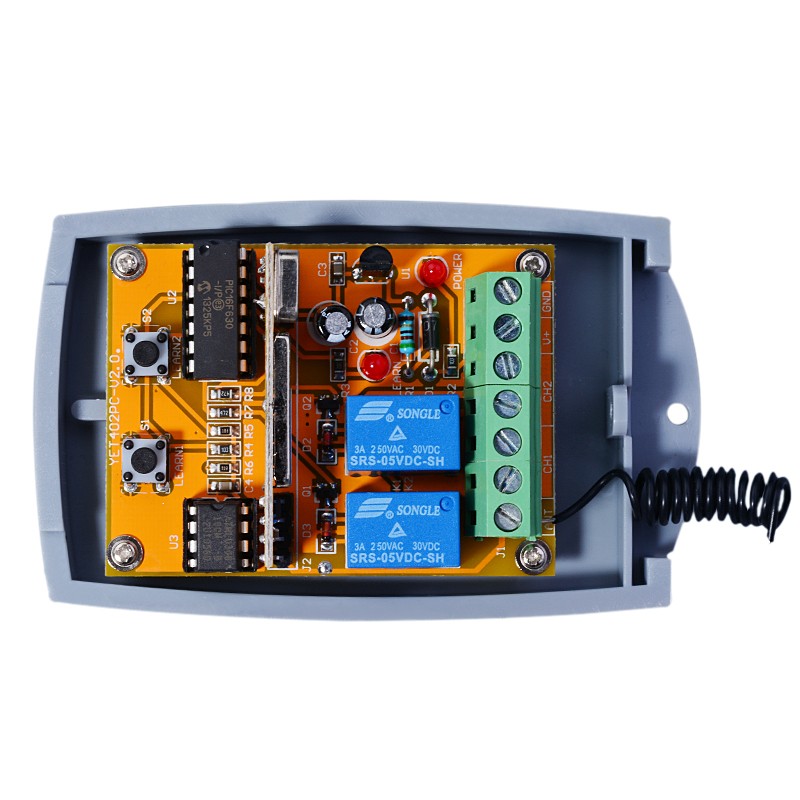

ANT | Receiver antenna |
CH1 | Relay output 1 |
CH2 | Relay output 2 |
V+ | Positive |
GND | Ground/Negtive |
How to Pair with the remote control?
1. Power up the receiver YET402PC-V2.0----then Power LED will trun on
2. Press one button S1 for programing Relay 1 or Button S2 for programming Relay2. ---the Learn LED will light Up
3. Press and hold a button on the remote control until the learn LED flashed 5 times
NOTE: each button of the remote Control can be programming independtently.
How to Reset?
ATTENTION: Clear all the remote control on the receiver means all should reset
Press Button S1 or S2 on the receiver and Hold until the Learn LED lights off. by doing this, all remote control stored in the receiver will be cleared.
YET402PC-V3.0
Momenthary mode
Latch mode

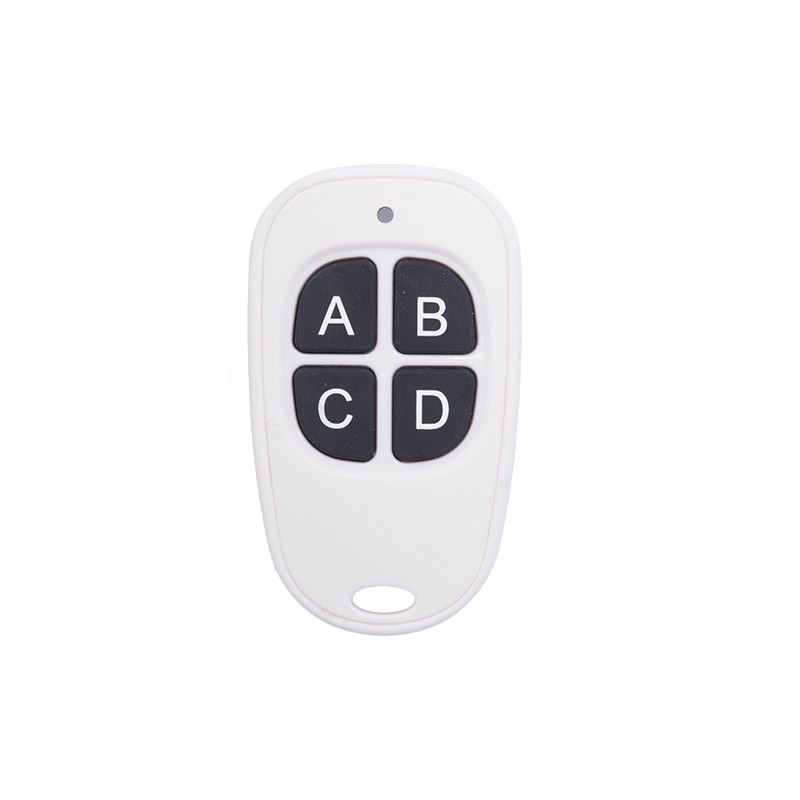

Remote Control YET003

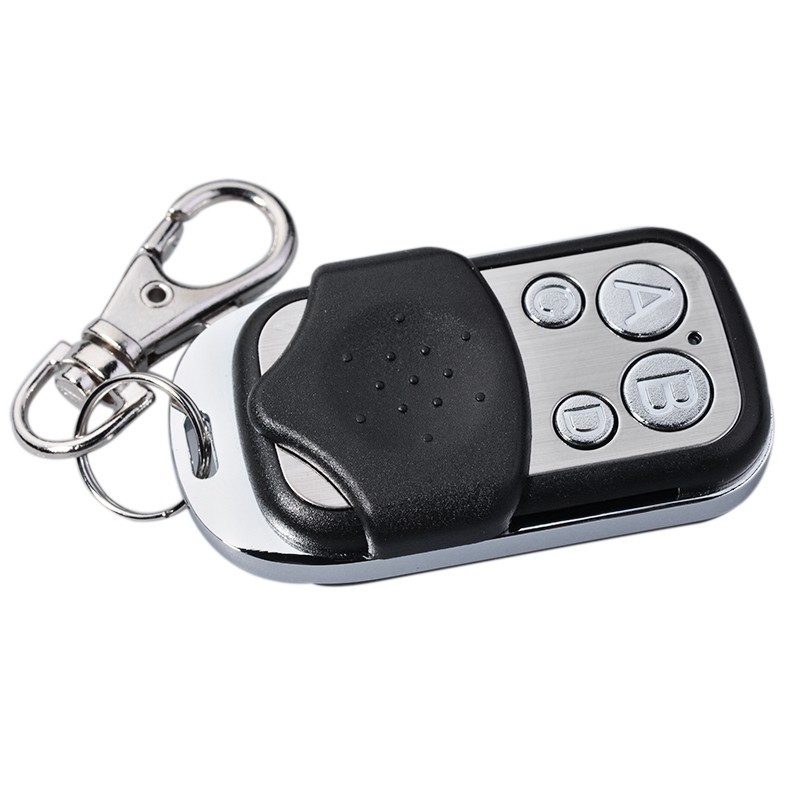

Remote Control YET026

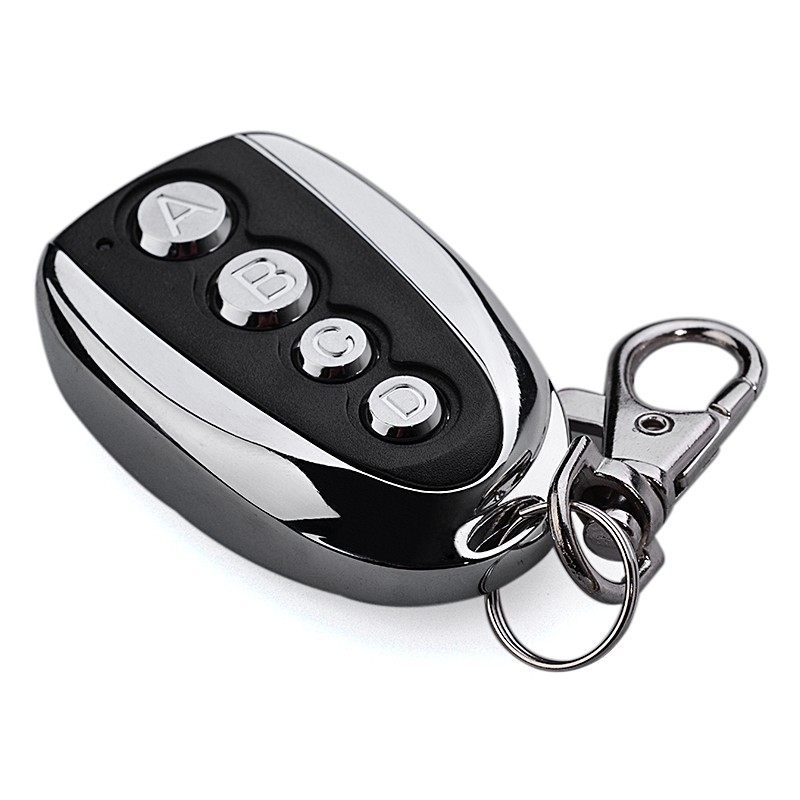

Remote Control YET176
Yes, sample is available
Q2.What should I know before ordering?
Please let me know the frequency (433.92 is the most common frequency), code (fixed code EV1527, rolling code HCS301 or
duplicator). And please also let me know the quantity, our MOQ is 100pcs.
Q3.Are you a manufacturer?
Yes, we have our own factory, production line, SMT&Plug-in,automatically screw driver machine etc and R&D department.
Q4.Can I visit your factory?
Yes,welcome.Our address: 5th and 6th floor block 27,lianchuang Technical zone , Bu Lan road, long gang district, Shenzhen , R.P.
China
Q5.What about your delivery time?
For samples, 3~5 working days, for bulk order, 7~20 working days.
Q6.Do you accept OEM order?
Yes. We customized a lot of items for our clients.
Q7.What kind of payment do you accept?
We accept T/T(Wire transfer),Western Union and PayPal, Credit card.
TT can be 30% prepayment before production, 70% balance payment before shipping.
Q8. Does all of your goods come with remote function?
Yes, our remote cotrol receiver distance is about 50-100 meters.
Q9.Do your products carry warranty?
Yes,12 months or more and permanent service.
