YET402PC WIFI 2019 Shenzhen Factory Electronic RF and Wifi Transmitter and Receiver

• Brand Name:CY
• Model Number:402WFR Version2.0 rf wireless wifi transmitter and receiver
• Certification:ce
• Color:GRAY
• Place of Origin:Guangdong, China
• Material:ABS
• Code:Rolling Code, Fixed Code, Learning Code wifi transmitter and receiver
• Function:external WIFI receiver
• name:2019 Shenzhen Factory Electronic RF and wifi transmitter and receiver
• Operating voltage:9V-30V
• Static operating current:≤6mA
• Receive sensitivity:≥-105dBm
• transmitting frequency:315/433.92/others
• Working temperature:-40°C- +80°C
• Output current:≤10A

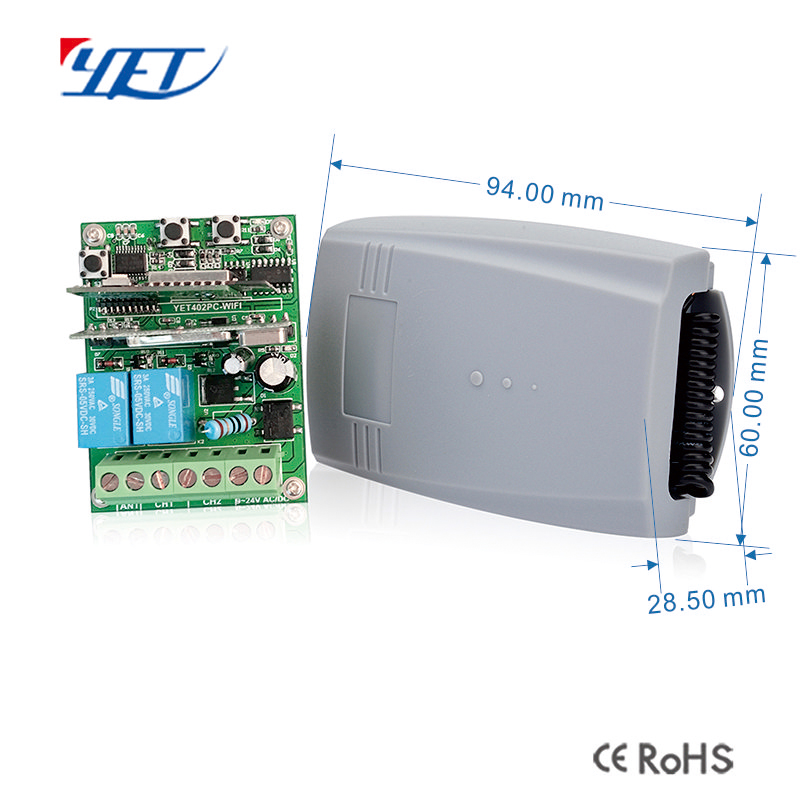

• Size:74.5*4.5*7mm
• Output Voltage:AC and DC optional
• Channel:2/4
• keywords:wifi transmitter and receiver,rf transmitter and receiver,electronic rf wireless transmitter receiver

2022 Shenzhen Factory Electronic RF and wifi transmitter and receiver

wifi transmitter and receiver learning type and can store 400 PCS of differents remote control.wifi transmitter and receiver input voltage adopts 9V-30VDC (can be choose on the board). wifi transmitter and receiver can match with our 1/2/3 buttons of remote control as a complete subassembly to implement the motor F/R (forward or reverse) rotation or switch on/off shift of equipment controlled.

wifi transmitter and receiver is widely used in industrial control, garage door, dumpcart, lift, light control etc.

Can identifyHS1527,PT2262,HCS301,HS2240,etc

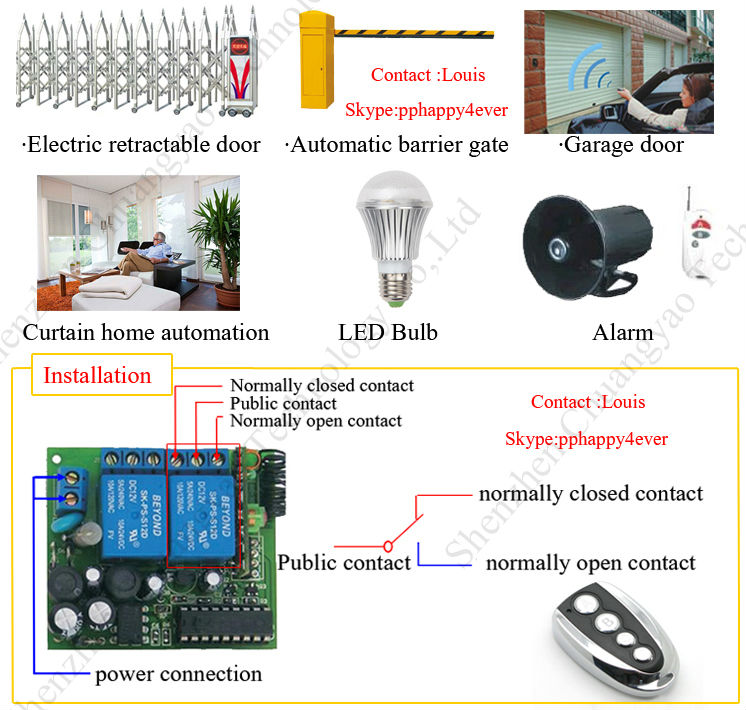

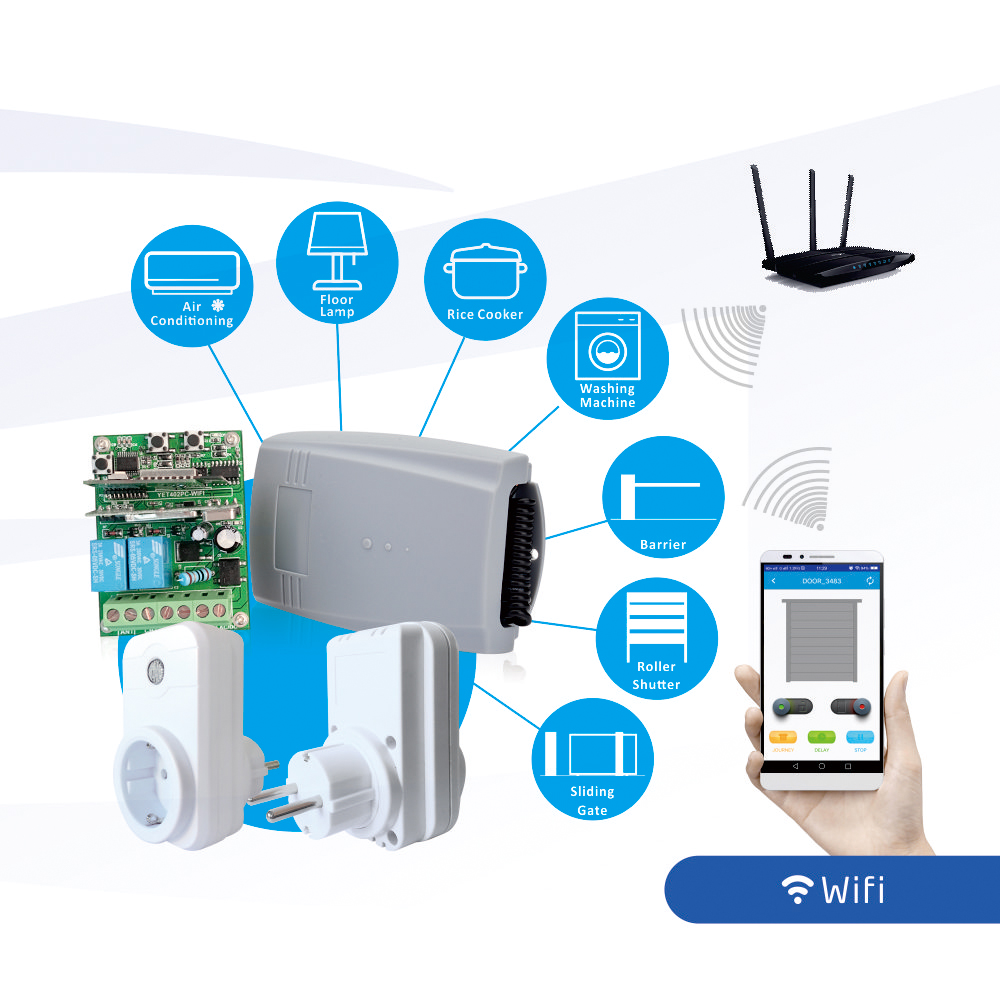

1.Application(wifi transmitter and receiver)

1)garage door

2)automatic door&windows

3)led &light

4)car alarm

5)home alarm

6)roller shutter&curtain

7)parking gate&auto gate

8)industrial control

wifi transmitter and receiver

2. Main techData:wifi transmitter and receiver

I.Overview

402PC-Ver2.0, the two-way wifi transmitter and receiver is designed and manufactured by our company, which output Switching Quantity Signal for 2 relay and control the equipment to realize turn, turn over or switch on/off/change or kinds of special control program requirements. It's mainly used in electric doors, windows, lifting equipment, gateways, lifting devices, industrial control and security industry and other fields.

The wireless receiving controller, with high security, storage capacity, stable performance, low power consumption, easy to use, do without using the traditional jumper or DIP switch code, simply receive and store wireless signal launched by remote controller to achieve matching. If you lose the learned remote control, simply clear/delete the deposited receiver control information so that the lost remote control is prohibited to control the receiver controller. It can be used only on the condition that the owner re-learning the controller

II.Output

A. signal inter-locking ----connect CN2 and disconnect CN3

B. signal non-locking---- disconnect CN2 and connect CN3

C. signal self-locking---- disconnect CN2 and CN3

III.Learning method and steps

1. pressing the learn key on receiver board - lights that enter the learning state,

2. at the same time, press any key on remote control-lights flash to off that have success in learning .

IV.PROGRAMMING:

V.Technical indicators

1. Operating voltage: 9V-30V

2. Static operating current: ≤6mA

3. Working temperature:-40°C- +80°C

4. Receive sensitivity: ≥-105dBm

5. The working frequency: 315MHz, 433MHz

6. Output Voltage: AC and DC optional

7.Keelog rolling code

8.Maximum storage: 400 codes

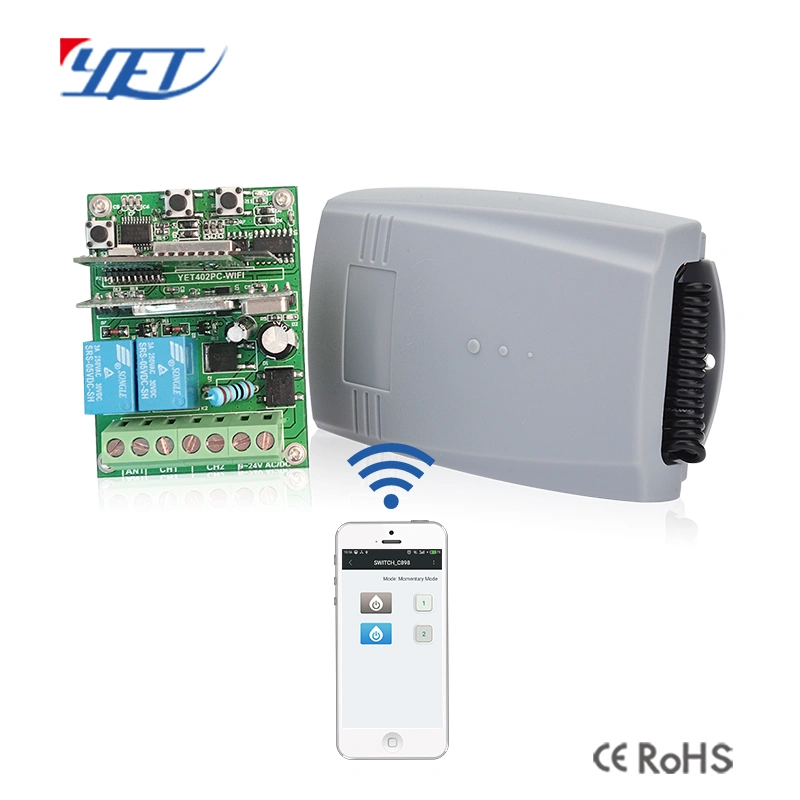

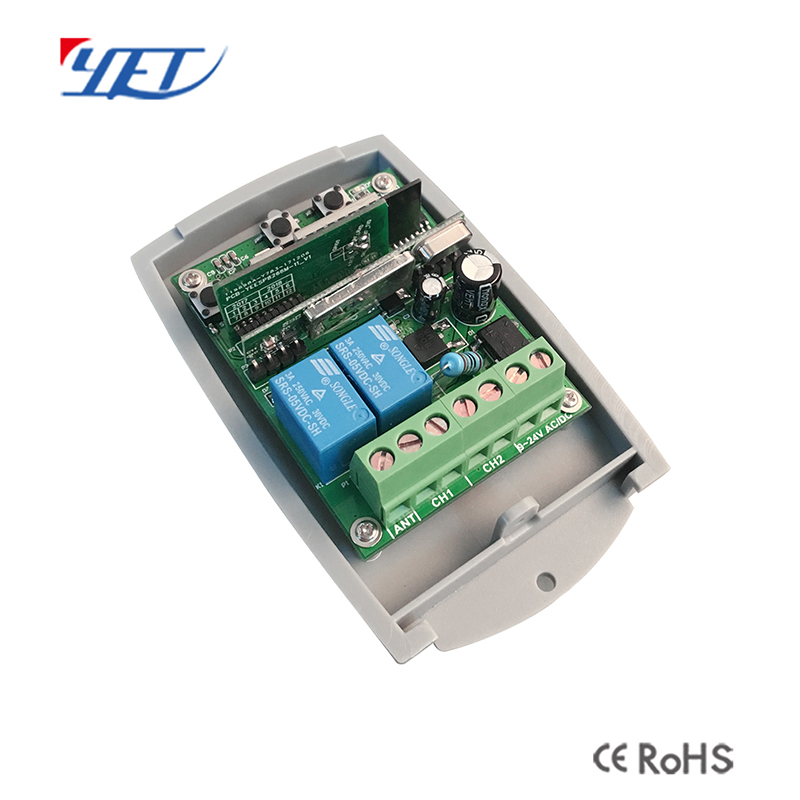

3.Picture

4.For orders

1.T/T payment only 30% deposit 70% balance before shipment
2.Well-trained and experienced staffs to answer all your enquires in fluent English
3.OEM&ODM,any your customized products we can help you to design and put into production
4.Protection of your sales area, ideas of design and all your private information
5.Deliver by air mail or ship for your orders

5.Trade Term:
1.T/T payment only 30% deposit 70% balance before shipment;
2.Sample can be delivered within 3 days;
3.Shipping freight are quoted under your requests;
4.Discount are offered based on order quantity;
5.FOB price are quoted under enquiry.
