wireless rf receiver controller
wireless rf receiver controller
wireless rf receiver controller
Model No: YET866-WIFI

YET866-WIFI 433MHz 4CH relay garage door wireless rf wifi receiver controller

minimum order :
1 piece
Country of Origin :
Shenzhen
Quantity :
Contact Now
  • Brand Name:YET
  • Model Number:YET866-WIFI
  • Use:Universal
  • Place of Origin:Guangdong, China
  • Frequency:315MHz, 433MHZ,
  • Dimension:128*79*31.5mm
  • Voltage:220V
  • Key words:4CH wifi receiver controller
  • Working current:<=10mA
  • Channel:4 channels replay
  • Chip and Operating mode:Learning code,fixed code,rolling code,copy code
  • Working temp:-40-+80°c
  • Memory:30pcs learning or fixed code;6pcs of rolling code
  • Certification:CE,ROHS

YET866-WIFI 433MHz 4CH relay garage door wireless rf wifi receiver controller


Technology parameter



Item : WiFi Cloud Remote Control Garage Door

Input voltage:DC24V

Contact current:<10A

Wireless standard:IEEE802.11b/g/n

Working frequency:2.4G ~2.5G(2400M ~2483.5M)Hz/433/315

Encryption type:WEP/TKIP/AES

Security mechanism:WPA/WPA2

Static current:<100mA

Working environment:Temperature: -40℃ ~ +80℃

Storage environment:Temperature: -20℃ ~+70℃

Capacity:<10

Size:128*79*31.5mm

Product feature:

1.Dual systems for 433M and WIFI

2.Automatic close door function: delayed closing time can be adju sted.

3.Rebound blocked: automatic stop when blocked, and rotation 3S.

4.Automatically measure the stroke : the stroke time is 15 - 255 S.

5.Setting: You can use the remote control or APP to set the stroke , delay time, and progress the remote control .

6.With high security, large memory, stable performance, low power consumption

7.Install easily: Plug and play, use easily, safe and reliable.

8.Item : wifi garage door receiver app controled

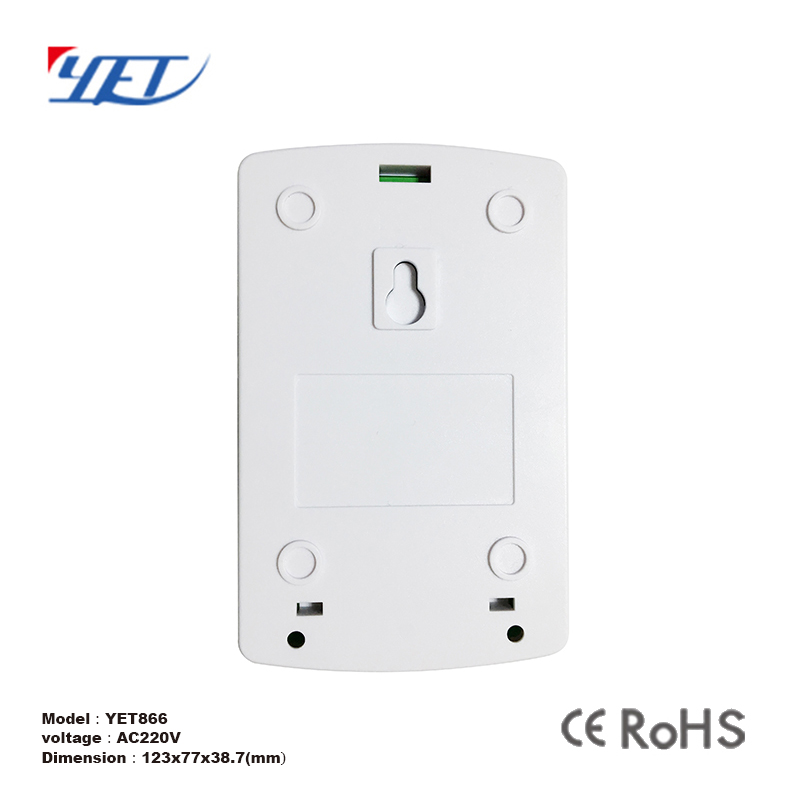

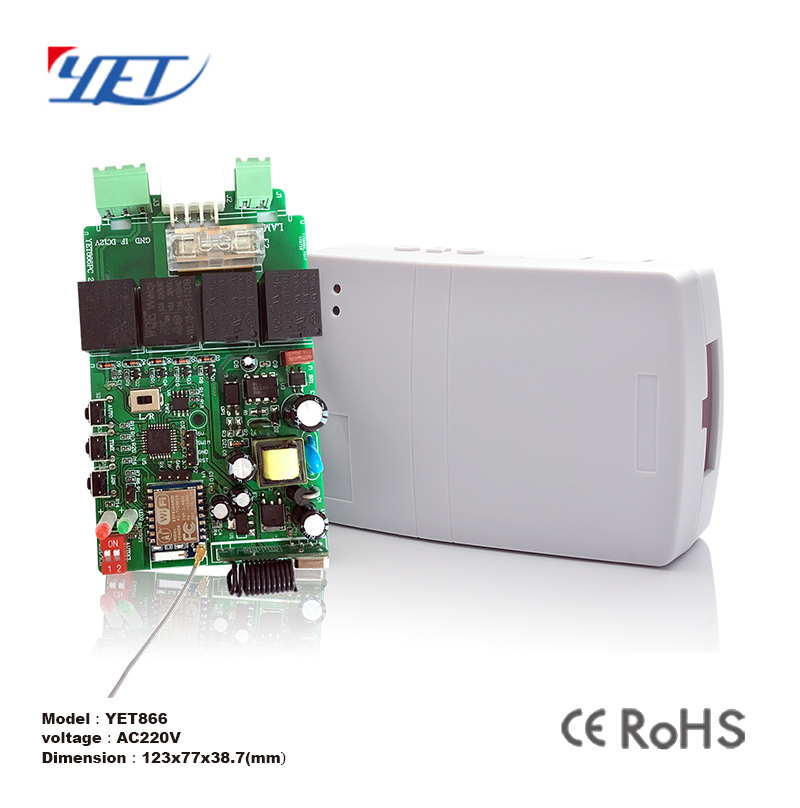

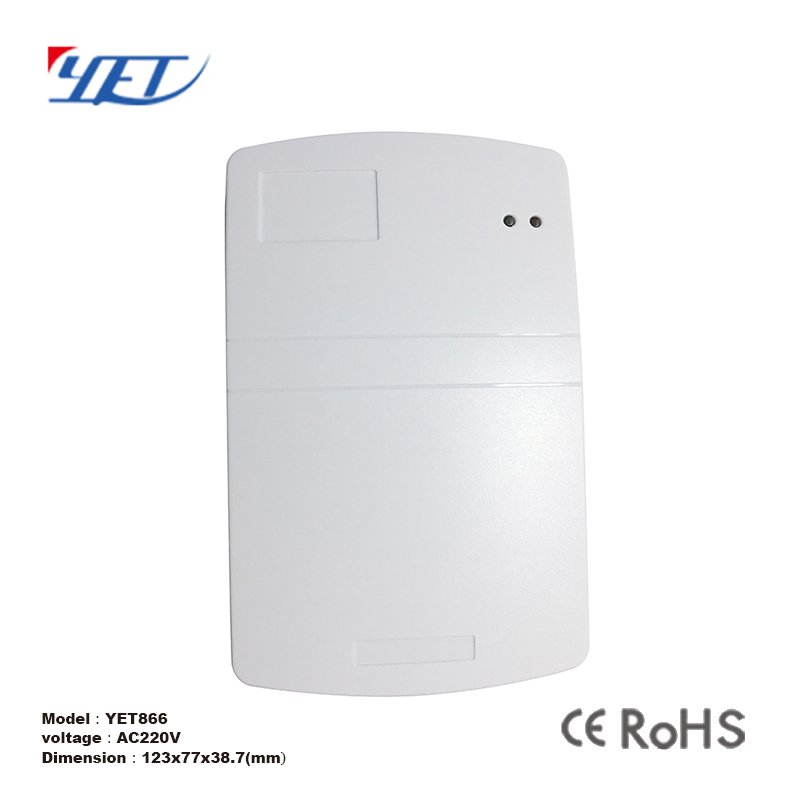

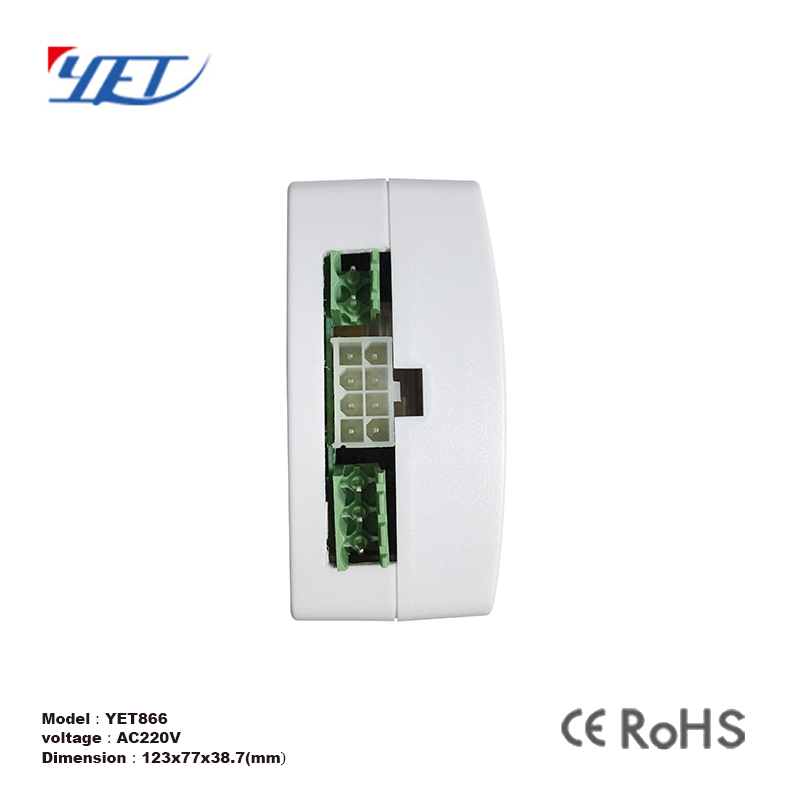

Product image

Usage

It is widely used on Auto remote door switch,Remote door opener,Wireless security alarm,Wireless the doorbell,Wireless Controller,Wireless data communication etc.

Packaging

For order:

1, Accept OEM.

2, Print logo on the case and package

3, Payment Details :30%deposit,70%balance before shipment.Payment accept T/T and western union optional.

4, Minimum Order:100 pcs(accept trial order)

5, Delivery Details:within two weeks.

Our service:

  1. your inquiry related to our products or prices will be replied in 12 hours
  2. well-trained and experienced staffs to answer all your inquires in fluent English
  3. OEM&ODM,any your customized products we can help you to design and put into production
  4. Protection of your sales area, ideas of design and all your private information
  5. Deliver by air mail or ship for your orders

YET866-WIFI 433MHz 4CH relay garage door wireless rf wifi receiver controller
