Normal AC Sliding Gate Control Board Electric Sliding Door Controller

• Brand Name:YET
• Model Number:YET868 Sliding Door Controller
• Use:Sliding Door Controller
• Place of Origin:Guangdong, China
• static operating current::≤6mA
• Working temperature::-40°C- +80°C
• Receive sensitivity::≥-105dBm
• Output Voltage:AC 220V

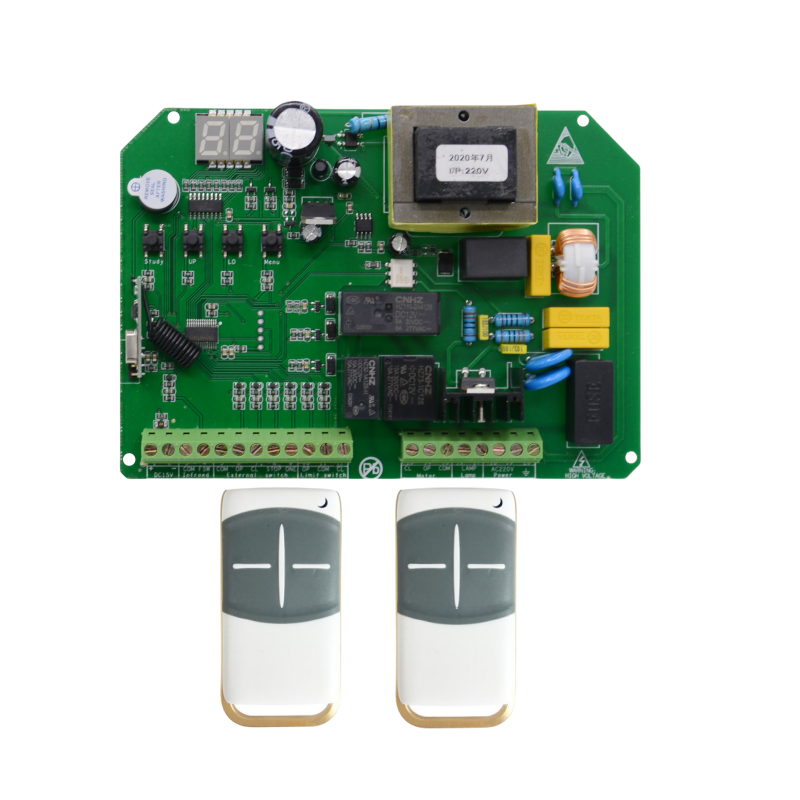

Replacement Circuit Control Board for Sliding Door Controller

1. Features:

1)Automatic closing: adjustable delay time

2)Soft start: running speed adjustable, reduce the impact of start, extend life of equipment

3)Soft stop: stop speed adjustable, to ease the impact when closing

4)Adjust the running speed, to adapt to different loads

5)Door return when meet obstacle: obstacle power adjustable, automatically open when door meet obstacle

6)Can be connected with sensor

7)Automatically memory when manually open close door after powering on, running time from 5s - 120s

Normal AC Sliding Gate Control Board Electric Sliding Door Controller

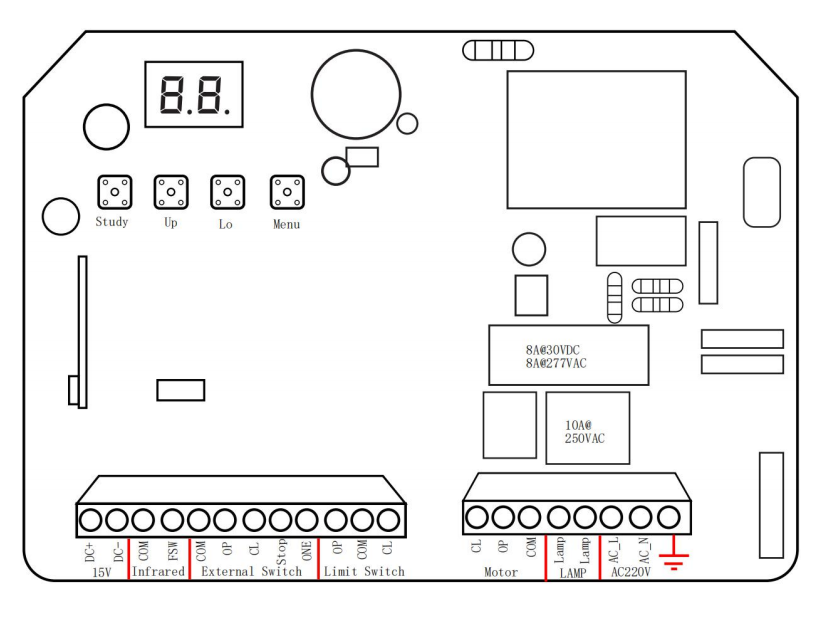

2. Tech data:

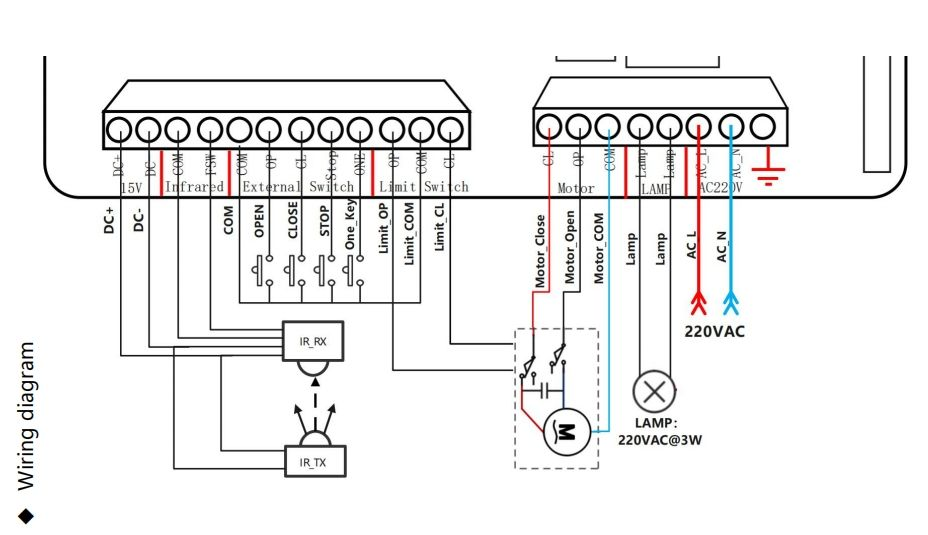

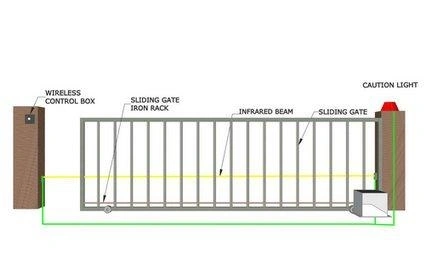

3. Usage

Normal AC Sliding Gate Control Board Electric Sliding Door Controller

4. how to programm?

Add remote control:Press learning button ( 1s ), OPEN, CLOSE, STOP lights go on,

then press any button on remote, you will see lights flash 3s and buzzer ring out, that means

programming successfully.

Delete remote control:Pressing learning button, in 5s OPEN, CLOSE, STOP lights go

on then off, buzzer rings out, then release learning button.
