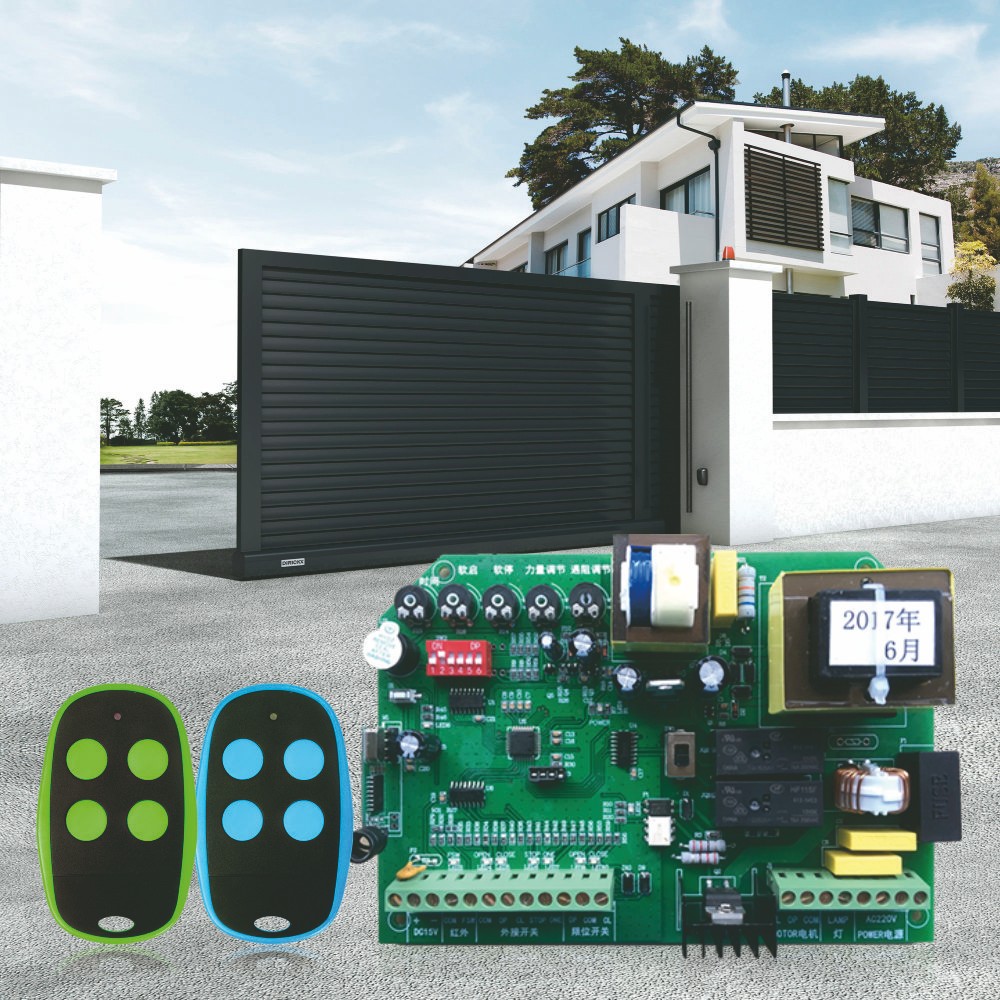

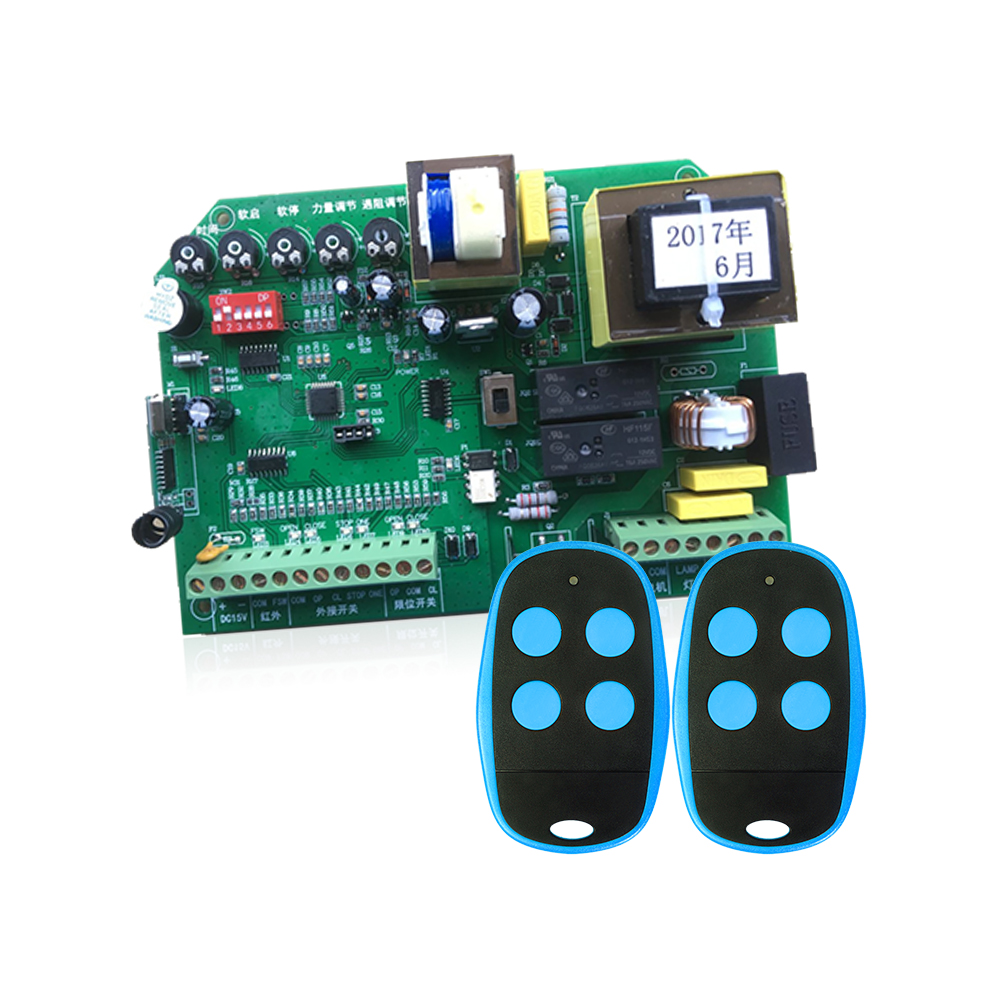

YET868-V2.0 New upgraded version of the electric sliding door dedicated controller

Qualified Universal WIFI 433MHz Automatic Sliding Door Gate Control Board Yet868 WIFI Tubular Motor Controller

Technical Characteristics
Size:157*121*40mm
Input voltage: 220VAC
Working frequency: 433mhz/315mhz(option)
Relay contact current: 8A@277VAC / 8A@30VDC
Control output: Imax=5A@220VAC
Standby Input Power: <2.2W （Standby current：≤10mA@220VAC）
Maximum stroke: Opening/closing door: 99 seconds
Minimum stroke: Opening/closing door: 5 seconds
Receiving sensitivity: 433/315 : -109 dbm
Storage environment:Temperature: -30℃ ～ +80℃ Humidity: 20% ~ 93%
Working environment:Temperature: -20℃ ～ +70℃ Humidity: 20% ~ 93%
Remote control capacity:100 keys (equivalent to 25 4-key remotes)

Operation Method
After connecting the power, the buzzer beeps 2 beeps, and the display turns on the dots and counts between 0-9 at the same time to test whether it is working properly.
After the test is completed, only the point on the second LED display is turned on.
Functional Characteristics
1.High security: Learning code.
2.Automatic close function: Delay time can be adjusted.
3.Soft start: Soft start power can be adjusted, reducing launch impact, extend equipment life.
4.Soft stop: Soft stop power can be adjusted.
5.Adjustable motor power: Adjust running power online to adapt different loads.
6.Rebound when Resistance power appear: Resistance forces can be adjusted. Door will be automatically opened when close meet a resistance power.
7.Safety light: When detecting pedestrians into the security light, automatic door.
8.Automatic learning procedure: Manual opening and closing doors on an automatic learning procedure, procedure time ranges from 5-99 seconds
9.Remote control setting: Combined keys to set ajar/ full open.
