Advanced Control System for Rolling Shutter Doors: YET845-V5.0 Controller and Remote Control Technology

Modern rolling shutter door systems have evolved significantly with the integration of intelligent control technologies. The combination of advanced controllers and wireless remote controls has revolutionized door operation, offering enhanced security, convenience, and energy efficiency.

This article explores the application of the YET845-V5.0 controller system with remote control functionality in commercial and industrial rolling shutter door installations.

1.System Components and Architecture

1.1 Core Components

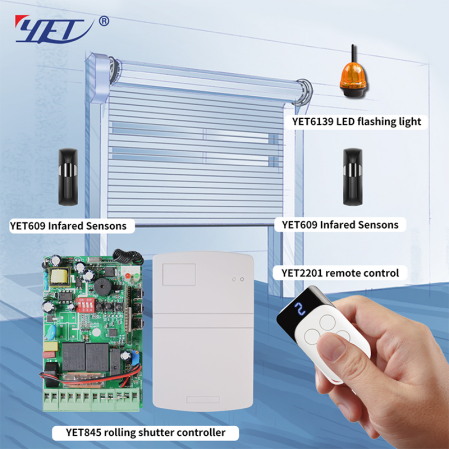

The complete control system consists of:

- Rolling shutter door motor assembly

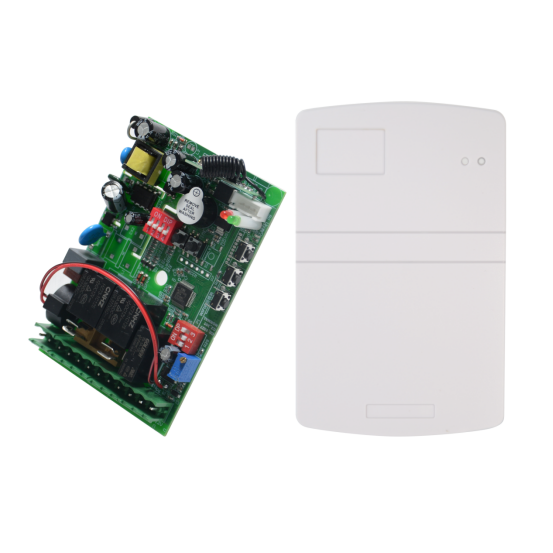

- YET845-V5.0 central control unit

- RF remote control transmitters

- Limit switch mechanism

- Safety sensors and emergency stop circuit

1.2 System Architecture

The YET845-V5.0 controller serves as the processing hub, receiving signals from remote controls and translating them into precise motor commands. The bi-directional communication system operates on industrial-grade 433MHz RF technology, ensuring reliable performance in various environments.

2.Technical Specifications and Features

2.1 Controller Capabilities

- Input voltage: 220V AC ±10%

- Maximum load capacity: 1.5HP

- Operating temperature range: -20°C to 60°C

- IP54 protection rating

- Programmable operation modes (continuous, intermittent, timed)

2.2 Remote Control Features

- Within 100 metres effective range (open area)

- Multi-channel memory function

- Low power consumption design

- Anti-interference frequency hopping technology

3.Installation and Configuration

3.1 Electrical Wiring Diagram

The installation process requires proper connection of:

- Main power supply lines

- Motor output terminals

- Limit switch connections

- Safety sensor inputs

3.2 Programming Procedures

Step-by-step configuration includes:

1. Motor parameter setting

2. Travel limit adjustment

3. Remote control pairing

4. Safety function calibration

5. Operation mode selection

4.Operational Characteristics

4.1 Performance Metrics

- Opening/closing speed: 0.15-0.25m/s (adjustable)

- Positioning accuracy: ±5mm

- Response time: <0.5s

- Standby power consumption: <3W

4.2 Safety Mechanisms

- Overcurrent protection

- Obstacle detection system

- Manual override capability

5.Maintenance and Troubleshooting

5.1 Routine Maintenance Schedule

- Monthly controller inspection

- Quarterly motor performance check

- Biannual limit switch calibration

- Annual system diagnostic

5.2 Common Fault Analysis

- Remote control pairing failures

- Motor overload conditions

- Limit switch misalignment

- Power supply fluctuations

6.Application Scenarios

6.1 Commercial Implementations

- Retail storefront security

- Warehouse loading bay access

- Parking facility barriers

6.2 Industrial Applications

- Factory perimeter security

- Clean room partitions

- Hazardous area containment

7.Comparative Advantages

The YET845-V5.0-based system offers significant improvements over conventional control systems:

- 30% reduction in energy consumption

- 40% faster response time

- Enhanced security features

- Simplified maintenance requirements

- Extended equipment lifespan

8.Future Development Trends

Emerging technologies in rolling shutter door control systems include:

- IoT integration for smart building management

- Biometric authentication compatibility

- Predictive maintenance algorithms

- Solar-powered operation options

Conclusion

YET845-V5.0 controller technology with advanced remote control systems represents a significant advancement in rolling shutter door automation. This solution provides reliable, secure, and efficient operation while meeting the growing demands of modern commercial and industrial applications.

Continued development in this field promises even greater functionality and integration capabilities in future systems.
