Unlock a New Experience in Door Control | The YET845A V5.0 Smart Controller—Making Garage and Shop Doors Worry-Free

  Think of the hassles associated with traditional electric doors: getting out in the rain to manually pull down a rolling shutter, constantly wondering if you closed the garage door properly, or having to turn back to the shop after closing just to double-check that the main entrance is secure. The YET845A V5.0 (RF+WiFi version) smart motor controller completely transforms this experience. Combining security, convenient remote control, and smartphone-based remote management, it is suitable for both home garages and commercial storefronts. Paired with two "learning code" remote controls, it puts total convenience right in your hands.

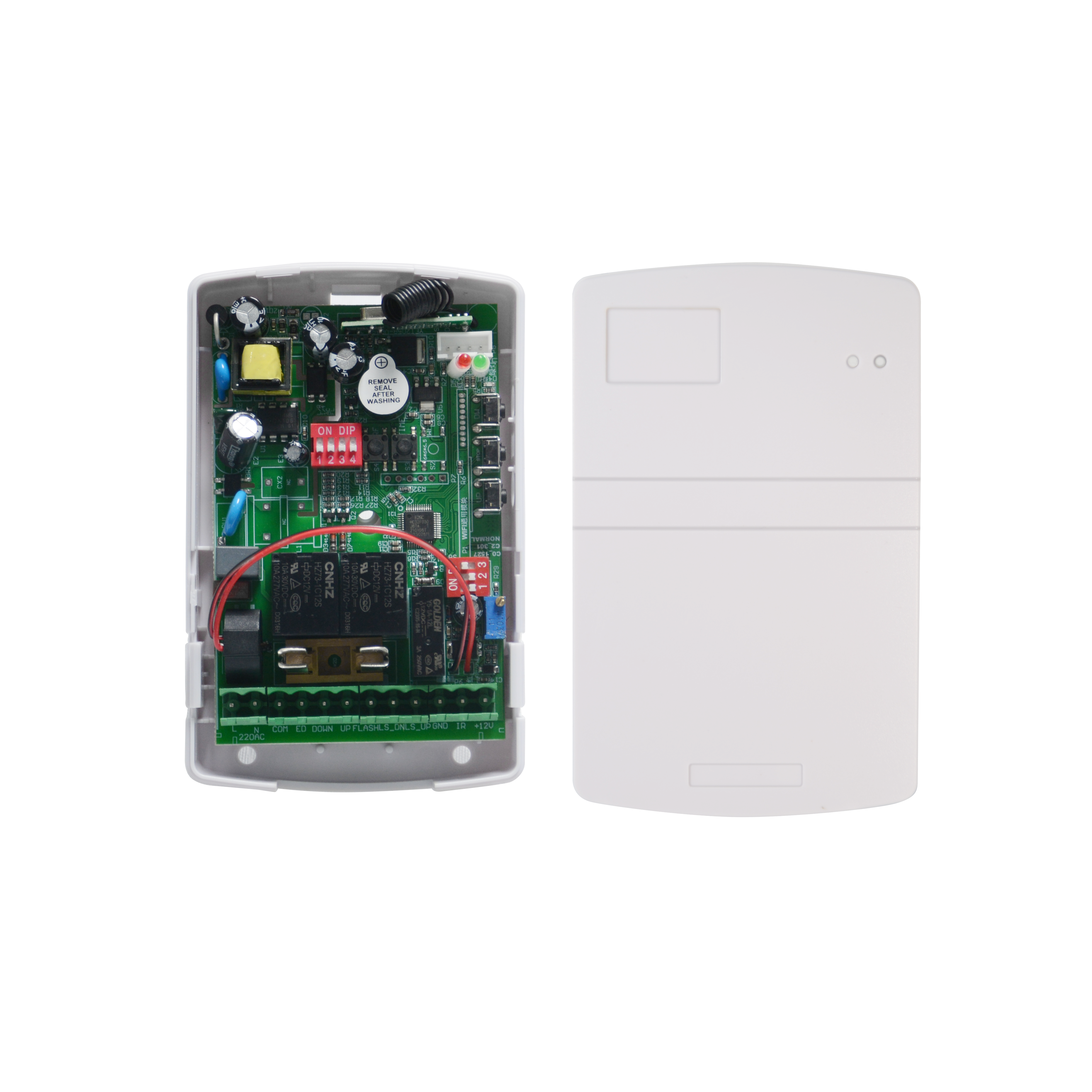

  Many older electric door systems suffer from poor remote compatibility, frequent malfunctions, signal errors, and a lack of safety features—such as failing to reverse upon encountering an obstacle, which poses a risk of collisions. This controller addresses these pain points at the core, acting as the "smart brain" of the electric door system. It integrates multiple protective features, including travel limit settings, delayed automatic closing, obstacle reversal, over-current protection, and limit switch support. It supports a wide voltage input range (100–220V) and operates with low power consumption (standby power under 2.2W), so you don't have to worry about high electricity costs even when powered on continuously. With an operating temperature range of -20°C to +70°C, it performs reliably in everything from freezing northern winters to sweltering summer garages.

  The standard kit includes two "learning code" remote controls, ready for immediate use. The controller supports multiple decoding modes—including 1527 learning code, HCS301 rolling code, and fixed code—with simple switching via DIP switches. Beyond the included remotes, it is compatible with the vast majority of mainstream remote controls on the market and can store up to 400 button signals, making it ideal for households with multiple family members or shops with multiple employees. The remote offers two control modes: a "four-button independent mode" where specific buttons handle opening, closing, stopping, and locking; and a "one-button cycle mode" that cycles through open-pause-close-pause sequences with a single button, making it easy for the elderly to use. A built-in lock function allows users to lock the entire system by long-pressing the lock button; once locked, pressing any button will not trigger the door mechanism, thereby eliminating safety risks caused by accidental activation and providing greater peace of mind for both residential and commercial use.

  It offers more than just wireless remote control; equipped with smart Wi-Fi connectivity and Smart Link network setup technology, it connects in just a few simple steps, allowing you to manage the door via a mobile app from anywhere. If you are at the office and realize you forgot to close the garage door, you can close it with a single tap; if friends or family arrive while you are away, you can open the door remotely to let them in. Business owners can check the open/close status of their shop doors without being tethered by distance. The system operates as a standalone unit or supports networked management of multiple devices, enabling centralized control of multiple electric doors—significantly boosting operational efficiency for supermarkets and warehouses.

  Safety is always the top priority for gate control systems. The controller is equipped with comprehensive safety mechanisms: an obstruction-reversal function ensures the gate automatically retracts upon encountering people, vehicles, or debris during closing, preventing crushing injuries. It supports external upper and lower limit switches for precise stopping at preset positions, avoiding motor or gate damage caused by overtravel. An over-current detection feature allows the protection threshold (0.5–5A) to be set via an adjustable resistor; if the motor overloads, output stops immediately to protect the motor and mainboard, thereby extending the system's lifespan. An optional delayed auto-close function allows the gate to close automatically after a set time—ideal for moving items in and out of garages or shops without needing to manually close the gate. An external warning strobe light provides visual alerts during operation, warning bystanders of gate movement and further minimizing accident risks.

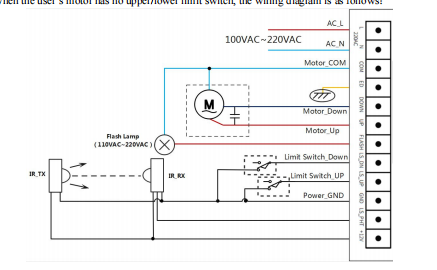

  Installation and commissioning are user-friendly and straightforward, featuring a plug-and-play design and clear wiring layouts that accommodate motors both with and without built-in limit switches. Function configuration is easily managed via DIP switches: toggle gate direction, select single-button or four-button remote modes, enable/disable auto-close, and switch strobe light modes. Travel limit learning is simple, requiring only a few steps for the controller to memorize the full range of gate movement. Remote pairing and factory resets are performed using the RF learning button on the unit itself—no complex tools required—making maintenance and setup efficient.
