YET868-V2.0 Sliding Gate Controller: Next‑Generation Intelligent Control for Universal Access Applications

Abstract

In modern residential, commercial, and industrial access control systems, electric sliding gates have become a mainstream solution for perimeter security and vehicle/pedestrian management due to their space efficiency, stability, and durability. As the core “brain” of sliding gate systems, the performance of the controller directly determines operational safety, convenience, compatibility, and service life. Traditional sliding gate controllers often suffer from narrow parameter adjustment ranges, limited remote storage, weak safety protection, inflexible programming, and poor compatibility with different motors and gate structures. These pain points lead to unstable operation, complex installation, high maintenance costs, and limited application scenarios.

The YET868‑V2.0 sliding gate controller is a newly upgraded intelligent control module designed for high‑performance electric sliding gate systems. It adopts a 220VAC direct power supply, supports dual‑frequency RF reception (433MHz / 315MHz), integrates learning‑code decoding, high‑sensitivity receiving, digital display parameter configuration, and comprehensive safety protection functions. It supports travel setting, auto‑delay closing, obstacle detection and stop, overcurrent detection, limit switch control, soft start/soft stop, and adjustable torque. Compared with standard gate controllers on the market, it provides wider adaptability, higher security, more stable operation, and simpler commissioning. This article systematically analyzes its technical advantages, core functions, application scenarios, operational methods, and market competitiveness to demonstrate its comprehensive value as a next‑generation sliding gate control solution.

1. Technical Background and Market Demands for Sliding Gate Control Systems

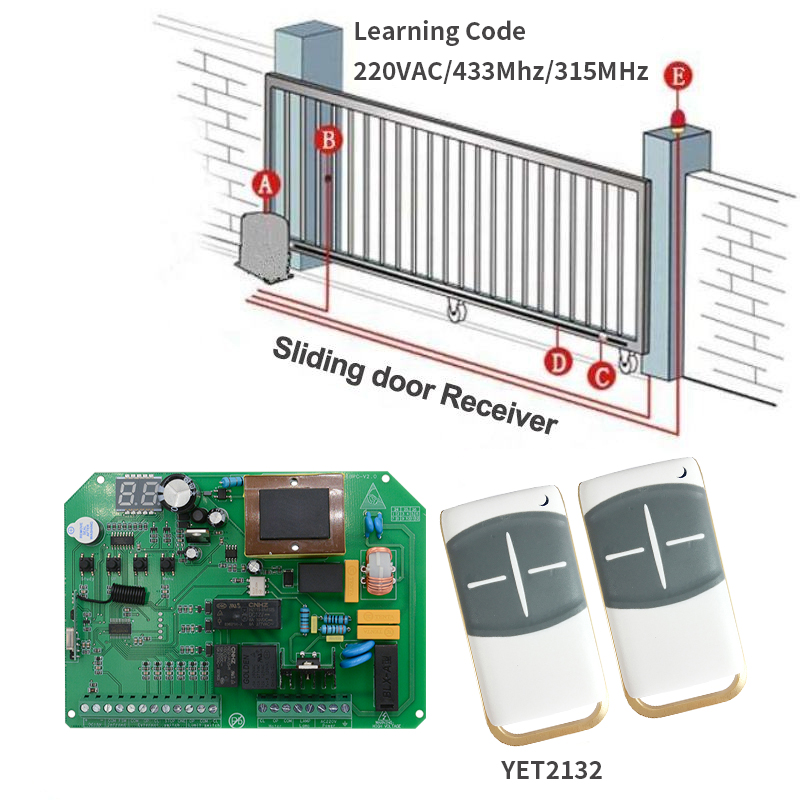

Sliding gate automation systems typically consist of a motor, a controller, limit switches, safety sensors, and remote controls. The controller is responsible for command parsing, motor drive control, logic judgment, safety protection, and remote management. With the popularization of smart access control, users have put forward higher requirements:

- Wide compatibility: able to match different motors, gate weights, and track structures

- High security: anti‑clamping, obstacle reversal, overcurrent/overload protection

- Flexible control: adjustable running time, auto‑close delay, soft start/stop

- Convenient management: large remote capacity, simple pairing, stable RF reception

- Easy installation: visual parameter setting, compact structure, strong scalability

Most mainstream controllers on the market have obvious limitations: fixed travel time with a narrow adjustment range, small remote storage (usually 50 buttons or less), lack of digital display for direct parameter modification, insufficient safety protection, unstable RF reception, and poor compatibility with heavy‑duty or special‑sized gates. These drawbacks increase failure rates, shorten equipment life, and restrict usage scenarios.

Against this background, the YET868‑V2.0 sliding gate controller was developed to solve these pain points through optimized hardware design, intelligent software algorithms, and enhanced functional integration, providing a stable, universal, safe, and easy‑to‑use control solution for sliding gates.

2. Core Technical Parameters and Structural Advantages of YET868‑V2.0

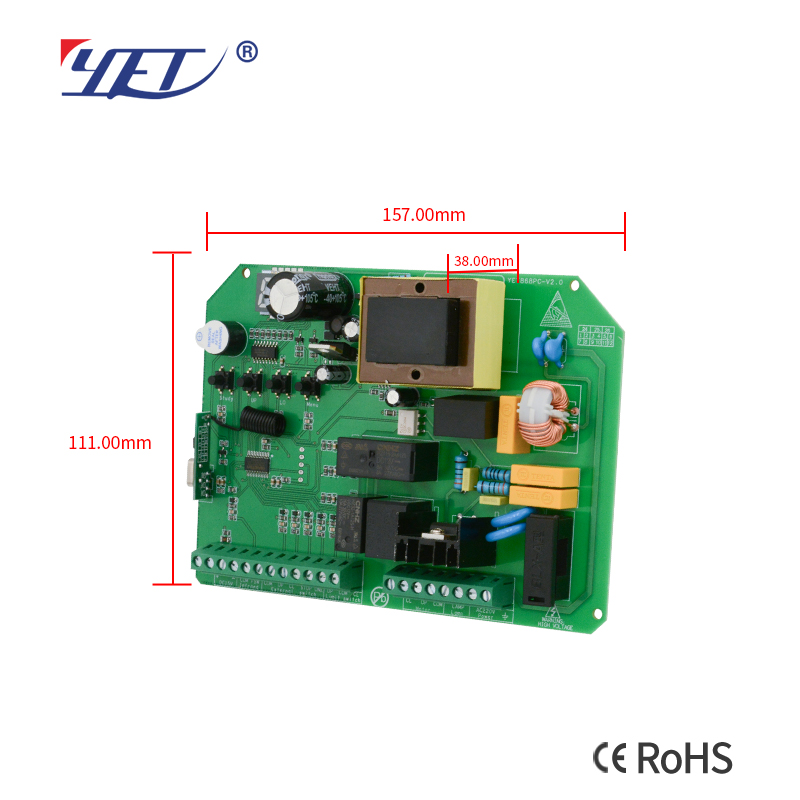

The YET868‑V2.0 adopts a compact, high‑integration structural design with a size of 157×111×38mm, suitable for installation in standard motor boxes or separate control boxes without occupying excessive space. Its key parameters are as follows:

- Working voltage: 220VAC

- Maximum stroke: On/Off 99s

- Minimum stroke: On/Off 5s

- Working frequency: 433MHz or 315MHz

- Receiving sensitivity: ‑109dBm@433MHz / 315MHz

- Remote control capacity: up to 120 buttons

- Decoding method: learning code

- Shell material: high‑strength flame‑retardant plastic

- Display: digital tube for real‑time parameter display

2.1 Wide Voltage and Stable Power Supply

The controller uses direct 220VAC input, matching the power environment of most residential communities, factories, commercial zones, and logistics parks. It eliminates the need for extra transformers, simplifying wiring and reducing failure points. The built‑in power management circuit provides anti‑surge, anti‑interference, and voltage stabilization capabilities, ensuring stable performance even in grid fluctuations.

2.2 Ultra‑Wide Stroke Adjustment Range

The stroke (motor running time) can be adjusted from 5s to 99s, covering almost all sliding gate specifications—from small residential gates (about 5–10s) to large industrial/warehouse gates (up to 99s). Many ordinary controllers only support 10–60s, making them unable to adapt to extra‑long or extra‑heavy gates. The YET868‑V2.0’s wide range ensures smooth matching without modifying the motor or mechanical structure.

2.3 High‑Sensitivity Dual‑Frequency RF Reception

With receiving sensitivity up to ‑109dBm, the controller maintains stable signal reception even in complex environments with interference or long distances. It supports both 433MHz and 315MHz, two commonly used frequencies for gate and garage door controls, making it compatible with most standard remote controls on the market. Users do not need to replace existing remotes; they only need to complete learning pairing, greatly reducing upgrade costs.

2.4 Large Capacity Learning‑Code Decoding

Adopting learning‑code decoding technology, the controller supports up to 120 remote buttons—far exceeding the average 30–80 buttons of ordinary products. This is especially suitable for properties, factories, commercial complexes, and communities that need to manage multiple users. The learning process is simple: press the learning key, activate the remote, and the system automatically stores the code. It supports individual or batch addition/deletion without affecting other recorded remotes.

2.5 Compact and Robust Structure

With dimensions of 157×111×38mm, the module has a high‑strength shell that is resistant to high temperatures, moisture, and mechanical shock. It can be installed inside the motor housing or wall‑mounted nearby, adapting to diverse construction environments. The interface layout is clear, with terminals for motor, limit switch, power, safety sensor, and external control, making wiring intuitive and reducing installation errors.

3. Core Intelligent Functions and Safety Features

The YET868‑V2.0 integrates multiple practical and safety functions to achieve stable, safe, and user‑friendly gate operation.

3.1 Travel Setting and Precise Position Control

Users can set the opening/closing stroke time via the digital display, allowing precise control of gate fully open/fully closed positions. Combined with limit switches, it forms dual‑position protection, avoiding over‑travel that could damage the motor or gate structure. The digital display shows real‑time parameters, enabling intuitive and quick adjustment without professional tools.

3.2 Auto Delay Closing Function

To enhance security and convenience, the controller supports auto‑delay closing after the gate opens. The delay duration can be set via the digital display according to user needs. After a vehicle or pedestrian passes, the gate automatically closes without manual operation, preventing unauthorized entry. This is highly valuable in residential areas, office parks, and parking lots.

3.3 Obstacle Stop and Reversal Protection

During opening or closing, once the system detects an obstacle (via current detection or external safety sensors), the gate immediately stops or reverses to avoid injury or equipment damage. This function is critical for places with frequent pedestrian access, such as residential communities, kindergartens, factories, and shopping malls.

3.4 Overcurrent Detection and Motor Protection

The built‑in overcurrent detection monitors the motor load in real time. When abnormal current (stall, overload, mechanical jam) occurs, the system quickly cuts off the drive output to protect the motor from burnout. This greatly improves system stability and service life while reducing maintenance costs.

3.5 Limit Switch Interface and Dual Protection

The controller supports standard limit switch access, providing mechanical position detection together with electronic travel time control. This dual‑position protection mechanism effectively prevents over‑run and ensures the gate stops accurately at the set positions.

3.6 Soft Start and Soft Stop Control

To avoid mechanical shock and noise, the YET868‑V2.0 uses soft start/soft stop technology. The gate accelerates gently when starting and decelerates smoothly before stopping, reducing impact on the gearbox, track, and gate body. This extends mechanical life and improves user experience.

3.7 Adjustable Torque Output

Torque can be adjusted via the digital display to match gates of different weights and materials. Light gates use low torque for quiet, energy‑saving operation; heavy industrial gates use high torque for reliable movement. This adaptive function makes the controller compatible with almost all sliding gate types.

3.8 Digital Display Parameter Configuration

All key parameters—stroke time, auto‑close delay, torque, sensitivity—are set via the digital display and buttons. The intuitive interface allows installers or users to complete configuration quickly without relying on a computer or special software, greatly improving on‑site efficiency.

4. Application Scenarios: Full Coverage from Residential to Industrial

Thanks to its high compatibility, safety, and stability, the YET868‑V2.0 can be widely used in many fields.

4.1 Residential Communities and Villas

For household sliding gates, the controller provides convenient remote control, auto‑close, and obstacle protection, ensuring family safety. The simple pairing allows homeowners to add multiple remotes for family members. The compact size fits standard gate motors, making installation and replacement easy.

4.2 Commercial Complexes and Office Parks

In commercial areas with high traffic, the 120‑button remote capacity supports multi‑user management. Auto‑delay closing and safety protection improve access efficiency while reducing security risks. High‑sensitivity reception ensures stable operation even in complex electromagnetic environments.

4.3 Industrial Plants and Logistics Warehouses

Industrial gates are often large, heavy, and frequently used. The 5–99s stroke adjustment and adjustable torque match heavy‑duty gates. Overcurrent and obstacle protection reduce downtime caused by jams or overloads. The stable 220VAC design adapts to harsh factory conditions.

4.4 Parking Lots and Toll Stations

For vehicle access control, auto‑close and fast response improve traffic efficiency. The dual‑frequency design supports various standard remotes and access control systems, facilitating unified management. High receiving sensitivity ensures stable operation outdoors.

4.5 Public Facilities and Communities

Schools, hospitals, stadiums, and government facilities require safe and reliable access control. The multiple protection functions prevent accidents and meet public safety requirements. The large remote capacity supports management by multiple departments.

5. Simple Operation and Installation Process

Despite its rich functions, the YET868‑V2.0 is designed for ease of use, with a simplified process that does not require professional skills.

Basic Installation Steps

1. Connect 220VAC power to the controller’s power terminal.

2. Connect the motor wires to the motor output terminal.

3. Install and connect limit switches at the fully open and fully closed positions.

4. Connect safety sensors (infrared, etc.) if used.

5. Fix the controller in a well‑ventilated, waterproof position.

6. Power on and set stroke time, auto‑close delay, and torque via the digital display.

Remote Learning Pairing Steps

1. Press the learning button on the controller; the indicator enters learning mode.

2. Press any button on the remote to be matched.

3. The indicator confirms successful learning.

4. Repeat for other remotes; up to 120 buttons can be stored.

5. To clear codes, long‑press the learning button until the indicator flashes, then release.

Daily Operation

- Press the remote button: gate opens/closes automatically.

- When fully open, auto‑close timer starts; gate closes after delay.

- If an obstacle is detected, the gate stops/reverses immediately.

- Parameters can be re‑adjusted via the digital display at any time.

The whole process is simple and fast, greatly reducing installation and commissioning time compared with traditional controllers that need complicated wiring or computer setup.

6. Comparative Analysis: YET868‑V2.0 vs. Market Standard Sliding Gate Controllers

To highlight its advantages, we compare the YET868‑V2.0 with typical mainstream controllers in multiple dimensions:

| Comparison Item | Standard Market Controllers | YET868‑V2.0 Controller | Core Advantage |

| Working Voltage | Mostly 110VAC or requires transformer | 220VAC direct input | No transformer needed, simpler wiring |

| Stroke Adjustment | Narrow range (approx. 10–60s) | Ultra‑wide 5–99s | Fits all gate sizes |

| Receiving Sensitivity | Mostly around ‑95 to ‑105dBm | Up to ‑109dBm | Stronger anti‑interference, longer range |

| Remote Capacity | Usually 30–80 buttons | Up to 120 buttons | Supports large‑scale user management |

| Decoding Method | Partial fixed code / single frequency | Learning code + dual‑frequency | Higher security, wider compatibility |

| Safety Functions | Basic limit, partial anti‑clamp | Obstacle stop, overcurrent, soft start/stop, adjustable torque | Comprehensive protection |

| Parameter Setting | Potentiometer / no display | Digital display visual adjustment | Intuitive, accurate, efficient |

| Size | Larger, poor integration | Compact 157×111×38mm | Easy installation in limited space |

| Motor Adaptability | Limited types / weight range | High torque adjustable, wide compatibility | Matches light to heavy‑duty gates |

As shown, the YET868‑V2.0 outperforms most competitors in stroke adjustment, receiving sensitivity, remote capacity, safety functions, and ease of use. It solves many pain points of traditional controllers and provides a more reliable, flexible, and cost‑effective solution.

7. Value Summary and Market Outlook

The YET868‑V2.0 sliding gate controller represents a new generation of intelligent access control solutions with the following core values:

- High compatibility: adapts to 220VAC, dual‑frequency RF, 5–99s stroke, and various motors/gates

- Comprehensive safety: obstacle detection, overcurrent protection, soft start/stop, dual limit protection

- Powerful management: 120‑button learning capacity, digital parameter configuration

- Easy installation: clear wiring, simple pairing, short commissioning time

- Wide application: residential, commercial, industrial, public facilities

With the continuous development of intelligent access control systems, demand for stable, safe, and easy‑to‑use sliding gate controllers will keep growing. The YET868‑V2.0’s advanced design, reliable performance, and cost efficiency give it strong market competitiveness. It not only improves user experience and safety but also reduces installation and maintenance costs for installers and engineers.

In the future, as access control systems become more intelligent and interconnected, this controller can serve as a stable core module for integrated access solutions. Whether for new projects or retrofitting old systems, it provides reliable, future‑proof control support.

Conclusion

The YET868‑V2.0 sliding gate controller, with its high performance, comprehensive functions, user‑friendly design, and wide compatibility, effectively solves the shortcomings of traditional products. It meets the demands of various scenarios for safety, convenience, stability, and scalability. From residential villas to industrial factories, from small community gates to large commercial access points, it provides reliable intelligent control. As a next‑generation upgrade solution, it will help improve the safety, efficiency, and user experience of access control systems and become a preferred choice in the sliding gate controller market.
