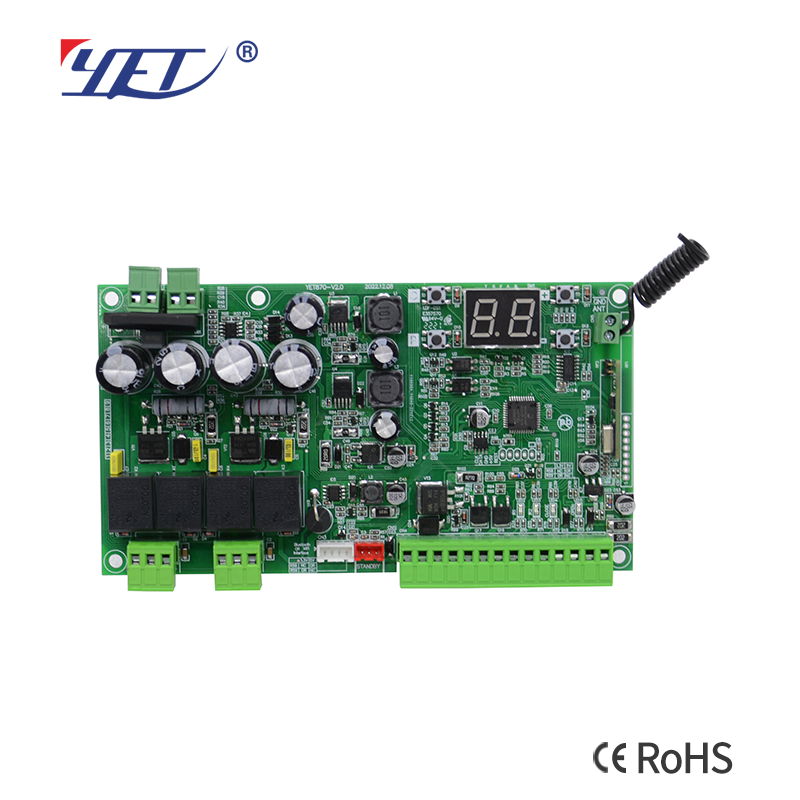

YET870-V2.0 Dual-Motor Door Controller – Intelligent Control for Rocker & Buried Door Operators

Product Overview

The YET870-V2.0 is a professional-grade dual-motor door controller developed by Yaoertai Technological Development Limited for rocker door openers and buried door openers. With comprehensive interfaces, flexible parameter configuration, and a digital tube display for easy on-site setup, this controller delivers reliable, intelligent operation for a wide range of automatic door applications.

Our company specializes in the R&D, production, and sales of remote control and receiver solutions. All our products are CE and RoHS certified, ensuring quality and compliance for global markets.

Product Application

The YET870-V2.0 is primarily designed for:

-Rocker door openers (swing gate operators for villa driveways, garden entrances, and pedestrian access)

- Buried door openers (underground-mounted operators for heavy sliding or swing gates in commercial and industrial settings)

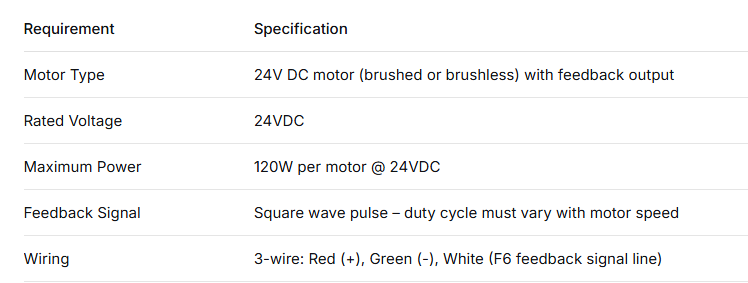

Motor Requirements – Feedback Signal Essential

To ensure precise position control and reliable operation, the YET870-V2.0 requires 24V DC motors with feedback signal output. Please verify the following specifications before installation:

Key Product Features

Digital tube display  – intuitive parameter configuration and status indication

Dual 24V DC motor interfaces – independent control for two doors

External manual switch interface – convenient local operation

Two infrared (IR) sensor inputs – safety obstruction detection

Electromagnetic lock interface – supports 12V or 24V locks

Alarm light interface – 24VDC output for visual alerts

Backup battery input – 24VDC for uninterrupted operation

Remote control capacity – stores up to 100 buttons

Receiving distance – ≥50 meters (open area)

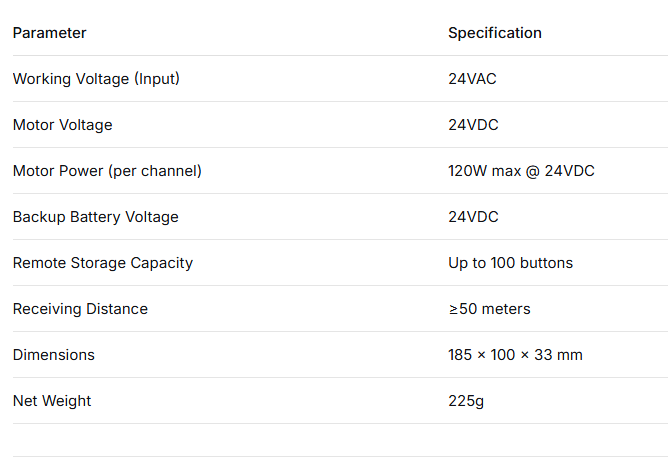

Technical Specifications

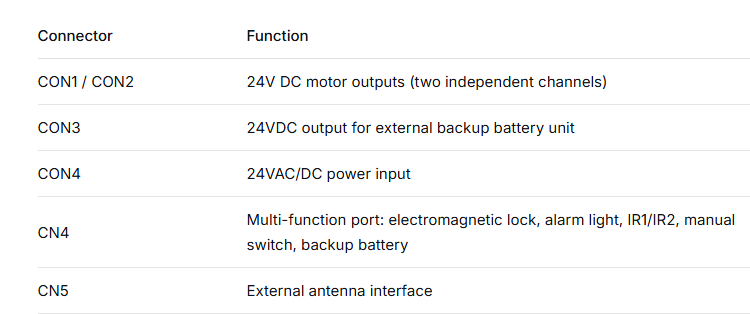

Interface Overview

Control Panel Buttons:

- S1 (C): Learn / Clear code

- S2 (P) : Function selection / Menu entry

- S3 (+) : Menu increment

- S4 (-) : Menu decrement

Safety & Protection Features

| Display Code | Meaning |

| **F** | Motor overcurrent / stall protection |

| **E1** | IR1 infrared obstruction detected |

| **E2** | IR2 infrared obstruction detected |

| **E4** | Motor current fault protection |

 Customer Feedback

""The YET870-V2.0 has been our go-to controller for rocker door installations. The travel learning is accurate, and the parameter adjustments allow us to fine-tune for different door weights. Reliable performance and solid build quality – our clients are very satisfied."
– Thomas, Gate Installer, Australia

"We integrate this controller into our buried door systems. The feedback signal requirement ensures precise positioning, and the IR safety features give our customers peace of mind. Product quality is excellent and consistent."
– Elena, Systems Integrator, Spain

 Package Contents

- YET870-V2.0 Controller × 1 (without housing, without transformer)

- Terminal plug set × 1

- Instruction manual × 1

Why Choose Hansi?

- Professional R&D – Specialized in remote control and receiver technology

- Quality Assurance – CE and ROHS certified

- Global Reach – Trusted by distributors and installers worldwide

- Reliable Support – Technical assistance and documentation available

---

For technical inquiries, samples, or bulk orders, please contact our sales team. We look forward to cooperating with you.
