wireless RF automatic gate sensor photocell switch
- Model Number:YET606 Gate photocell
- Place of Origin:Guangdong, China
- Brand Name:YET Automatic photocell sensor
- Usage:Position Sensor
- Theory:Optical sensor
- Output:Digital Sensor
- Product name:wireless RF automatic gate sensor photocell switch
- Power supply:DC/AC 12 to 24V
- Size:49.2 x 76 x 21.6mm
- Working current:40mA
- Relay Output:1A max 36v
- Range:15m
- Current:Rx15mA-Tx30mA
- Wave length:940nm
- Temperature range:-25℃~55℃
Automatic Photocell Sensor/Gate Photocell/Safety Beams for Automatic Doors YET606
Photocell sensor for automatic door and gate
1.Indoor 20m, Outdoor 10m
2.12-24 VDC/AC
3.waterproof

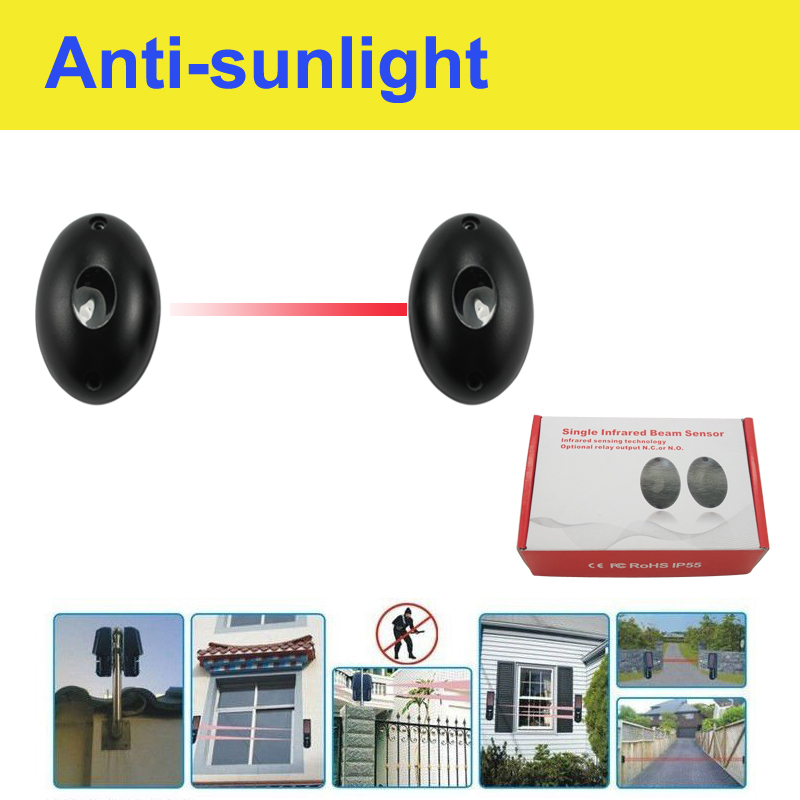

4.Anti-sunlight
Infrared Frequancy : 1.92khz
Power supply : 12 to 24 VDC /AC
Wave length :940nm
Input : r*15ma - t*30ma
operating temperature : -20 degrees to 50degrees
Relay output : 1 a max *36 v
Range : range can be reduced to 30% in bad weather conditions : for rain ,dust ,etc

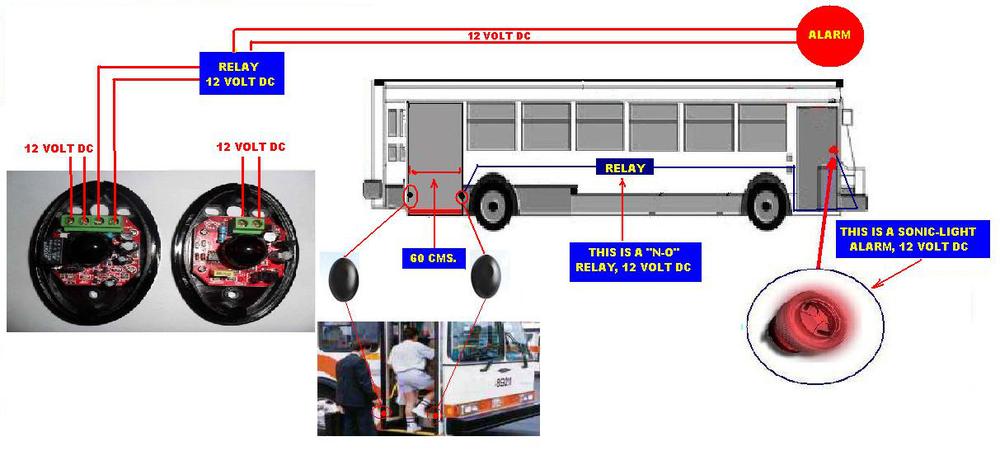

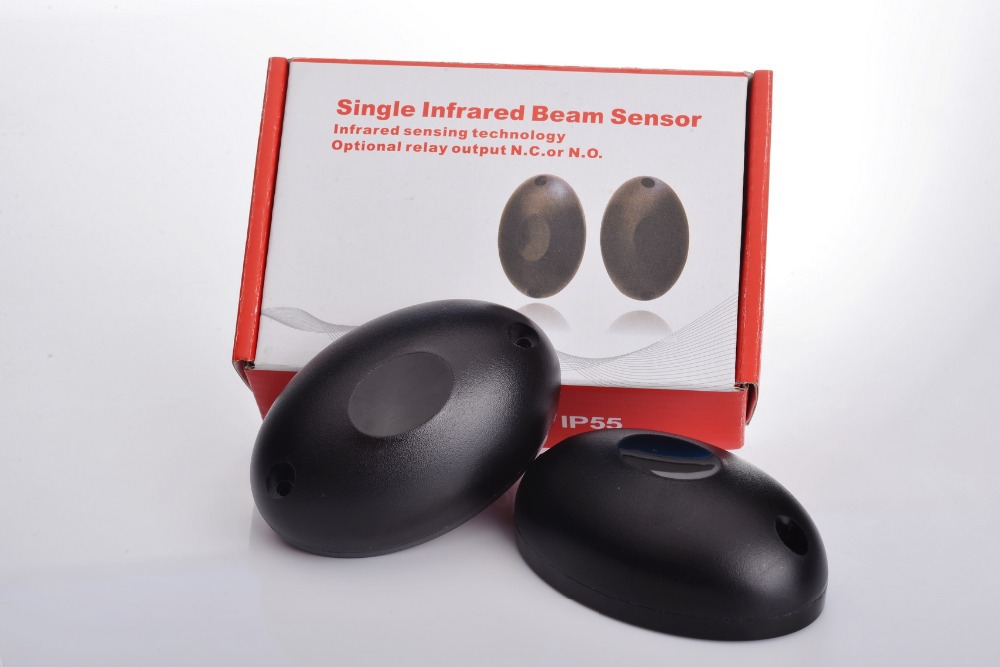

Single beam photocell sensor/single beam detector is used for automatic slide door, coil door , garage door windows etc.
Consists of a transmitter and a receiver, and the integrated amplifier can produce infrared beam.
Narrow infrared beam (I or II) can avoid interruption by external light.
Even installed at low height(20-40cm from the floor), the detecting distance can also be guaranteed(5-15meters).
The beam produced by MICROCELL provides a self-detecting function for the sliding doors. Once the self-detecting beam is interrupted, the door will stop closing and reverse rapidly to the utmost width. The door will open until the detecting beam is resumed. When the door completely closes, the detecting beam becomes invalid.

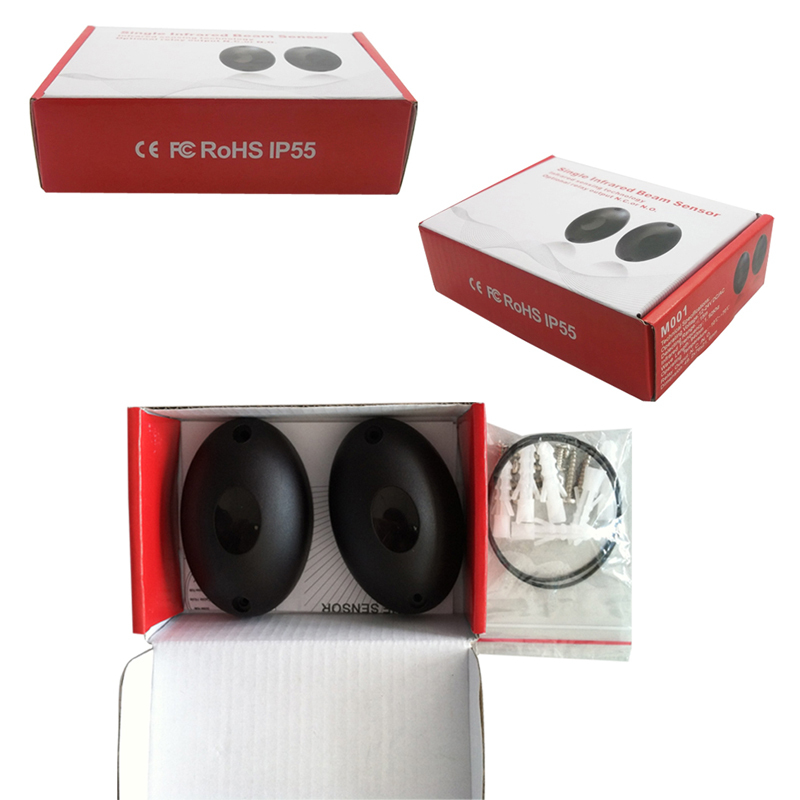

11.18KG, 100pcs/carton, carton dimension 46.7*37.1*24.8cm
1.your inquiry related to our products or prices will be replied in 12 hours
2.well-trained and experienced staffs to answer all your enquires in fluent English
3.OEM&ODM,any your customized products we can help you to design and put into production
4.Protection of your sales area, ideas of design and all your private information
5.Deliver by air mail or ship for your orders
