YET618 DC12V Customized Logo Battery-Operated Photocell Infrared Beam Sensor Long Range Stable Detector Under Sunshine For Barriers
618IR-TX
618IR-RX
Lifting doors, revolving doors, sliding doors, fence security protection, window and balcony security, warehouse security, parking lots and other outdoor security places.
Product Features
Input Voltage: Transmitter: 2× AA batteries (2×1.5V) or AC/DC 12–24V Receiver: AC/DC12–24V |
Operating Current: Transmitter: ≤2mA (external power) or ≤80µA (battery) approximately 14 months @800mAh Receiver: ≤25mA @12VDC |
Sensing Distance: 1m – 30m |
Wavelength: 940nm |
Rotation Angle: can be rotated from +90°~0°~-90°(front face is defined as 0°) |
Output Mode: Relay dry contact output (contact rating: 1A@24VDC / 2A@120VAC) |
LED indication Transmitter: LED ON = power supply successful Receiver: LED ON = obstacle detected; LED OFF = no obstacle detected |
Working temperature: -20°C ~ +60°C Storage Temperature: -40°C ~ +80°C |

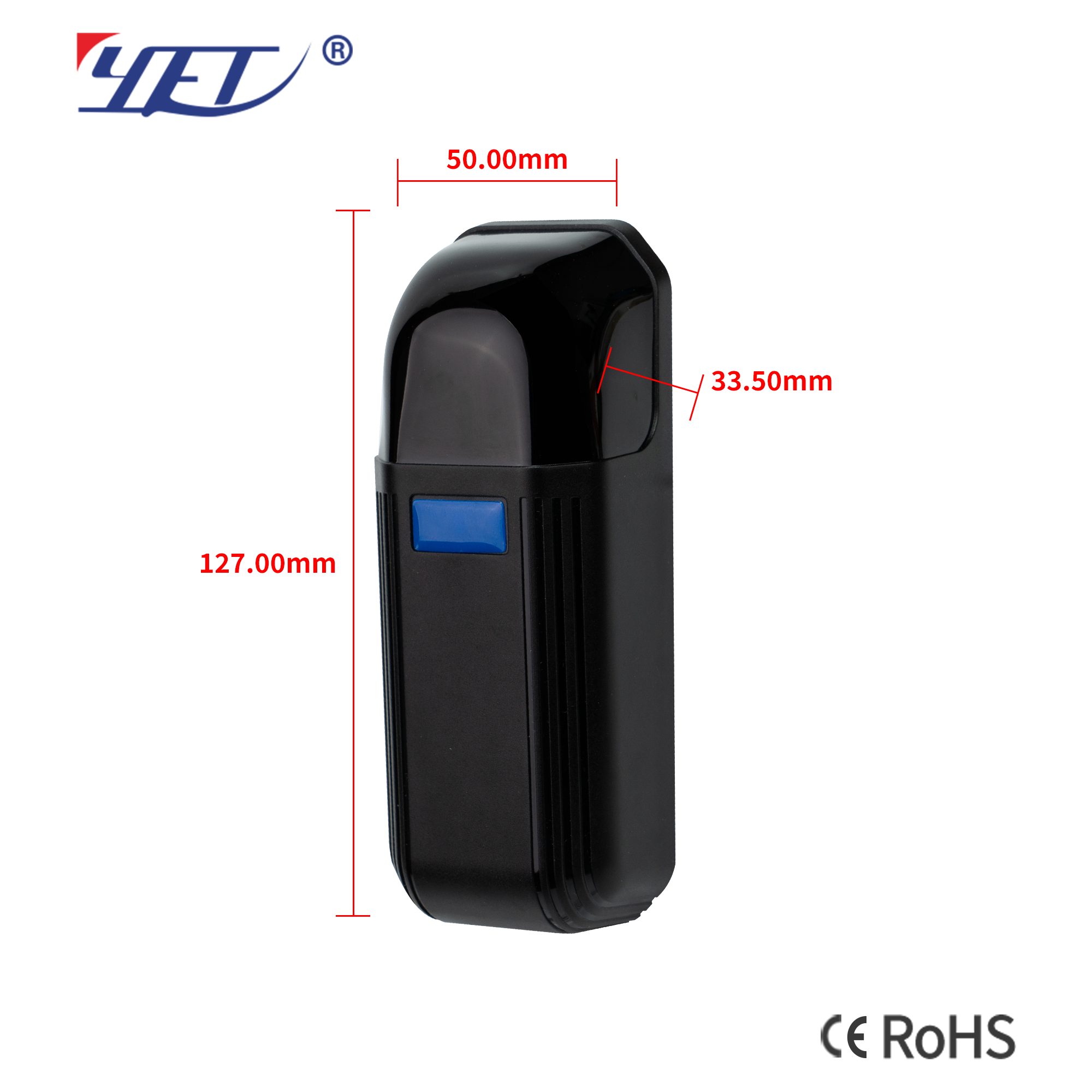

Product Size(LxWxH):128*50*32mm |
Package Contents: includes photocell sensor, mounting screw accessories and manual. |
Our Service
1. Your inquiry related to our products or prices will be replied in 12 hours;
2. Well-trained and experienced staffs to answer all your inquires in fluent English;
3. OEM&ODM,any your customized products we can help you to design and put into production;
4. Protection of your sales area, ideas of design and all your private information;
5. Deliver by air mail or ship for your orders.
For Order
1. Accept OEM/ODM;
2. Print logo on the case and package;
3. Payment Details :30%deposit,70%balance before shipment.Payment accept T/T and western union optional.
4. Minimum Order:100 pcs(accept trial order);
5. Delivery Details:within two weeks.
Company Profile
Packaging & Shipping
Exhibition
FAQ
Q1.Could I order one piece for sample to test the quality?
Yes, sample is available
Q2.Do you accept OEM order?
Yes. We customized a lot of items for our clients.
Q3.What kind of payment do you accept?
We accept T/T(Wire transfer),Western Union and PayPal, Credit card.
TT can be 30% prepayment before production, 70% balance payment before shipping.
Q4. Does all of your goods come with remote function?
Yes, our remote cotrol receiver distance is about 50-100 meters.
Q5.Do your products carry warranty?
Yes,12 months or more and permanent service.
