Single beam 12-24V antiglare IP 55 NO/NC infrared beam photocell sensor YET 610 CE ROHS for automatic doors windows
- Place of Origin:Guangdong, China
- Brand Name:YET
- Model Number:YET 610
- Usage:Door
- product:photocell infrared sensor
- distance:15-25M
- working voltage:AC DC 12-24V
- IP:55
- G.W.:0.12KG per set
- size:49.2 x 76 x 21.6M
- Infrared Frequancy:1.92khz
- operating temperature:--20 degrees to 50degrees
- Wave length:940nm
- Certificate:CE Rohs
12-24V antiglare IP 55 automatic doors windows NO/NC infrared beam photocell sensor YET 610 CE ROHS
photocell infrared sensor features:
1.Small size design, easy installation.
2.universal photocell infrared sensor for automatic door opener, windows curtains secutiry
3.IP55, can be installed outside.
4.an-glare, can work under temperature -10℃ to +70℃
5.Safe, beautiful, economic, comfortable.
Specifications:
Infrared Frequancy : 1.92khz
Power supply : 12 to 24 VDC /AC
Wave length :940nm
Input : r*15ma - t*30ma
operating temperature : --10 degrees to 70 degrees
Relay output : 1 a max *36 v
Range : range can be reduced to 30% in bad weather conditions : for rain ,dust ,etc
output: NO/NC optional by jumper

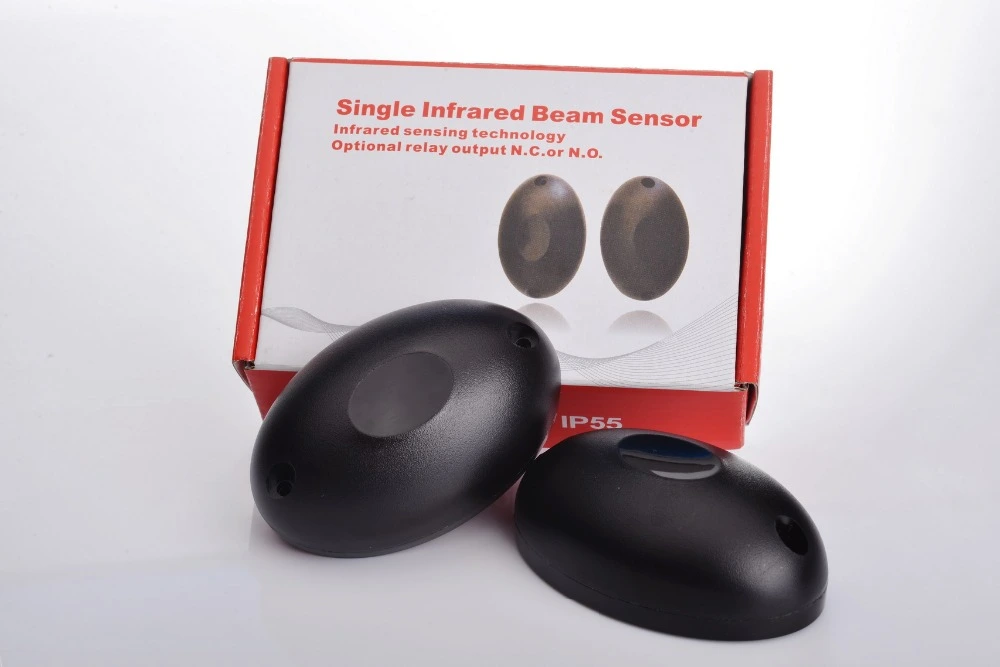

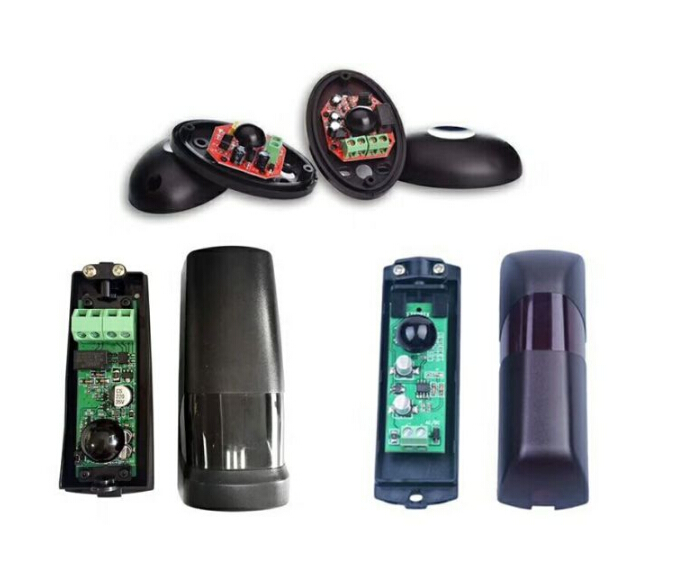

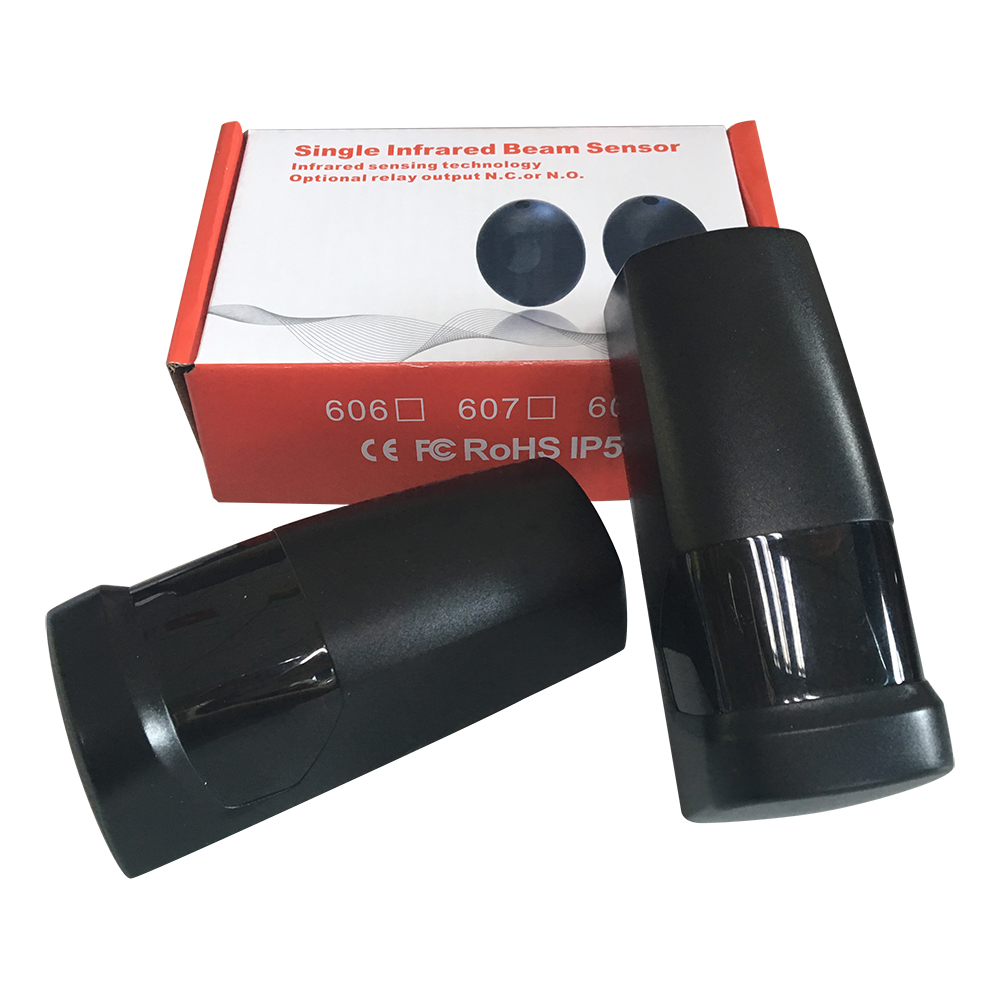

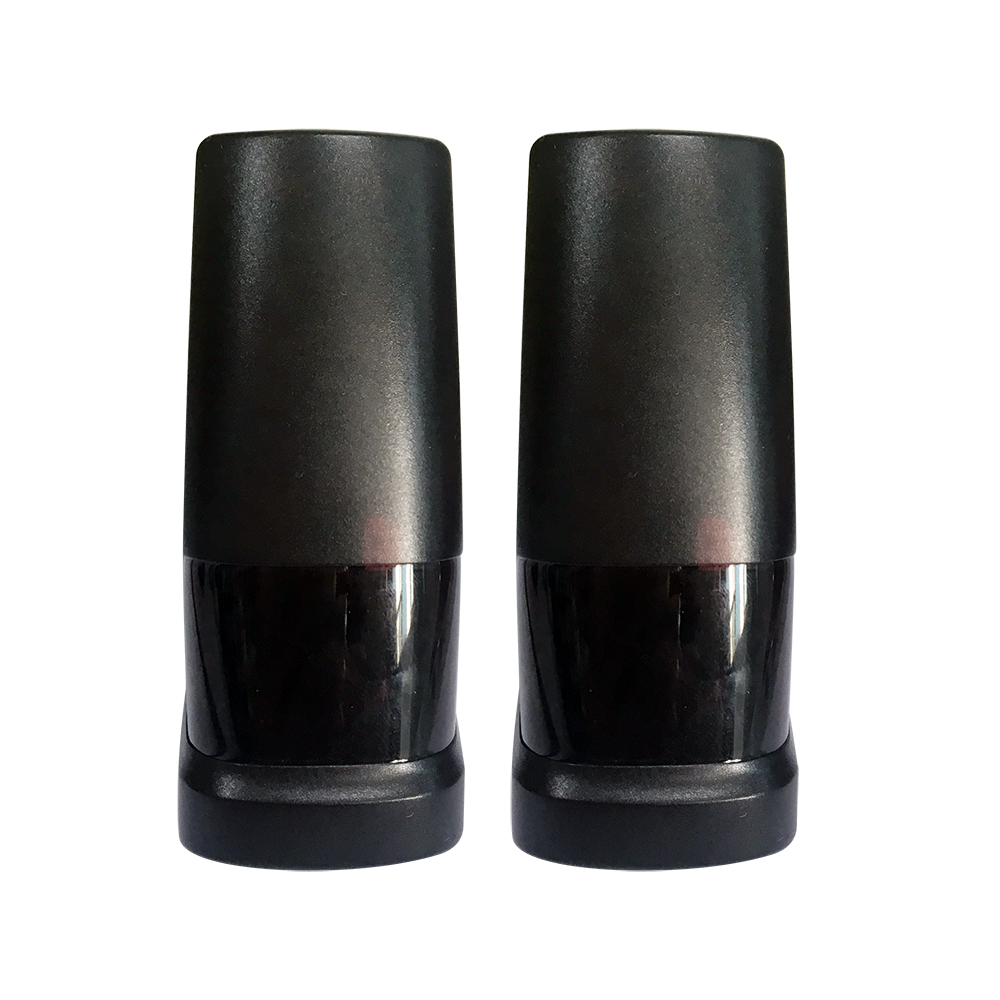

Product photos of infrared beam sensor, model YET 610
Single beam sensor/single beam detector is used for automatic slide door, coil door , garage door windows etc.
Single beam sensor/single beam detector is used for automatic slide door, coil door , garage door windows etc.
Consists of a transmitter and a receiver, and the integrated amplifier can produce infrared beam.
Narrow infrared beam (I or II) can avoid interruption by external light.
Even installed at low height(20-40cm from the floor), the detecting distance can also be guaranteed(5-15meters).
The beam produced by MICROCELL provides a self-detecting function for the sliding doors. Once the self-detecting beam is interrupted, the door will stop closing and reverse rapidly to the utmost width. The door will open until the detecting beam is resumed. When the door completely closes, the detecting beam becomes invalid.

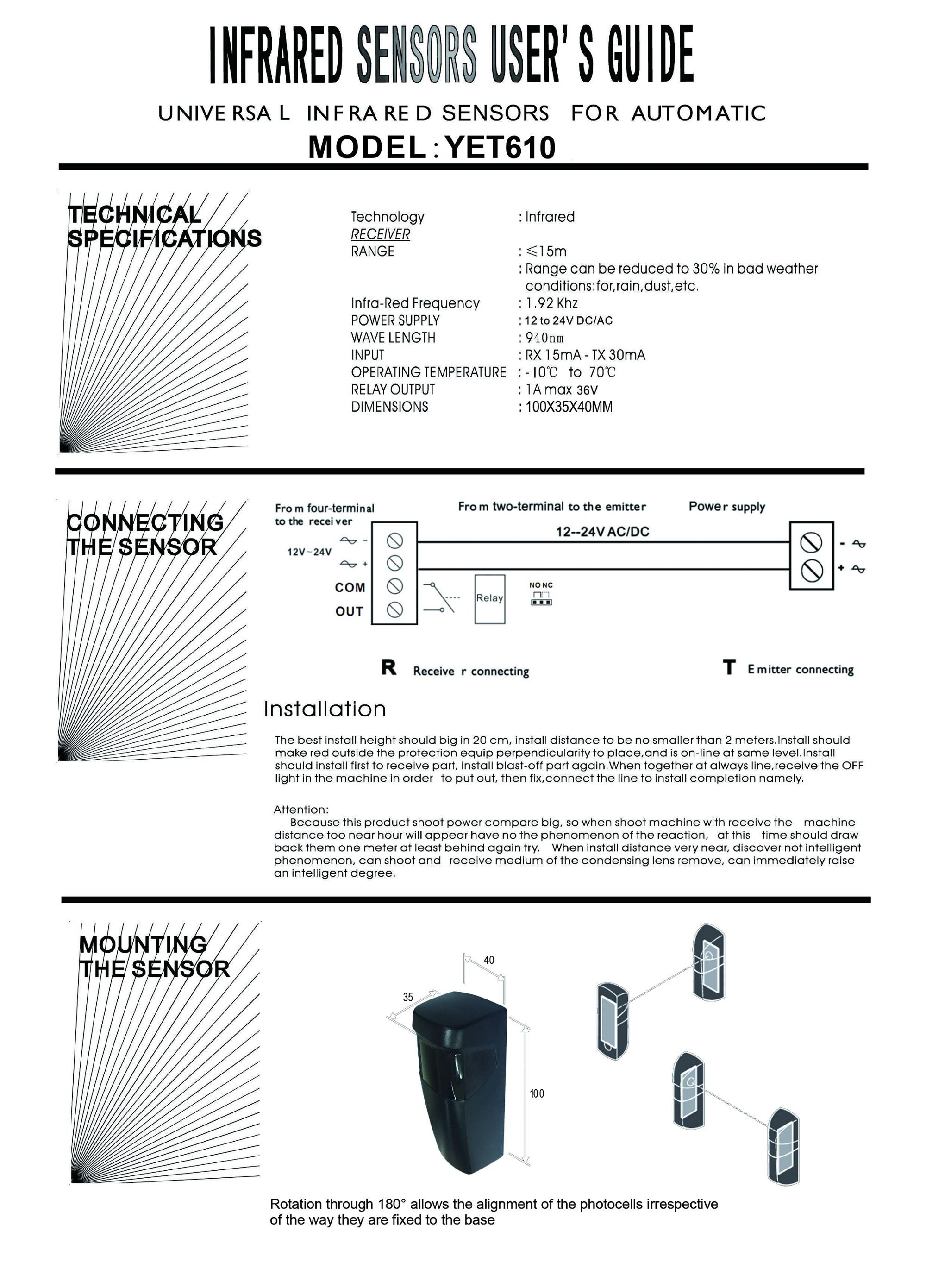

Photocell infrared sensor manual for your reference:
User guider included

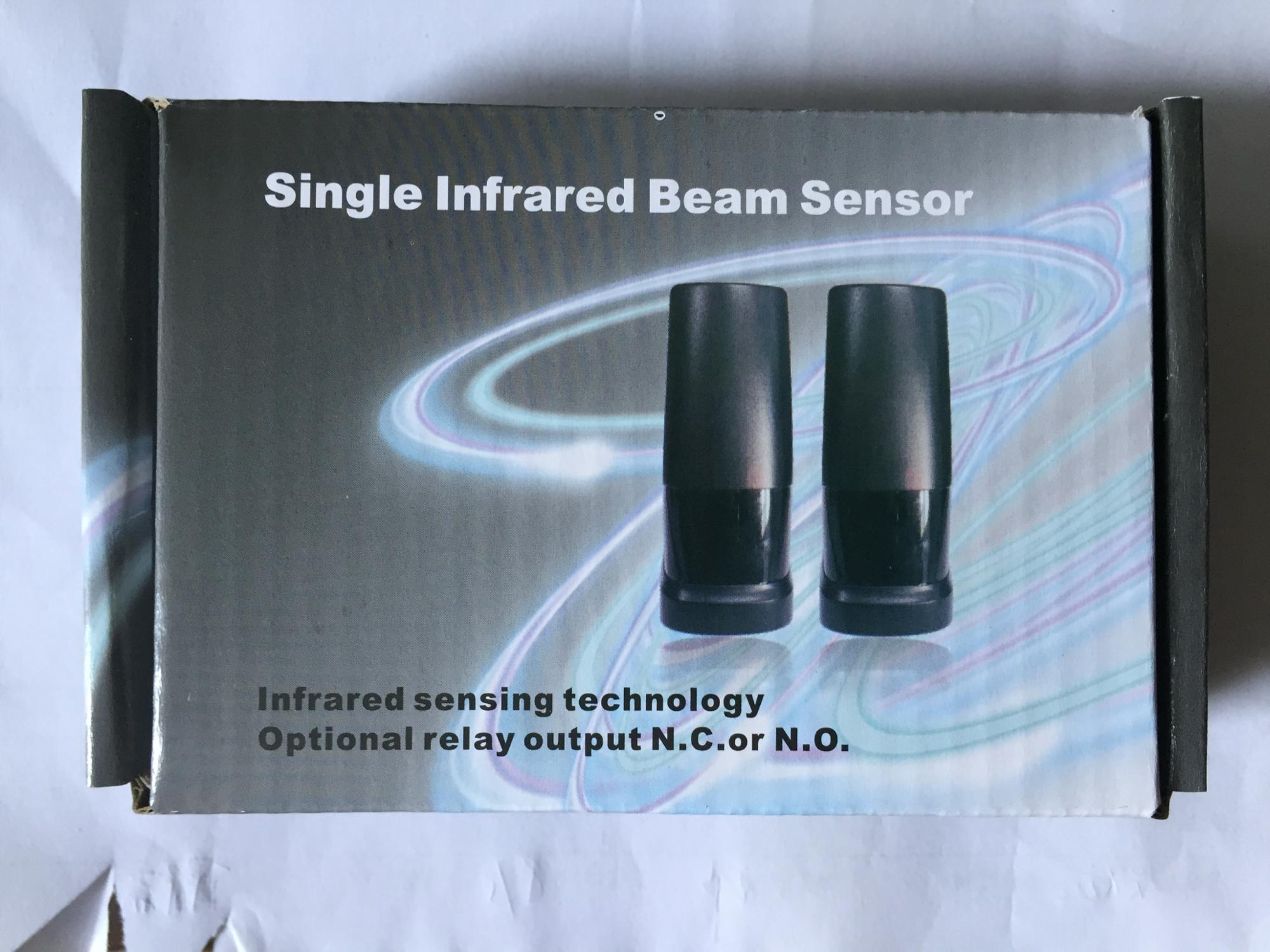

hard gift box package ( can be customized )
fast shipment:
