Multi-functional Microwave Radar Sensor for Automatic Doors YET-DS001

Hello everyone, Have a good day, this is YET company which is located in Shenzhen. Manufactured RF remote control, receiver, sensor, and other accessories for more than 19 years.

Today I would like to recommend you our new product YET-DS001. It is a Multi-functional motion sensors for all types of automatic doors.

I believe it can bring great profit to your market.Enclosed are the features and pictures of the product, please kindly check :

1) Work voltage: DC/AC(9- 24V)

2) Work frequence: 24.00~24.25GHz

3) Antenna detection angle:

150°(horizontal direction) / 70°(pitching direction)

4) Installation height: ≤4m

5) Detection range: wide@4m / deep@2m (Installation height 2.6m)

6) Minimum detection speed: 5cm/s (along the longitudinal axis of the sensor)

7) Detection mode: bidirectional motion

8) Shell color: Black

9) Working temperature: -20 ℃ -55 ℃

10) Product dimensions:  120mm (width) x 80mm (height) x 50mm (depth)

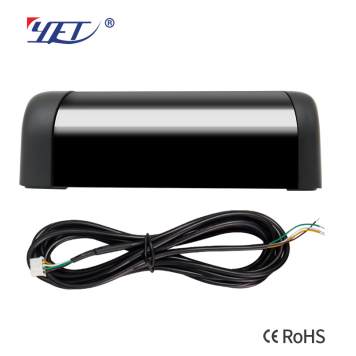

Pictures:

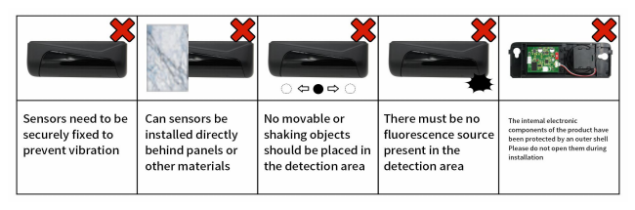

Installation precautions

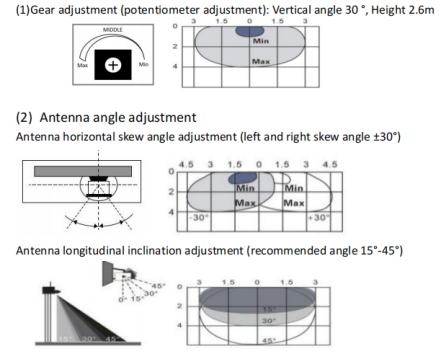

Adjustment

Installation:

1) Connect the cable to the corresponding terminals of the automatic door.

A. Pin 1& Pin 2 (brown, green) are the power input

B. Pin 3& Pin 4 (white and yellow )are signal outputs (COM, NO)

2) Remove the cover and secure the base with screws.

3) Connect the cable terminals to the sensor.

4) Power on the sensor. The indicator light will blink five times

5) Adjust the sensitivity potentiometer and detection angle (horizontal/vertical tilt).

6) Cover the lid and test. If not satisfied, repeat step 5 until the detection range reaches the optimal level.

Application:

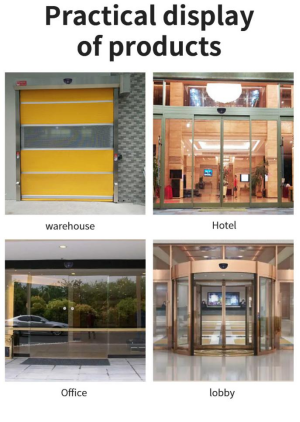

Security systems, roller doors, shutters, sliding gates, barriers and household equipment etc
