The advantages of anti-theft floor locks for rolling shutter doors

2025-10-13

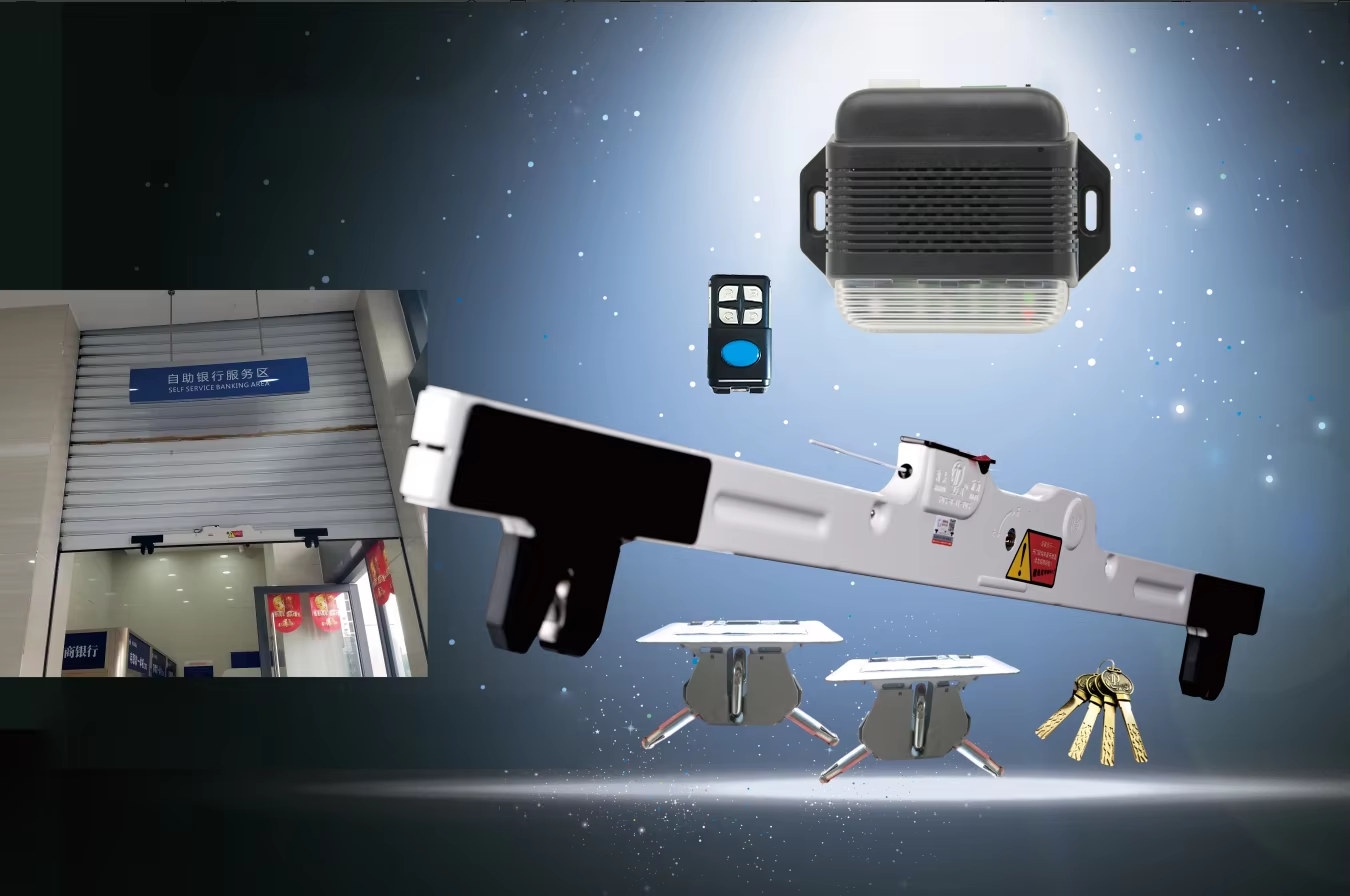

Roller Shutter Door Anti-Theft Floor Lock Kit

In commercial and residential scenarios, roller shutter doors are widely used, and their anti-theft performance largely depends on supporting floor locks. The Roller Shutter Door Anti-Theft Floor Lock stands out with scientific design, full accessories, and strong adaptability, becoming a trusted security guard.

1.Size Matching: Tailored for Different Door Widths

To fit various roller shutter door sizes, this lock provides three specifications, each corresponding to specific door width ranges and models. Size 1 (1650mm) is suitable for doors 2-5m wide, matching models 5585+ and 5586+; Size 2 (984mm) works for 2-4m doors, compatible with models 5583 and 5584; Size 3 (695mm) is designed for 1-2m doors, paired with models 5585 and 5586 . For single-motor gates over 5m wide, the manual recommends installing 2-3 Size 2 locks to ensure no security blind spots, fully meeting the needs of different usage scenarios.

2.Functional Configuration: Balancing Convenience and Security

2.1 Intelligent Control and Compatibility

The lock is equipped with practical functional components to enhance usability. It includes a power-off control system with 1 remote controller and a power cord with 2 spare terminals, enabling convenient remote operation while ensuring stable power connection ,. Whether it is electric roller shutter doors in malls or manual ones in residential communities, the lock can be perfectly adapted, realizing smooth locking and unlocking.

3.Built-in Alarm for Risk Prevention

A standard alarm device is part of the lock’s configuration . When the lock is subjected to violent damage or abnormal opening, the alarm will be triggered immediately, sending out timely warnings to deter thieves and reduce the risk of property loss, further strengthening the overall anti-theft effect.

4.Installation: Complete Accessories and Clear Steps

4.1 All-in-One Standard Packaging

Installation convenience is one of the lock’s advantages, supported by a comprehensive standard package. The package contains 1 mechanical lock, 1 key core with 4 keys, 2 stainless steel dust covers, 2 embedded hook boxes, 4 expansion bolts, 4 carriage bolts with 4 hex nuts, and 1 door nameplate—all necessary parts for installation, eliminating the need for additional purchases.

4.2 Step-by-Step Installation Guidance

The installation process follows a clear sequence: first, refer to the locating holes on the packaging box to mark 5 drilling positions at the lower end of the door ; then drill holes (32mm diameter for the lock cylinder hole and 8.2mm diameter for the 4 carriage bolt holes) ,; next, install the nameplate, assemble the lock body, install the embedded hook assembly, and finally conduct function testing. For roller shutter doors with a T-type bottom bar, cutting notches according to the diagram ensures smooth installation . *(Insert "Installation Structure Drawing" and "Installation Diagram" here to visually display component positions and installation details.

5.Application: Suitable for Multiple Scenarios

With its size adaptability, functional reliability, and easy installation, this lock is widely applicable to commercial places (such as supermarkets, warehouses, and bank branches) and residential areas (like community garages and street shops). It effectively safeguards property safety, making it an ideal anti-theft choice for various roller shutter door users.

6.Summary

This lock excels in size adaptability, functional practicality, easy installation and wide application. It fits different door widths, offers remote control and alarm functions, comes with full installation parts and clear steps, and works for both commercial and residential scenes, being a reliable anti-theft option for roller shutter doors.
