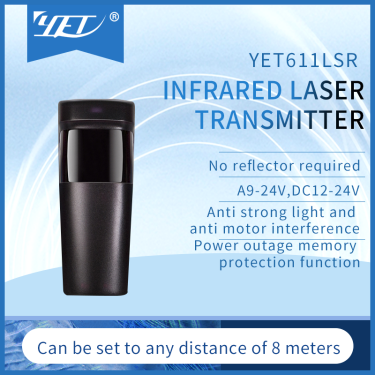

Reflective laser photocell sensor YET611LSR-V2.0

1. Input Voltage： AC: 9V~ 24V (AC Frequency: 50HZ/60HZ)

DC: 9V~30V

2. Sensing Distance : 0.3m~ 8m @ reflectivity (10%-90%)

3. Launch tube parameters : VCSEL，Center wavelength：850nm ，Security level：Class1（IEC60825)

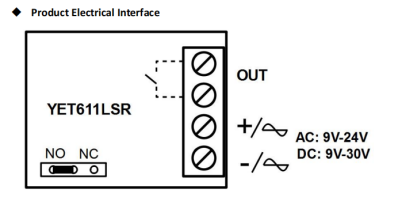

4. Product Output Interface : GND/AC、VCC/AC、NO/NC、COM

Product Output Type : Relay dry contact output（NO/NC Selection by product jumper）

Output Port Load :  1) AC 0.3A/120VAC  2) DC 0.8A/30VDC

5.LED light indication

Green LED light: 1）It is mainly used to indicate the power-on status of the product; 2）It is used to indicate distance setting mode and operating mode switching;

Yellow LED light: Working status signal indication (On/Off: light off when there is an obstacle/light on when there is no obstacle.)

6. Product Size(LxWxH) :100 * 40 * 35mm

Product weight :61g (bare metal)

Product Standard :One photocell sensor, one manual, one hood (optional)

Special Note：

1、Before using the product for the first time, please set the sensing distance for the product according to the actual application needs!!!

2、The sensing distance of the product is required to be more than 0.3 metres!!!

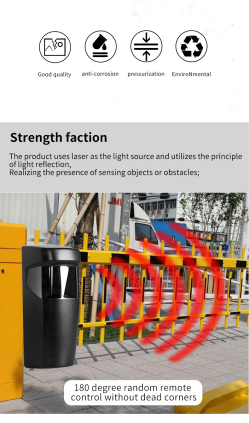

2.Scenarios of use
