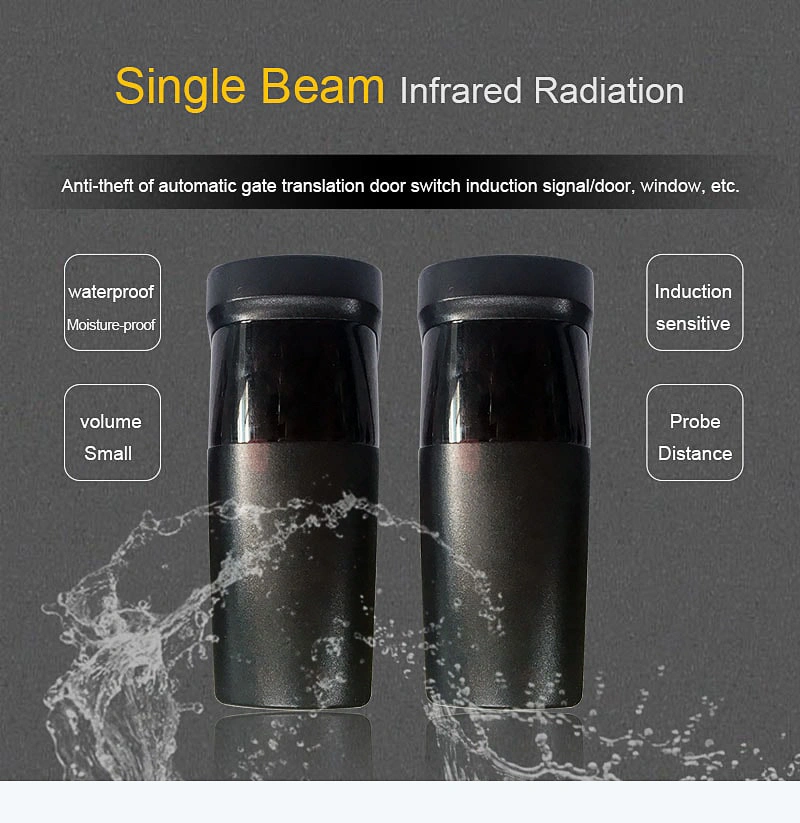

single beam sensor
single beam sensor
single beam sensor
single beam sensor
single beam sensor
single beam sensor

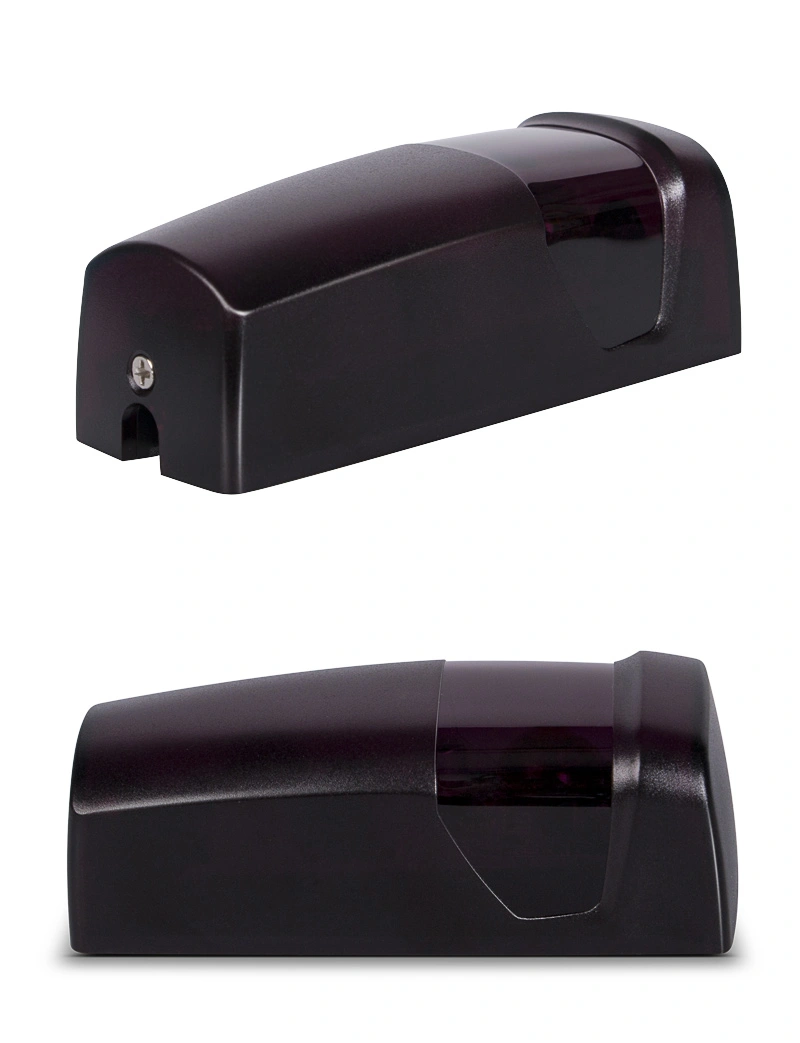

Model No: YET610

Home security system relay contact photocell infrared sensor outdoor Photocell Switch single Beam Photocell

minimum order :
1 set
Country of Origin :
Shenzhen
Quantity :
Contact Now
  • Brand Name:YET
  • Model Number:YET610
  • Certification:ce
  • Color:Black
  • Private Mold:NO
  • Place of Origin:China
  • Material:ABS
  • Code:Fixed Code
  • Button:4 Buttons
  • Function:Automatic, Infrared sensor
  • Usage:Position Sensor
  • Product name:infrared sensor photocell sensors
  • Power supply:DC/AC 12 to 24V

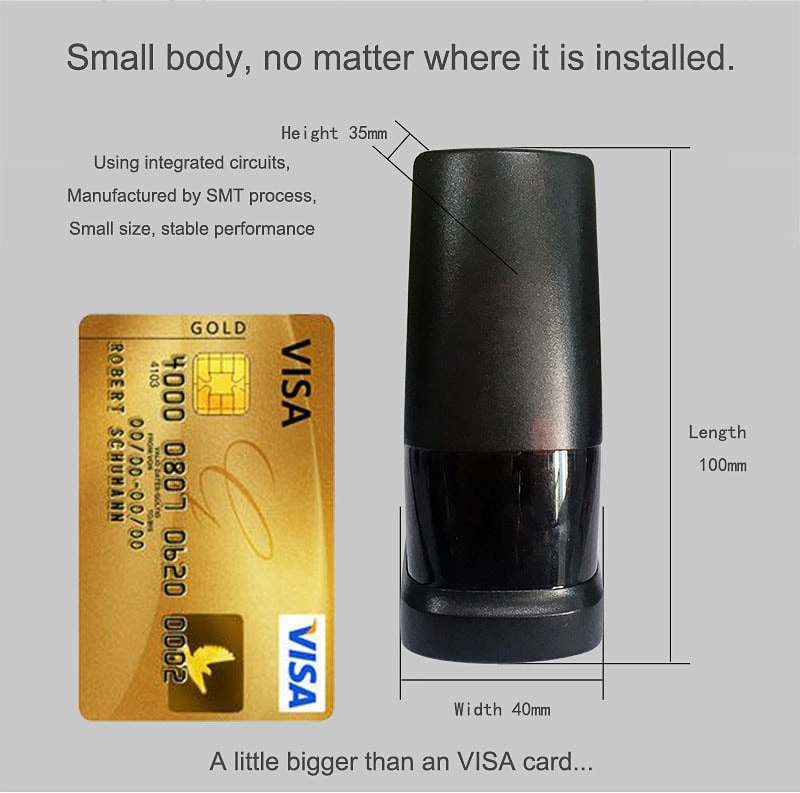

  • Size:49.2 x 76 x 21.6mm
  • Working current:40mA
  • Relay Output:1A max 36v
  • Range:15-25meters
  • Current:Rx15mA-Tx30mA
  • Temperature range:-25℃~55℃
  • MOQ:50 pairs
Product Parameters
Technology
infrared radiation
Input power
12-24VAC/DC

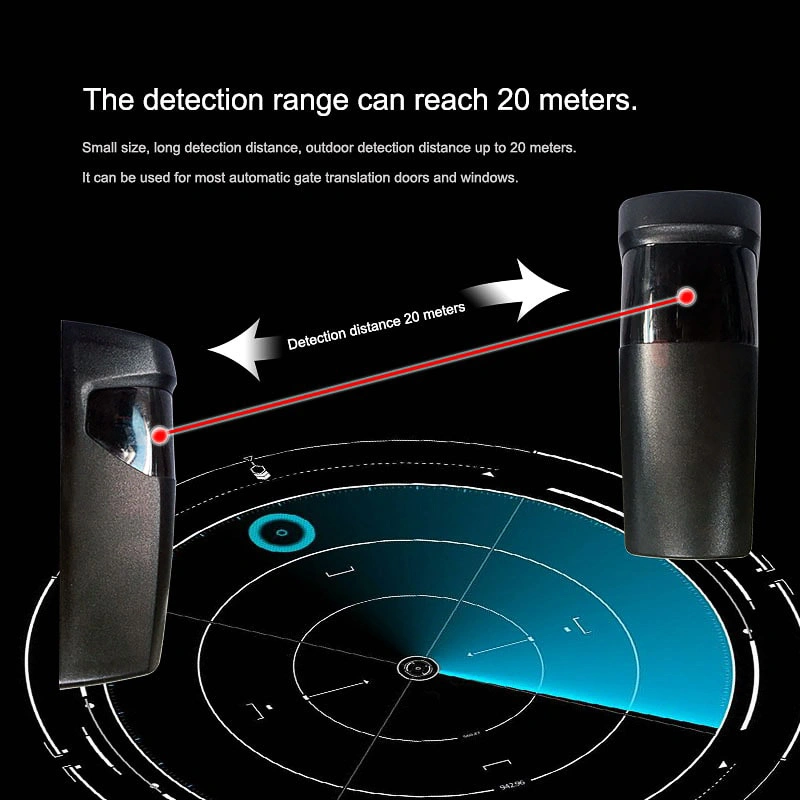

Distance
20-25m
Input Current
RX15mA -TX30mA
Frequency
1.92Khz
Max load
1 a max *36 v
Wave length
940nm
Use environment
-20°-70°
Material
metal and PVC
Warranty
12 months
Product Features

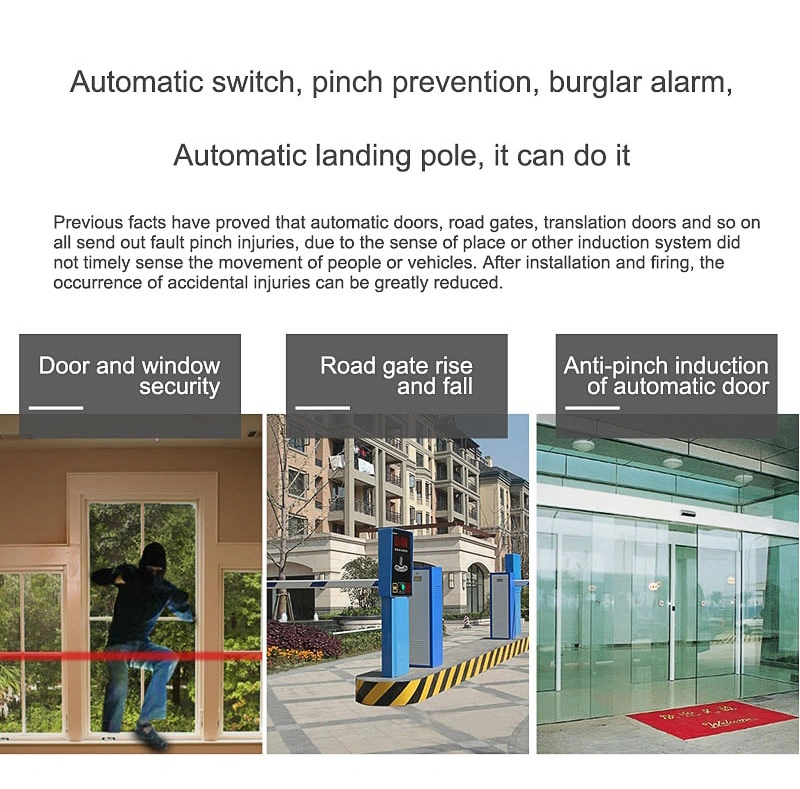

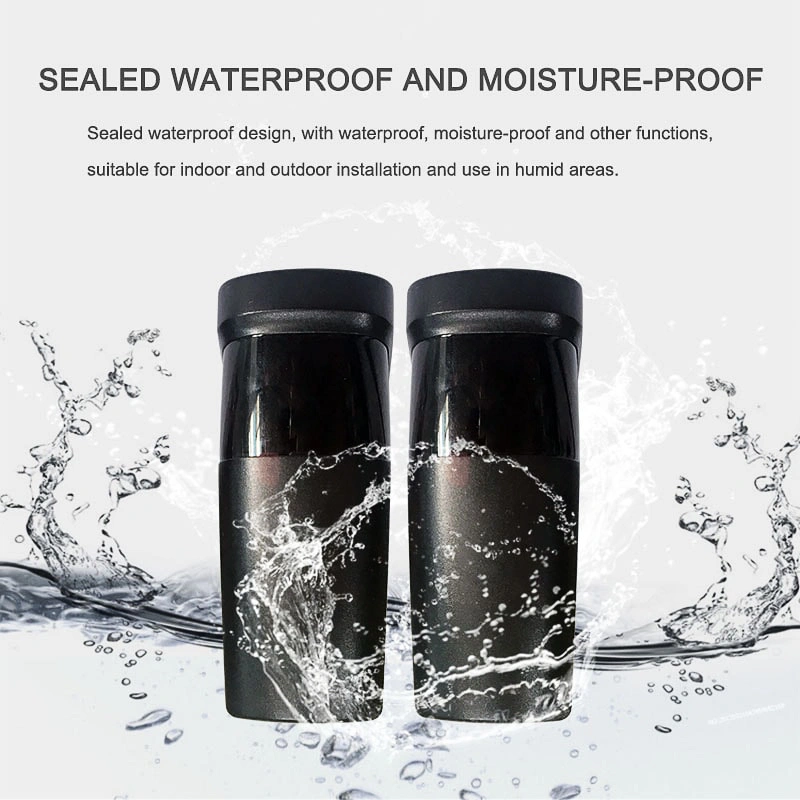

1.Function:Self-detecting function; Anti-sunlight; Use for gates and barriers; waterproof; 180°rotation angle.

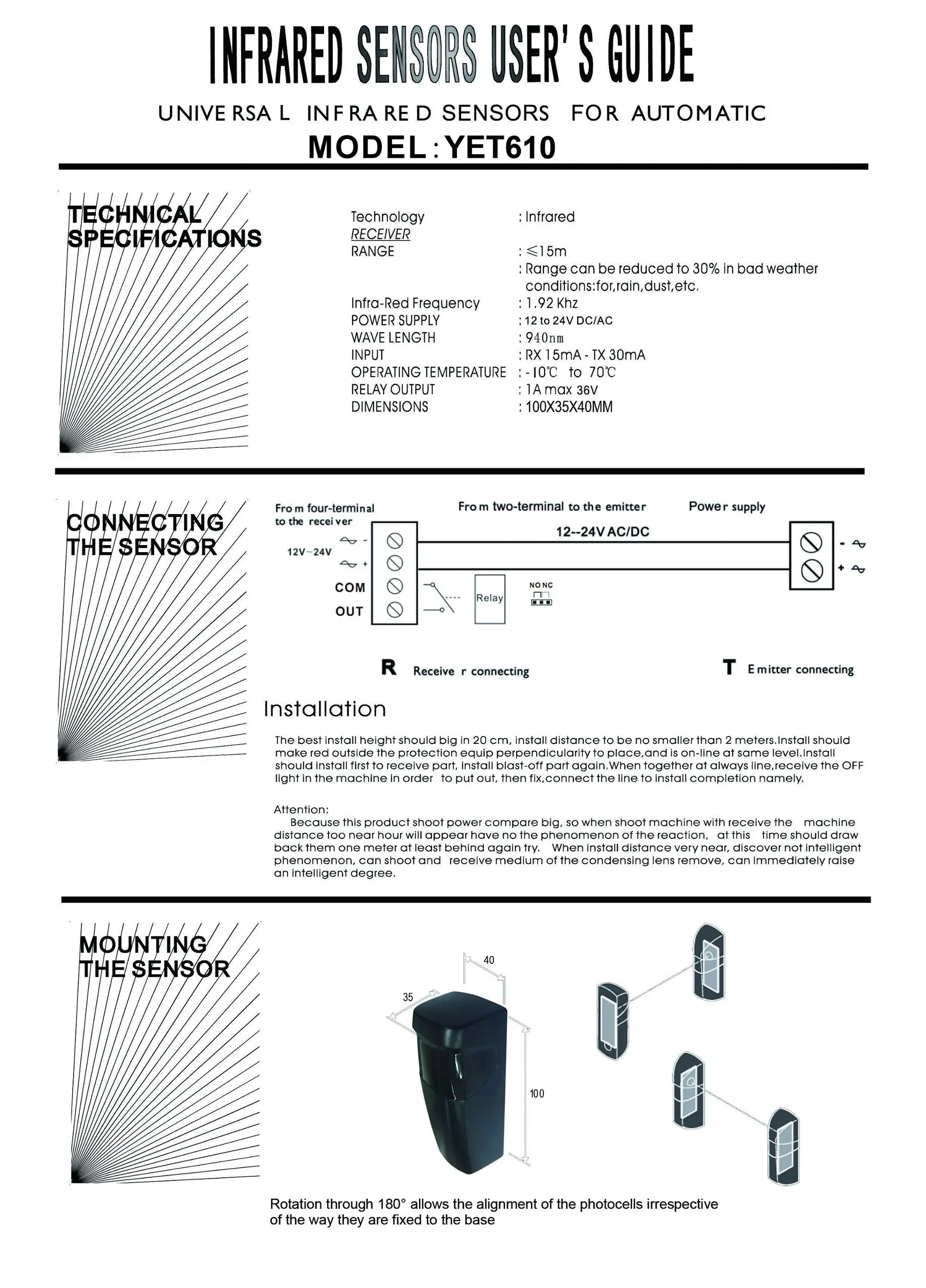

2.Notice:1)When installing and debugging,make sure that the maximum sensing distance can not be exceeded; 2)Install the reflector in a suitable position,the reflective surface should be pointed at the sensor;
3)Adjust the horizontal and vertical position of the sensor according to the reflector,and point the sensor to the center of the reflector.[In the initial installation and debugging,the sensor can be fixed first,the reflector is aligned with the sensor,and then the reflector is from near to far.Move the direction to the desired position];4)Do not power on the sensor until all electrical wiring of the sensor is completed.

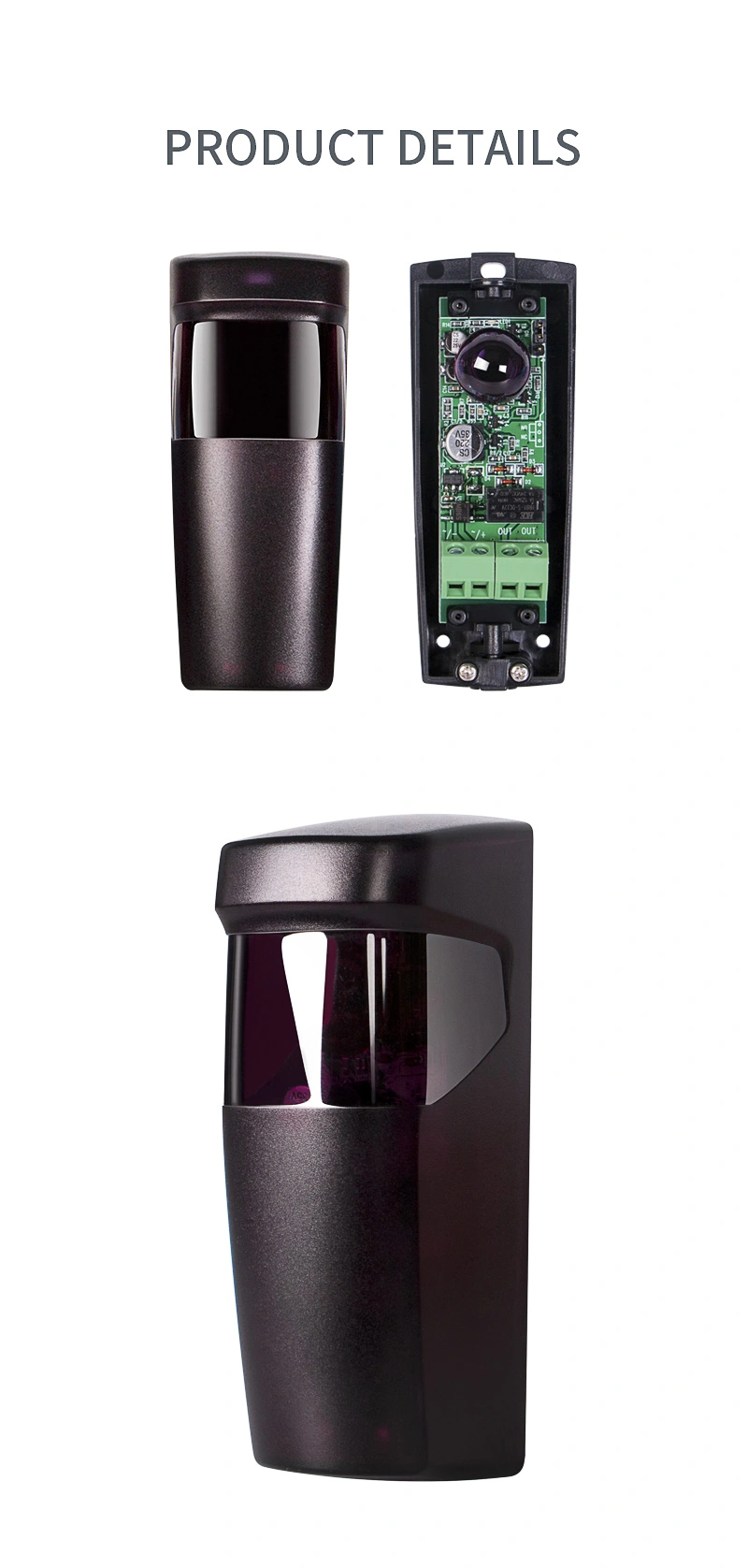

Products Description
Packaging & Delivery

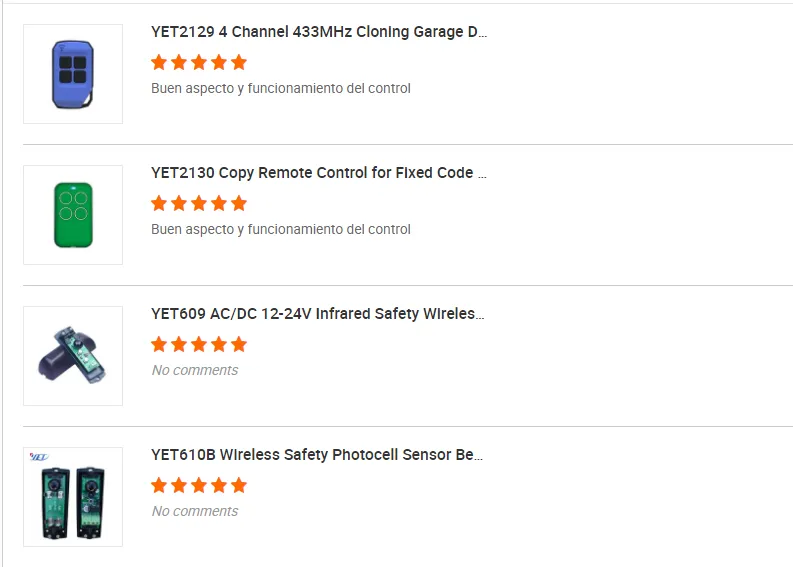

Recommend Products
Company Profile
Shenzhen Chuangyao Science & Technology Co.,Ltd
Established in 2008, Shenzhen Chuangyao Science & Technology Co.,Ltd. specialized in intelligent home furnishing, remote control,controller, door controller and accessory.

Located in Shenzhen, we enjoy convenient transportation. Our company occupies an area of 2600 M2,backed up with advanced facilities & strong R & D team. In recent years, our company has possessed five production flows including Reflow Soldering ,Parts Inserting, Post Soldering ,assembly and Packing. Our annual production capacity is 4,000,000 pcs .

Our products have won CE,ROHS Certification and Our products gain wide praises from domestic and abroad. Strict quality control is performed in every procedure from material sourcing, processing and testing to packing .

We welcome OEM and ODM orders. Professional engineer are available t assist you further. Please contact us for possible project.
Certifications

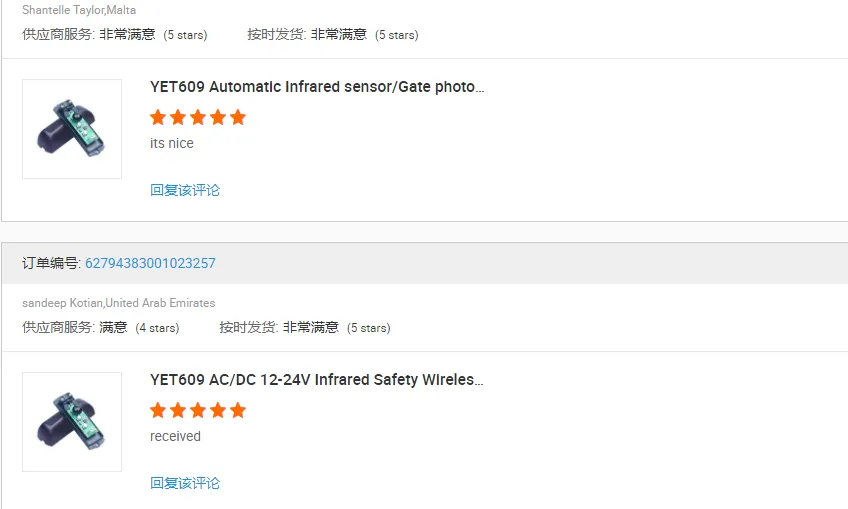

FAQ & Customer Reviews
Q1. Does all of our goods come with remote function?
Yes
Q2. Do you provide OEM?
Sure,welcome OEM and DEM
Q3. Why your products are more expensive than other suppliers' products?
Our cost is depended on our brilliant surface, high quality raw materials, high standard of safety and technology.
Q4. Are you a manufacturer? Where is your factory?
Yes, we are. Our factory is in Shenzhen City, Guangdong Pro.
Q5. Which market do you focus on?
We do global market. Every market is important to us.
Q6. How can you guarantee the quality in mass production?
Our original materials will be inspected strictly before mass production and our QC will follow up the quality accordingly in the process of production. Before out of factory, we totally have more than 6 times strictly checking.
Q7. Can i have a sample before order?
Sure. Welcome sample order!
8.What frequency do you have?
Such as 315mhz,433.92mhz etc
9.What encode do you have?
rolling code : HCS301, HCS300, HCS200 etc.
learning code: PT2240, EV1527 ,HS1527etc.
fixed code :SC2260 , SC2262, PT2260, PT2262 etc
Copy code/clone: face to face copy
