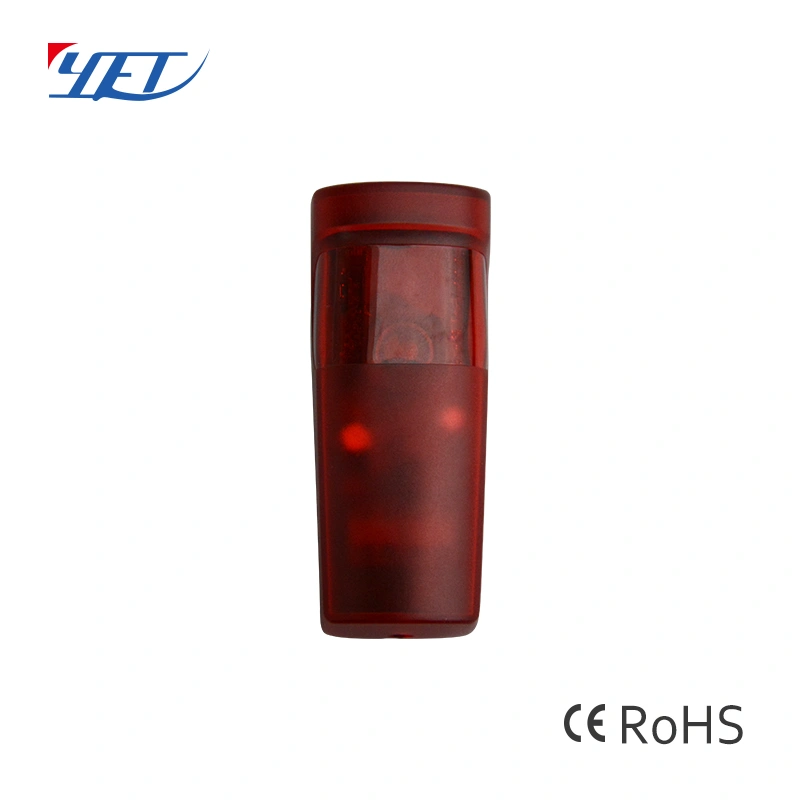

YET611 Photocell Security Beam Infrared Barrier Detector Sensor
- Model Number:YET611 photocell beam sensor
- Place of Origin:Guangdong, China
- Brand Name:YET
- Usage:Position Sensor
- Theory:Optical sensor
- Output:Digital Sensor
- Product name:YET611 photocell beam sensor
- Power supply:DC12-24V AC9-24V

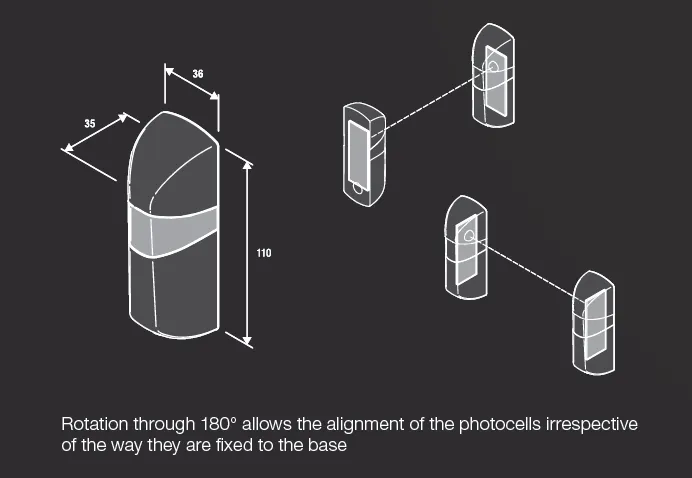

- Size:100 x 40 x 35mm
- Working current:38mA
- Range:15m
- Current:Rx15mA-Tx30mA
- Wave length:740mm
- Working temperature:-20℃ ~ +70℃
- Storage temperature:-30℃ ~ +80℃
YET611 photocell beam sensor infrared barrier garage door dector sensor
1.Indoor 20m, Outdoor 10m
2.DC12-24v AC9-24V
3.waterproof
4.Anti-sunlight
Infrared Frequancy : 1.92khz
Power supply : 12 to 24 VDC /AC
Wave length :940nm
Input : r*15ma - t*30ma
operating temperature : -20 degrees to 180degrees
Relay output : 1 a max *36 v
Range : range can be reduced to 30% in bad weather conditions : for rain ,dust ,etc

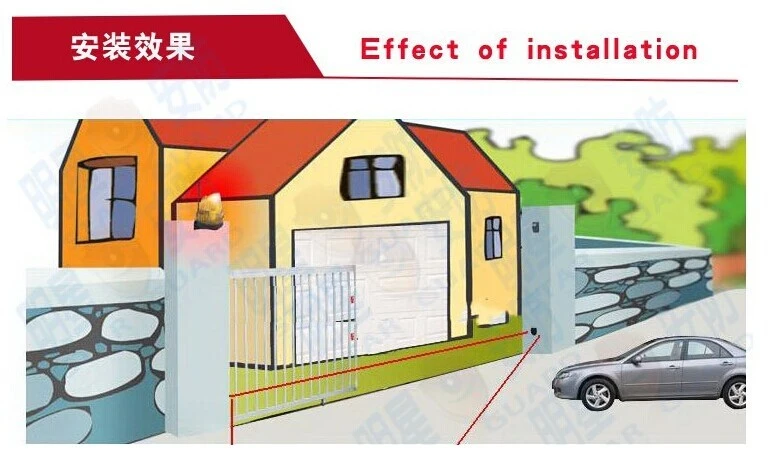

Single beam photocell sensor/single beam detector is used for automatic slide door, coil door , garage door windows etc.

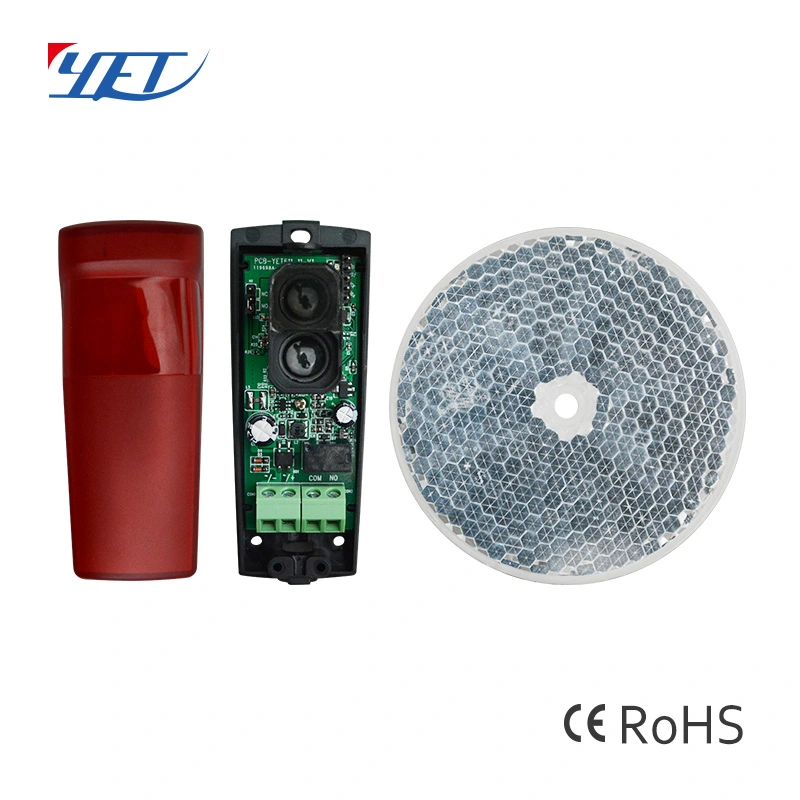

Consists of a transmitter and a receiver, and the integrated amplifier can produce infrared beam.
Narrow infrared beam (I or II) can avoid interruption by external light.
Even installed at low height(20-40cm from the floor), the detecting distance can also be guaranteed(5-15meters).
The beam produced by MICROCELL provides a self-detecting function for the sliding doors. Once the self-detecting beam is interrupted, the door will stop closing and reverse rapidly to the utmost width. The door will open until the detecting beam is resumed. When the door completely closes, the detecting beam becomes invalid.

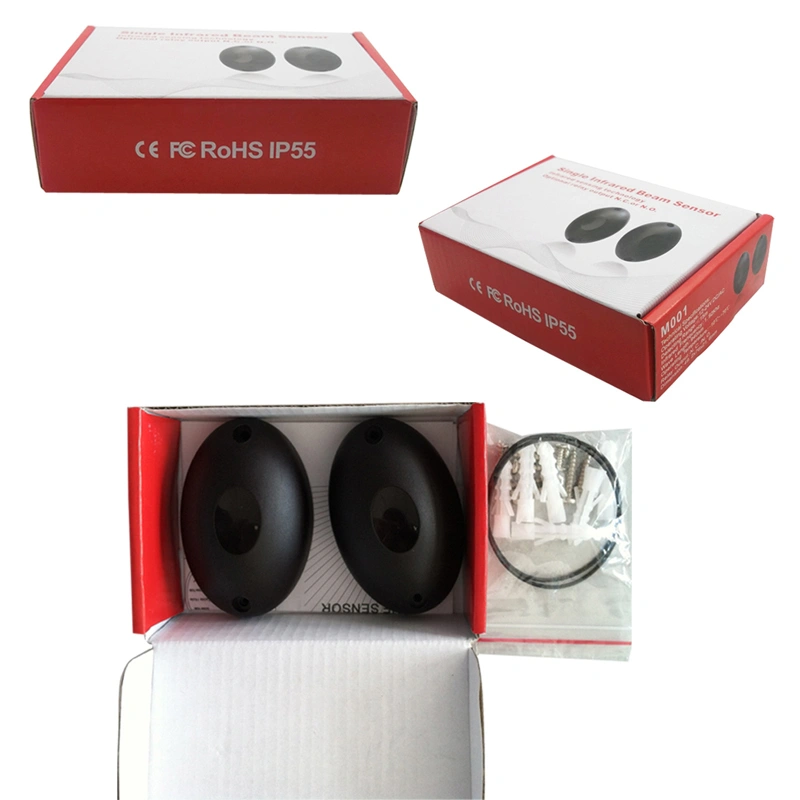

11.18KG, 100pcs/carton, carton dimension 46.7*37.1*24.8cm

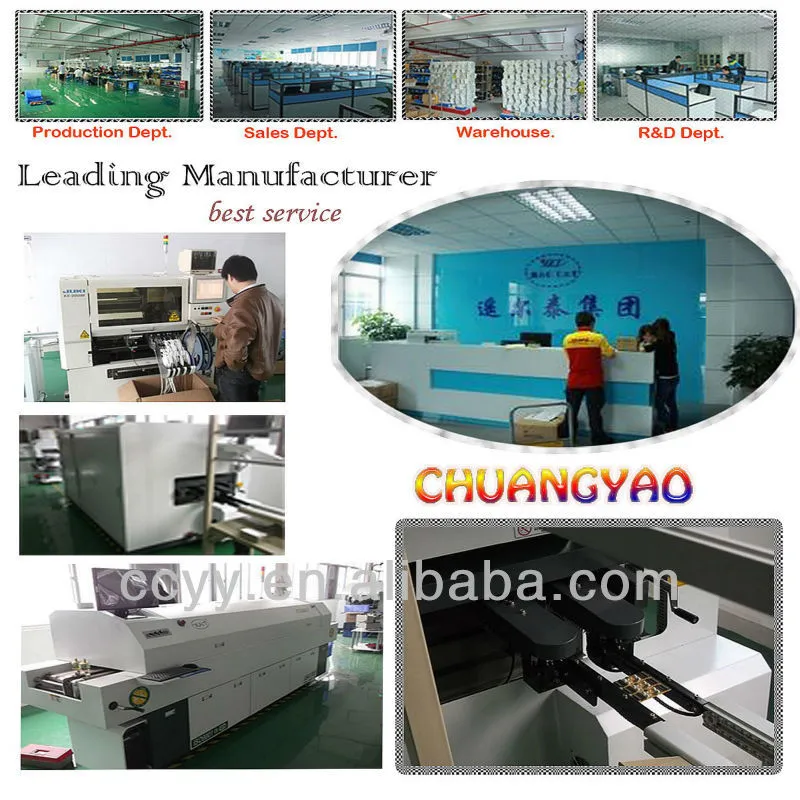

Shenzhen Chuangyao Technology Co., Ltd.is approved by the Shenzhen Municipal Bureau of Trade and Industry set up a set of product development, production and sales of emerging high-tech enterprise. Since its inception, has continued to blaze new trails, a set of security sector development, design, manufacturing and sales of professional manufacturers.

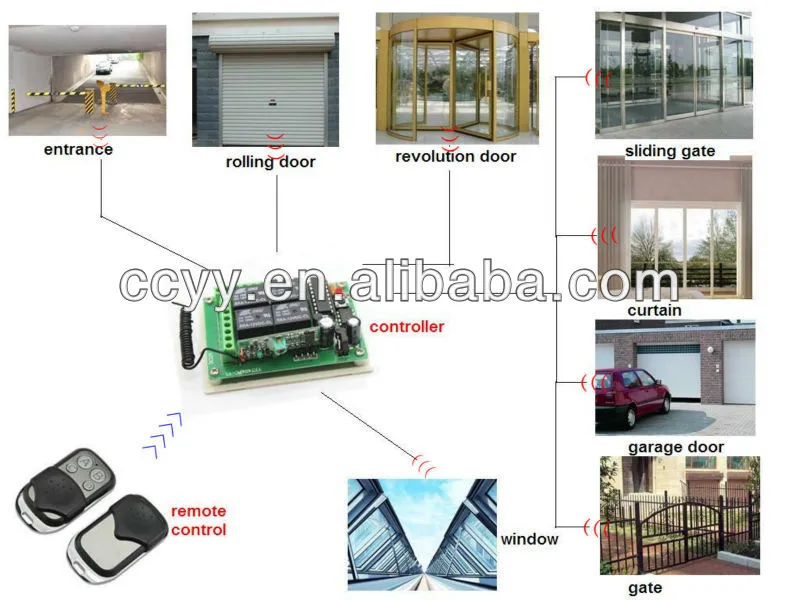

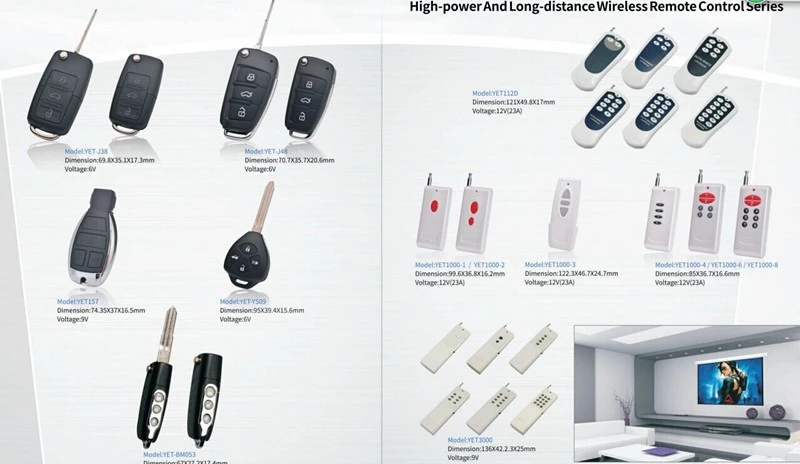

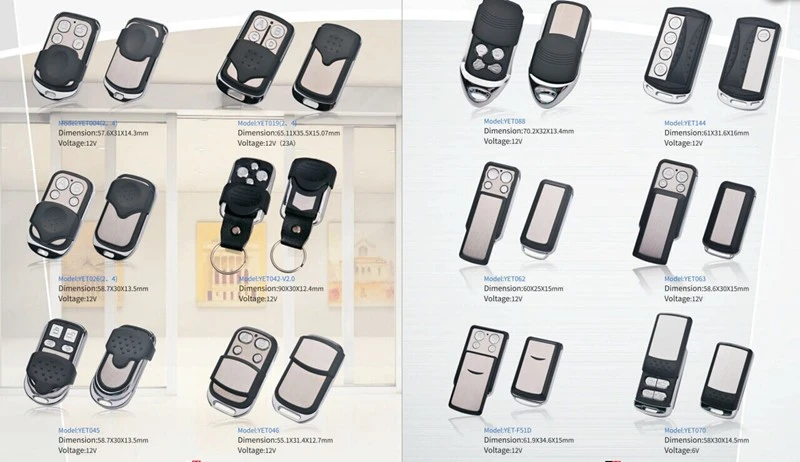

Yaoertai Technology's main products include: household / commercial wireless intelligent burglar alarm, wireless remote control, wireless receive / transmit modules, wireless infrared fire detectors, wireless door sensor, wireless smoke detection, infrared gas alarm gas, fiber optic transceivers and so on; also based on customer needs, develop a dedicated wireless remote control transmitting and receiving control system. Are widely used in automobiles, motorcycles, shopping malls, it is important, and domestic anti-theft alarm. Among them, wireless transceiver modules, wireless receiver controller, widely used in garage doors, rolling shutter and electric gates. Remote control. Soil industry control and exported to Europe, America and Southeast Asia.

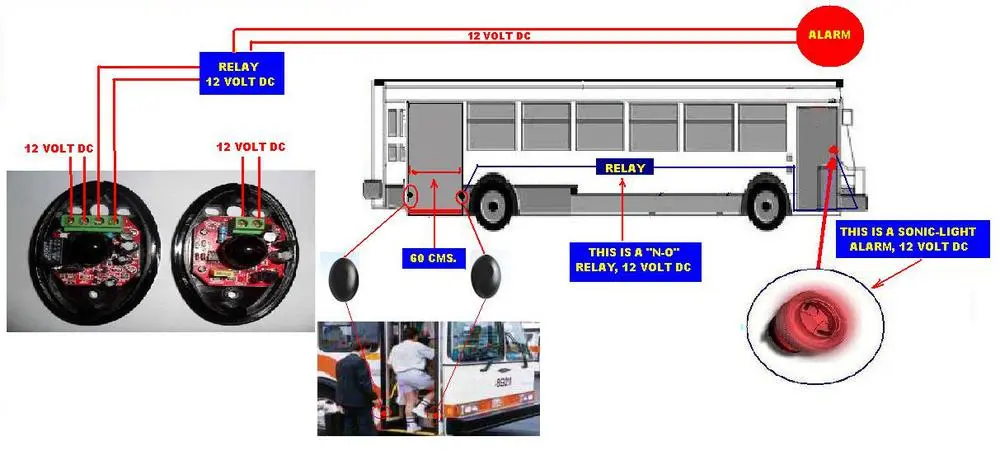

2. Usage:

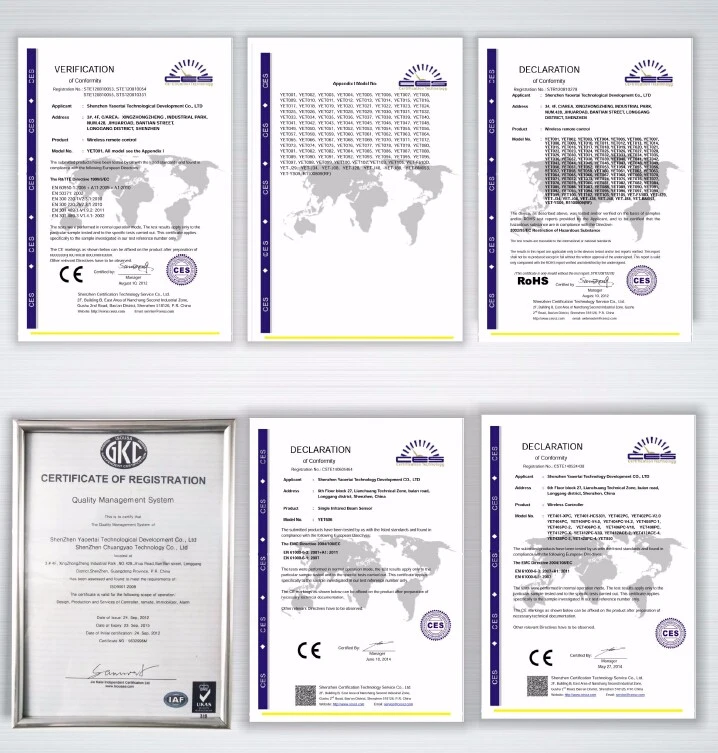

3. Certificate
CE&ROHS
