Model No: YET6141

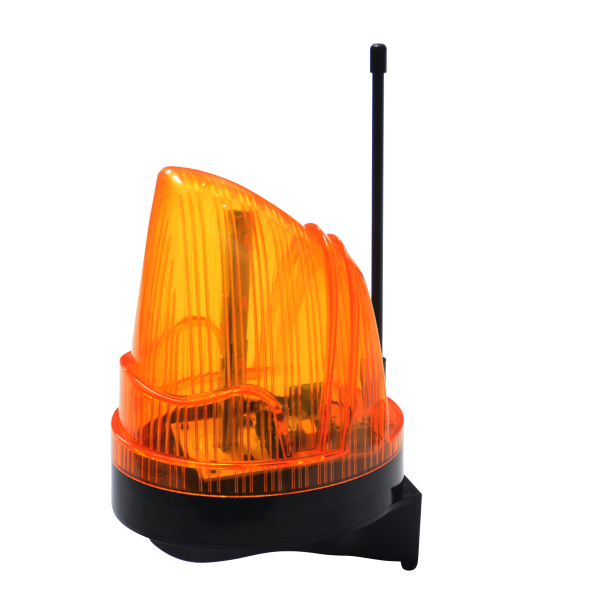

YET6141 Warning Lamp Outdoor security flashing LED Lights 220V for automatic garage door gate opener
Quantity :
Subscribe to our Newsletter
- Place of Origin:Guangdong, China
- Brand Name:YET
- Model Number:YET6141 flashing LED Lights
- Item name:flashing LED Lights warning Lamp Outdoor 220V for Automatic Door
- Product Weight:246.7g
- Working current:<350mA @12VDC
- Operating mode:Bright and flicker(flicker frequency:1HZ)
- Interface:1. Power interface,2. Antenna interface
- Voltage:AC/DC 12-220V
- Usage:Indoor or outdoor
- Operating Life:≥1000 hours (standard power supply continuous working)
- Led light:yellow
- Certification:CE
| Input voltage | DC/AC: 12V~220V |
| Working current | <350mA @12VDC |
| Intensity | >100Lm@1.5W (3*LED) |
| Operating mode | 1.bright，2.flicker（flicker frequency：1HZ） 【This mode is selected by jump cap】 |
| Interface | 1.Power interface，2.Antenna interface |
| Operating temperature | -10℃~60℃ |
| Storage temperature | -20℃~70℃ |
flashing LED Lights installation conditions:
1. The product can be used in doors or outdoors;
2. The installation surface should be firm and free from vibration.
3. It will be installed in a place where it is easy to see.
flashing LED Lights wiring introduction：

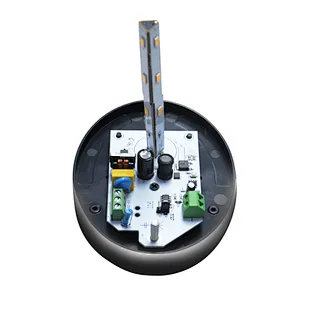

1、When wiring the product, you need to unscrew the antenna on the flashing light,and use a screwdriver to unscrew the screws on the light board,and remove the light board as shown in the figure above;
2、There are two wiring terminals and one jumper terminal on the board:
(1）Antenna wiring terminal: there is an RF antenna on this product, which is mainly an external antenna configured for the user controller. When in use, connect the antenna interface on the user controller with the antenna terminal of the product with a wire;
(2）Power supply terminal: the interface used to supply power to this product, the power supply voltage range: DC/AC12~220V;
(3)Work-Mode Jumper terminal: used for the selection of always-on mode (ON) or flashing mode(OFF),change the position of the jumper cap as needed;
Company Profile:
Packaging & Shipping
FAQ
Q1.Could I order one piece for sample to test the quality?
Yes, sample is available
Q2.Do you accept OEM order?
Yes. We customized a lot of items for our clients.
Q3.What kind of payment do you accept?
We accept T/T(Wire transfer),Western Union and PayPal, Credit card.
TT can be 30% prepayment before production, 70% balance payment before shipping.
Q4. Does all of your goods come with remote function?
Yes, our remote cotrol receiver distance is about 50-100 meters.
Q5.Do your products carry warranty?
Yes,12 months or more and permanent service.
Yes, sample is available
Q2.Do you accept OEM order?
Yes. We customized a lot of items for our clients.
Q3.What kind of payment do you accept?
We accept T/T(Wire transfer),Western Union and PayPal, Credit card.
TT can be 30% prepayment before production, 70% balance payment before shipping.
Q4. Does all of your goods come with remote function?
Yes, our remote cotrol receiver distance is about 50-100 meters.
Q5.Do your products carry warranty?
Yes,12 months or more and permanent service.
