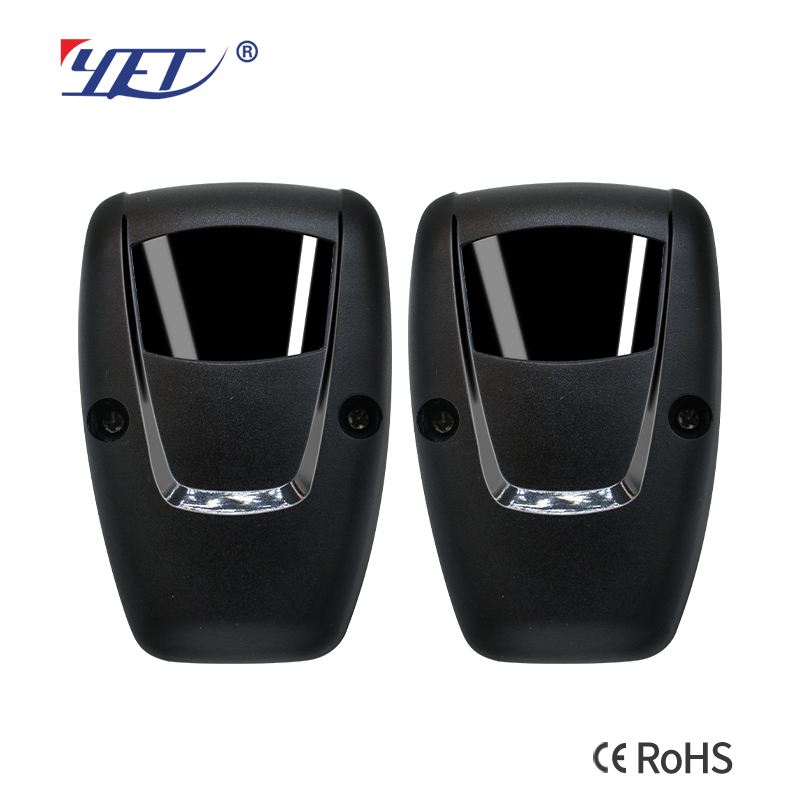

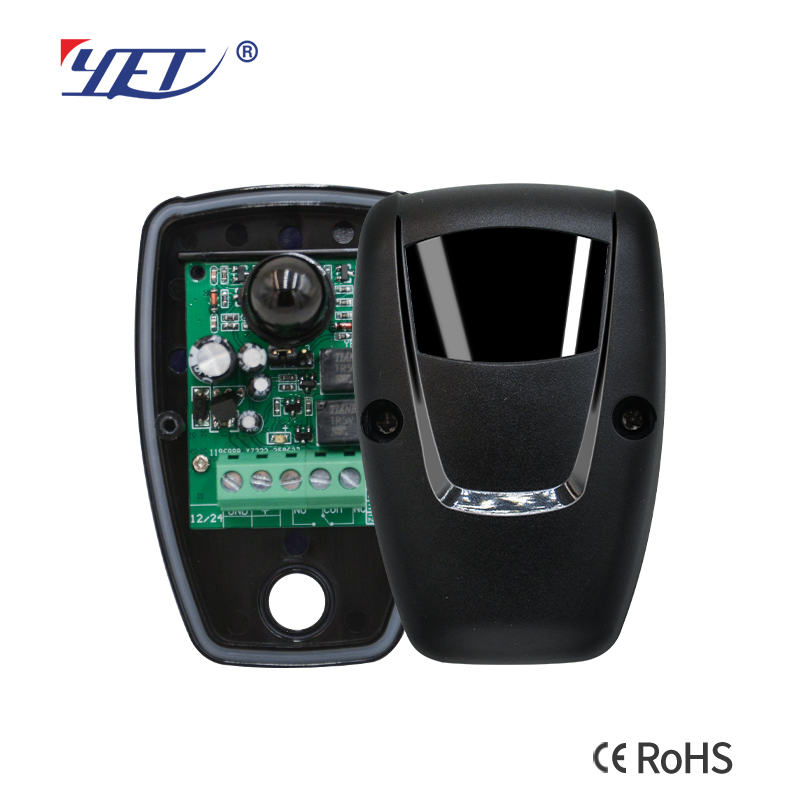

YET616 Wireless Active Single Infrared Reflector Photocell Door Sensor Security Beam for Automatic Sliding Door
| Technology RECEIVER RANGE | Infrared ≤40m Range can be reduced to 30% in bad weatherconditions:for,rain,dust,etc |
| POWER SUPPLY | DC12V(or 24V) |
| WAVE LENGTH | 940nm |
| INPUT | RX l SmA - TX 30mA |
| OPERATING TEMPERATURE | －20ºC to 70ºC |
| RELAY OUTPUT | Imax=lA@30VDC |

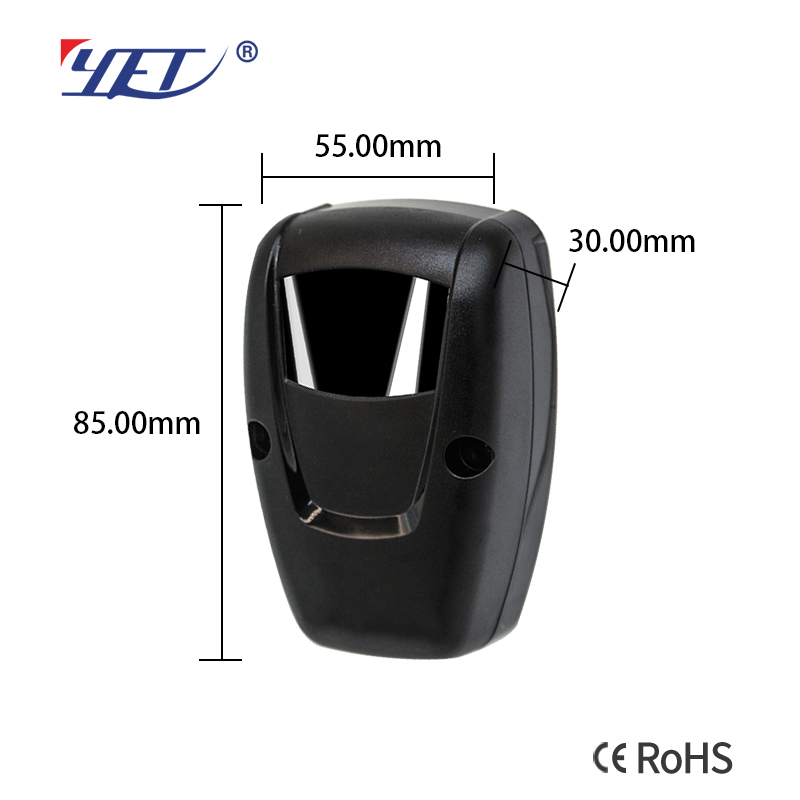

| DIMENSIONS | 85*55*30MM |
The best install height should big in 20 cm, install distance to be no smaller than 2 meters.Install should make red outside the protection equip perpendicularity to place.and is on-line at same level.Install should install first to receive part, install blast-off part again.When together at always line.receive the OFF light In the machine in order to put out, then fix,connect the line to install completion namely.
Attention:
Because this product(Door Sensor)shoot power compare big, so when shoot machine with receive the machine distance too near hour will appear have no the phenomenon of the reaction, at this time should draw back them one meter at least behind again try. When install distance very near. discover not intelligent phenomenon. can shoot and receive medium of the condensing lens remove. can immediately raise an intelligent degree.
Our Service
1. Your inquiry related to our products or prices will be replied in 12 hours;
2. Well-trained and experienced staffs to answer all your inquires in fluent English;
3. OEM&ODM,any your customized products we can help you to design and put into production;
4. Protection of your sales area, ideas of design and all your private information;
5. Deliver by air mail or ship for your orders.
For Order
1. Accept OEM/ODM;
2. Print logo on the case and package;
3. Payment Details :30%deposit,70%balance before shipment.Payment accept T/T and western union optional.
4. Minimum Order:100 pcs(accept trial order);
5. Delivery Details:within two weeks.
Company Profile
Packaging & Shipping
Exhibition
FAQ
Q1.Could I order one piece for sample to test the quality?
Yes, sample is available
Q2.Do you accept OEM order?
Yes. We customized a lot of items for our clients.
Q3.What kind of payment do you accept?
We accept T/T(Wire transfer),Western Union and PayPal, Credit card.
TT can be 30% prepayment before production, 70% balance payment before shipping.
Q4. Does all of your goods come with remote function?
Yes, our remote cotrol receiver distance is about 50-100 meters.
Q5.Do your products carry warranty?
Yes,12 months or more and permanent service.
